تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPSM81033EVM-035TPSM81033 EVALUATION MODULE |
10 |
|
- |
- | Box | Active | DC/DC, Step Up | 1 Isolated Output | - | 2.2V ~ 5.5V | 1A | 1.8V ~ 5.5V | Boost | 2.4MHz | Board(s) | TPSM81033 |
|
|
MAX17524EVKITE#EVAL BOARD FOR MAX17524 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A, 3A | 6.5V ~ 60V | Buck | 450kHz | Board(s) | MAX17524 |
|
MAX20074EVKIT#EVAL BOARD FOR MAX20074 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.7V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20074 |
|
|
MAXM17546EVKITBE#EVAL BOARD FOR MAXM17546 |
0 |
|
- |
Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 7.5V ~ 42V | Buck | 450kHz | Board(s) | MAXM17546 |
|
|
EV97L85AEVAL BOARD FOR LX721901 |
5 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 3.3V | 6A | 2.7V ~ 5.5V | Buck | 1.2MHz | Board(s) | LX7219-01 |
|
|
EVALAG7300EVAL BOARD FOR AG7300 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Isolated Output | 120 W | 48V ~ 58V | 2.2A | 18V ~ 36V | Boost | - | Board(s) | Ag7300 |
|
|
EVALAG7010EVAL BOARD FOR AG7010 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | 120 W | 3V, 5V, 9V or 12V | 10A | 8V ~ 24V | - | - | Board(s) | Ag7010 |
|

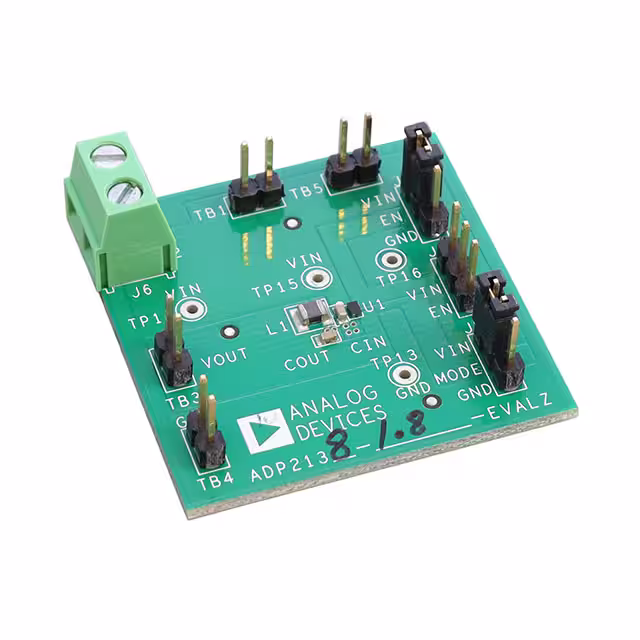

ADP2138CB-1.8EVALZEVAL BOARD FOR ADP2138 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 800mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2138 |
|

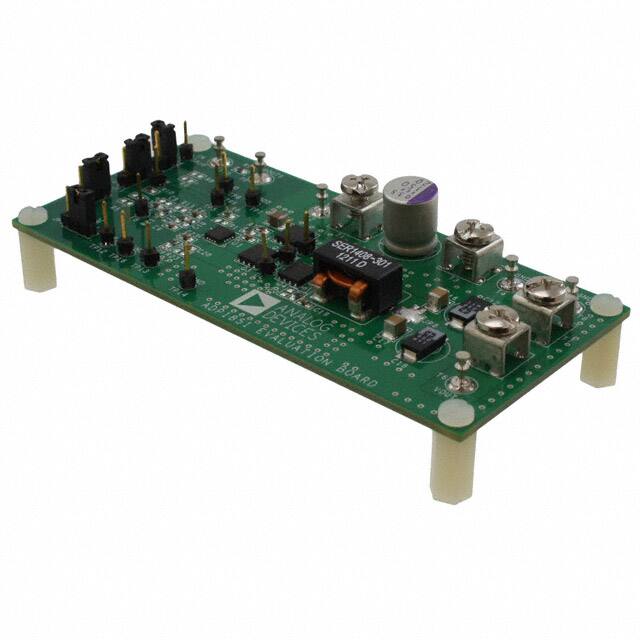

ADP1851-EVALZEVAL BOARD FOR ADP1851 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 25A | 9V ~ 18V | Buck | 600kHz | Board(s) | ADP1851 |
|
ADP2165-EVALZEVAL BOARD FOR ADP2165 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 5A | 2.7V ~ 5.5V | Buck | - | Board(s) | ADP2165 |
|

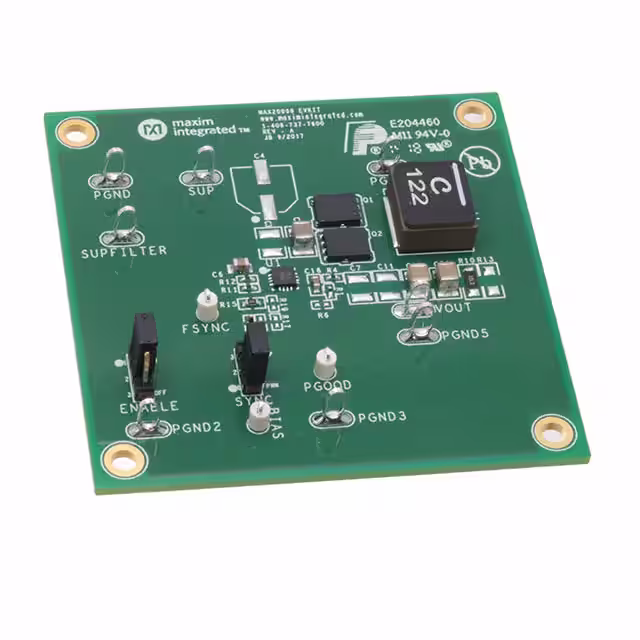

MAX20098EVKIT#EVAL BOARD FOR MAX20098 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 7A | 3.5V ~ 36V | Buck | 2.2MHz | Board(s) | MAX20098 |
|
|
DC3230AEVAL BOARD FOR LTM4652 |
0 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | -5.1V | 32A | 4.5V ~ 13V | Buck | 780kHz | Board(s) | LTM4652 |
|
|
BD9G102G-EVK-001EVAL BOARD FOR BD9G102 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 8V ~ 42V | Buck | 1MHz | Board(s) | BD9G102 |
|
ADP1031CP-2-EVALZEVAL BOARD FOR ADP10312 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 3 Isolated Outputs | - | 5V, 24V, -15V | - | 4.5V ~ 60V | Flyback | - | Board(s) | ADP1031-2 |
|
|
RTKA211835DE0000BUEVAL BOARD FOR RAA211835 |
19 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 75V | Buck | - | Board(s) | RAA211835 |
|
|
MAX17223EVKIT#EVAL BOARD FOR MAX17223 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 2 Isolated Outputs | - | 3V, 5V | 225mA, 225mA | 0.4V ~ 5.5V | Boost | - | Board(s) | MAX17223 |
|

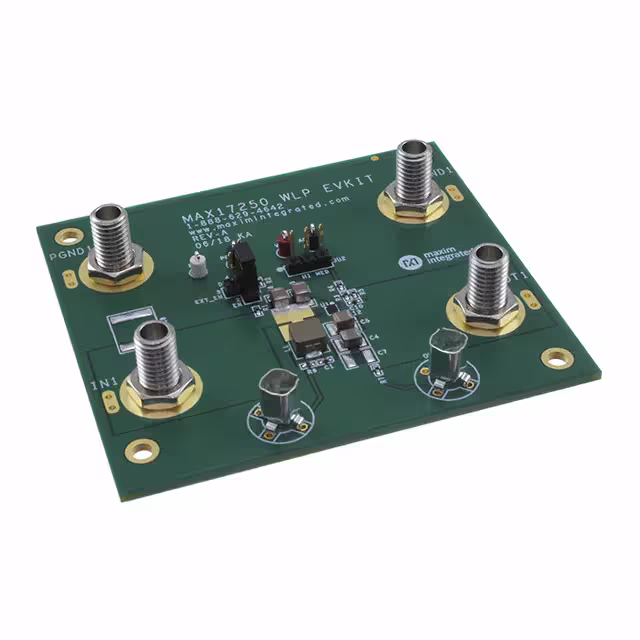

MAX17250EVKIT#WLPEVAL BOARD FOR MAX17250 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 720mA | 2.7V ~ 18V | Boost | - | Board(s) | MAX17250 |
|

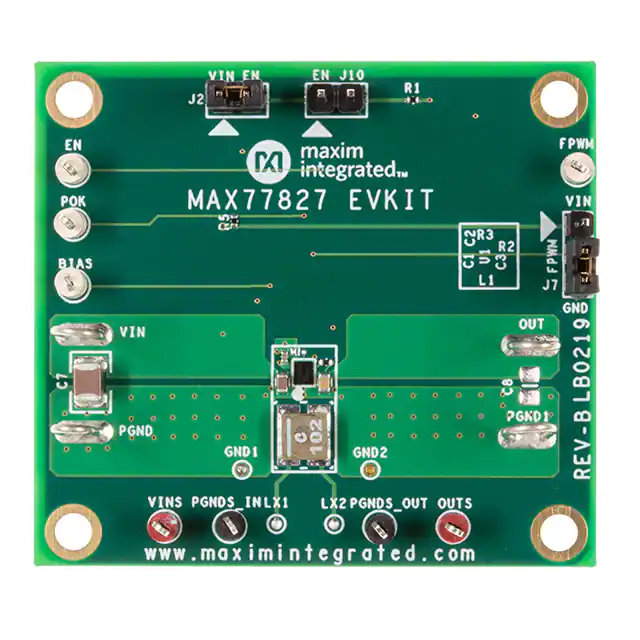

MAX77827EVKIT#EVAL BOARD FOR MAX77827 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1.6A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | MAX77827 |
|
|
EVM82504-BH-02AEVAL BOARD FOR MPM82504 |
5 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.5V ~ 3.3V | 25A, 25A, 25A, 25A | 4V ~ 16V | Buck | 1MHz | Board(s) | MPM82504 |
|
NCP1075SOTGEVBEVAL BOARD FOR NCP1075 |
3 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 10 W | 12V | 800mA | 180 ~ 270 VAC | Flyback | 100kHz | Board(s) | NCP1075 |
