تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL80031DEMO1ZEVAL BOARD FOR ISL80031 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 2.7V ~ 5.5V | Buck | - | Board(s) | ISL80031 |
|
MAXREFDES115A#EVAL BOARD FOR MAX17599 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 20 W | 5V | 4A | 18V ~ 36V | Flyback | 250kHz | Board(s) | MAX17599 |
|
MAXREFDES125#EVAL BOARD FOR MAX17536 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 20 W | 5.1V | 4A | 17V ~ 36V | Buck | - | Board(s) | MAX17536 |
|
ISL80030DEMO1ZEVAL BOARD FOR ISL80030 |
2 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 2.7V ~ 5.5V | Buck | - | Board(s) | ISL80030 |
|
EV8795H-LE-00AEVAL BOARD FOR MP8795H |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 8V ~ 16V | Buck | - | Board(s) | MP8795H |
|
MAXREFDES112A#EVAL BOARD FOR MAX17596 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 10 W | 12V | 800mA | 17V ~ 36V | Flyback | 500kHz | Board(s) | MAX17596 |
|
MAXREFDES113A#EVAL BOARD FOR MAX17596 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 20 W | 12V | 1.6A | 17V ~ 36V | Flyback | 200kHz | Board(s) | MAX17596 |
|
|
MAXREFDES113B#EVAL BOARD FOR MAX17596 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 20 W | 12V | 1.6A | 17V ~ 36V | Flyback | 200kHz | Board(s) | MAX17596 |
|
MAXREFDES114A#EVAL BOARD FOR MAX17599 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 10 W | 5V | 2A | 17V ~ 36V | Flyback | 350kHz | Board(s) | MAX17599 |
|
MAXREFDES116A#EVAL BOARD FOR MAX17599 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 40 W | 5V | 8A | 17V ~ 36V | Flyback | 350kHz | Board(s) | MAX17599 |
|
|
MAXREFDES116B#EVAL BOARD FOR MAX17599 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 40 W | 5V | 8A | 17V ~ 36V | Flyback | 350kHz | Board(s) | MAX17599 |
|
MAXREFDES121C#EVAL BOARD FOR MAX17599 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 33 W | 3.3V | 10A | 18V ~ 36V | Forward Converter | 250kHz | Board(s) | MAX17599 |
|

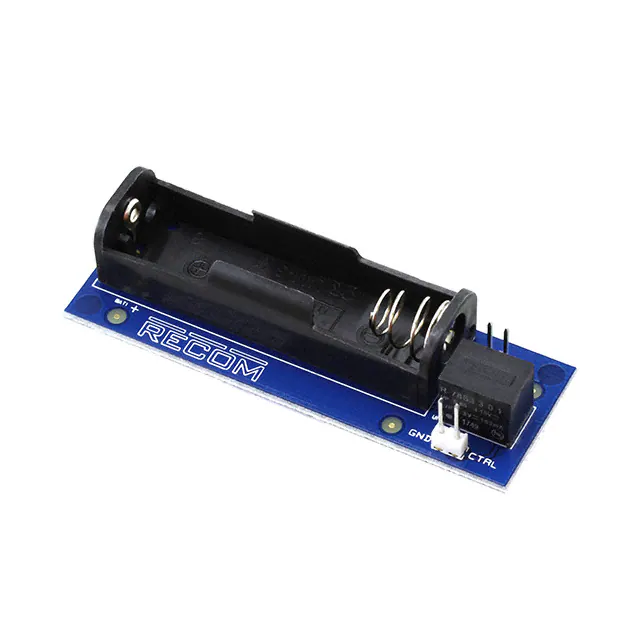

R-REF02-78SEVAL BOARD FOR R78S3.30.1 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 100mA | 0.65V ~ 3.15V | Boost | 1.2MHz | Board(s) | R-78S3.3-0.1 |
|
|
ISL85413DEMO1ZEVAL BOARD FOR ISL85413 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 3.5V ~ 40V | Buck | 700kHz | Board(s) | ISL85413 |
|
EV2182-TL-00AEVAL BOARD FOR MP2182 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 2A | 2.5V ~ 5.5V | Buck | 1.2MHz | Board(s) | MP2182 |
|

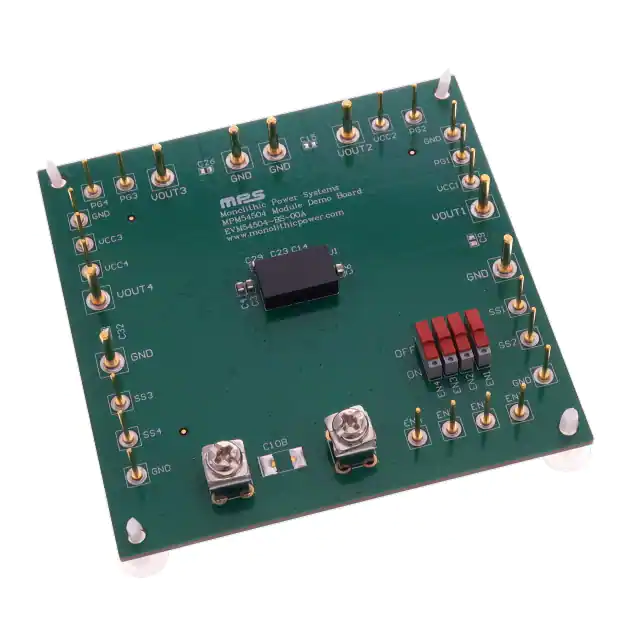

EVM54504-BS-00AEVAL BOARD FOR MPM54504 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 2.5V, 3.3V | 5A, 5A, 5A, 5A | 3V ~ 16V | Buck | 1MHz | Board(s) | MPM54504 |
|

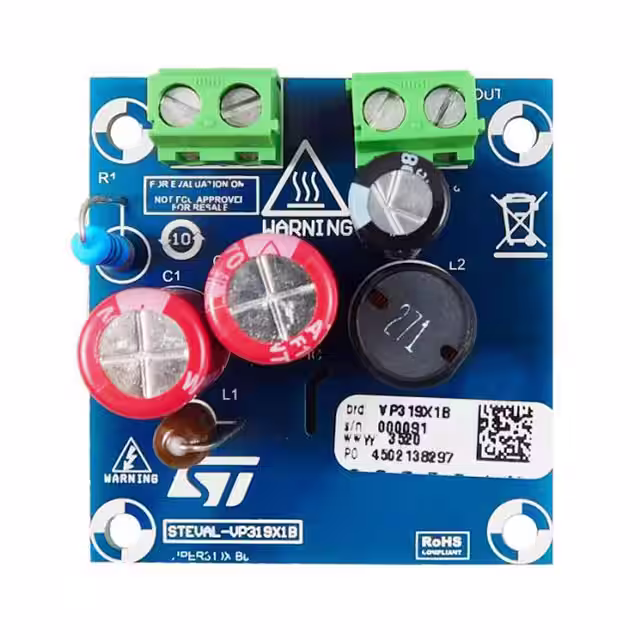

STEVAL-VP319X1BEVAL BOARD FOR VIPER319X |
3 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 3 W | 5V | 600mA | 85 ~ 265 VAC | Buck | 30kHz | Board(s) | VIPer319X |
|

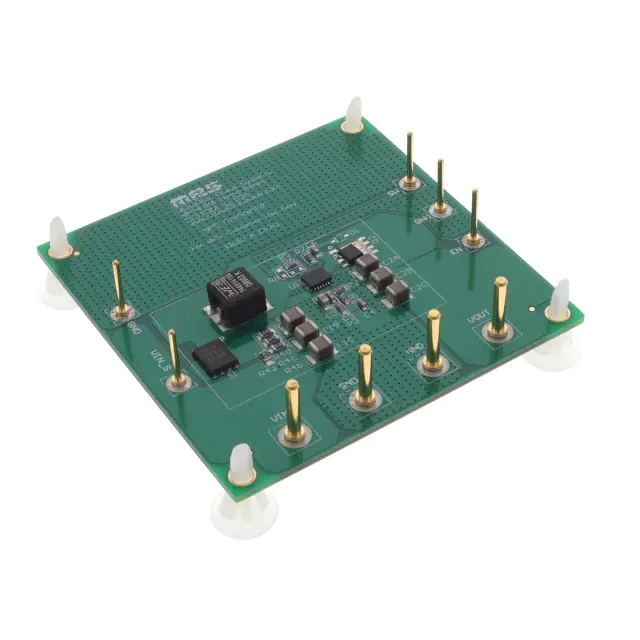

EV3428A-L-00AEVAL BOARD FOR MP3428A |
3 |
|
- |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | 25 W | 12V | 2A | 3V ~ 10V | Boost | 600kHz | Board(s) | MP3428A |
|

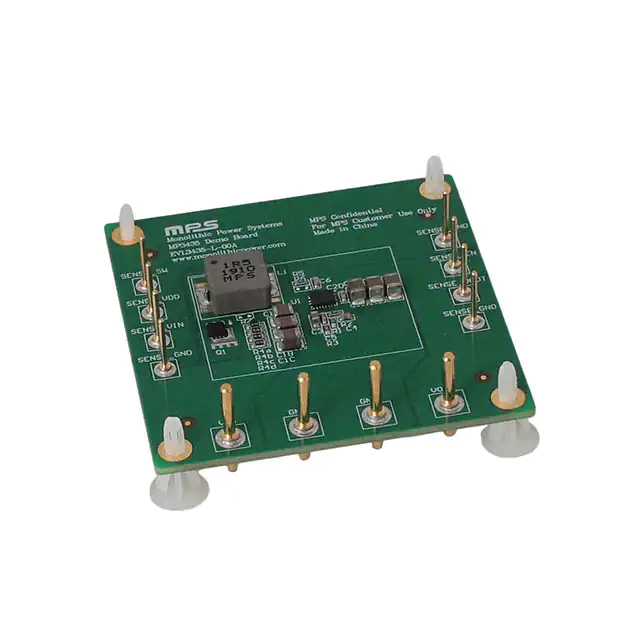

EVL3435-L-00AEVAL BOARD FOR MP3435 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | 4.6 W | 12V | - | 3V ~ 10V | Boost | 600kHz | Board(s) | MP3435 |
|

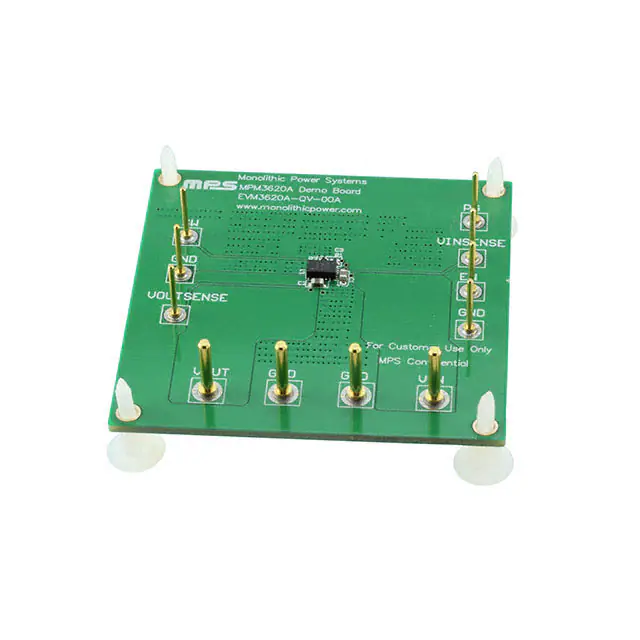

EVM3620A-QV-00AEVAL BOARD FOR MPM3620A |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 12V | Buck | 2MHz | Board(s) | MPM3620A |
