تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM2841YMK-ADJEV/NOPBEVAL BOARD FOR LM2841 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 4.5V ~ 42V | Buck | 1.25MHz | Board(s) | LM2841 |
|
LM2842XMK-ADJEV/NOPBEVAL BOARD FOR LM2842 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 4.5V ~ 42V | Buck | 550kHz | Board(s) | LM2842 |
|
LM5022EVAL/NOPBEVAL BOARD FOR LM5022 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 40V | 500mA | 9V ~ 16V | Boost | 500kHz | Board(s) | LM5022 |
|
LM3150-250EVAL/NOPBEVAL BOARD FOR LM3150 |
1 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 6V ~ 36V | Buck | 250kHz | Board(s) | LM3150 |
|

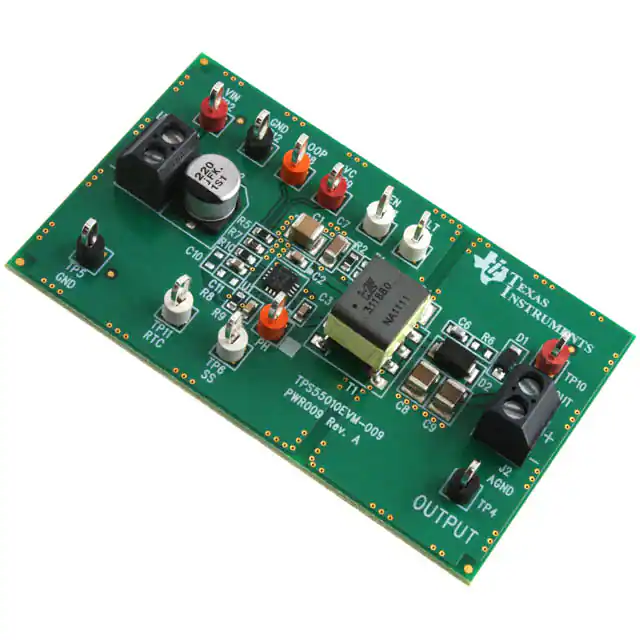

TPS55010EVM-009EVAL BOARD FOR TPS55010009 |
1 |
|
برگه مشخصات |
Fly-buck™ | Bulk | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 4.5V ~ 6V | 200mA | 3V ~ 6V | Buck, Flyback | 350kHz | Board(s) | TPS55010-009 |
|

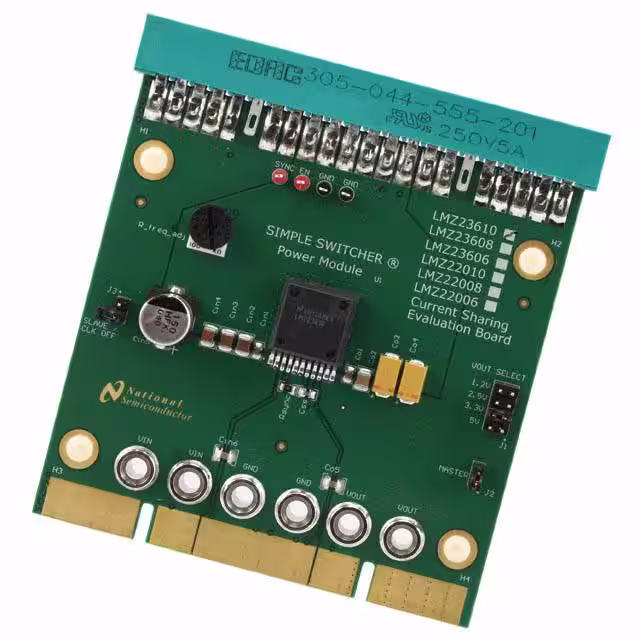

LMZ23610EVAL/NOPBEVAL BOARD FOR LMZ23610 |
1 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 2.5V, 3.3V, 5V | 10A | 6V ~ 36V | Buck | - | Board(s) | LMZ23610 |
|
LMZ13610EVAL/NOPBEVAL BOARD FOR LMZ13610 |
1 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 2.5V, 3.3V, 5V | 10A | 6V ~ 36V | Buck | - | Board(s) | LMZ13610 |
|
TPS54062EVM-695EVAL BOARD FOR TPS54062 |
1 |
|
برگه مشخصات |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 50mA | 8V ~ 60V | Buck | 240kHz | Board(s) | TPS54062 |
|

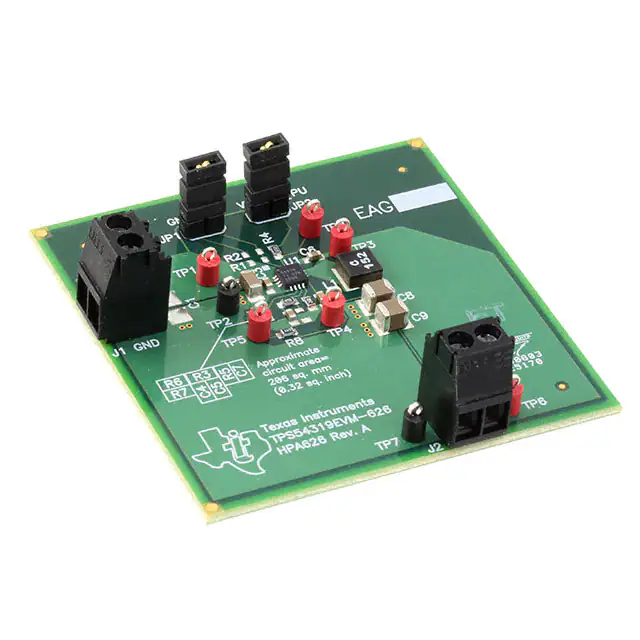

TPS54319EVM-626EVAL BOARD FOR TPS54319 |
1 |
|
برگه مشخصات |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 3V ~ 6V | Buck | 200kHz ~ 2MHz | Board(s) | TPS54319 |
|

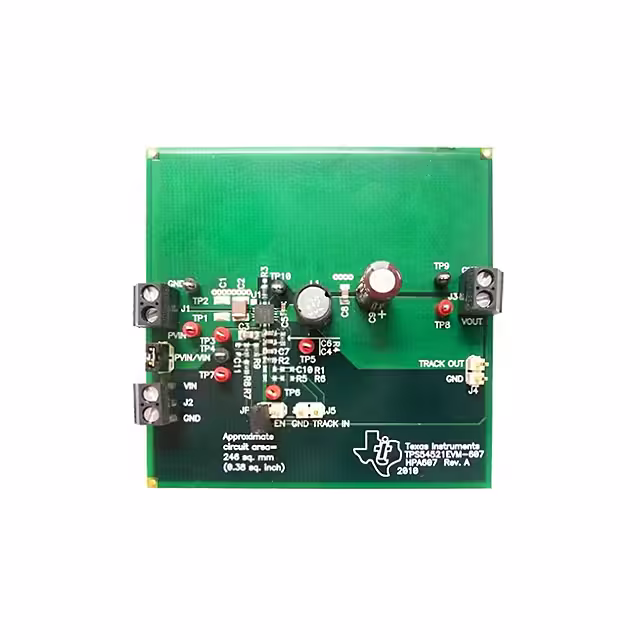

TPS54521EVM-607EVAL BOARD FOR TPS54521 |
1 |
|
برگه مشخصات |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 8V ~ 17V | Buck | 200kHz ~ 900kHz | Board(s) | TPS54521 |
|

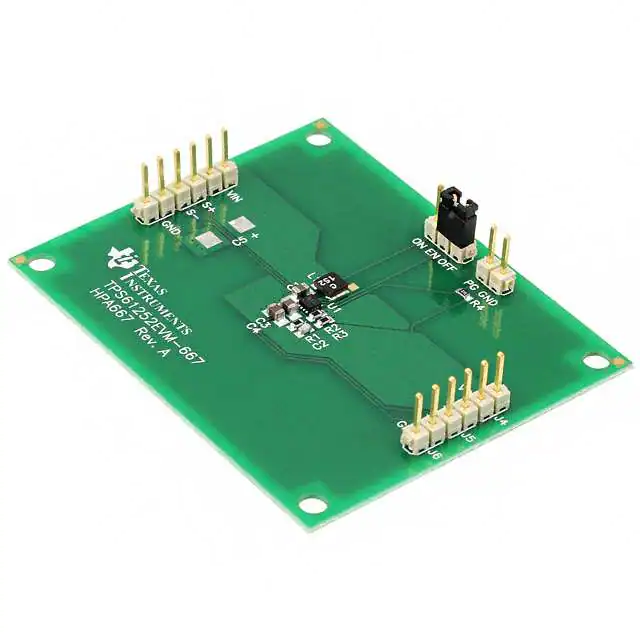

TPS61252EVM-667EVAL BOARD FOR TPS61252 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 330mA | 2.3V ~ 6V | Boost | 3.25MHz | Board(s) | TPS61252 |
|

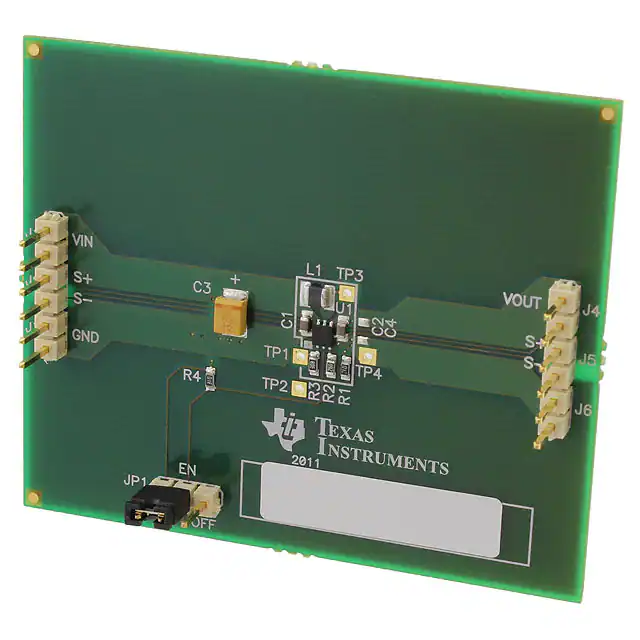

TPS61260EVM-673EVAL BOARD FOR TPS61260 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V ~ 4V | 100mA | 0.8V ~ 4V | Boost | 2.5MHz | Board(s) | TPS61260 |
|

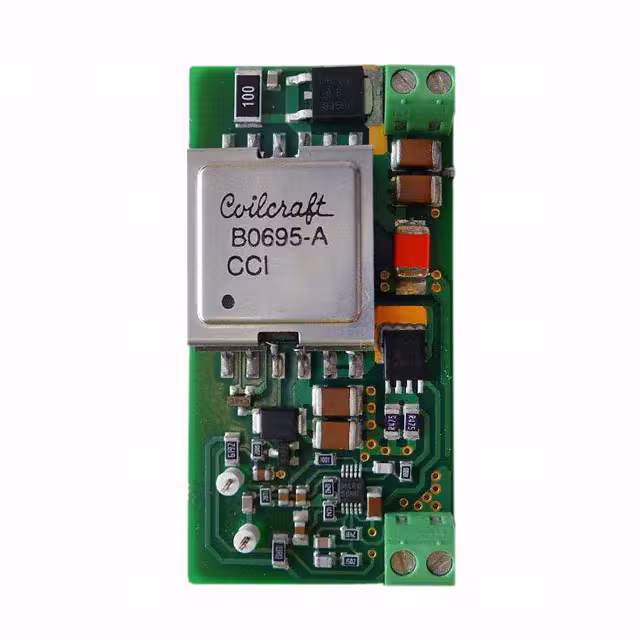

LM5020EVAL/NOPBEVAL BOARD FOR LM5020 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 4.5A | 30V ~ 75V | Flyback | - | Board(s) | LM5020 |
|

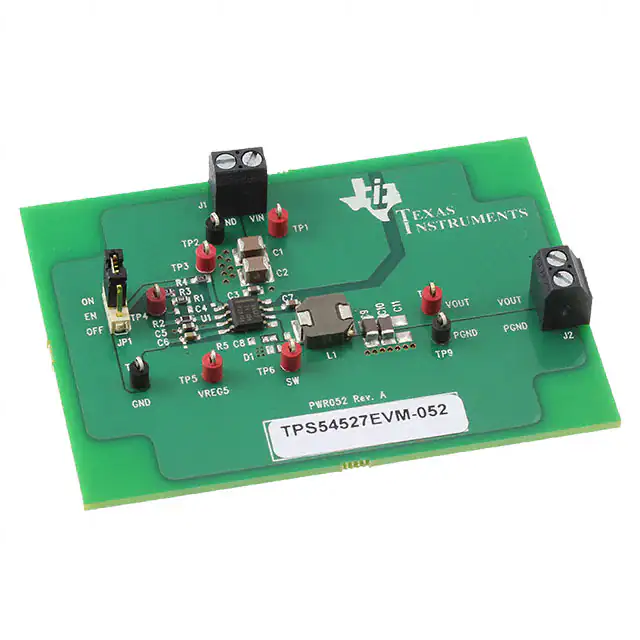

TPS54527EVM-052EVAL BOARD FOR TPS54527 |
1 |
|
برگه مشخصات |
SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 5A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54527 |
|

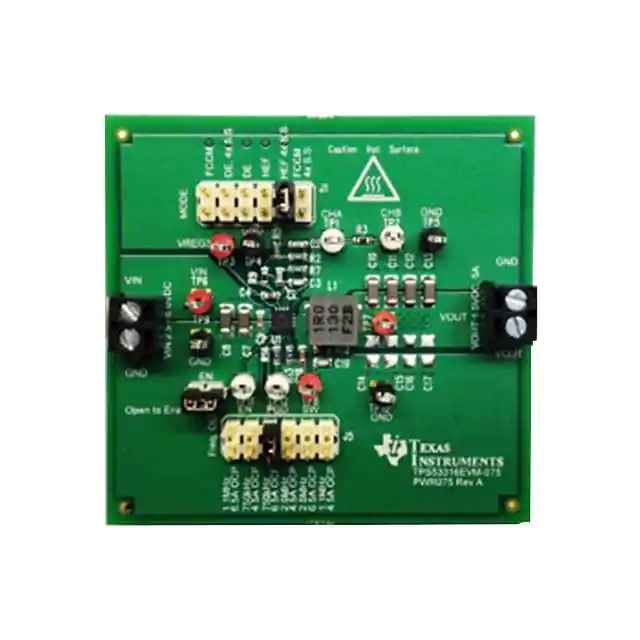

TPS53316EVM-075EVAL BOARD FOR TPS53316 |
1 |
|
برگه مشخصات |
SmoothPWM™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 5A | 2.9V ~ 6V | Buck | - | Board(s) | TPS53316 |
|

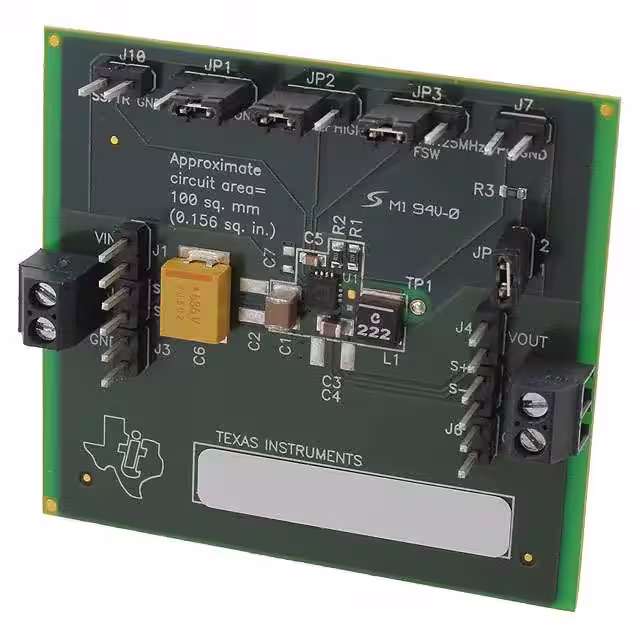

TPS62150EVM-505EVAL BOARD FOR TPS62150 |
1 |
|
برگه مشخصات |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 3.7V ~ 17V | Buck | - | Board(s) | TPS62150 |
|

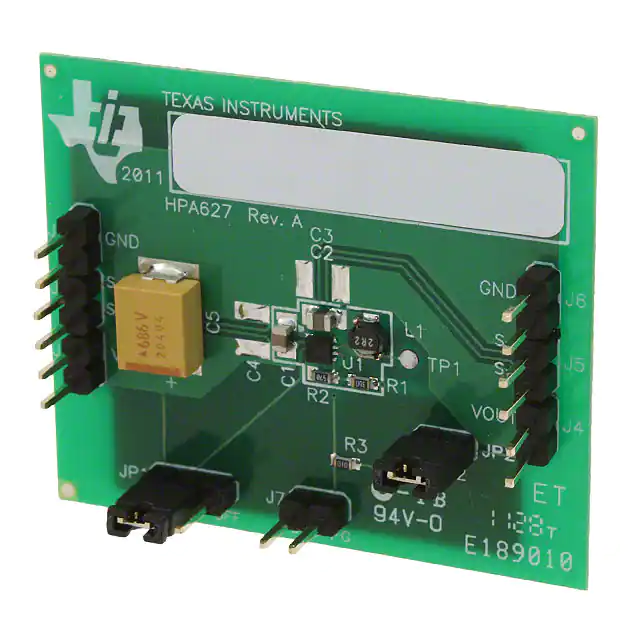

TPS62160EVM-627EVAL BOARD FOR TPS62160 |
1 |
|
برگه مشخصات |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 3.7V ~ 17V | Buck | - | Board(s) | TPS62160 |
|

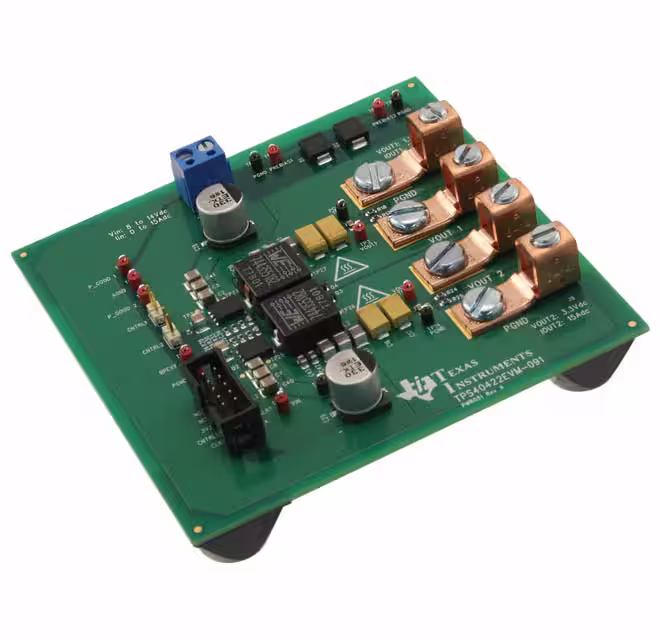

TPS40422EVM-091EVAL BOARD FOR TPS40422 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 20A, 15A | 8V ~ 14V | Buck | 460kHz | Board(s) | TPS40422 |
|

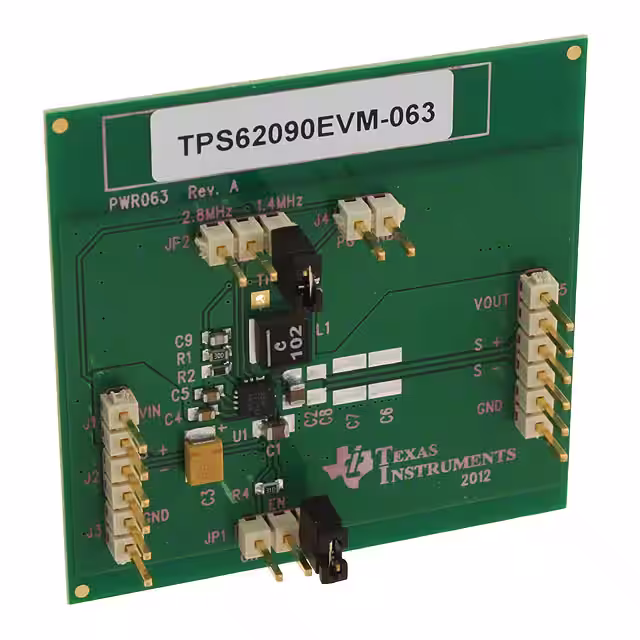

TPS62090EVM-063EVAL BOARD FOR TPS62090 |
1 |
|
برگه مشخصات |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.5V ~ 6V | Buck | 1.4MHz, 2.8MHz | Board(s) | TPS62090 |
|

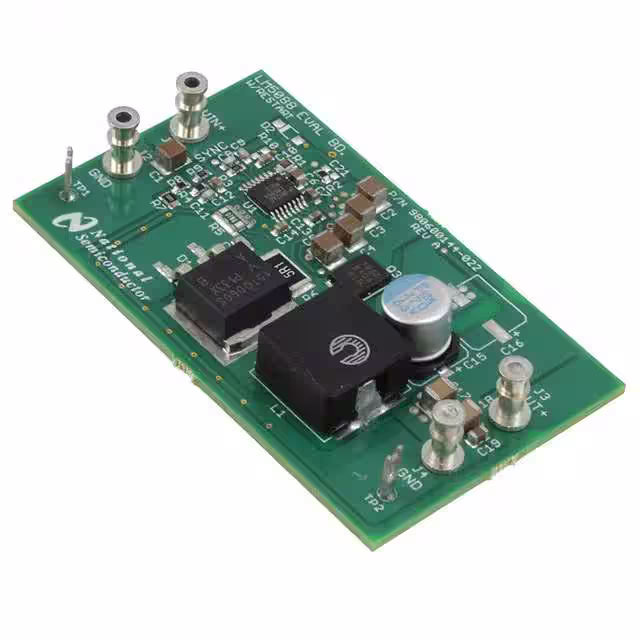

LM5088MH-2EVAL/NOPBEVAL BOARD FOR LM5088 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 7A | 5.5V ~ 55V | Buck | 250kHz | Board(s) | LM5088 |
