تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX15020EVKIT+EVAL BOARD FOR MAX15020 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 30V | 2A | 7.5V ~ 40V | Buck | - | Board(s) | MAX15020 |
|

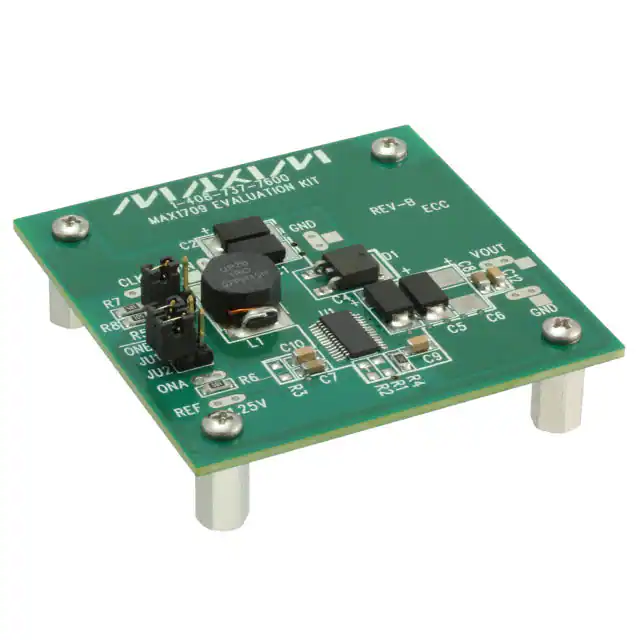

MAX1709EVKITEVAL BOARD FOR MAX1709 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 4A | - | Boost | 600kHz | Board(s) | MAX1709 |
|

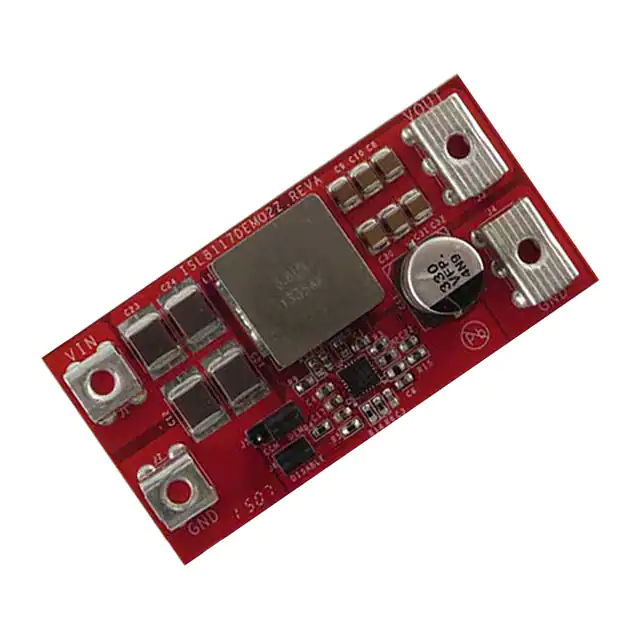

ISL8117DEMO2ZEVAL BOARD FOR ISL8117 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 18V ~ 60V | Buck | 200kHz | Board(s) | ISL8117 |
|

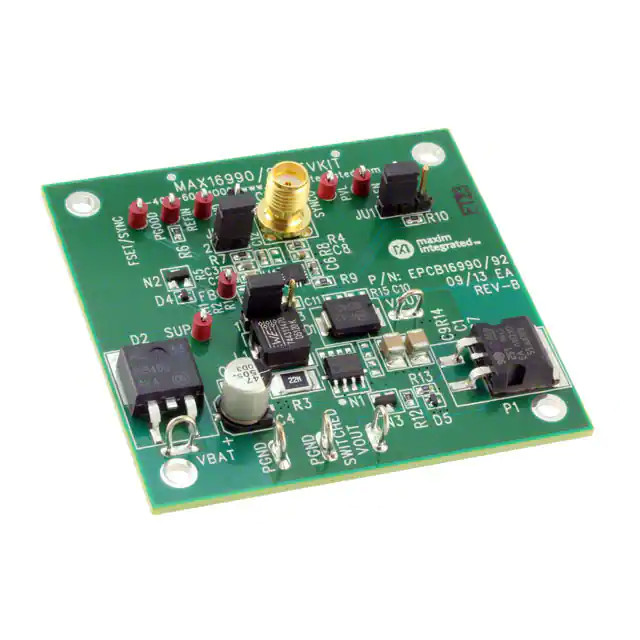

MAX16990EVKIT#EVAL BOARD FOR MAX16990 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 8V | 2A | 4.5V ~ 36V | Boost | 400kHz | Board(s) | MAX16990 |
|

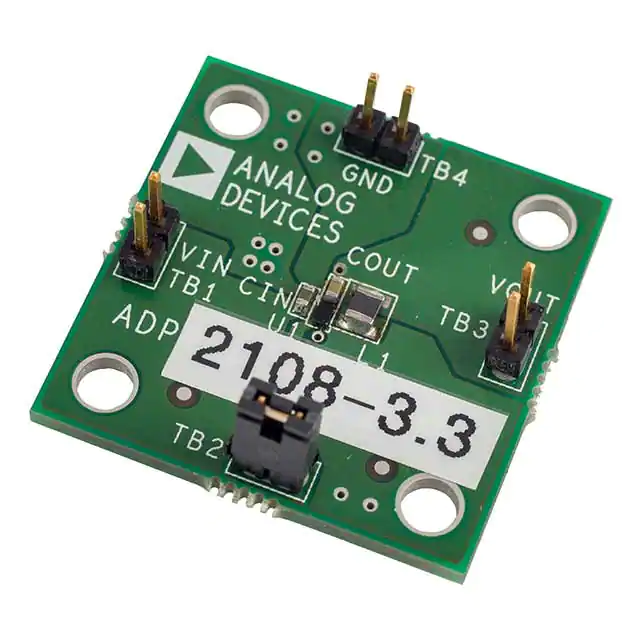

ADP2108-3.3-EVALZEVAL BOARD FOR ADP2108 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2108 |
|

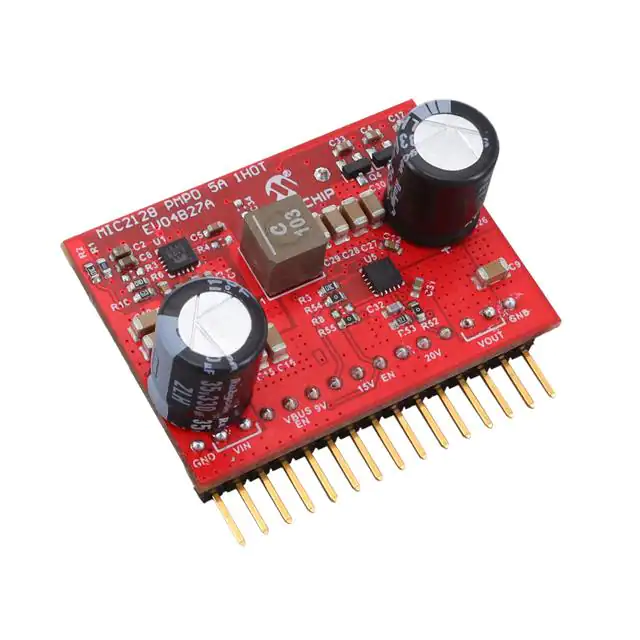

EV04B27AEVAL BOARD FOR MIC2128 UCS3205 |
1 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | 100 W | 5V, 9V, 15V or 20V | 5A | 24V | Buck | - | Board(s) | MIC2128, UCS3205 |
|
SI3404FB5V3KITEVAL BOARD FOR SI3404 |
1 |
|
برگه مشخصات |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 15 W | 5V | 2.5A | 37V ~ 57V | Flyback | 220kHz | Board(s) | Si3404 |
|
MAX22258EVKIT#EVAL BOARD FOR MAX22258 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 24V | 200mA | 5V ~ 36V | - | - | Board(s) | MAX22258 |
|

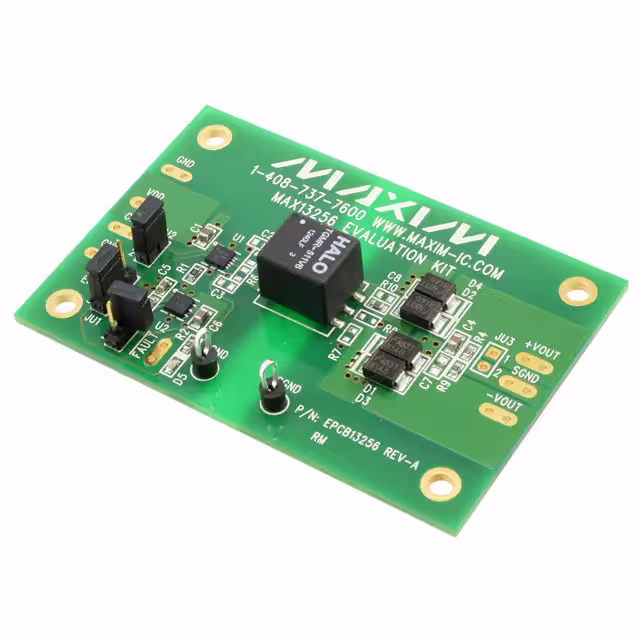

MAX13256EVKIT#EVAL BOARD FOR MAX13256 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 6.8V ~ 34.8V | 300mA | 8V ~ 36V | Full-Bridge | 425kHz | Board(s) | MAX13256 |
|

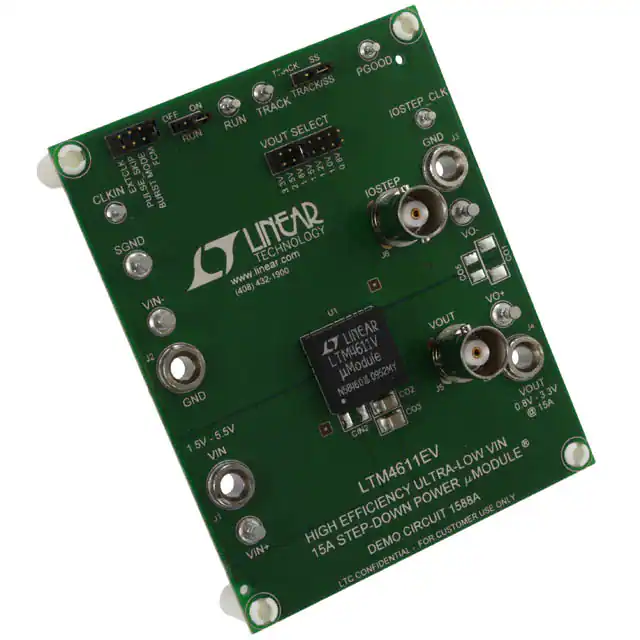

DC1588AEVAL BOARD FOR LTM4611 |
1 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1V, 1.2V, 1.5V, 1.8V, 2.5V, or 3.3V | 15A | 1.5V ~ 5.5V | Buck | 500kHz | Board(s) | LTM4611 |
|

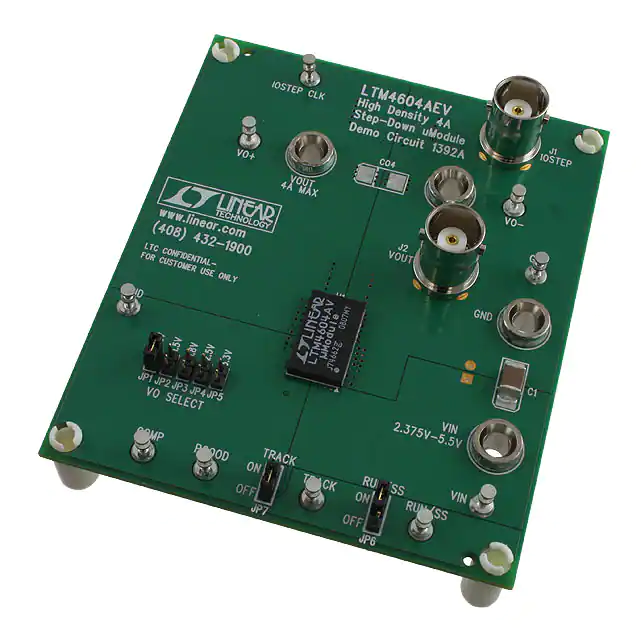

DC1392AEVAL BOARD FOR LTM4604A |
1 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.2V, 1.5V, 1.8V, 2.5V, or 3.3V | 4A | 2.375V ~ 5.5V | Buck | 1.25MHz | Board(s) | LTM4604A |
|

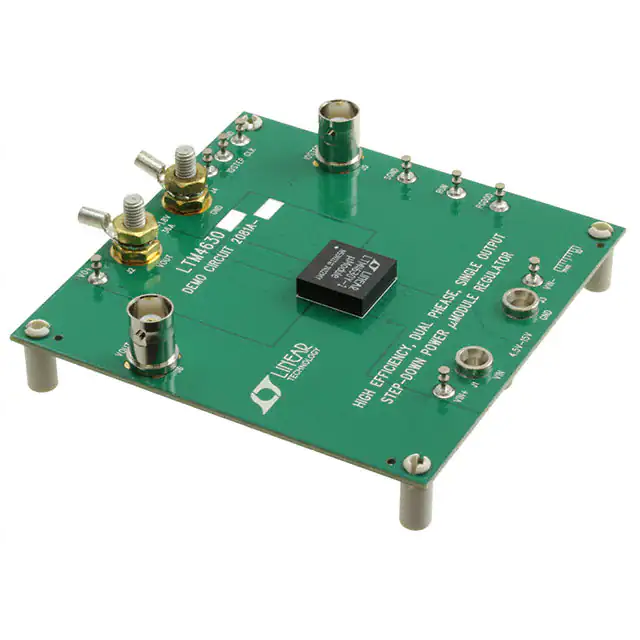

DC2081A-BEVAL BOARD FOR LTM46301 |
1 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 36A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630-1 |
|
DC2367AEVAL BOARD FOR LTM4632 |
1 |
|
برگه مشخصات |
µModule® | Box | Active | Special Purpose DC/DC, DDR Memory Supply | 3 Non-Isolated Outputs | - | - | 3A, 3A, 10mA | 3.6V ~ 15V | Buck | 1MHz | Board(s) | LTM4632 |
|

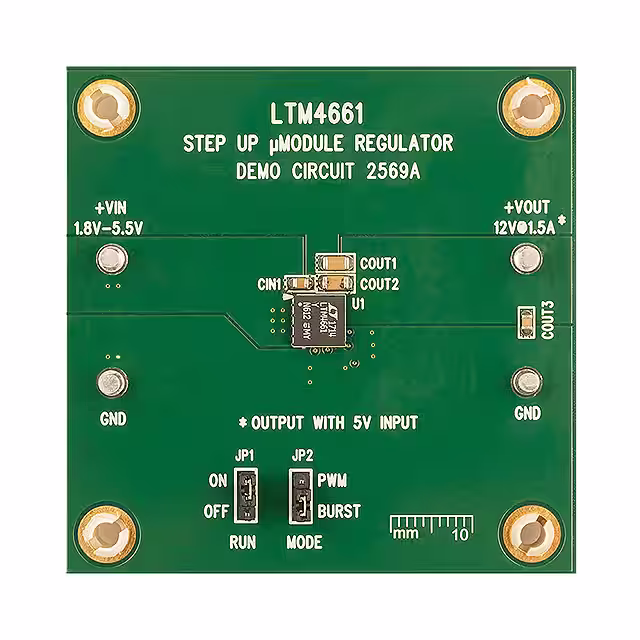

DC2569AEVAL BOARD FOR LTM4661 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1A | 1.8V ~ 5.5V | Boost | 1MHz | Board(s) | LTM4661 |
|

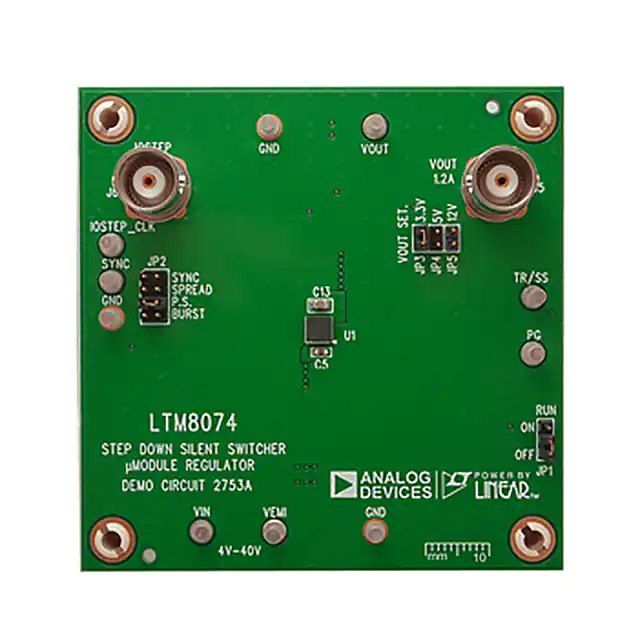

DC2753AEVAL BOARD FOR LTM8074 |
0 |
|
برگه مشخصات |
µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1.2A | 3.4V ~ 40V | Buck | 2MHz | Board(s) | LTM8074 |
|

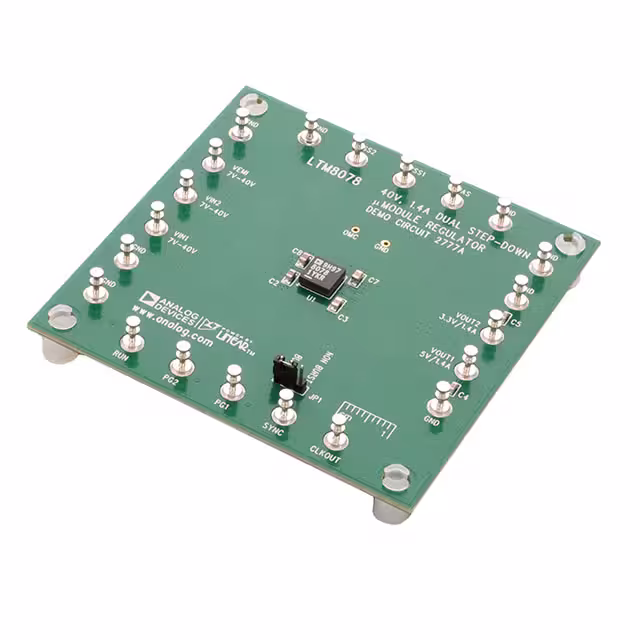

DC2777AEVAL BOARD FOR LTM8078 |
0 |
|
برگه مشخصات |
Silent Switcher®, µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 1.4A, 1.4A | 7V ~ 40V | Buck | 1.6MHz | Board(s) | LTM8078 |
|

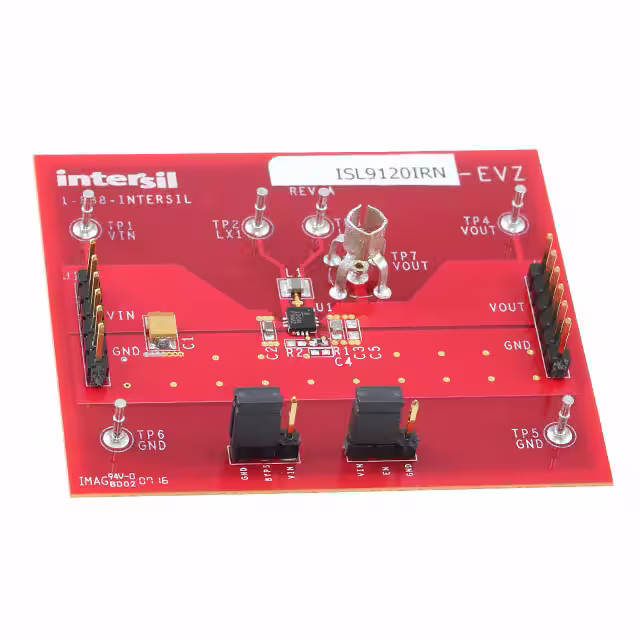

ISL9120IRN-EVZEVAL BOARD FOR ISL9120IR |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | ISL9120IR |
|

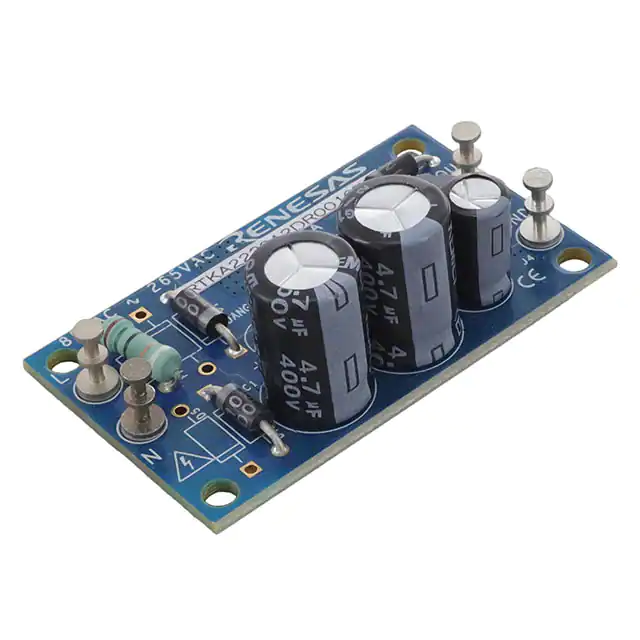

RTKA223012DR0010BUEVAL BOARD FOR RAA223012 |
1 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 750 mW | 5V | 150mA | 85 ~ 265 VAC | Buck | - | Board(s) | RAA223012 |
|

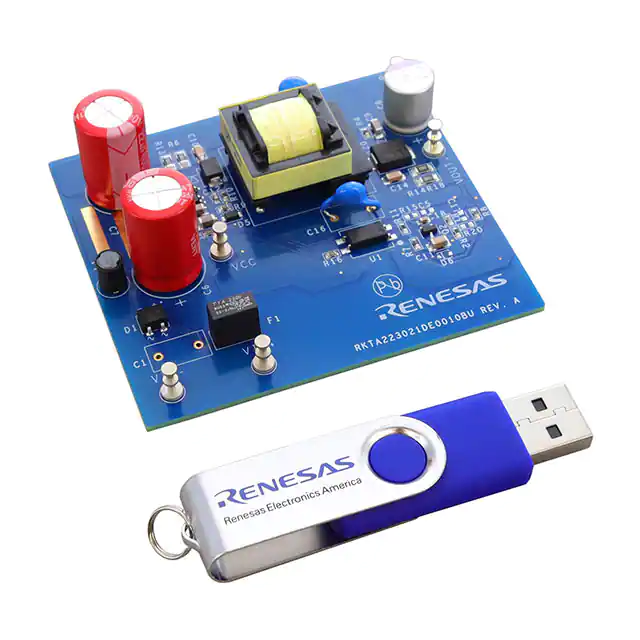

RTKA223021DE0010BUEVAL BOARD FOR RAA223021 |
1 |
|
- |
- | Bulk | Active | AC/DC Converter | 1 Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s) | RAA223021 |
|
|
RTKA223011DR0040BUEVAL BOARD FOR RAA223011 |
1 |
|
- |
- | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | - | 24V | 200mA | 85 ~ 265 VAC | Buck | 30kHz | Board(s) | RAA223011 |
