تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDCD28AP480M320A50EVAL BOARD MDCM28AP480M320A50 |
0 |
|
برگه مشخصات |
VI Chip® DCM® | Box | Active | DC/DC, Step Down | 1 Isolated Output | 320 W | 48V | 6.67A | 16V ~ 50V | Buck | - | Board(s) | MDCM28AP480M320A50 |
|
551011367-011/NOPBEVAL BOARD FOR LM2598 LM2670 |
4 |
|
برگه مشخصات |
WEBENCH® Buildit Board | Bulk | Active | DC/DC, Step Down | - | - | - | - | - | Buck | - | Unpopulated (Bare) Board(s) | LM2598, LM2670, LM2673, LM2676, LM2677, LM2678, LM2679 |
|

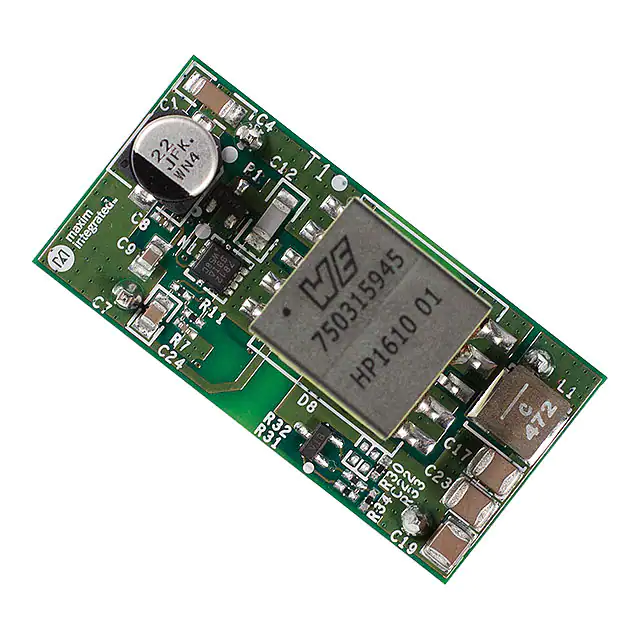

MAXREFDES115B#EVAL BOARD FOR MAX17599 |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 20 W | 5V | 4A | 18V ~ 36V | Flyback | 250kHz | Board(s) | MAX17599 |
|

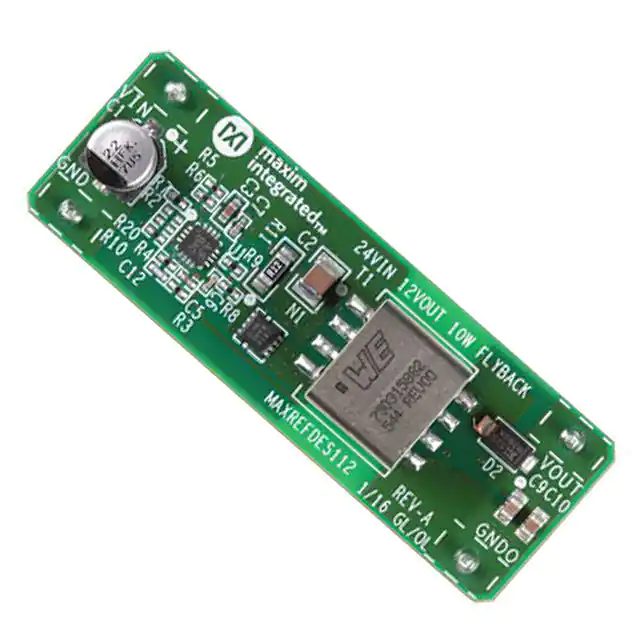

MAXREFDES112B#EVAL BOARD FOR MAX17596 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 10 W | 12V | 800mA | 17V ~ 36V | Flyback | 500kHz | Board(s) | MAX17596 |
|
|
MAXREFDES112C#EVAL BOARD FOR MAX17596 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 10 W | 12V | 800mA | 17V ~ 36V | Flyback | 500kHz | Board(s) | MAX17596 |
|
MAXREFDES111B#EVAL BOARD FOR MAX17498B |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 2 W | 5V | 400mA | 18V ~ 36V | Flyback | 500kHz | Board(s) | MAX17498B |
|
|
MAXREFDES111C#EVAL BOARD FOR MAX17498B |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 2 W | 5V | 400mA | 18V ~ 36V | Flyback | 500kHz | Board(s) | MAX17498B |
|
|
MAXREFDES115C#EVAL BOARD FOR MAX17599 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 20 W | 5V | 4A | 18V ~ 36V | Flyback | 250kHz | Board(s) | MAX17599 |
|

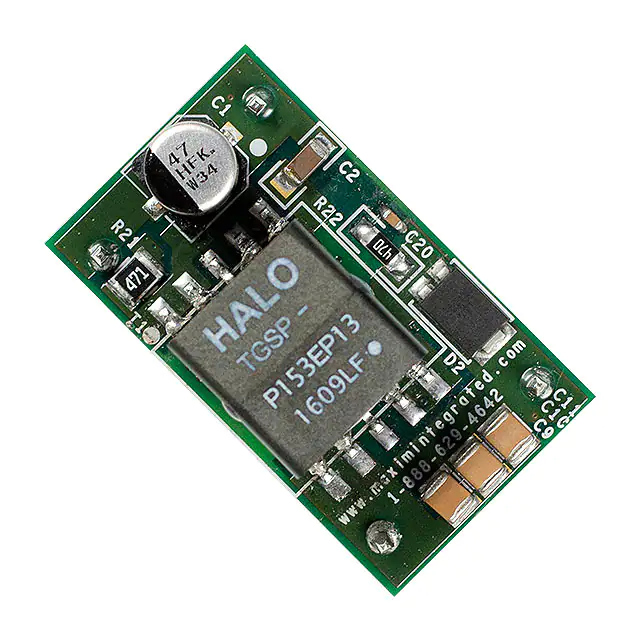

MAXREFDES113D#EVAL BOARD FOR MAX17596 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 20 W | 12V | 1.6A | 17V ~ 36V | Flyback | 200kHz | Board(s) | MAX17596 |
|
MAXREFDES114C#EVAL BOARD FOR MAX17599 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 10 W | 5V | 2A | 17V ~ 36V | Flyback | 350kHz | Board(s) | MAX17599 |
|

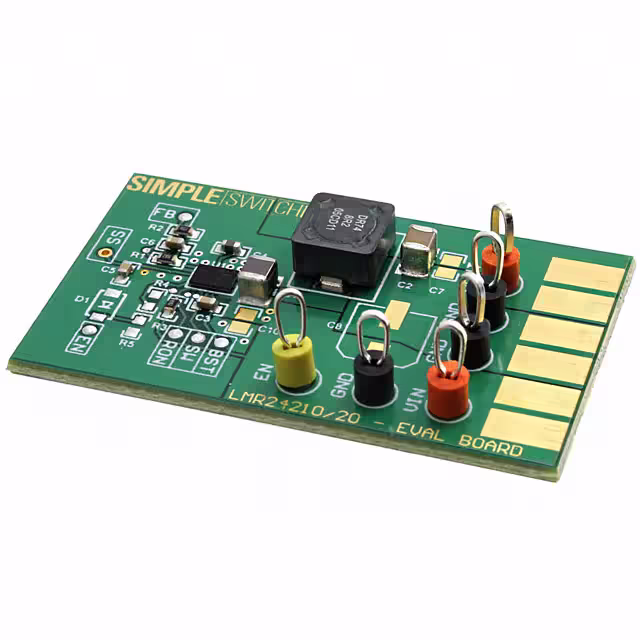

LMR24220EVAL/NOPBEVAL BOARD FOR LMR24220 |
5 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 42V | Buck | 500kHz | Board(s) | LMR24220 |
|
EVM3686-RU-00AEVAL BOARD FOR MPM3686 |
5 |
|
برگه مشخصات |
- | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V or 1.8V | 20A | 8V ~ 18V | Buck | - | Board(s) | MPM3686 |
|
EVL3438-TL-00AEVAL BOARD FOR MP3438 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.2A | 3V ~ 10V | Boost | 1.2MHz | Board(s) | MP3438 |
|
|
MAXREFDES112D#EVAL BOARD FOR MAX17596 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 10 W | 12V | 800mA | 17V ~ 36V | Flyback | 500kHz | Board(s) | MAX17596 |
|
|
MAXREFDES113C#EVAL BOARD FOR MAX17596 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 20 W | 12V | 1.6A | 17V ~ 36V | Flyback | 200kHz | Board(s) | MAX17596 |
|
|
MAXREFDES114B#EVAL BOARD FOR MAX17599 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 10 W | 5V | 2A | 17V ~ 36V | Flyback | 350kHz | Board(s) | MAX17599 |
|
MAXREFDES116D#EVAL BOARD FOR MAX17599 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 40 W | 5V | 8A | 17V ~ 36V | Flyback | 350kHz | Board(s) | MAX17599 |
|

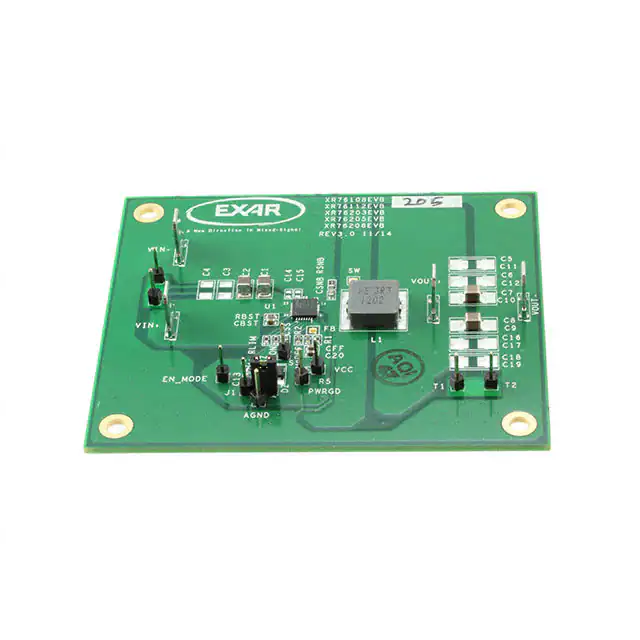

XR76205EVBEVAL BOARD FOR XR76205 |
3 |
|
برگه مشخصات |
PowerBlox™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 5V ~ 40V | Buck | - | Board(s) | XR76205 |
|
|
EV1475S-J-00AEVAL BOARD FOR MP1475S |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 12V | Buck | 500kHz | Board(s) | MP1475S |
|

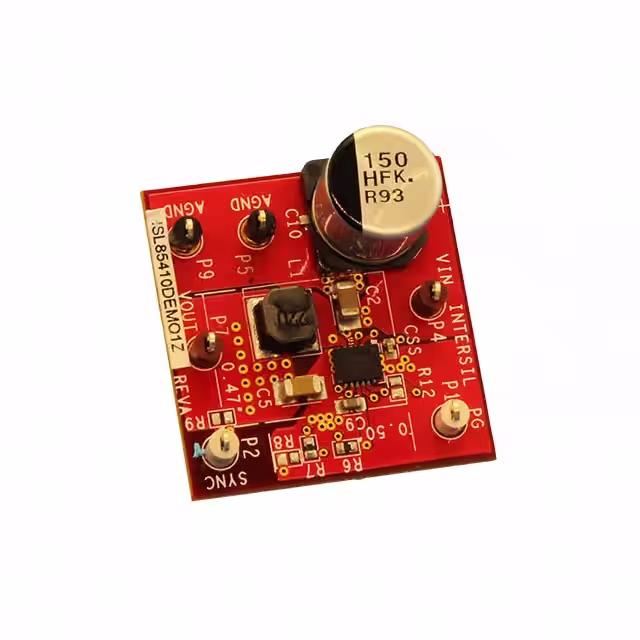

ISL85410DEMO1ZEVAL BOARD FOR ISL85410 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 3V ~ 36V | Buck | 500kHz | Board(s) | ISL85410 |
