تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPSM828303PEVM-058EVAL BOARD FOR TPSM828303P |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | TPSM828303P |
|
|
TPSM82866CA3PEVMEVAL BOARD FOR TPSM82866 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 2.4V ~ 5.5V | Buck | - | Board(s) | TPSM82866 |
|
|
MAX77533B33EVKIT#EVAL BOARD FOR MAX77533 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 3V ~ 14V | Buck | - | Board(s) | MAX77533 |
|
|
TPS54538EVMTPS54538 EVALUATION MODULE |
0 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 5A | 5.5V ~ 28V | Buck | 500kHz | Board(s) | TPS54538 |
|
|
TPSM84338EVMTPSM84338 EVALUATION MODULE |
0 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 3A | 5.5V ~ 28V | Buck | 1MHz | Board(s) | TPSM84338 |
|

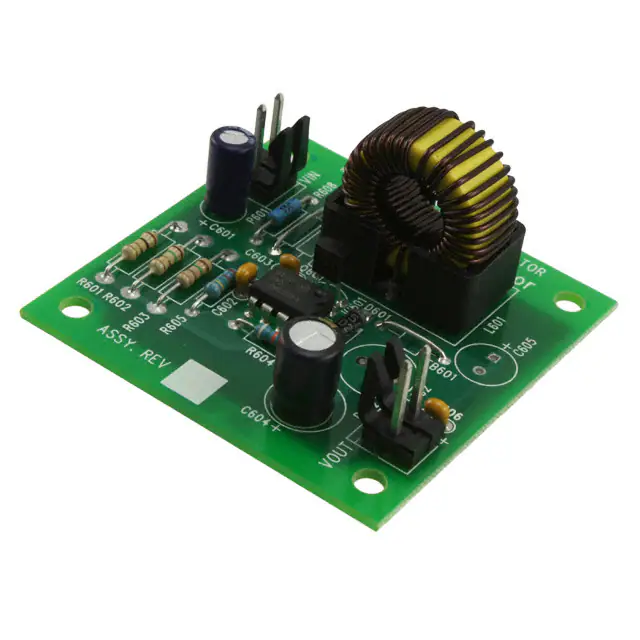

MC34063LINVEVBEVAL BOARD FOR MC34063 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 50mA | 5V | Inverting | 100kHz | Board(s) | MC34063 |
|

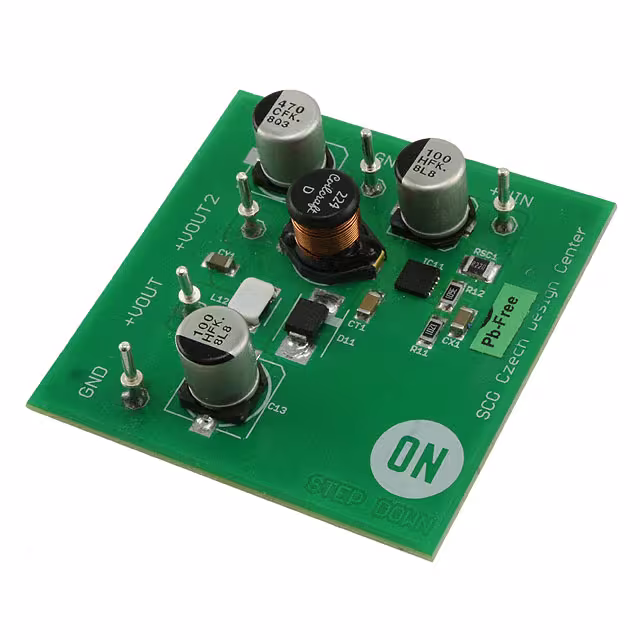

MC33063DFBCKGEVBEVAL BOARD FOR MC33063 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 28V | 1.5A | 12V | Boost | 100kHz | Board(s) | MC33063 |
|
MC34063SMDBKEVBEVAL BOARD FOR MC34063 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 100mA | 12V | Buck | 100kHz | Board(s) | MC34063 |
|
NCP1014STBUCGEVBEVAL BOARD FOR NCP1014 |
0 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | - | 12V | - | 85 ~ 265 VAC | Buck | 65kHz | Board(s) | NCP1014 |
|
|
LM2596ATPBCKGEVBEVAL BOARD FOR LM2596 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 4.5V ~ 40V | Buck | 150kHz | Board(s) | LM2596 |
|

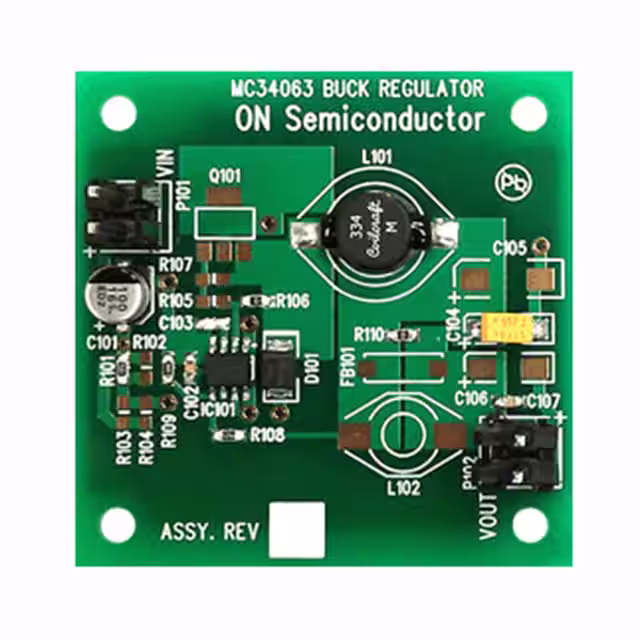

MC34063SMDBKGEVBEVAL BOARD FOR MC34063 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | - | 12V | Buck | - | Board(s) | MC34063 |
|

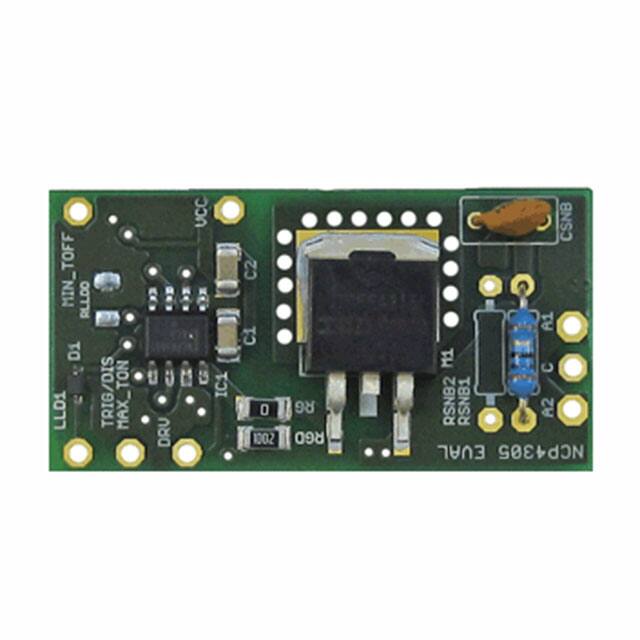

NCP4305FLY40GEVBEVAL BOARD FOR NCP4305 |
0 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Secondary Side | - | - | - | - | - | - | - | Board(s) | NCP4305 |
|
NCV890204MWGEVBEVAL BOARD FOR NCV890204 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 6V ~ 36V | Buck | 2MHz | Board(s) | NCV890204 |
|

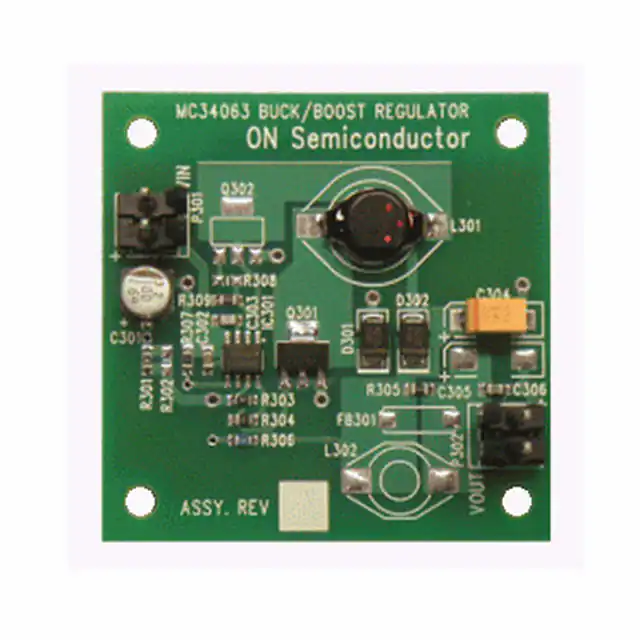

MC34063SMDBBGEVBEVAL BOARD FOR MC34063 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | - | 3V ~ 6V | Buck-Boost | - | Board(s) | MC34063 |
|

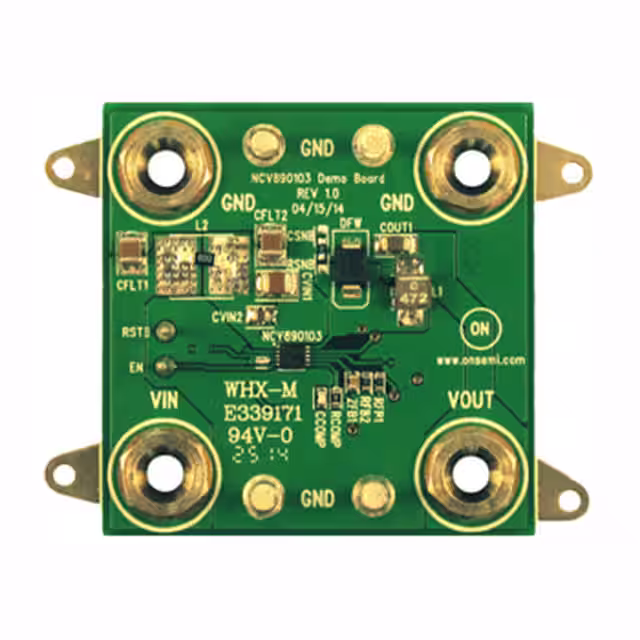

NCV890103MWGEVBEVAL BOARD FOR NCV890103 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1A | 6V ~ 36V | Buck | 2MHz | Board(s) | NCV890103 |
|
|
AP64102SP-EVMEVAL BOARD FOR AP64102 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1A | 3.8V ~ 40V | Buck | - | Board(s) | AP64102 |
|
|
AP61302QZ6-EVMEVAL BOARD FOR AP61302Q |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 2.4V ~ 5.5V | Buck | 2.2MHz | Board(s) | AP61302Q |
|
|
AP64060WU-EVMEVAL BOARD FOR AP64060 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 26V | 600mA | 4.5V ~ 40V | Buck | 2.2MHz | Board(s) | AP64060 |
|
|
AP62500SJ-EVMEVAL BOARD FOR AP62500 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 7V | 5A | 4.5V ~ 18V | Buck | 800kHz | Board(s) | AP62500 |
|
NCP11187A65P45WGEVBEVAL BOARD FOR NCP11187A65 |
0 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary and Secondary Side | 2 Isolated Outputs | 45 W | 12V, 16V | 3.5A, 200mA | 85 ~ 265 VAC | Flyback | - | Board(s) | NCP11187A65 |
