تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

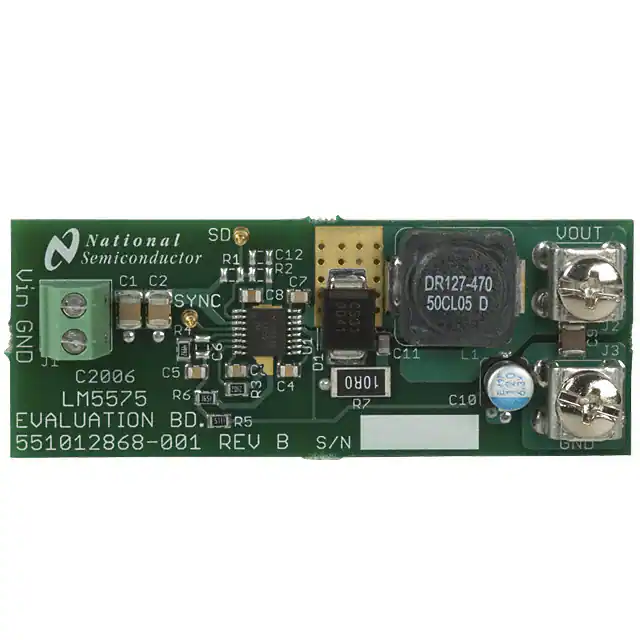

LM5575EVALEVAL BOARD FOR LM5575 |
4 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 7V ~ 75V | Buck | 300kHz | Board(s) | LM5575 |
|

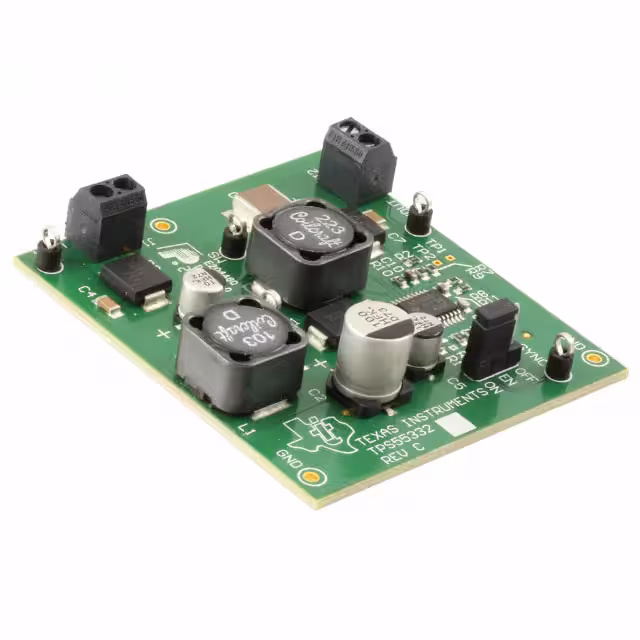

TPS55332EVMEVAL BOARD FOR TPS55332 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 25V | 500mA | 1.5V ~ 40V | Boost | - | Board(s) | TPS55332 |
|

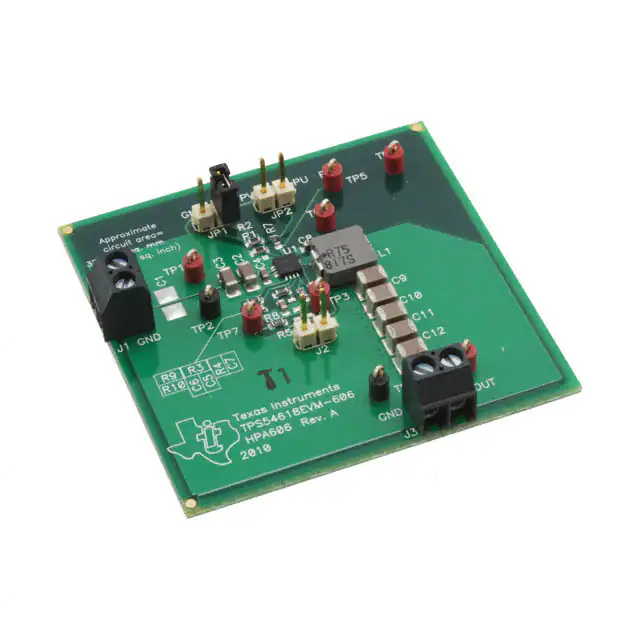

TPS54618EVM-606EVAL BOARD FOR TPS54618 |
4 |
|
برگه مشخصات |
SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 3V ~ 6V | Buck | 1MHz | Board(s) | TPS54618 |
|

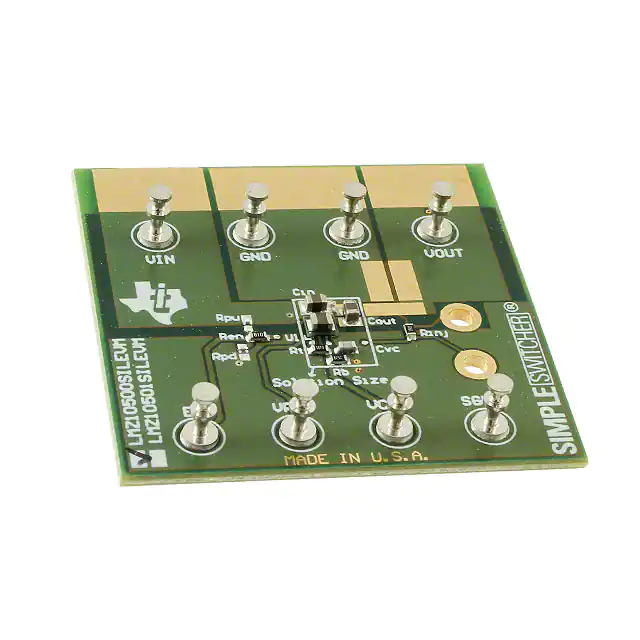

LMZ10500SILEVMEVAL BOARD FOR LMZ10500 |
4 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 650mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | LMZ10500 |
|
TPS563209EVM-652EVAL BOARD FOR TPS563209 |
4 |
|
برگه مشخصات |
D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 17V | Buck | 650kHz | Board(s) | TPS563209 |
|
TPS65132WEVM-669EVAL BOARD FOR TPS65132 |
4 |
|
برگه مشخصات |
- | Box | Active | Special Purpose DC/DC, LCD Supply | 2 Non-Isolated Outputs | - | ±5.4V | 40mA, 40mA | 2.5V ~ 5.5V | Buck | 1.6MHz | Board(s) | TPS65132 |
|
LMZ36002EVMEVAL BOARD FOR LMZ36002 |
4 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V, 5V, 6V or 7.5V | 2A | 4.5V ~ 60V | Buck | - | Board(s) | LMZ36002 |
|

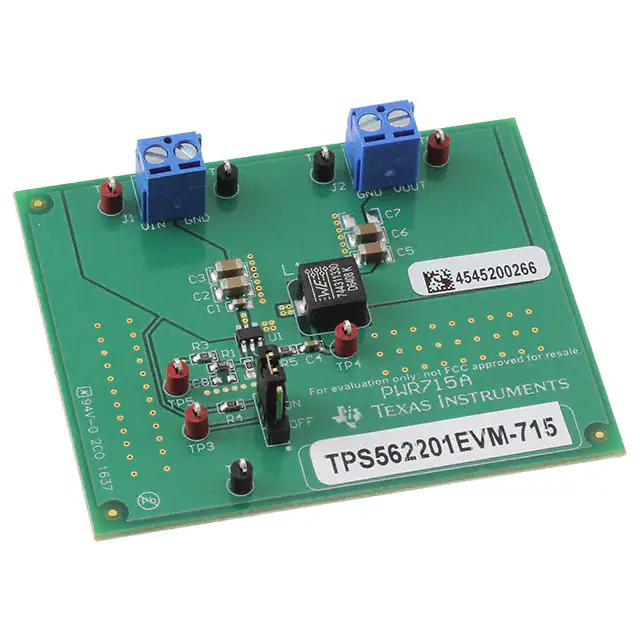

TPS562201EVM-715EVAL BOARD FOR TPS562201 |
4 |
|
برگه مشخصات |
D-CAP2™, SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 17V | Buck | 580kHz | Board(s) | TPS562201 |
|

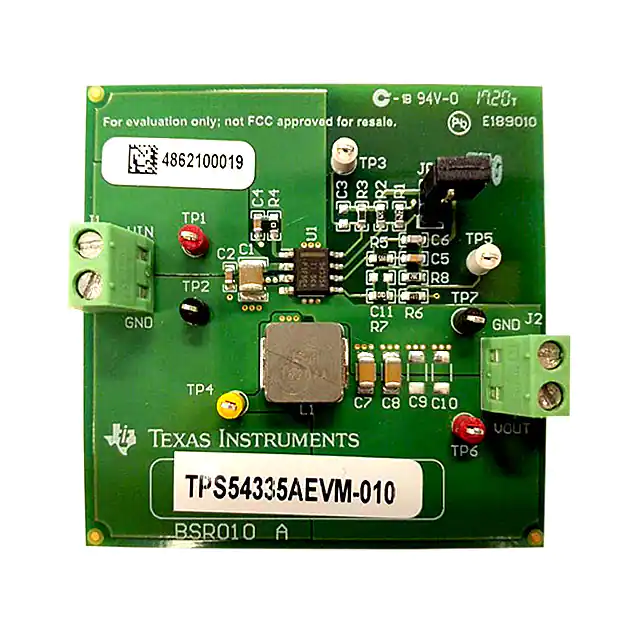

TPS54335AEVM-010EVAL BOARD FOR TPS54335A |
4 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 8V ~ 28V | Buck | 340kHz | Board(s) | TPS54335A |
|

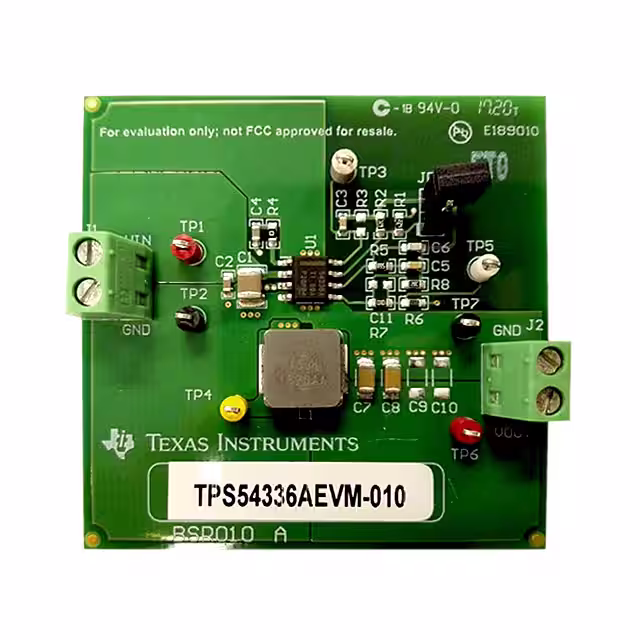

TPS54336AEVM-010EVAL BOARD FOR TPS54336A |
4 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 8V ~ 28V | Buck | 340kHz | Board(s) | TPS54336A |
|

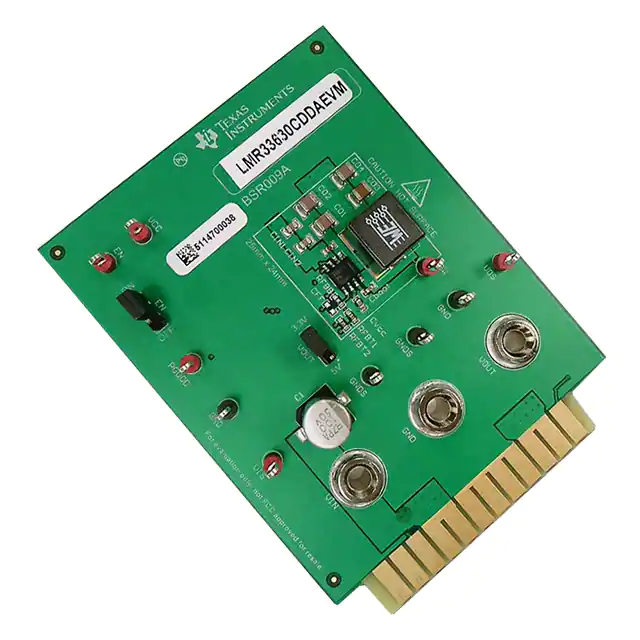

LMR33630CDDAEVMEVAL BOARD FOR LMR33630 |
4 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 3A | 5V ~ 36V | Buck | 2.1MHz | Board(s) | LMR33630 |
|

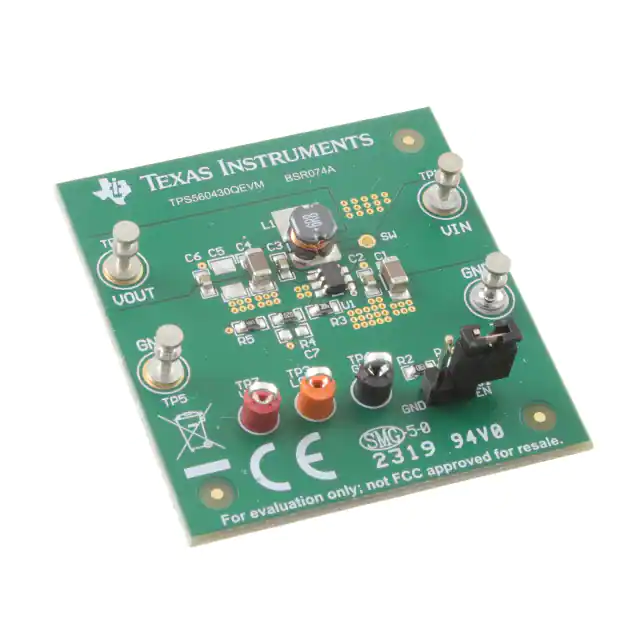

TPS560430QEVMEVAL BOARD FOR TPS560430Q1 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 600mA | 7.5V ~ 36V | Buck | 2.1MHz | Board(s) | TPS560430-Q1 |
|

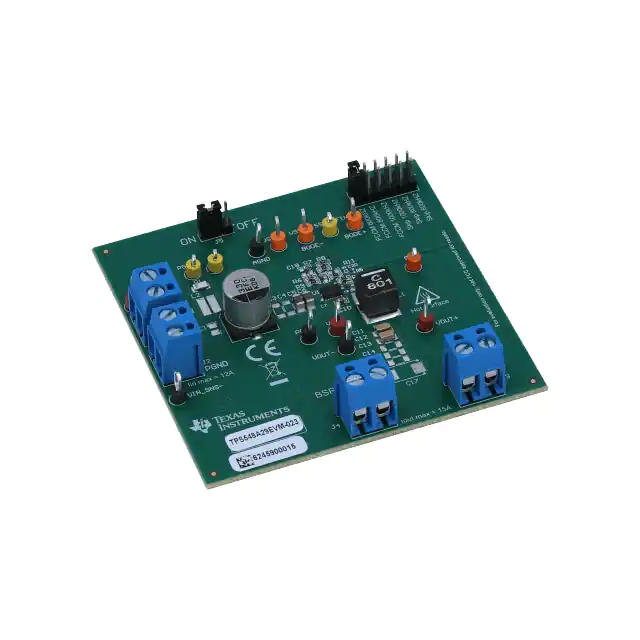

TPS548A29EVM-023EVAL BOARD FOR TPS548A29 |
4 |
|
برگه مشخصات |
D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 15A | 1.5V ~ 20V | Buck | - | Board(s) | TPS548A29 |
|
TPS628512EVM-139EVAL BOARD FOR TPS62851X |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 2.7V ~ 6V | Buck | - | Board(s) | TPS62851x |
|

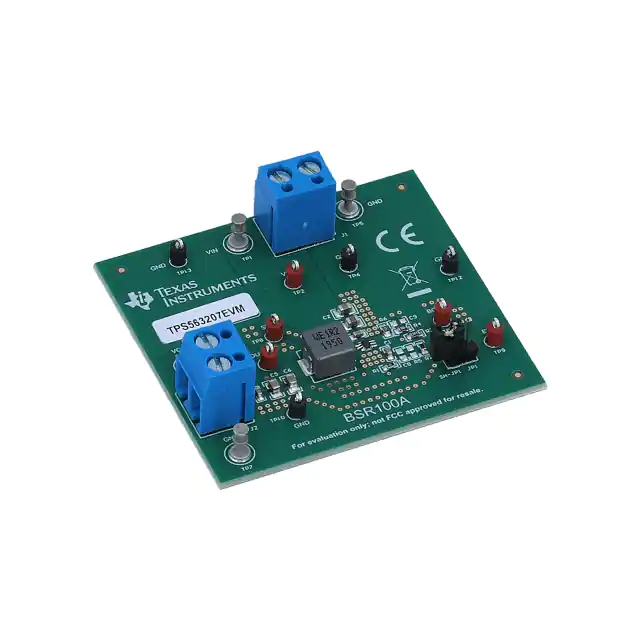

TPS563207EVMEVAL BOARD FOR TPS563207 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.3V ~ 17V | Buck | 580kHz | Board(s) | TPS563207 |
|
LMQ62440EVM-2MHZEVAL BOARD FOR LMQ62440Q1 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4A | 3V ~ 36V | Buck | 2.1MHz | Board(s) | LMQ62440-Q1 |
|

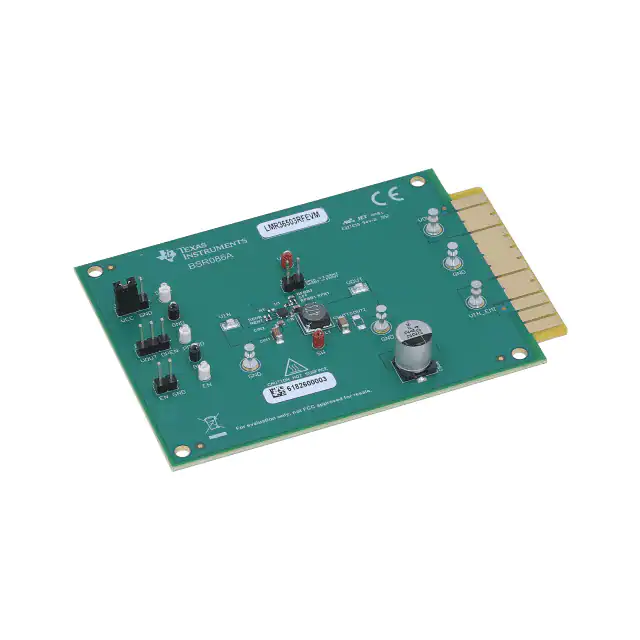

LMR36503RFEVMEVAL BOARD FOR LMR36503 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 5.5V ~ 65V | Buck | 1MHz | Board(s) | LMR36503 |
|
TPSM82866AA0SEVMEVAL BOARD FOR TPSM82866A |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 2.4V ~ 5.5V | Buck | 2.4MHz | Board(s) | TPSM82866A |
|
LM5168FEVMEVAL BOARD FOR LM5168FQ1 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | 10V, 10V | 250mA, 250mA | 20V ~ 115V | Buck, Flyback | 750kHz | Board(s) | LM5168F-Q1 |
|
TPS629210EEVMEVAL BOARD FOR TPS629210E |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 5V ~ 17V | Buck | 2.5MHz | Board(s) | TPS629210E |
