تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BD9876AEFJ_EVKEVAL BOARD FOR BD9876A |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 7V ~ 24V | Buck | 300kHz | Board(s) | BD9876A |
|

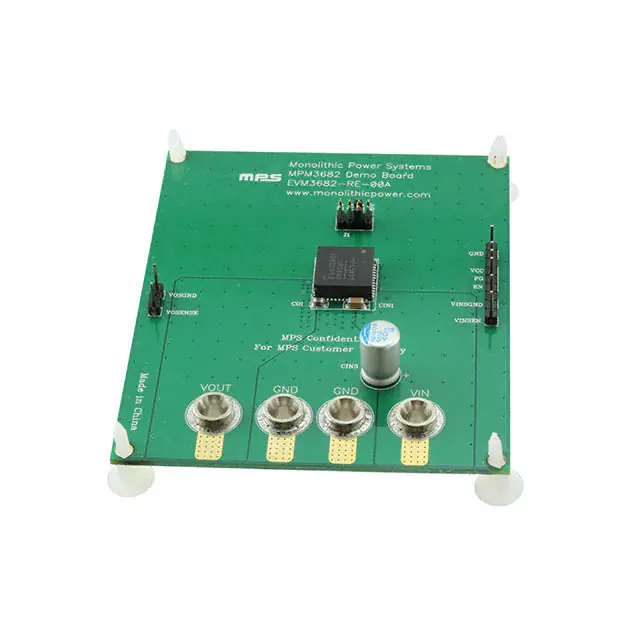

EVM3682-RE-00AEVAL BOARD FOR MPM3682 |
0 |
|
برگه مشخصات |
- | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 10A | 4.5V ~ 18V | Buck | - | Board(s) | MPM3682 |
|

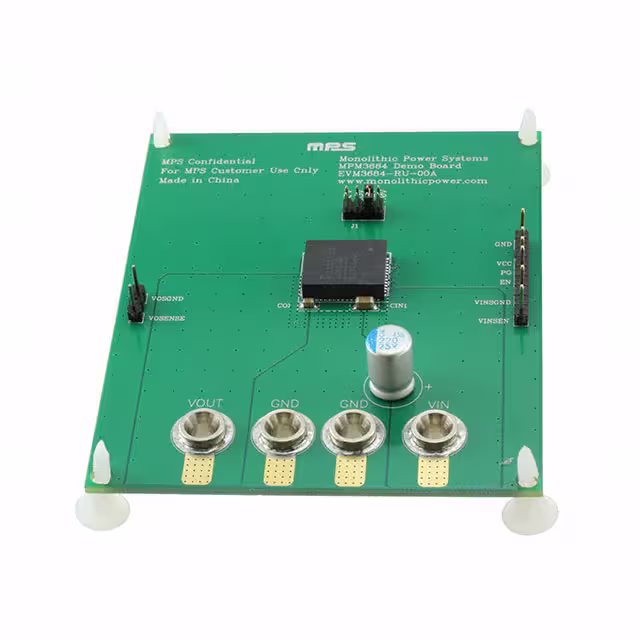

EVM3684-RU-00AEVAL BOARD FOR MPM3684 |
0 |
|
برگه مشخصات |
- | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V or 1.8V | 15A | 8V ~ 18V | Buck | - | Board(s) | MPM3684 |
|

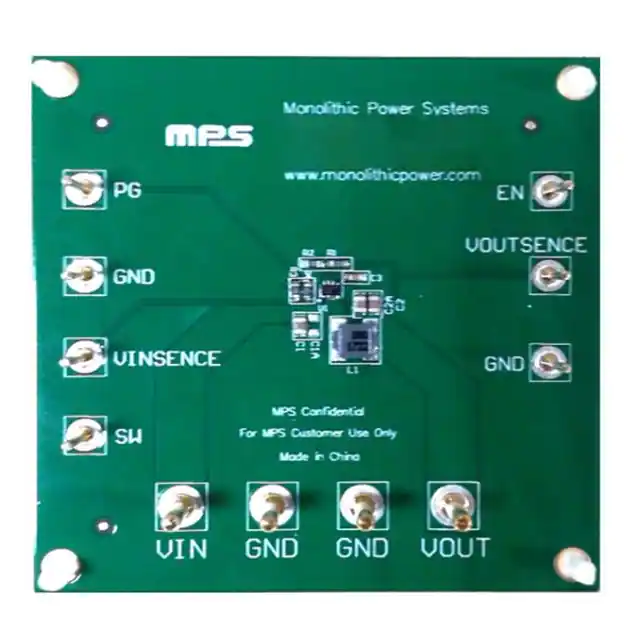

EV2181-TL-00AEVAL BOARD FOR MP2181 |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1A | 2.5V ~ 5.5V | Buck | 1.2MHz | Board(s) | MP2181 |
|
EVM3680-RE-00AEVAL BOARD FOR MPM3680 |
3 |
|
برگه مشخصات |
- | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 6A | 4.5V ~ 18V | Buck | - | Board(s) | MPM3680 |
|

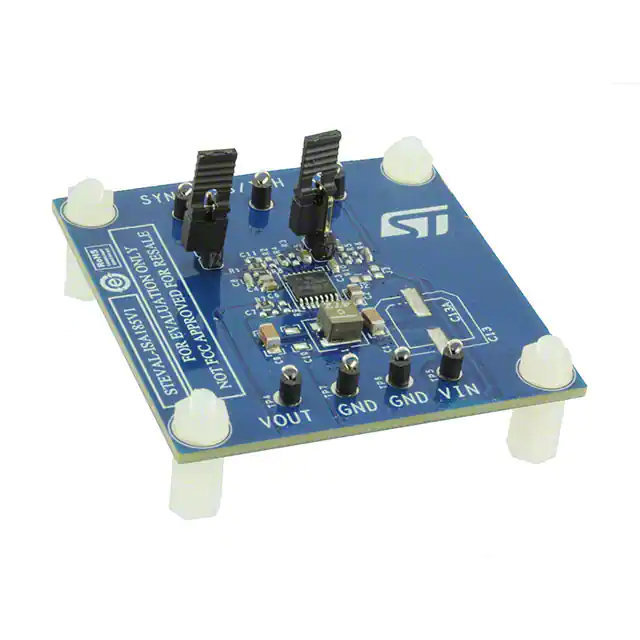

STEVAL-ISA185V1EVAL BOARD FOR A6985F3V3 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4V ~ 38V | Buck | 2MHz | Board(s) | A6985F3V3 |
|

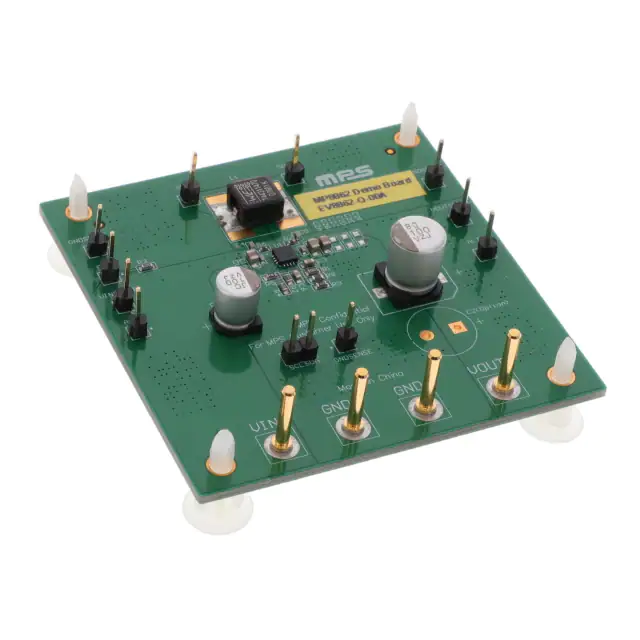

EV8862-Q-00AEVAL BOARD FOR MP8862 |
1 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 2A | 2.8V ~ 22V | Buck-Boost | 500kHz | Board(s) | MP8862 |
|
EV1660-TF-00AEVAL BOARD FOR MP1660 |
1 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 2.2 W | 3.3V | 3A | 4.5V ~ 16V | Buck | 600kHz | Board(s) | MP1660 |
|
|
EV2153-TF-00AEVAL BOARD FOR MP2153 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 2.5V ~ 5.5V | Buck | 1.1MHz | Board(s) | MP2153 |
|
|
EVM3695-25-RF-02AEVAL BOARD FOR MPM369525 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 20A | 12V | Buck | 600kHz | Board(s) | MPM3695-25 |
|
|
TC1303DM-DDBK1EVAL BOARD FOR TC1303 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 500mA, 300mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | TC1303 |
|
|
ST1S10DEMOBOARDEVAL BOARD FOR ST1S10 |
0 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 15.3V | 3A | 2.5V ~ 18V | Buck | - | Board(s) | ST1S10 |
|
|
ST1S10PURDEMOBOEVAL BOARD FOR ST1S10 |
0 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 15.3V | 3A | 2.5V ~ 18V | Buck | - | Board(s) | ST1S10 |
|
|
ST1S10PHRDEMOBOEVAL BOARD FOR ST1S10 |
0 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 2.5V ~ 18V | Buck | - | Board(s) | ST1S10 |
|
|
ST8R00WDEMOBO9EVAL BOARD FOR ST8R00W |
0 |
|
- |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 6V ~ 12V | 1A | 4V ~ 6V | Boost | - | Board(s) | ST8R00W |
|

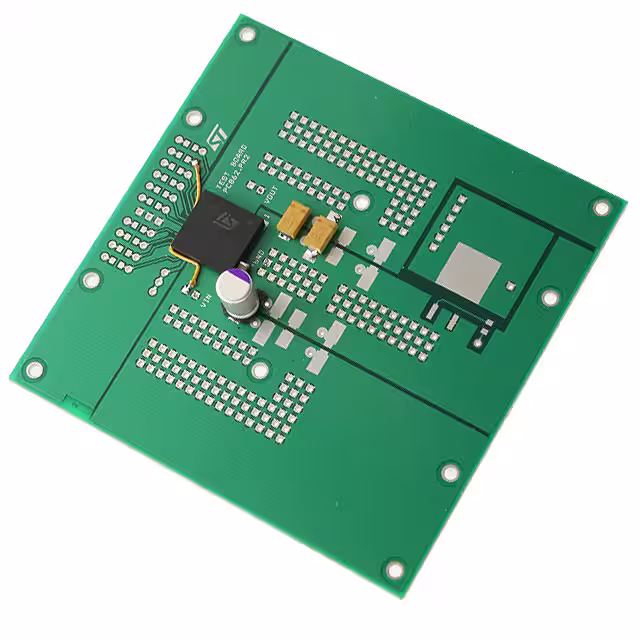

STEVAL-SPDC01V2EVAL BOARD FOR SPDC12L00010 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5V | 10A | 1.8V ~ 14V | Buck | - | Board(s) | SPDC12L00010 |
|

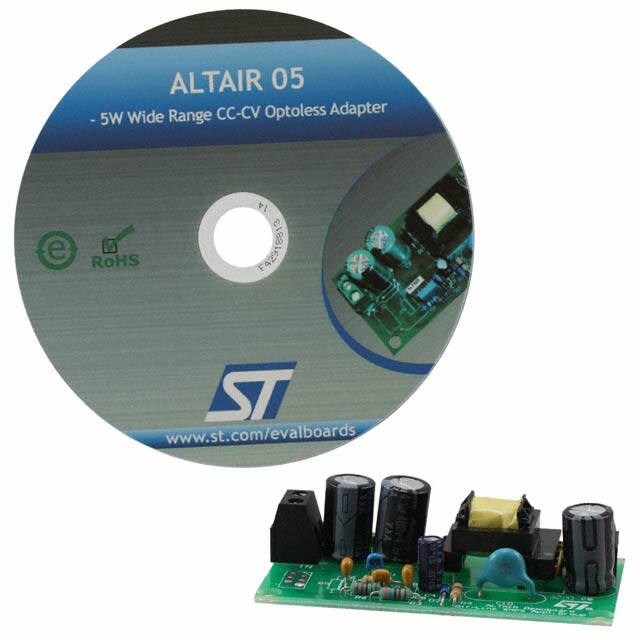

EVLALTAIR05T-5WEVAL BOARD FOR ALTAIR05T800 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 5 W | 5V | 1A | 90 ~ 265 VAC | Flyback | 70kHz | Board(s) | ALTAIR05T-800 |
|
BD9673EFJ_EVKEVAL BOARD FOR BD9673 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 7V ~ 24V | Buck | 300kHz | Board(s) | BD9673 |
|
BD9876EFJ_EVKEVAL BOARD FOR BD9876 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.75A | 7V ~ 24V | Buck | 300kHz | Board(s) | BD9876 |
|

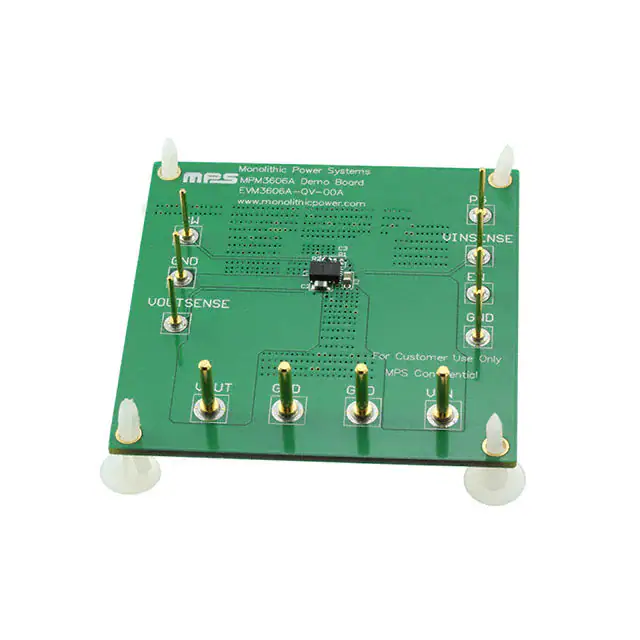

EVM3606A-QV-00AEVAL BOARD FOR MPM3606A |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 4.5V ~ 21V | Buck | 2MHz | Board(s) | MPM3606A |
