تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM1770EVALEVAL BOARD FOR LM1770 |
2 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 2A | 2.8V ~ 5.5V | Buck | 378kHz | Board(s) | LM1770 |
|

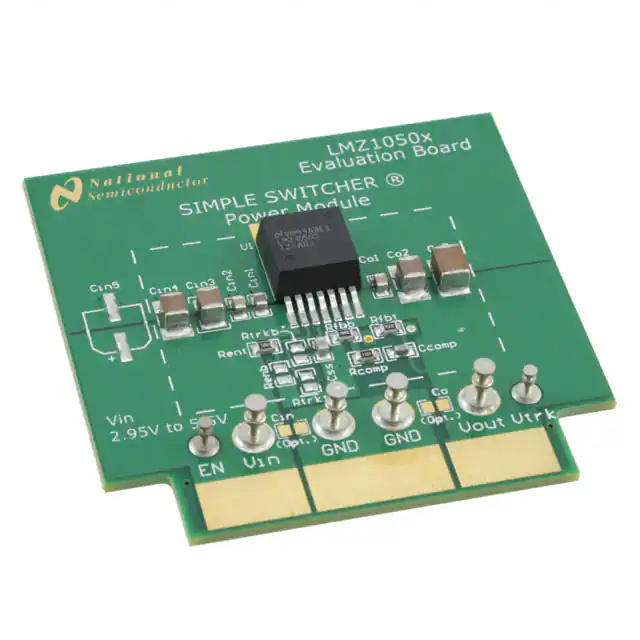

LMZ10503EVAL/NOPBEVAL BOARD FOR LMZ10503 |
1 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 3A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LMZ10503 |
|
LM2731XEVAL/NOPBEVAL BOARD FOR LM2731 |
1 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 1.8A | 2.7V ~ 14V | Boost | 1.6MHz | Board(s) | LM2731 |
|

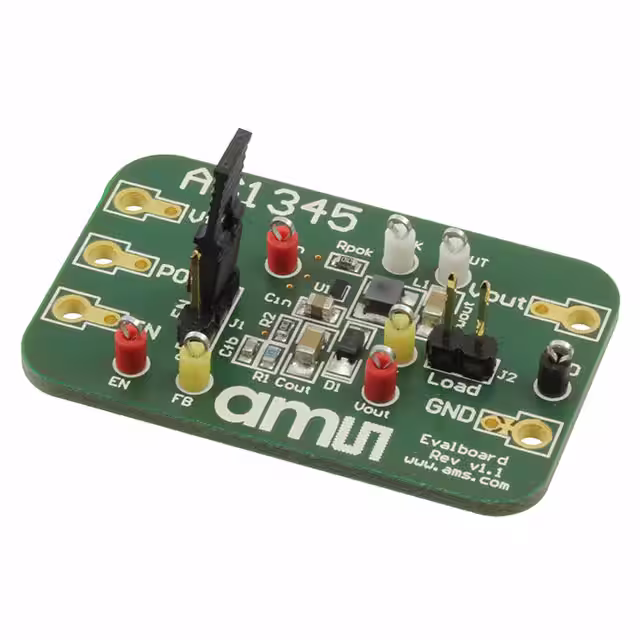

AS1345A-WL-AD_EK_STEVAL BOARD FOR AS1345A |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V | - | 2.9V ~ 5V | Boost | - | Board(s) | AS1345A |
|

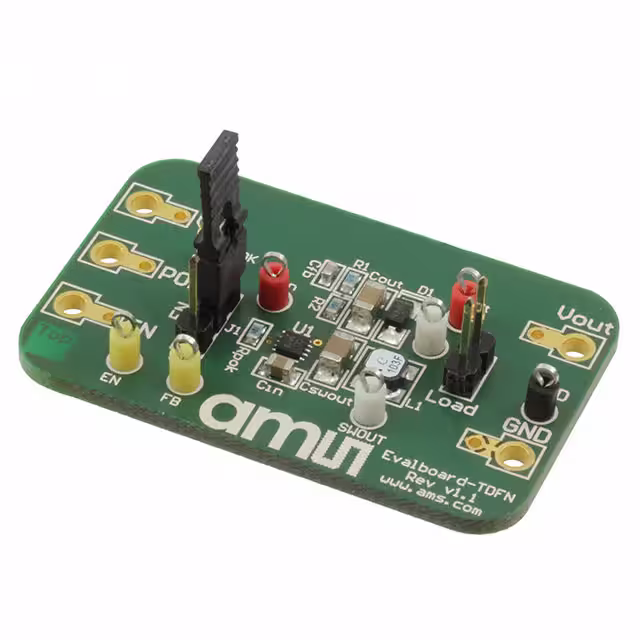

AS1345D-TD-AD_EK_STEVAL BOARD FOR AS1345D |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V | - | 2.9V ~ 5V | Boost | - | Board(s) | AS1345D |
|

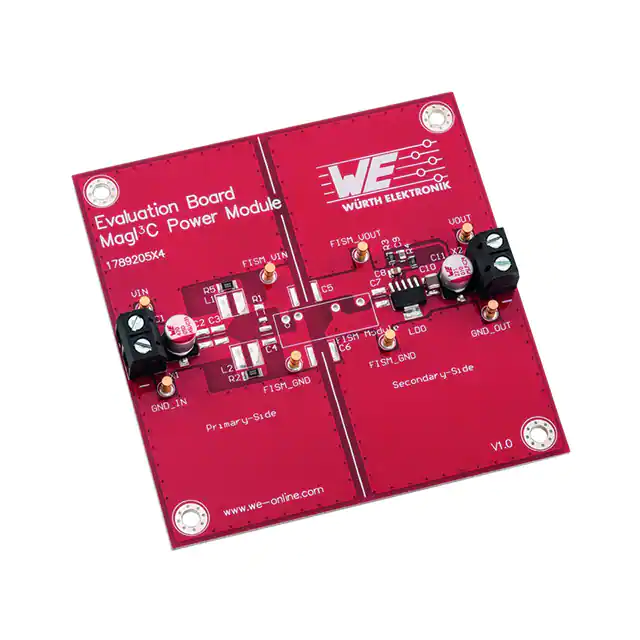

1789205X4EVAL BOARD FOR FISM |
0 |
|
برگه مشخصات |
MagI3C | Box | Obsolete | DC/DC, Step Up or Down | 1 Isolated Output | - | 5V | - | - | Boost, Buck | - | Partially Populated Board(s) | FISM |
|
ISL97519AIUZEVALZEVAL BOARD FOR ISL97519A |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | - | 2.3V ~ 5.5V | Boost | 600kHz or 1.2MHz | Board(s) | ISL97519A |
|
ISL97519IUZEVALZEVAL BOARD FOR ISL97519 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | - | 2.3V ~ 5.5V | Boost | 620kHz or 1.2MHz | Board(s) | ISL97519 |
|

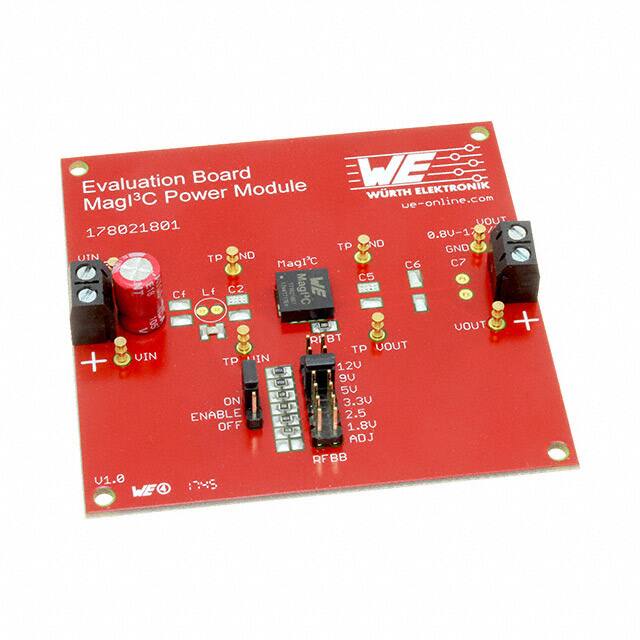

178021801EVAL BOARD FOR WPMDL1201801 |
0 |
|
برگه مشخصات |
MagI3C | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 17V | 2A | 4V ~ 18V | Buck | 850kHz | Board(s) | WPMDL1201801 |
|

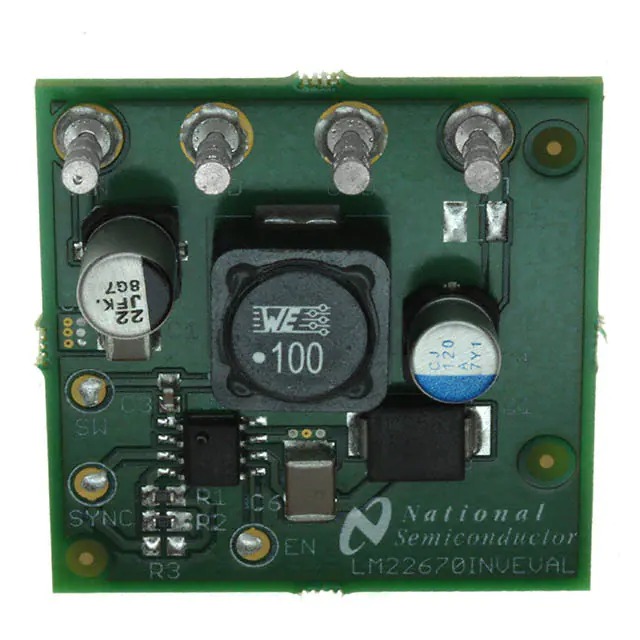

LM22670INVEVALEVAL BOARD FOR LM22670 |
0 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 5V ~ 35V | Buck | 500kHz | Board(s) | LM22670 |
.jpg)
|

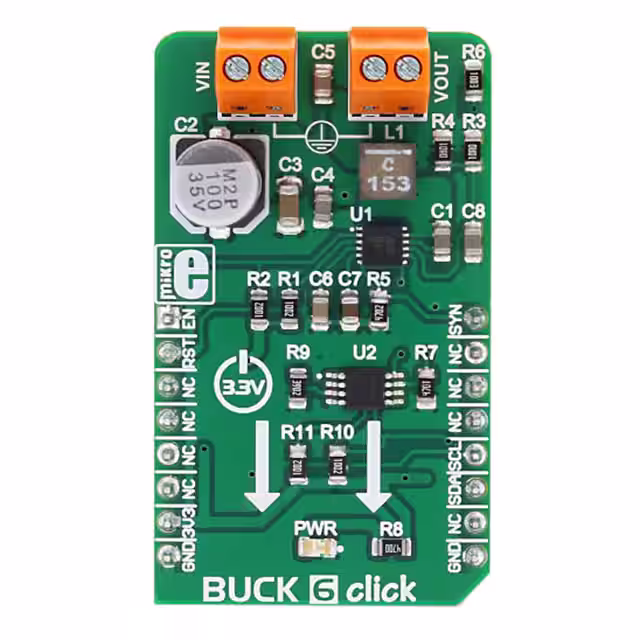

MIKROE-2957EVAL BOARD FOR MAX17572 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 20V | 1A | 5V ~ 30V | Buck | - | Board(s) | MAX17572 |
|
|
ADM01014EVAL BOARD FOR MCP1663 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 300mA | 1.85 ~ 5.5V | Boost, SEPIC | 500kHz | Board(s) | MCP1663 |
|

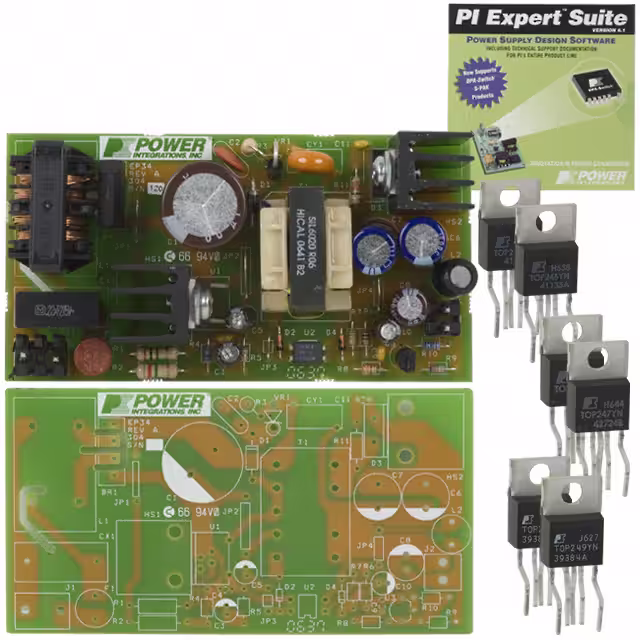

DAK-34EVAL BOARD FOR TOP245 |
0 |
|
برگه مشخصات |
TOPSwitch®-GX | - | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 30 W | 12V | 2.5A | 85 ~ 265 VAC | Flyback | 132kHz | Board(s) | TOP245 |
|

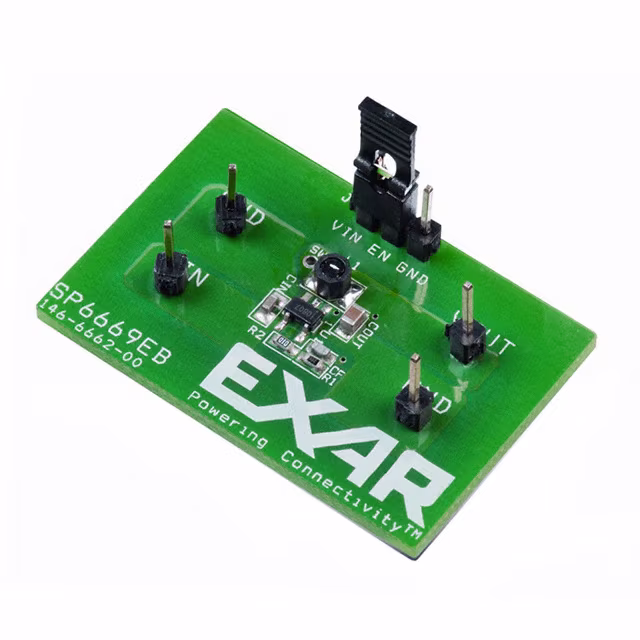

SP6669EBEVAL BOARD FOR SP6669 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | SP6669 |
|
|
XRP7714EVB-DEMO-3EVAL BOARD FOR XRP7714 |
0 |
|
برگه مشخصات |
- | Bulk | Last Time Buy | DC/DC, Step Down | 4 Non-Isolated Outputs | 35 W | 1V, 1.8V, 2.5V, 3.3V | - | 5.5V ~ 25V | Buck | - | Board(s) | XRP7714 |
|
|
XR77128EVB-DEMO-1EVAL BOARD FOR XR77128 |
0 |
|
برگه مشخصات |
- | Box | Not For New Designs | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1V, 1.5V, 2.5V, 3.3V | 10A, 5A, 3A, 3A | 5.5V ~ 25V | Buck | - | Board(s) | XR77128 |
|
XR76203EVBEVAL BOARD FOR XR76203 |
0 |
|
برگه مشخصات |
PowerBlox™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 5V ~ 40V | Buck | - | Board(s) | XR76203 |
|

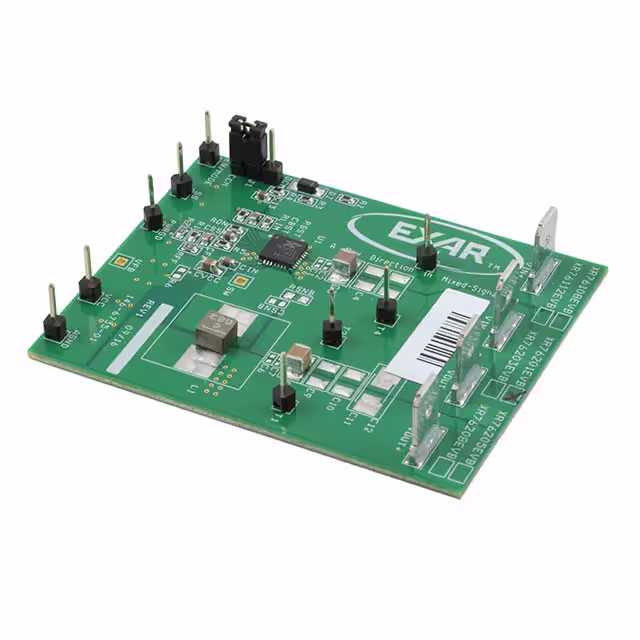

XR76201EVBEVAL BOARD FOR XR76201 |
0 |
|
برگه مشخصات |
PowerBlox™ | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1.5A | 3V ~ 40V | Buck | - | Board(s) | XR76201 |
|
|
XR76108EVBEVAL BOARD FOR XR76108 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 8A | 4.5V ~ 22V | Buck | 800kHz | Board(s) | XR76108 |
|
|
XR76112EVBEVAL BOARD FOR XR76112 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 12A | 4.5V ~ 22V | Buck | 800kHz | Board(s) | XR76112 |
