تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAXM15463EVKIT#EVAL BOARD FOR MAXM15463 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 4.5V ~ 42V | Buck | 500kHz | Board(s) | MAXM15463 |
|
MAXM15464EVKIT#EVAL BOARD FOR MAXM15464 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 12V ~ 42V | Buck | 500kHz | Board(s) | MAXM15464 |
|
|
MAXM17901EVKIT#EVAL BOARD FOR MAXM17901 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 5.5V ~ 24V | Buck | 500kHz | Board(s) | MAXM17901 |
|

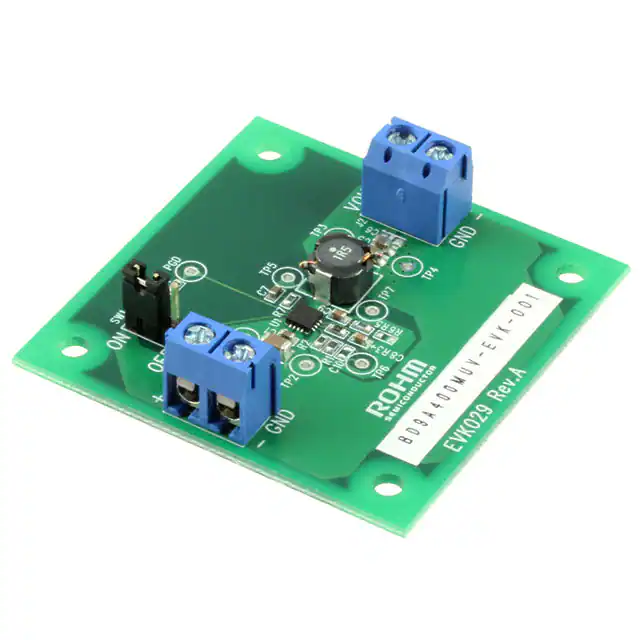

BD9A400MUV-EVK-001EVAL BOARD FOR BD9A400 |
3 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | BD9A400 |
|
|
MAX5080EVKITEVAL BOARD FOR MAX5080 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4.5V ~ 40V | Buck | 250kHz | Board(s) | MAX5080 |
|

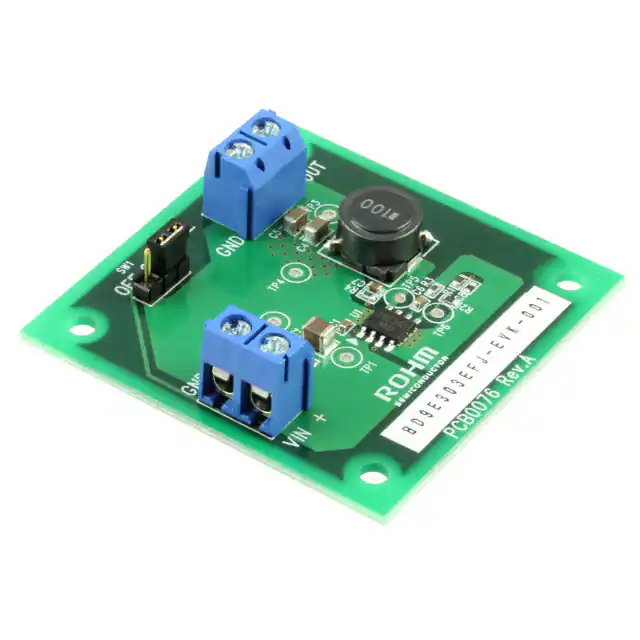

BD9E303EFJ-EVK-001EVAL BOARD FOR BD9E303 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 7V ~ 36V | Buck | 300kHz | Board(s) | BD9E303 |
|

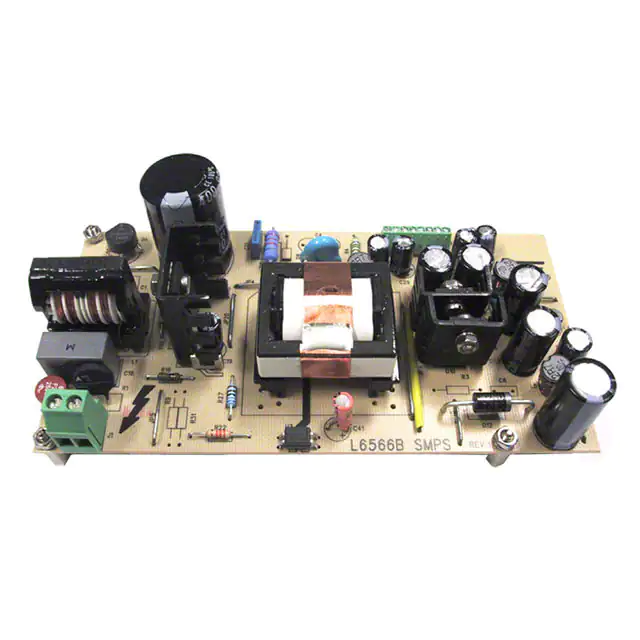

EVL6566B-40WSTBEVAL BOARD FOR L6566B |
1 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 4 Isolated Outputs | 40 W | 5V, 12V, 1.8V, 3.3V | 2.4A, 1.9A, 1.73A, 500mA | 90 ~ 264 VAC | Flyback | 62kHz | Board(s) | L6566B |
|

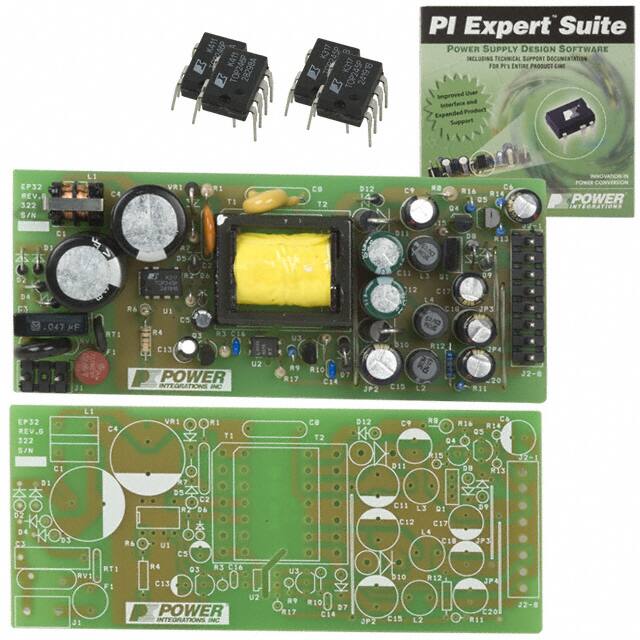

DAK-32EVAL BOARD FOR TOP245 |
0 |
|
برگه مشخصات |
TOPSwitch®-GX | - | Obsolete | AC/DC, Primary Side | 4 Isolated Outputs | 25 W | 3.3V, 5V, 12V, -24V | 1.2A, 600mA, 200mA, 50mA | 85 ~ 265 VAC | Flyback | - | Board(s) | TOP245 |
|
AS1332 EBEVAL BOARD FOR AS1332 |
5 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.3V ~ 3.16V | 650mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | AS1332 |
|
AS1333 EBEVAL BOARD FOR AS1333 |
5 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.09V | 650mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | AS1333 |
|

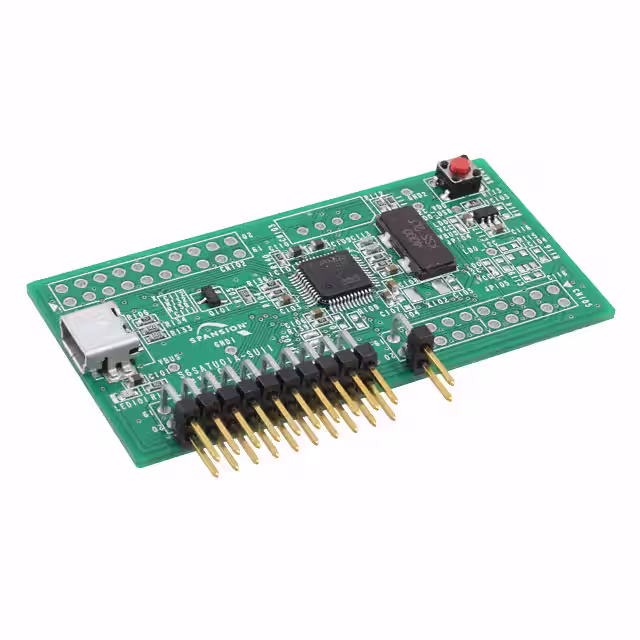

S6SAP413A79SA1001EVAL BOARD FOR S6AP413A |
2 |
|
- |
- | Box | Obsolete | DC/DC, Step Up or Down | 4 Non-Isolated Outputs | - | 1V, 1V, 1.8V, 3.3V | 2A, 2A, 1.2A, 600mA | 2.5V ~ 5.5V | Buck-Boost | 3MHz | Board(s) | S6AP413A |
|

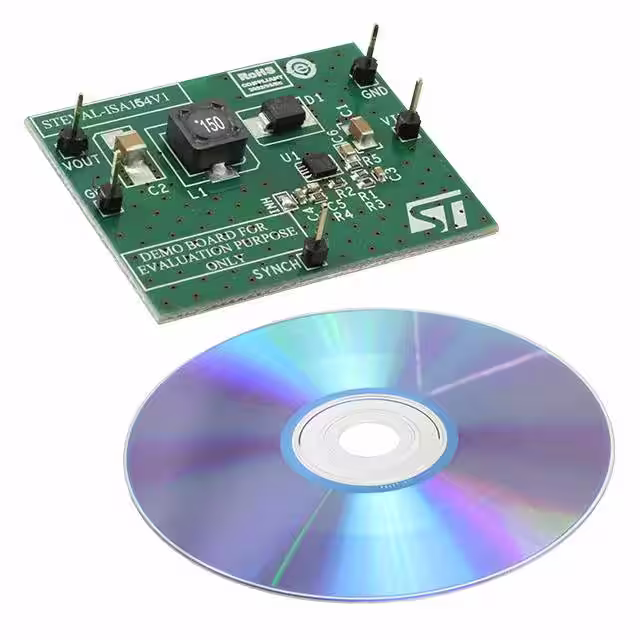

STEVAL-ISA154V1EVAL BOARD FOR L5980 |
1 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 700mA | 2.9V ~ 18V | Buck | 500kHz | Board(s) | L5980 |
|
STEVAL-ISA043V2EVAL BOARD FOR ST1S06 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 2.7V ~ 6V | Buck | 1.5MHz | Board(s) | ST1S06 |
|

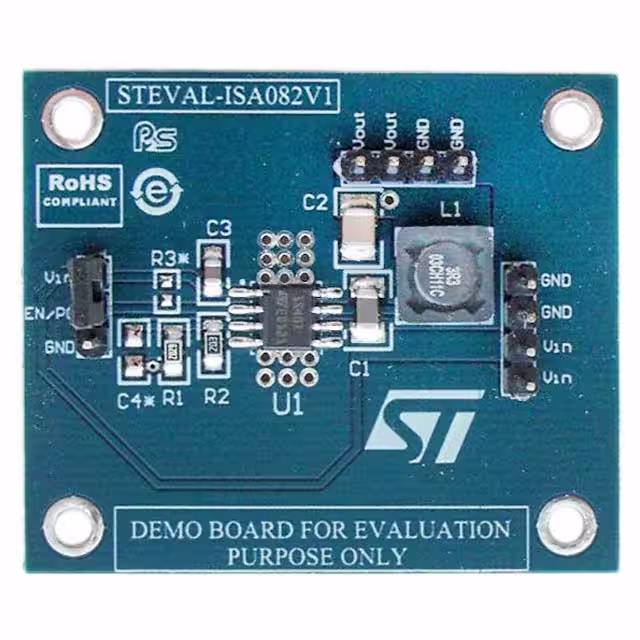

STEVAL-ISA082V1EVAL BOARD FOR ST1S40IPHR |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 4V ~ 18V | Buck | 800kHz | Board(s) | ST1S40IPHR |
|

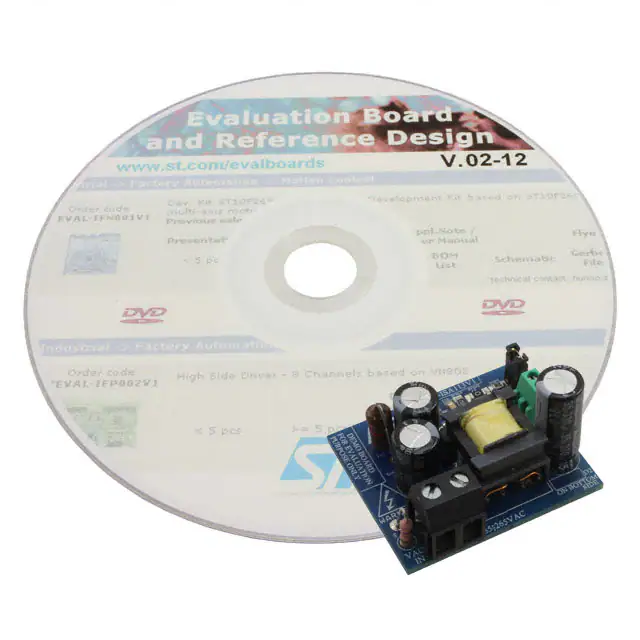

STEVAL-ISA113V1EVAL BOARD FOR VIPER06 |
0 |
|
برگه مشخصات |
VIPER™ | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | - | 12V | 350mA | 90 ~ 265 VAC | Flyback | - | Board(s) | VIPer06 |
|

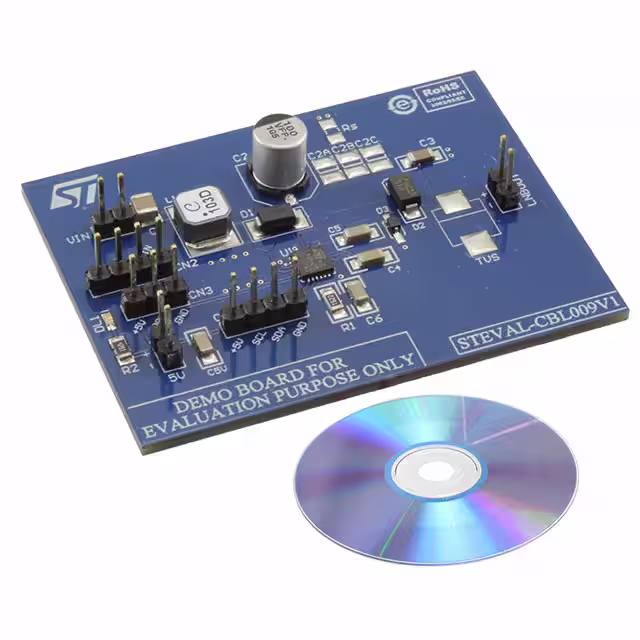

STEVAL-CBL009V1EVAL BOARD FOR LNBH25 |
0 |
|
برگه مشخصات |
- | Box | Active | Special Purpose DC/DC, LNB | 2 Non-Isolated Outputs | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH25 |
|

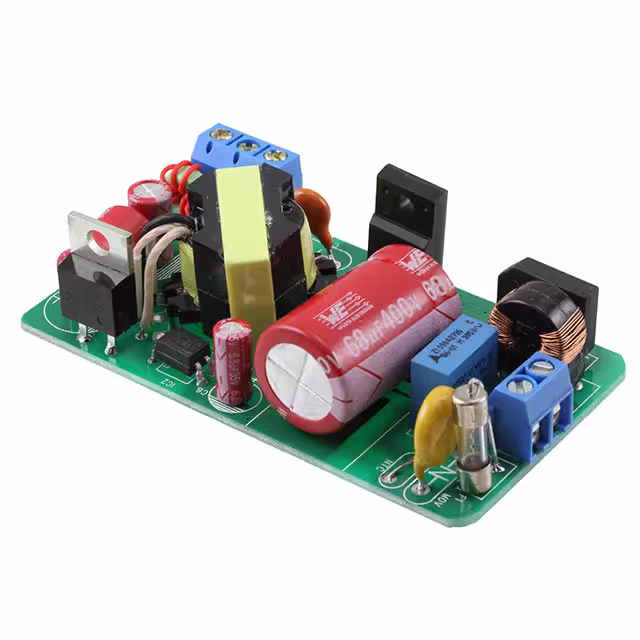

AP3125AEV1EVAL BOARD FOR AP3125A |
0 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | - | - | - | - | Flyback | 65kHz | Board(s) | AP3125A |
|
|
EV9361DJ-00AEVAL BOARD FOR MP9361 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 110mA | 2.8V ~ 5V | Boost | 1.35MHz | Board(s) | MP9361 |
|
BD9E101FJ-EVK-001EVAL BOARD FOR BD9E101 |
2 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 7.2V ~ 36V | Buck | 570kHz | Board(s) | BD9E101 |
|
BD9E100FJ-EVK-001EVAL BOARD FOR BD9E100 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 7.2V ~ 33V | Buck | 1MHz | Board(s) | BD9E100 |
