تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM5008EVAL/NOPBEVAL BOARD FOR LM5008 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 300mA | 12V ~ 95V | Buck | - | Board(s) | LM5008 |
|

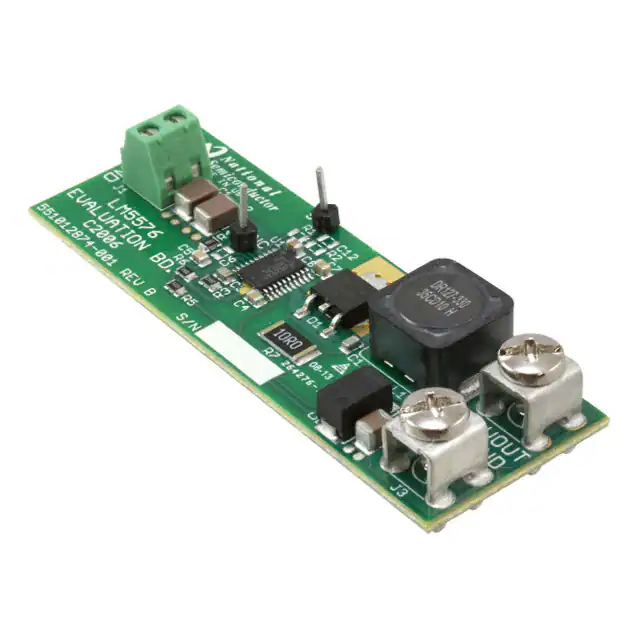

LM5576EVAL/NOPBEVAL BOARD FOR LM5576 |
2 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 7V ~ 75V | Buck | 300kHz | Board(s) | LM5576 |
|

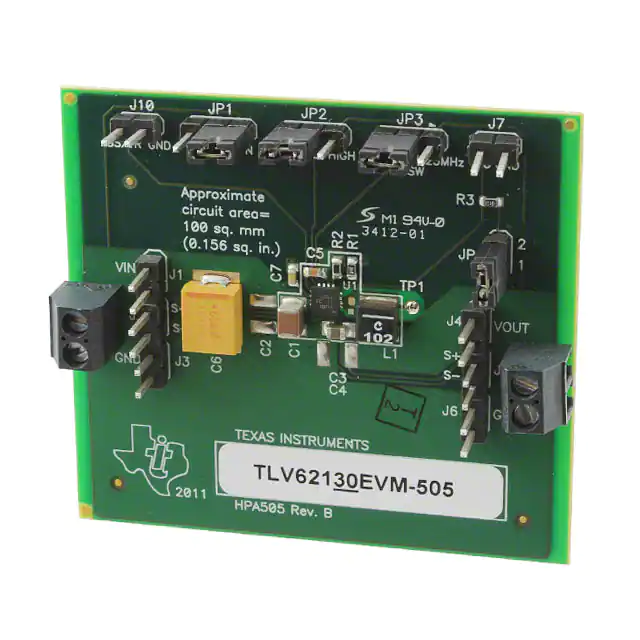

TLV62130EVM-505EVAL BOARD FOR TLV62130 |
2 |
|
برگه مشخصات |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4V ~ 17V | Buck | 1.25MHz, 2.5MHz | Board(s) | TLV62130 |
|

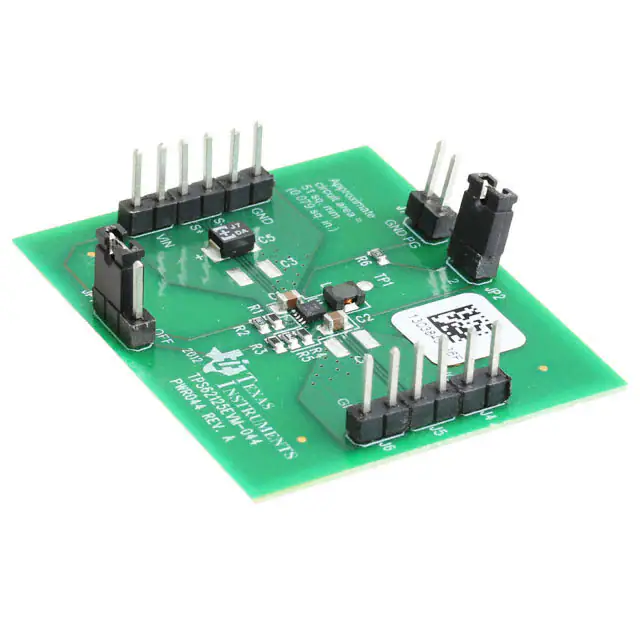

TPS62125EVM-044EVAL BOARD FOR TPS62125 |
2 |
|
برگه مشخصات |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 4V ~ 17V | Buck | - | Board(s) | TPS62125 |
|

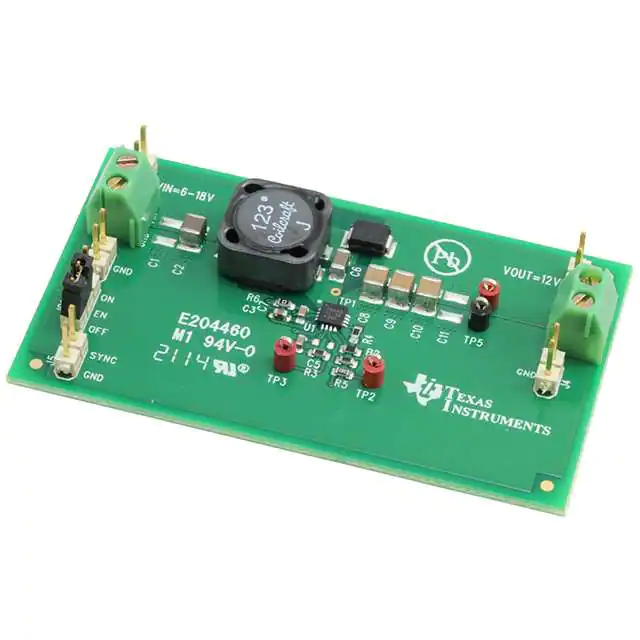

TPS55340EVM-147EVAL BOARD FOR TPS55340 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 1A | 6V ~ 18V | - | 500kHz | Board(s) | TPS55340 |
|

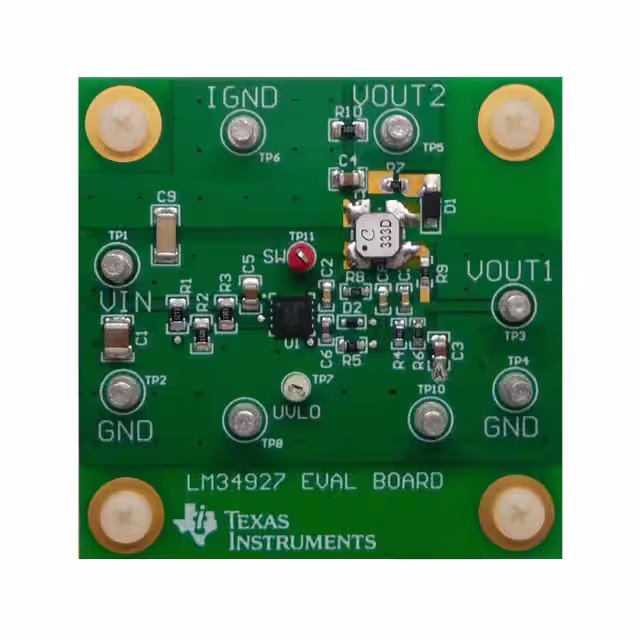

LM34927EVAL/NOPBEVAL BOARD FOR LM34927 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output, 1 Non-Isolated Output | - | 9.5V, 10V | 300mA | 20V ~ 100V | Buck | 750kHz | Board(s) | LM34927 |
|

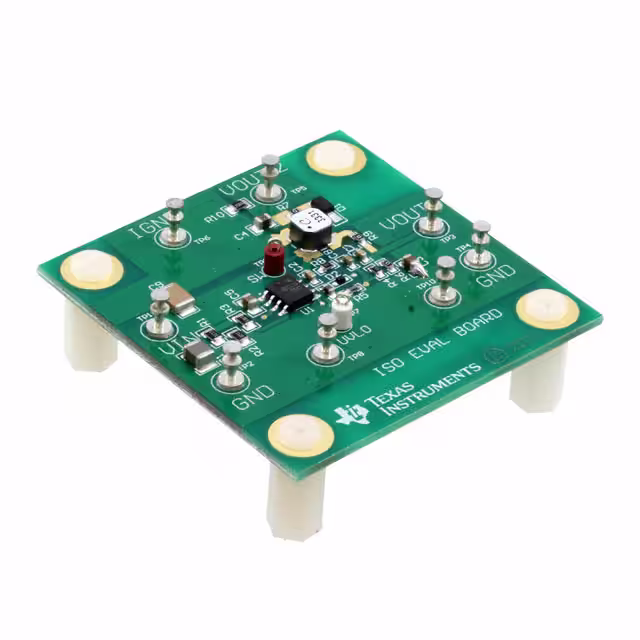

LM5017ISOEVAL/NOPBEVAL BOARD FOR LM5017 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output, 1 Non-Isolated Output | - | 9.5V, 10V | 300mA | 20V ~ 100V | Buck | 750kHz | Board(s) | LM5017 |
|
TPS542941EVM-057EVAL BOARD FOR TPS542941 |
2 |
|
برگه مشخصات |
D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 3A, 2A | 5V ~ 18V | Buck | 700kHz | Board(s) | TPS542941 |
|
TPS542951EVM-057EVAL BOARD FOR TPS542951 |
2 |
|
برگه مشخصات |
D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 3A, 2A | 5V ~ 18V | Buck | 700kHz | Board(s) | TPS542951 |
|
TPS55340EVM-148EVAL BOARD FOR TPS55340 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 2.5A | 8V ~ 24V | Flyback | 350kHz | Board(s) | TPS55340 |
|

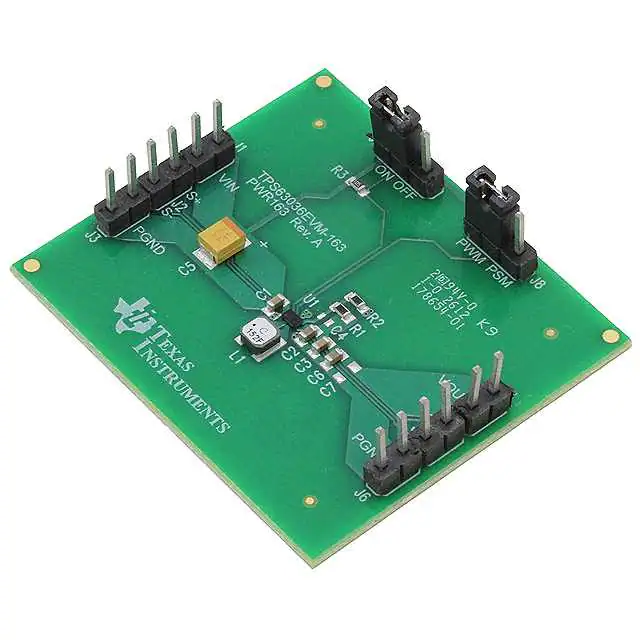

TPS63036EVM-163EVAL BOARD FOR TPS63036 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 1.8V ~ 5.5V | Buck-Boost | 2MHz | Board(s) | TPS63036 |
|
LM5010 EVAL/NOPBEVAL BOARD FOR LM5010 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 1A | 12V ~ 75V | Buck | 480kHz | Board(s) | LM5010 |
|
TPS43061EVM-198EVAL BOARD FOR TPS43061 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V | 2A | 6V ~ 12.6V | Boost | 750kHz | Board(s) | TPS43061 |
|

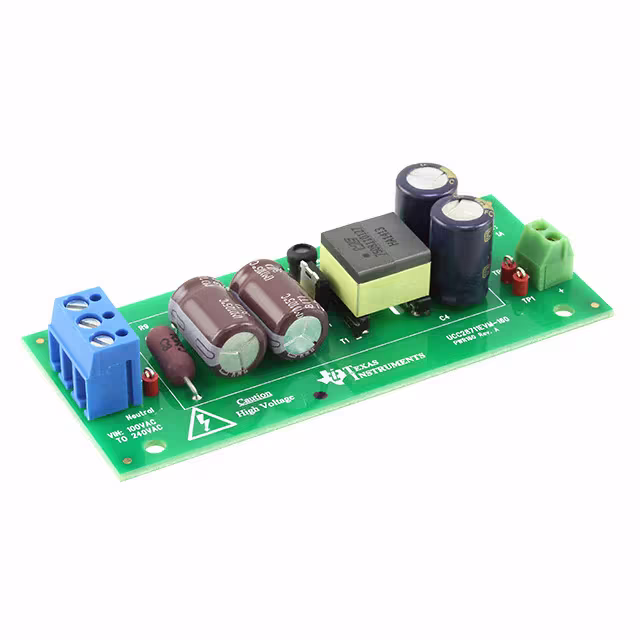

UCC28711EVM-160EVAL BOARD FOR UCC28711 |
2 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 5 W | 5V | 1A | 100 ~ 240 VAC | Flyback | 100kHz | Board(s) | UCC28711 |
|

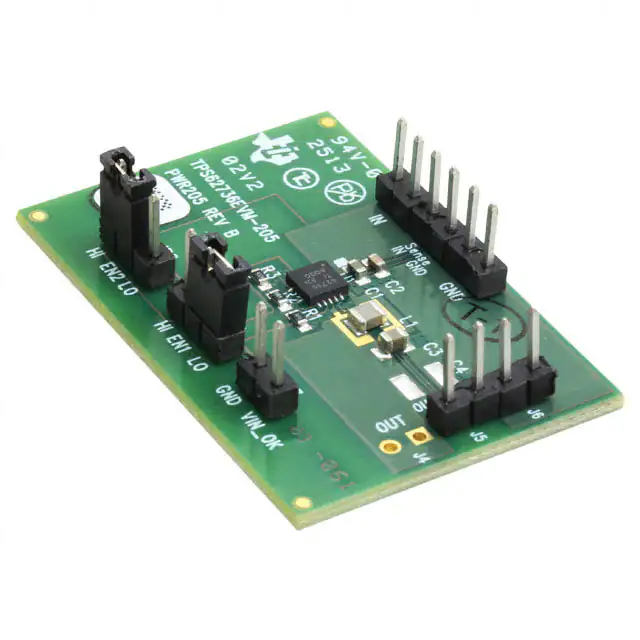

TPS62736EVM-205EVAL BOARD FOR TPS62736 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 50mA | 2V ~ 5.5V | Buck | 2MHz | Board(s) | TPS62736 |
|

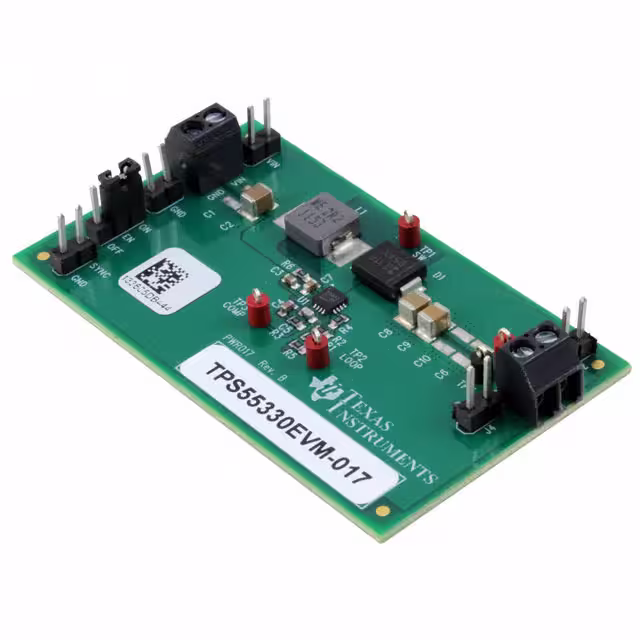

TPS55330EVM-017EVAL BOARD FOR TPS55330 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 2.1A | 2.9V ~ 4.2V | Boost | 600kHz | Board(s) | TPS55330 |
|

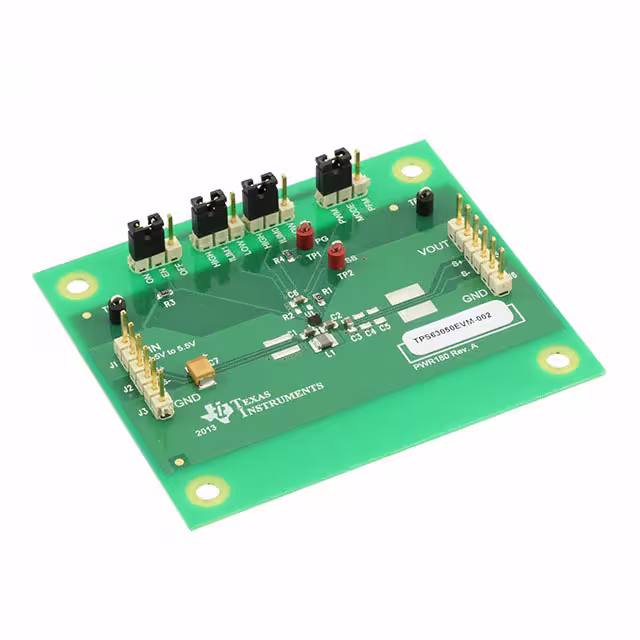

TPS63051EVM-180EVAL BOARD FOR TPS63051 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 2.5V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | TPS63051 |
|

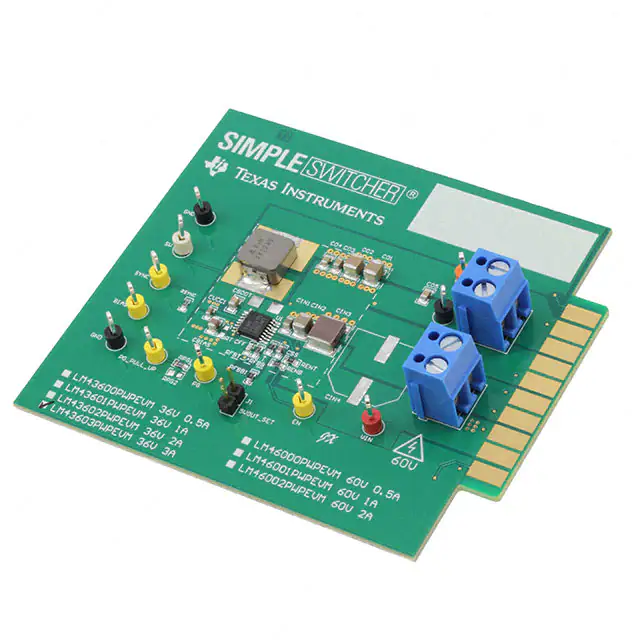

LM43603PWPEVMEVAL BOARD FOR LM43603 |
2 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 3.5V ~ 36V | Buck | 500kHz | Board(s) | LM43603 |
|

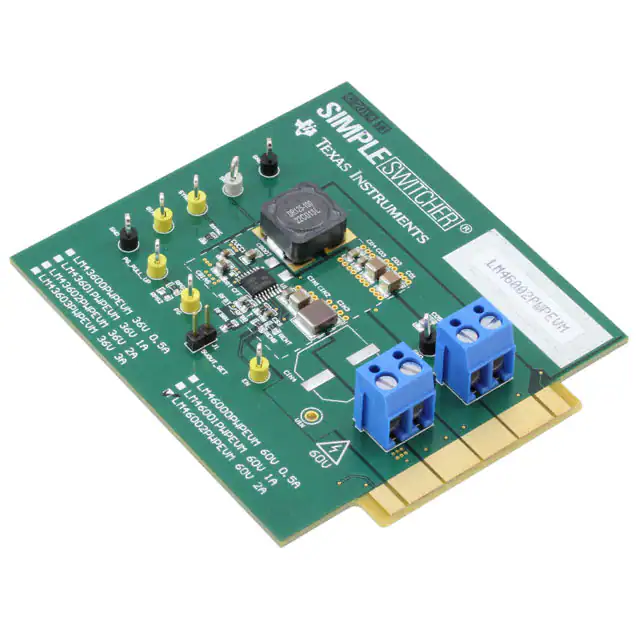

LM46002PWPEVMEVAL BOARD FOR LM46002 |
2 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3.5V ~ 60V | Buck | 500kHz | Board(s) | LM46002 |
|

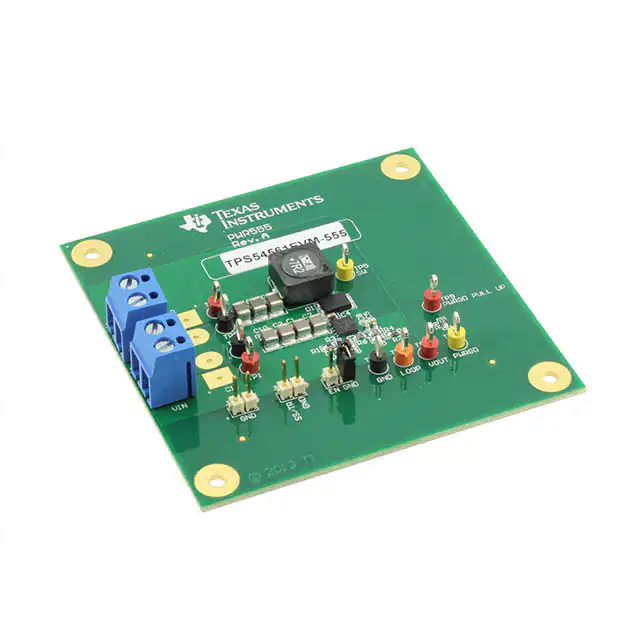

TPS54561EVM-555EVAL BOARD FOR TPS54561 |
2 |
|
برگه مشخصات |
Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 7V ~ 60V | Buck | 400kHz | Board(s) | TPS54561 |
