تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL8117AEVAL1ZEVAL BOARD FOR ISL8117A |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 18V ~ 60V | Buck | 300kHz | Board(s) | ISL8117A |
|
|
ISL8104EVAL2ZEVAL BOARD FOR ISL8104 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 20A | 8V ~ 14.4V | Buck | 300kHz | Board(s) | ISL8104 |
|
LM3478EVALEVAL BOARD FOR LM3478 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.5A | 4.5V ~ 5.5V | Boost | 1MHz | Board(s) | LM3478 |
|

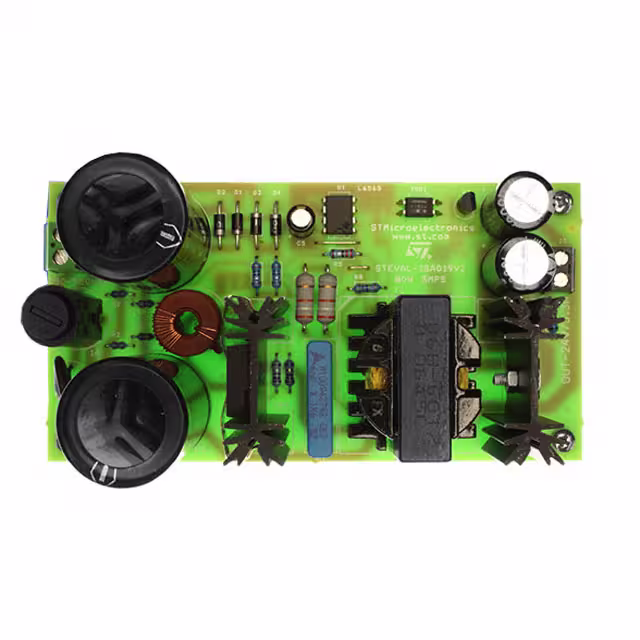

STEVAL-ISA019V2EVAL BOARD L6565 STC04IE170HV |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 80 W | 24V | 3.33A | - | Flyback | - | Board(s) | L6565, STC04IE170HV |
|
|
MAX618EVKITEVAL BOARD FOR MAX618 |
0 |
|
- |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 3V ~ 12V | Boost | 250kHz | Board(s) | MAX618 |
|
LM2716MTEVEVAL BOARD FOR LM2716 |
0 |
|
- |
- | Box | Obsolete | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 3.3V, 15V | 2A, 1.8A | 4V ~ 20V | Buck-Boost | - | Board(s) | LM2716 |
|
TPS65301EVMEVAL BOARD FOR TPS65301Q1 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down with LDO | 5 Non-Isolated Outputs | - | 1.2V, 3.3V, 5V, 5V, 5.45V | - | 5.6V ~ 40V | Buck | - | Board(s) | TPS65301-Q1 |
|

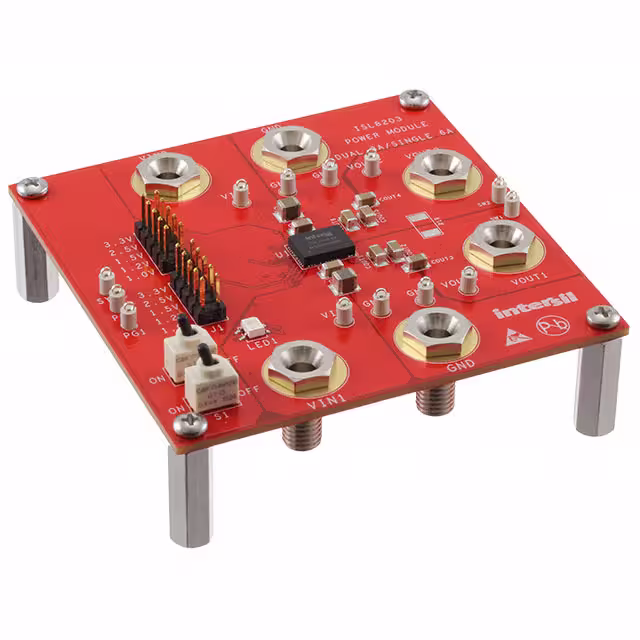

ISL8203MEVAL2ZEVAL BOARD FOR ISL8203M |
1 |
|
برگه مشخصات |
- | Box | Last Time Buy | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.2V, 1.5V, 2.5V or 3.3V | 3A, 3A | 2.85V ~ 6V | Buck | 1MHz | Board(s) | ISL8203M |
|

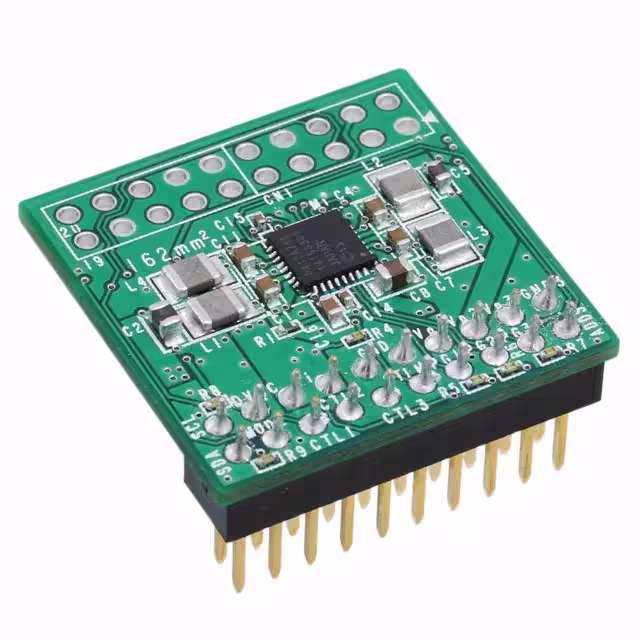

S6SAP412A78SA1001EVAL BOARD FOR S6AP412A |
1 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 1V, 1.8V, 3.3V | 4A, 1.2A, 600mA | 2.5V ~ 5.5V | Buck-Boost | 3MHz | Board(s) | S6AP412A |
|
|
ISL8009AEVAL1ZEVAL BOARD FOR ISL8009A |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 2.7V ~ 5.5V | Buck | 1.6MHz | Board(s) | ISL8009A |
|

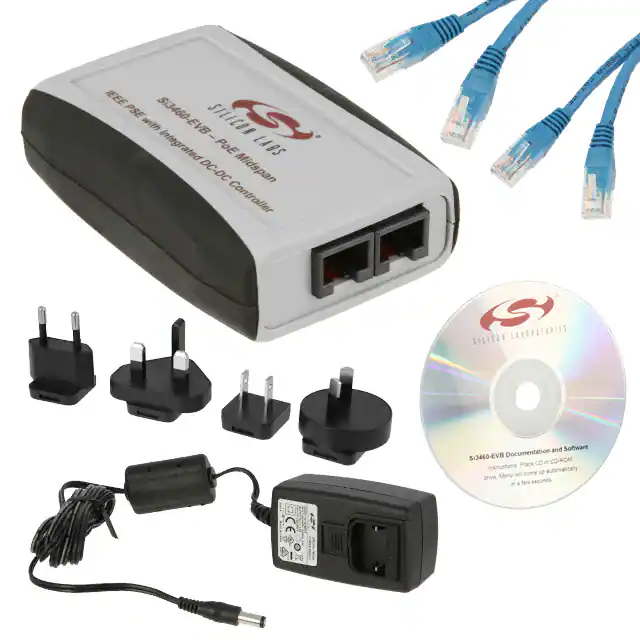

SI3460-EVBEVAL BOARD FOR SI3460 |
0 |
|
برگه مشخصات |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | - | -48V | 45mA | 11V ~ 16V | Boost | 250kHz | Board(s) | Si3460 |
|
BD9C501EFJ-EVK-001EVAL BOARD FOR BD9C501 |
1 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 4.72V ~ 18V | Buck | 500kHz | Board(s) | BD9C501 |
|

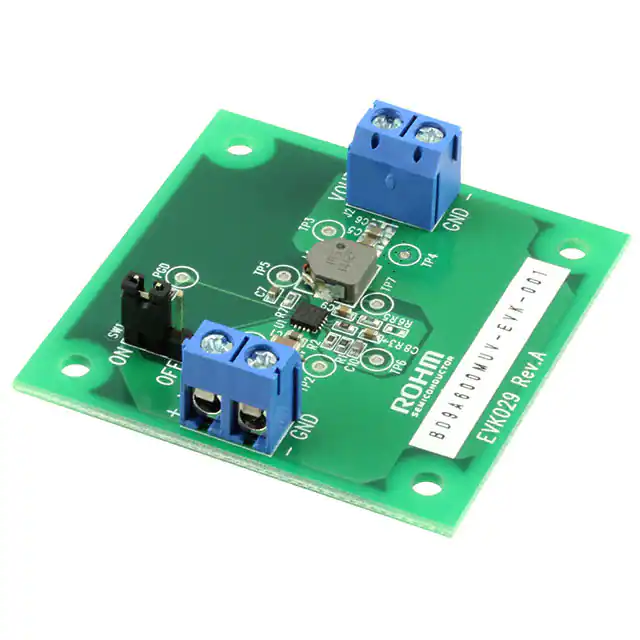

BD9A600MUV-EVK-001EVAL BOARD FOR BD9A600 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | BD9A600 |
|
|
XR77129EVB-DEMO-1-KITAEVAL BOARD FOR XR77129 |
0 |
|
برگه مشخصات |
- | Bulk | Not For New Designs | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 2.5V, 3.3V, 5V, 12V | 10A, 5A, 5A, 3A | 6V ~ 40V | Buck | 1.23MHz | Board(s) | XR77129 |
|
|
MAX77503AEVKIT#EVAL BOARD FOR MAX77503A |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 3V ~ 14V | Buck | - | Board(s) | MAX77503A |
|
|
ISL854102EVAL1ZEVAL BOARD FOR ISL854102 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 3V ~ 40V | Buck | 500kHz | Board(s) | ISL854102 |
|
STEVAL-ISV009V1EVAL BOARD FOR SPV1020 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | Special Purpose, MPPT, Solar | 1 Non-Isolated Output | - | 36V | - | - | Boost | 100kHz | Board(s) | SPV1020 |
|

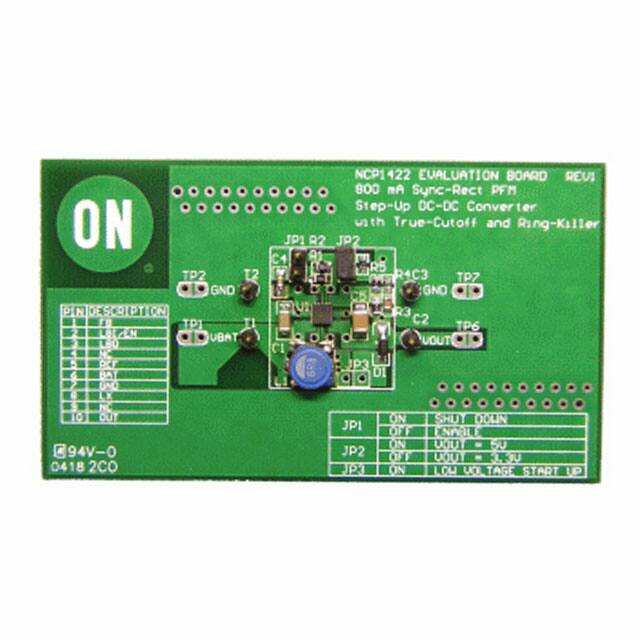

NCP1422GEVBEVAL BOARD FOR NCP1422 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.5V ~ 5V | - | 1V ~ 5V | Boost | - | Board(s) | NCP1422 |
|
|
ISL8025EVAL3ZEVAL BOARD FOR ISL8025 |
0 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 5A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8025 |
|
|
ISL6420BEVAL1ZEVAL BOARD FOR ISL6420B |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 4.5V ~ 28V | Buck | 300kHz | Board(s) | ISL6420B |
