تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FEBFAN6602RM6X-CH10U40A-GEVBEVAL BOARD FOR FAN6602R |
0 |
|
- |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | - | - | - | Flyback | 65kHz | Board(s) | FAN6602R |
|
|
FEBFSL126MR-H432V1-GEVBEVAL BOARD FOR FSL126MR |
0 |
|
برگه مشخصات |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 13.8 W | 5V, 12V | 1.8A, 400mA | 90 ~ 264 VAC | Flyback | - | Board(s) | FSL126MR |
|

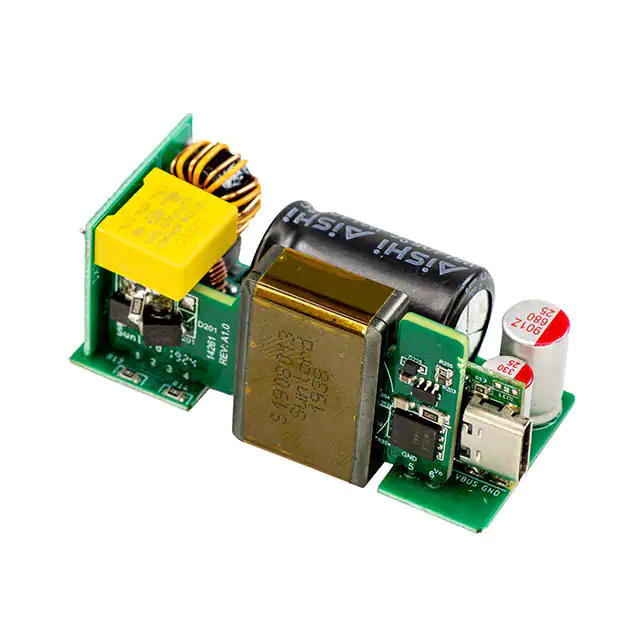

REFXDPS2107145W1TOBO1EVAL BOARD FOR XDPS21071 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | AC/DC, Primary and Secondary Side | 1 Isolated Output | 45 W | 20V | 2.25A | 90 ~ 265VAC | Flyback | 140kHz | Board(s) | XDPS21071 |
|
|
DC1877AEVAL BOARD FOR LTC3630A |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 500mA | 4V ~ 76V | Buck | - | Board(s) | LTC3630A |
|
|
ISL6236EVAL1EVAL BOARD FOR ISL6236 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down with LDO | 5 Non-Isolated Outputs | - | 3.3V, 3.3V, 5V, 5V, 14V | - | - | Buck | - | Board(s) | ISL6236 |
|
MAX15053EVKIT+EVAL BOARD FOR MAX15053 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | MAX15053 |
|
EVL6566A-75WADPEVAL BOARD L6563 L6566A TSM1014 |
0 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 75 W | 19V | 4A | 90 ~ 264 VAC | - | 65kHz | Board(s) | L6563, L6566A, TSM1014 |
|
|
ISL6236EVAL2EVAL BOARD FOR ISL6236 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1.05V, 1.5V, 3.3V, 3.3V | - | - | Buck | - | Board(s) | ISL6236 |
|

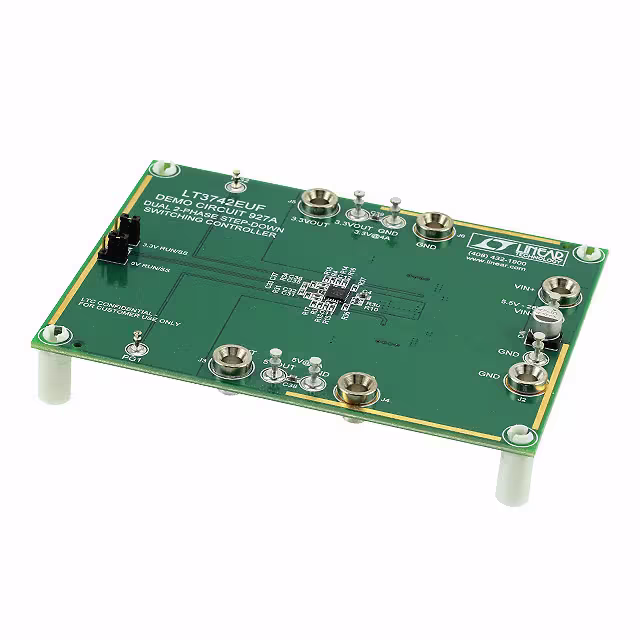

DC927AEVAL BOARD FOR LT3742 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 4A, 4A | 5.5V ~ 28V | Buck | 500kHz | Board(s) | LT3742 |
|

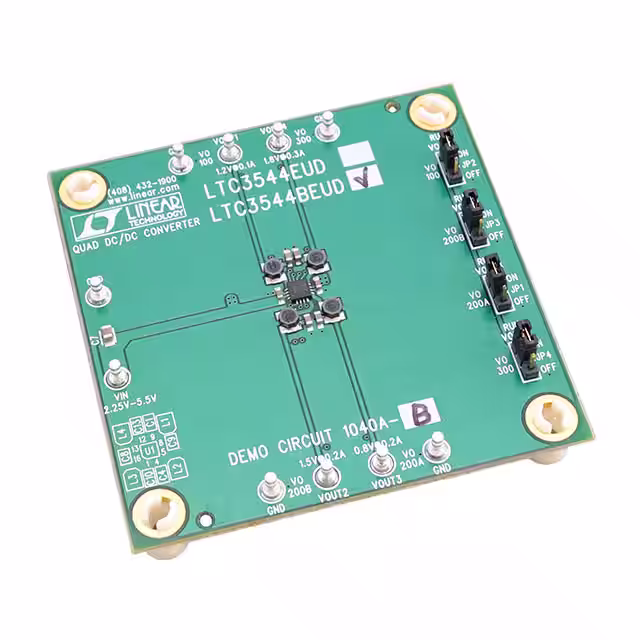

DC1040A-BEVAL BOARD FOR LTC3544 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.8V, 1.2V, 1.5V, 1.8V | 300mA, 200mA, 200mA, 100mA | 2.25V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3544 |
|

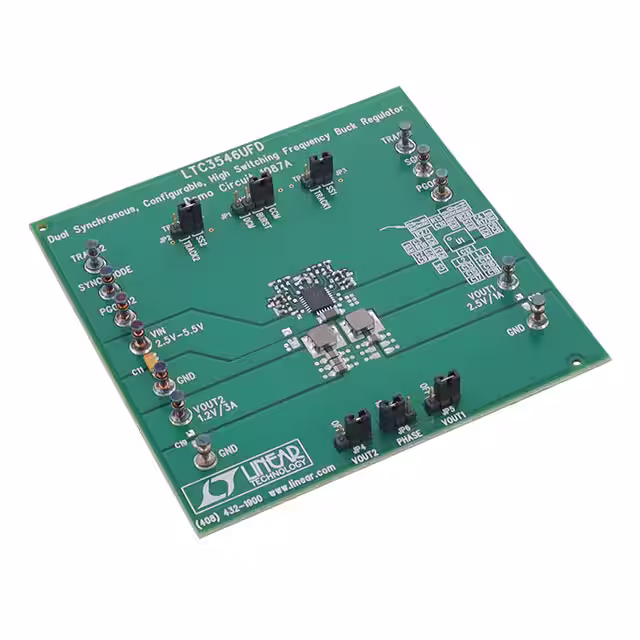

DC1087AEVAL BOARD FOR LTC3546 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 2.5V | 3A, 1A | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3546 |
|

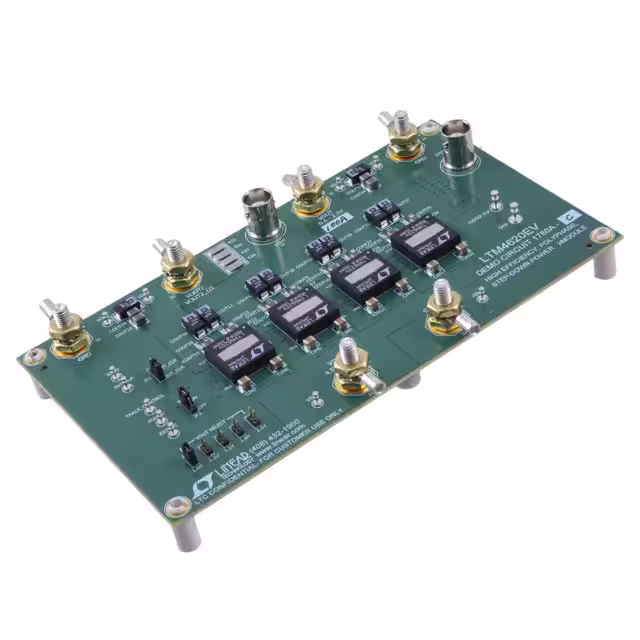

DC1780A-CEVAL BOARD FOR LTM4620 |
0 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 100A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4620 |
|
|
DC1345AEVAL BOARD FOR LTC3879 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 4.5V ~ 34V | Buck | 300kHz | Board(s) | LTC3879 |
|
|
DC1040A-AEVAL BOARD FOR LTC3544 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.8V, 1.2V, 1.5V, 1.8V | 300mA, 200mA, 200mA, 100mA | 2.25V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3544 |
|
|
DC1293AEVAL BOARD FOR LT1939 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 3.3V, 5V | 1.5A, 500mA | 7V ~ 25V | Buck | 800kHz | Board(s) | LT1939 |
|
|
DC1343AEVAL BOARD FOR LTC3564 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1.25A | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3564 |
|
|
DC1394AEVAL BOARD FOR LT3480 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.5V ~ 5.5V | - | 8V ~ 38V | Buck | 2.4MHz | Board(s) | LT3480 |
|
|
DC1395AEVAL BOARD FOR LT3505 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.7V ~ 4.7V | 1.2A | 8V ~ 36V | Buck | - | Board(s) | LT3505 |
|
|
DC1572AEVAL BOARD FOR LTC3615 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 3A, 3A | 2.25V ~ 5.5V | Buck | 4MHz | Board(s) | LTC3615 |
|
|
DC1847AEVAL BOARD FOR LTC3607 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 2.5V | 600mA, 600mA | 4.5V ~ 15V | Buck | 2.25MHz | Board(s) | LTC3607 |
