تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STR-PWRNCV896530-R0-GEVKEVAL BOARD FOR NCV896530 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.9V ~ 3.3V | - | 2.5V ~ 5.5V | Buck | 2.1MHz | Board(s) | NCV896530 |
|
|
MAX20412EVKIT#EVAL BOARD FOR MAX20412 |
0 |
|
برگه مشخصات |
- | Box | Active | - | - | - | - | - | - | - | - | Board(s) | MAX20412 |
|

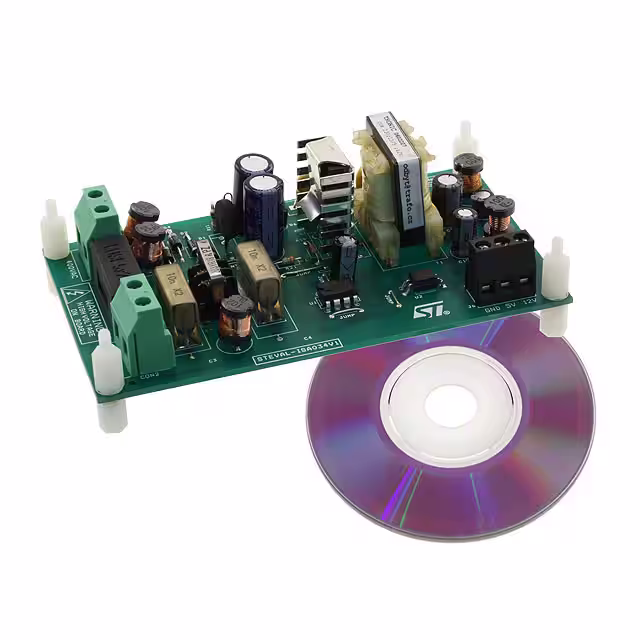

STEVAL-ISA034V1EVAL BOARD FOR L6565 STW3N150 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 10 W | 5V, 12V | 600mA, 550mA | 185 ~ 460 VAC | Flyback | - | Board(s) | L6565, STW3N150 |
|
|
ISL6442EVAL1ZEVAL BOARD FOR ISL6442 |
0 |
|
برگه مشخصات |
- | Box | Last Time Buy | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V | 3A, 3A, 300mA | 6V | Buck | 1.4MHz | Board(s) | ISL6442 |
|

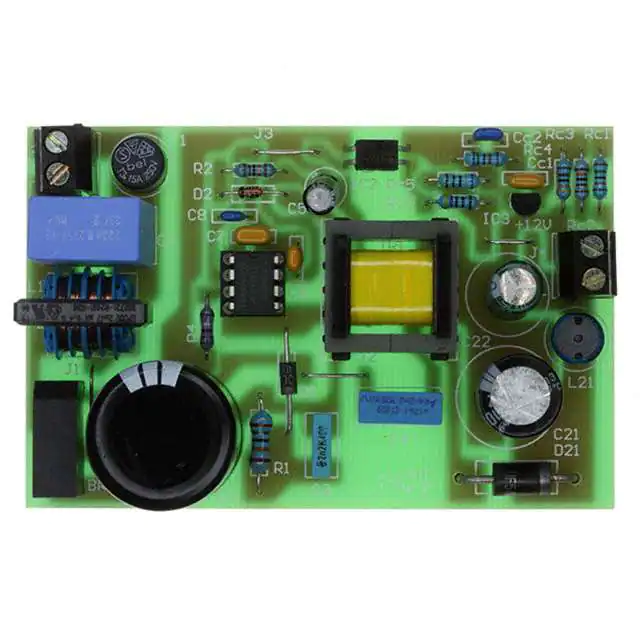

EVALSF3-ICE3B0565EVAL BOARD FOR ICE3B0565 |
0 |
|
برگه مشخصات |
CoolSET®F3 | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | 67kHz | Board(s) | ICE3B0565 |
|
|
ISL68201-99260DEMO1ZEVAL BOARD FOR ISL68201 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 35A | 4.75V ~ 14.5V | Buck | 400kHz | Board(s), Cable(s) | ISL68201 |
|
|
ISL8272MEVAL2ZEVAL BOARD FOR ISL8272M |
0 |
|
برگه مشخصات |
- | Bag | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 150A | 5V ~ 12V | Buck | 421kHz | Board(s), Cable(s) | ISL8272M |
|

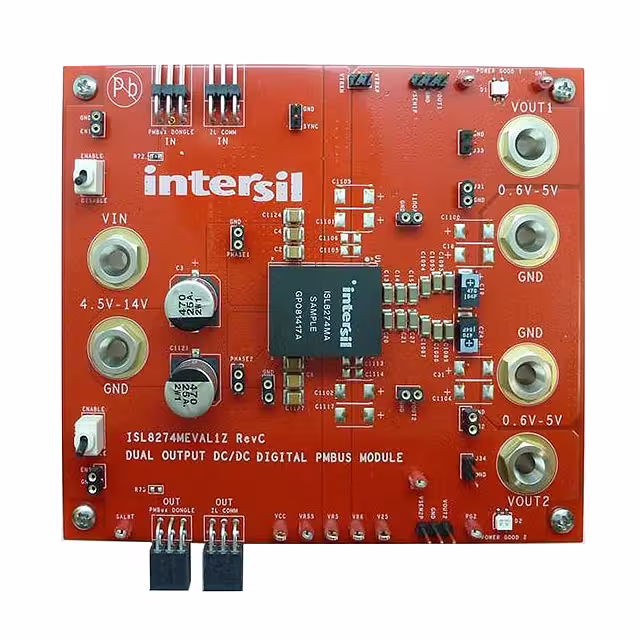

ISL8274MEVAL1ZEVAL BOARD FOR ISL8274M |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V | 30A, 30A | 5V ~ 12V | Buck | 889kHz | Board(s), Cable(s) | ISL8274M |
|

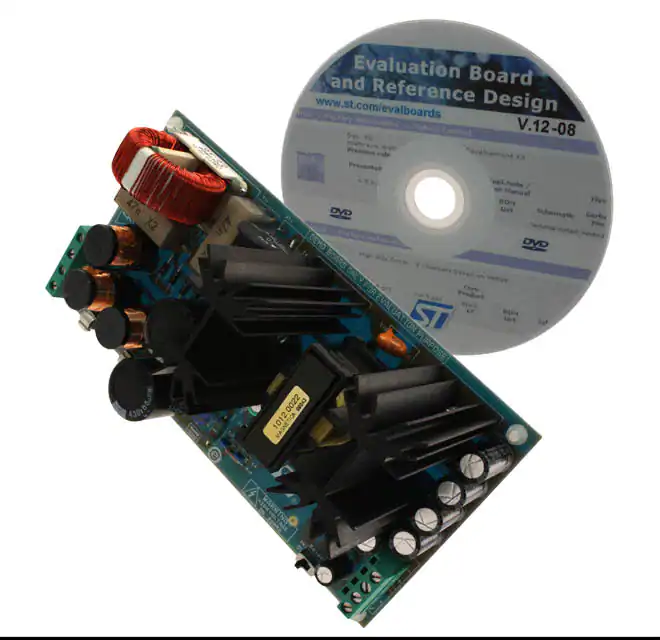

STEVAL-ISA054V1EVAL BOARD FOR L5970 STW9N150 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 100 W | 24V, 3.3V or 5V | 4A, 1A | 180 ~ 265 VAC, 320 ~ 480 VAC | Flyback | 250kHz | Board(s) | L5970, STW9N150, UC3844B |
|

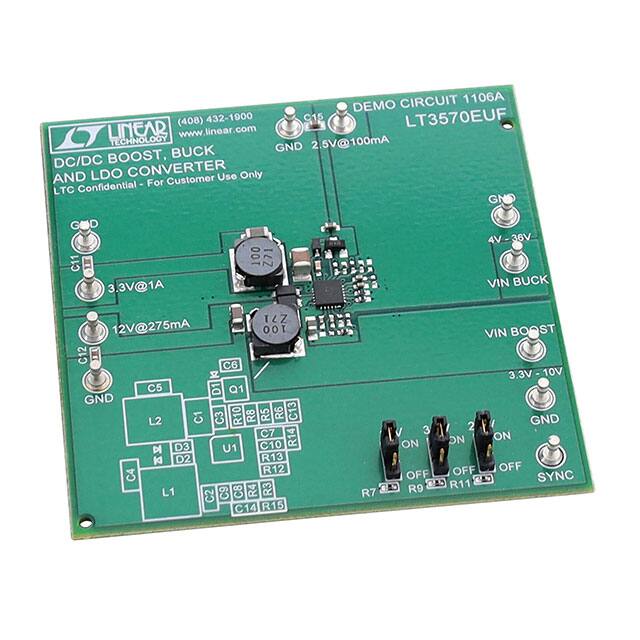

DC1106AEVAL BOARD FOR LT3570 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down with LDO | 3 Non-Isolated Outputs | - | 2.5V, 3.3V, 12V | 100mA, 275mA, 1A | 3.3V ~ 10V, 4V ~ 36V | Boost, Buck | 500kHz | Board(s) | LT3570 |
|

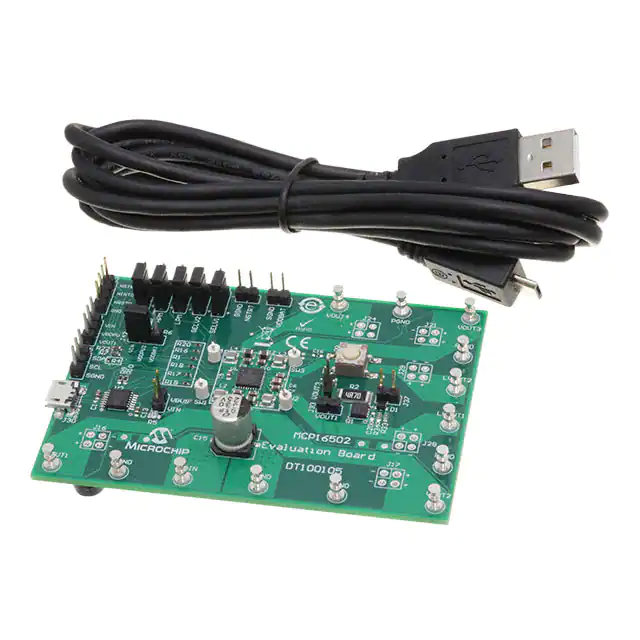

DT100105EVAL BOARD SAMA7G SAMA5D2 SAM9X6 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | - | 1A | - | Buck | - | Board(s) | SAMA7G, SAMA5D2, SAM9x6 |
|
|
ISL8025AEVAL3ZEVAL BOARD FOR ISL8025A |
0 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 5A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8025A |
|
|
EVL4984-350WEVAL BOARD FOR L4984D |
0 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Non-Isolated Output | 350 W | 400V | - | 90 ~ 265 VAC | - | 70kHz | Board(s) | L4984D |
|
|
RTKA223012DR0050BUEVAL BOARD FOR RAA223012 |
0 |
|
برگه مشخصات |
- | Box | Active | AC/DC Converter | 1 Non-Isolated Output | 750 mW | 5V | 150mA | 85 ~ 265 VAC | Buck-Boost | - | Board(s) | RAA223012 |
|

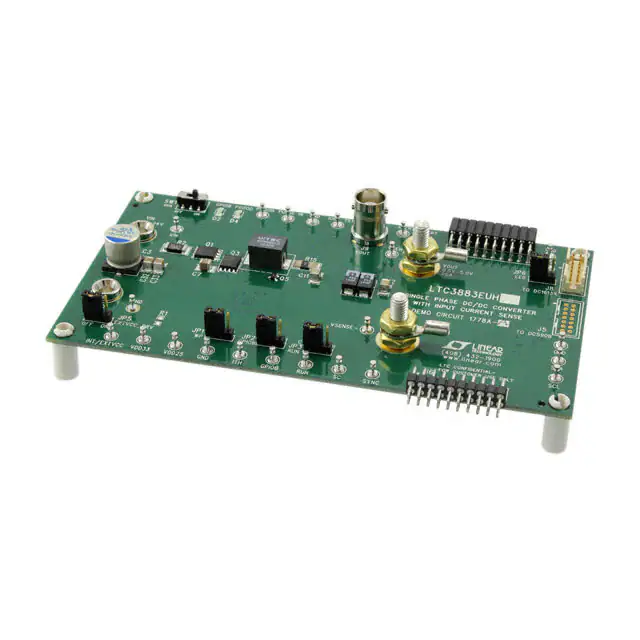

DC1778A-AEVAL BOARD FOR LTC3883 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 20A | 6.5V ~ 24V | Buck | 425kHz | Board(s) | LTC3883 |
|
|
DC2513AEVAL BOARD FOR LTC7821 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 36V ~ 72V | Buck | 500kHz | Board(s) | LTC7821 |
|

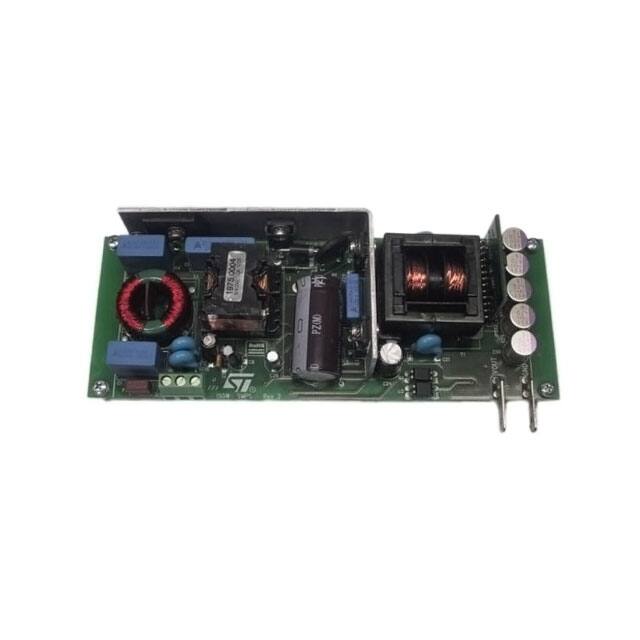

STEVAL-ISA170V1EVAL BOARD L6563H L6699 SRK2001 |
0 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side and PFC | 1 Isolated Output | 150 W | 12V | 12.5A | 90 ~ 264 VAC | Flyback | - | Board(s) | L6563H, L6699, SRK2001 |
|

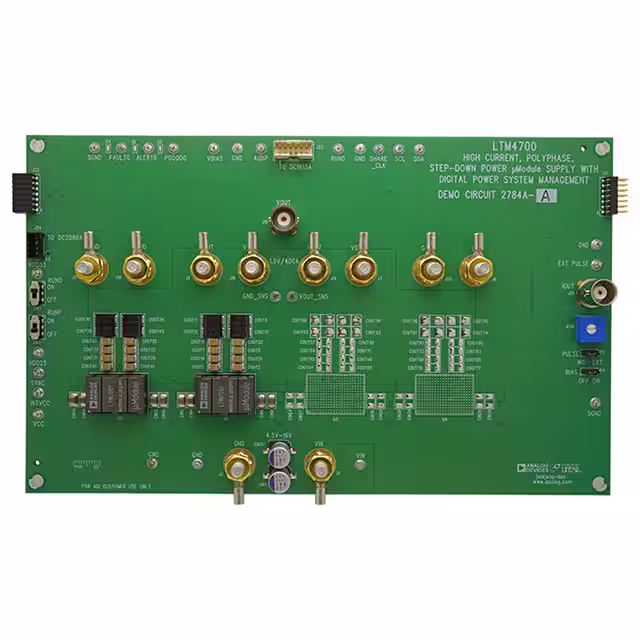

DC2784A-AEVAL BOARD FOR LTM4700 |
0 |
|
برگه مشخصات |
µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 200A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4700 |
|
|
LM2642REVD EVALEVAL BOARD FOR LM2642 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 2A, 2A | 4.5V ~ 20V | Buck | 300kHz | Board(s) | LM2642 |
|

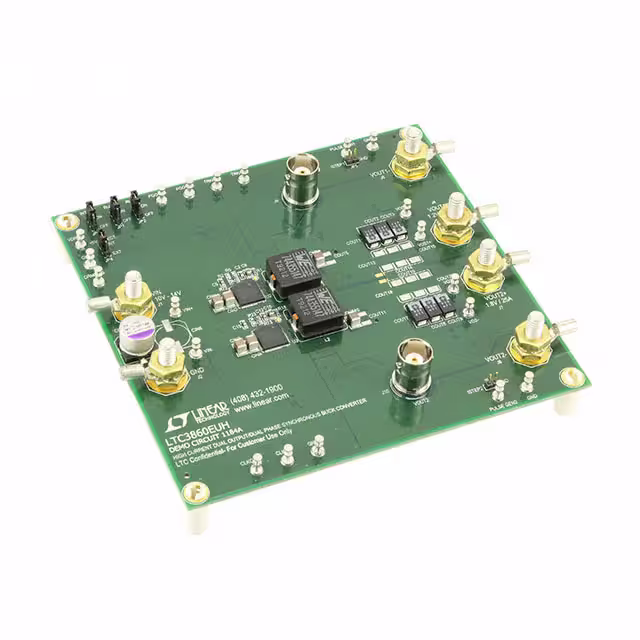

DC1184AEVAL BOARD FOR LTC3860 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 25A, 25A | 10V ~ 14V | Buck | 500kHz | Board(s) | LTC3860 |
