تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP5071RE-EVALZEVAL BOARD FOR ADP5071 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | ±15V | - | 3V ~ 5.5V | Boost | - | Board(s) | ADP5071 |
|

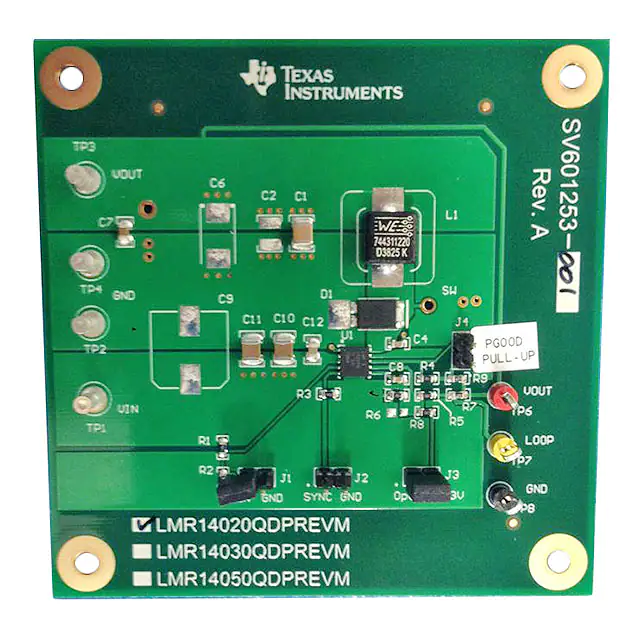

LMR14020QDPREVMEVAL BOARD FOR LMR14020Q1 |
4 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 2A | 7V ~ 40V | Buck | 1.6MHz | Board(s) | LMR14020-Q1 |
|

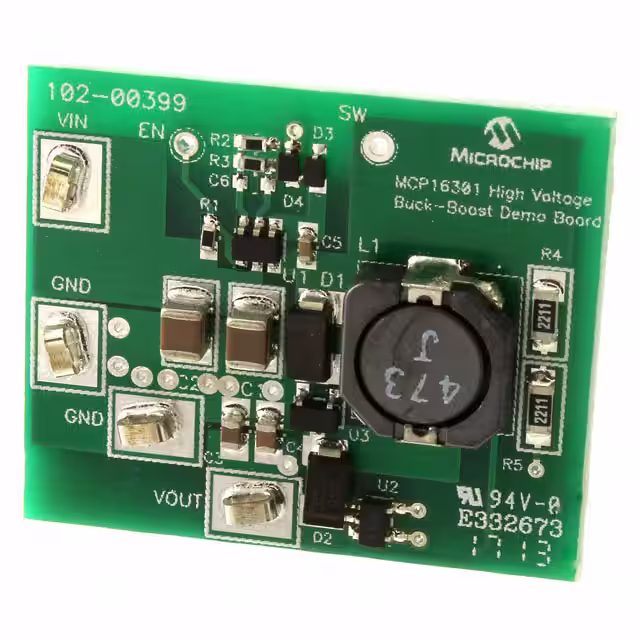

ADM00399EVAL BOARD FOR MCP16301 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | - | 5V ~ 30V | Buck-Boost | 500kHz | Board(s) | MCP16301 |
|

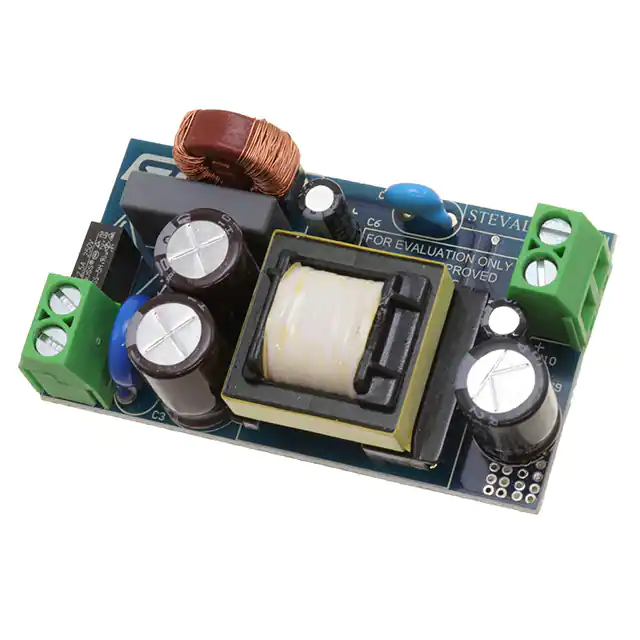

STEVAL-ISA171V1EVAL BOARD FOR VIPER35HD |
4 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | - | 12V | 1.25A | 90 ~ 264 VAC | Resonant | 225kHz | Board(s) | VIPER35HD |
|

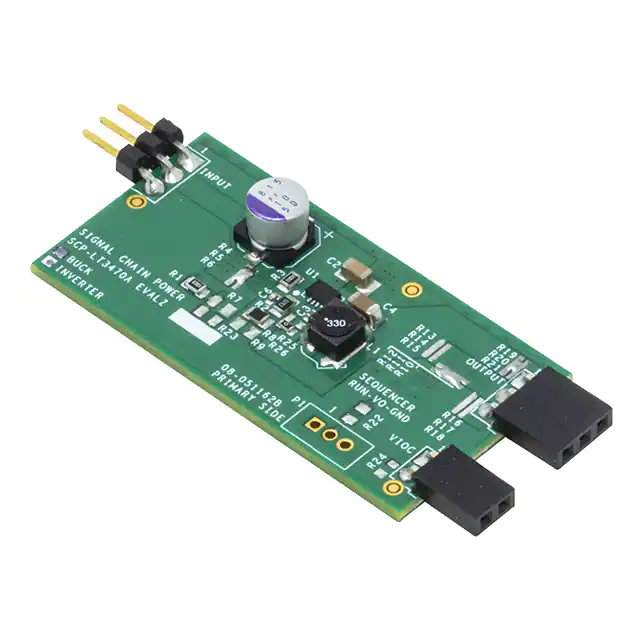

SCP-LT3470A-BEVALZEVAL BOARD FOR LT3470A |
3 |
|
برگه مشخصات |
SCP | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 250mA | 4V ~ 36V | Buck | - | Board(s) | LT3470A |
|

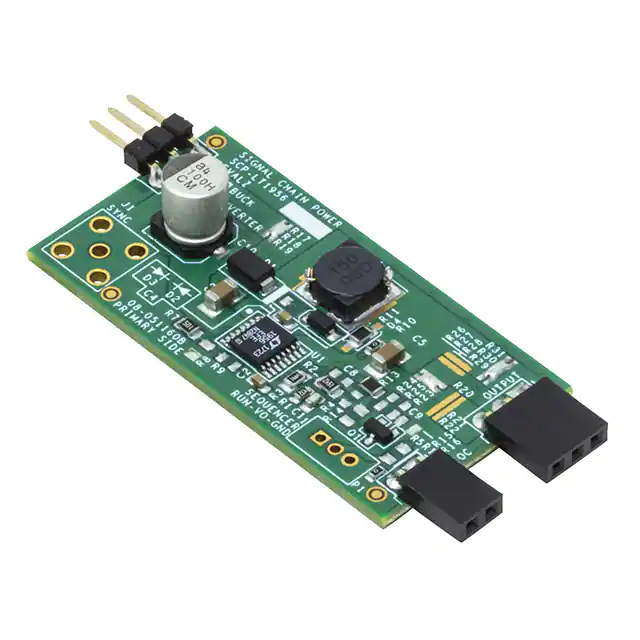

SCP-LT1956-BEVALZEVAL BOARD FOR LT1956 |
2 |
|
برگه مشخصات |
SCP | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 24V | 1A | 48V | Buck | 500kHz | Board(s) | LT1956 |
|

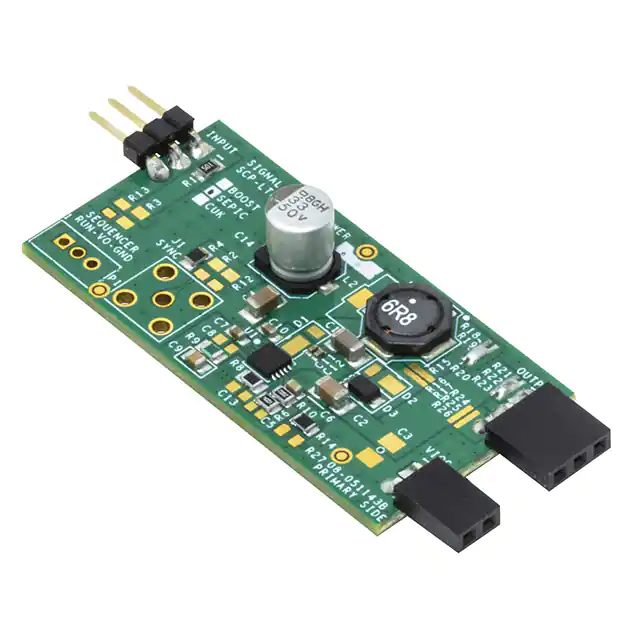

SCP-LT8362-S-EVALZEVAL BOARD FOR LT8362 |
2 |
|
برگه مشخصات |
SCP | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 2A | 2.8V ~ 60V | SEPIC | 2MHz | Board(s) | LT8362 |
|
SCP-LT8330-EVALZEVAL BOARD FOR LT8330 |
1 |
|
برگه مشخصات |
SCP | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 135mA | 10V ~ 36V | Boost, Inverting | 2MHz | Board(s) | LT8330 |
|

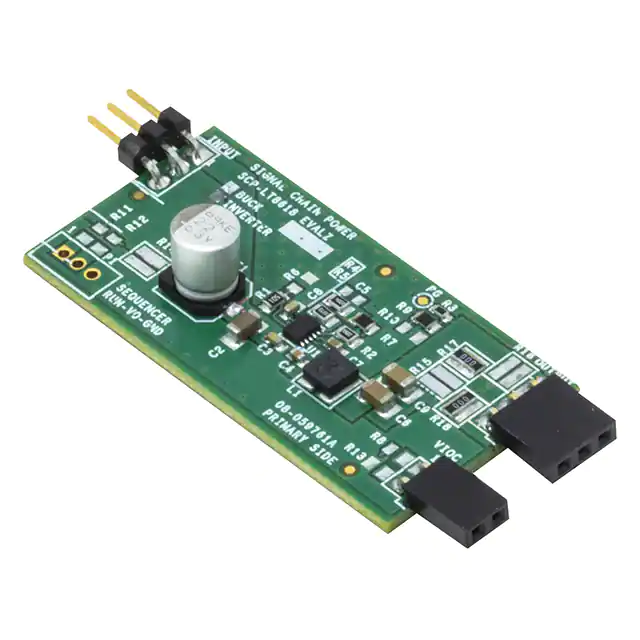

SCP-LT8618-IEVALZEVAL BOARD FOR LT8618 |
0 |
|
برگه مشخصات |
SCP | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 100mA | 3.4V ~ 60V | Buck, Inverting | 2MHz | Board(s) | LT8618 |
|

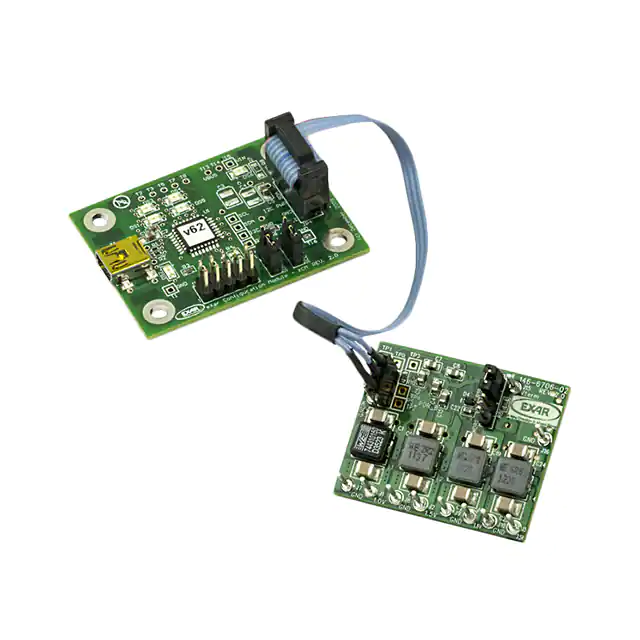

XRP7714EVB-ZYNQ-1-KITEVAL BOARD FOR XRP7714 |
5 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | - | - | - | - | - | Buck | - | Board(s), Cable(s) | XRP7714 |
|
TPS54314EVMEVAL BOARD FOR TPS54314 |
15 |
|
برگه مشخصات |
SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 3V ~ 6V | Buck | 700kHz | Board(s) | TPS54314 |
|
TPSM82866AA0HEVMEVAL BOARD FOR TPSM82866AA0H |
15 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 2.4V ~ 5.5V | Buck | - | Board(s) | TPSM82866AA0H |
|
TPSM560R6EVMEVAL BOARD FOR TPSM560R6 |
11 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 500 mW | 1V ~ 6V | 600mA | 4.2V ~ 60V | Buck | - | Board(s) | TPSM560R6 |
|

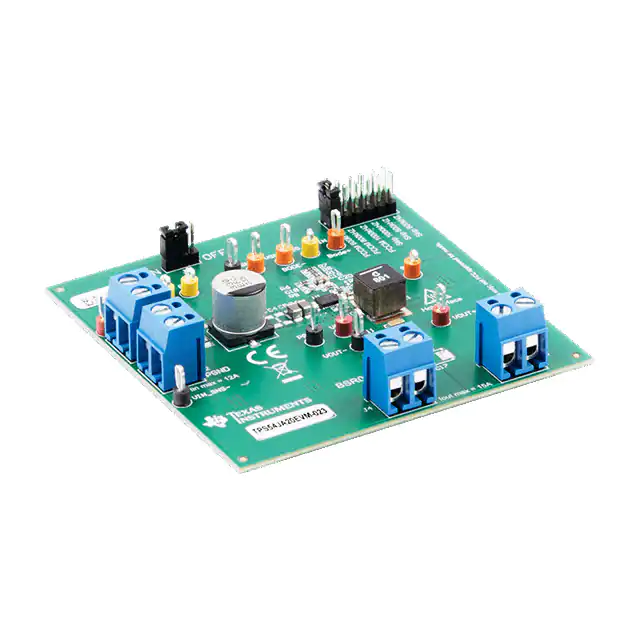

TPS54JA20EVM-023EVAL BOARD FOR TPS54JA20 |
9 |
|
برگه مشخصات |
D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 12A | 4V ~ 16V | Buck | 800kHz | Board(s) | TPS54JA20 |
|

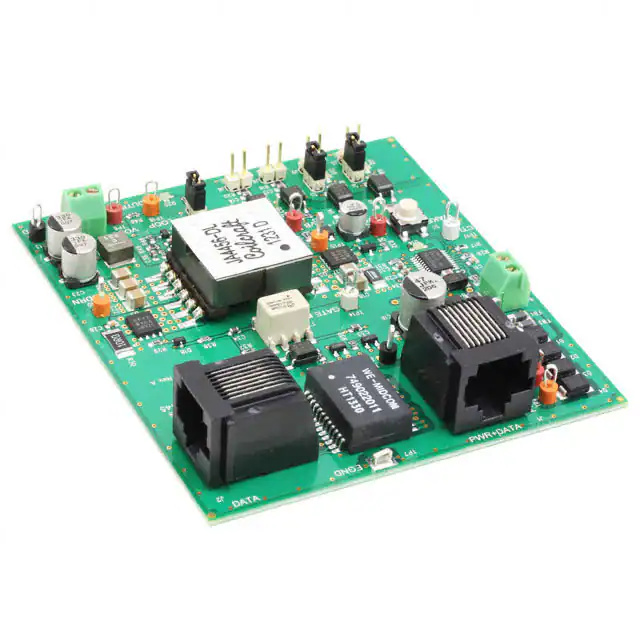

TPS23752EVM-145EVAL BOARD FOR TPS23752 |
7 |
|
برگه مشخصات |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 25 W | 5V | 5A | 21.6V ~ 57V | Flyback | 250kHz | Board(s) | TPS23752 |
|
LM5010AEVAL/NOPBEVAL BOARD FOR LM5010A |
6 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6V ~ 75V | Buck | 200kHz | Board(s) | LM5010A |
|

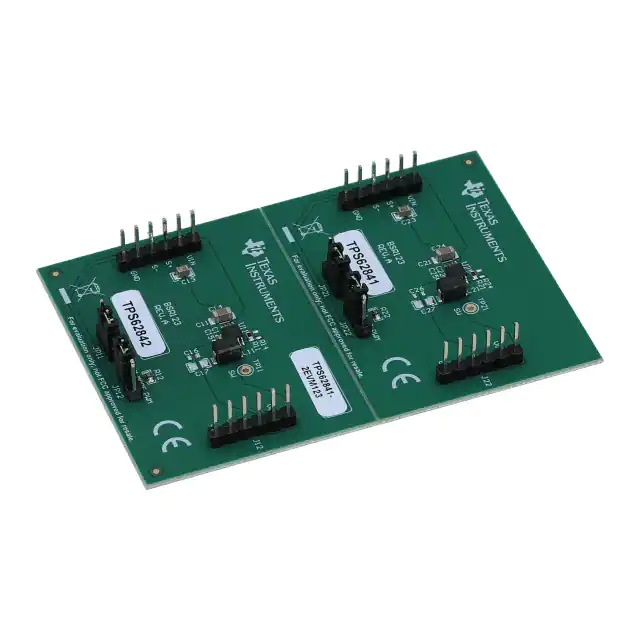

TPS62841-2EVM123EVAL BOARD FOR TPS62841 |
6 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 1.55V | 750mA | 1.8V ~ 6.5V | Buck | 1.8MHz | Board(s) | TPS62841 |
|
TPS629203-Q1EVMEVAL BOARD FOR TPS629203Q1 |
6 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 5V ~ 17V | Buck | 2.5MHz | Board(s) | TPS629203-Q1 |
|
LMR14203XMKDEMO/NOPBEVAL BOARD FOR LMR14203 |
5 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 300mA | 4.5V ~ 42V | Buck | 1.25MHz | Board(s) | LMR14203 |
|

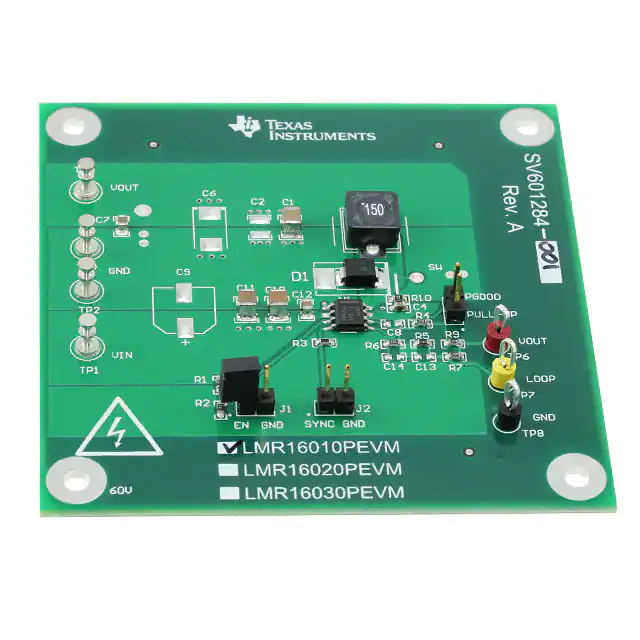

LMR16010PEVMEVAL BOARD FOR LMR16010 |
5 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 7V ~ 60V | Buck | 700kHz | Board(s) | LMR16010 |
