تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

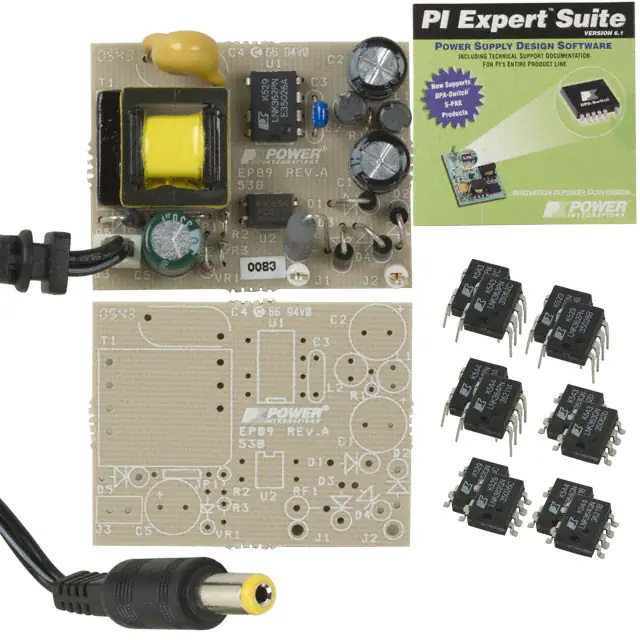

DAK-89EVAL BOARD LNK362 LNK363 LNK364 |
0 |
|
برگه مشخصات |
LinkSwitch®-XT | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 2 W | 6.2V | 322mA | 85 ~ 265 VAC | Flyback | - | Board(s) | LNK362, LNK363, LNK364 |
|

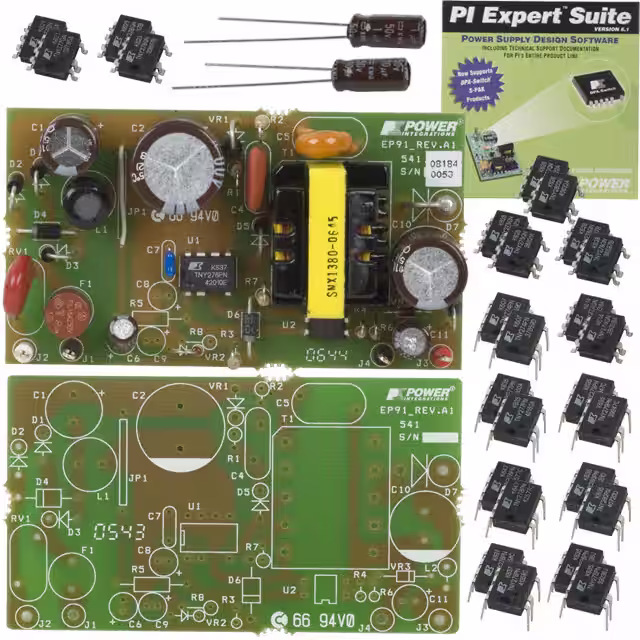

DAK-91EVAL BOARD FOR TNY278 |
0 |
|
برگه مشخصات |
TinySwitch®-III | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s) | TNY278 |
|
EL7535EVAL1EVAL BOARD FOR EL7535 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 350mA | 2.5V ~ 6V | Buck | - | Board(s) | EL7535 |
|
|
EL7536EVAL1EVAL BOARD FOR EL7536 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.5V ~ 5.5V | Buck | - | Board(s) | EL7536 |
|
|
HIP4082EVALEVAL BOARD FOR HIP4082 |
0 |
|
برگه مشخصات |
- | - | Obsolete | DC/AC Converter | 1 Isolated Output | - | 115VAC | - | 11V ~ 15V | - | - | Board(s) | HIP4082 |
|
|
HIP6012EVAL1EVAL BOARD FOR HIP6012 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.3V ~ 12V | 25A | 2.5V ~ 12V | Buck | - | Board(s) | HIP6012 |
|
|
ISL6410AEVAL1EVAL BOARD FOR ISL6410A |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 500mA | 4.5V ~ 5.5V | Buck | - | Board(s) | ISL6410A |
|
|
ISL6410EVAL1EVAL BOARD FOR ISL6410 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 500mA | 3V ~ 3.6V | Buck | - | Board(s) | ISL6410 |
|
|
ISL6551EVAL1EVAL BOARD FOR ISL6551 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 60A | 36V ~ 75V | Buck | 470kHz | Board(s) | ISL6551 |
|
|
ISL6558EVAL1EVAL BOARD FOR ISL6558 |
0 |
|
برگه مشخصات |
Endura™ | - | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 100A | 11V ~ 12.6V | Buck | 125kHz | Board(s) | ISL6558 |
|
|
ISL6559EVAL1EVAL BOARD FOR ISL6559 ISL6605 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | Special Purpose DC/DC, VRM Supply | 1 Non-Isolated Output | 125 W | 1.25V | 100A | 5V, 12V | Buck | 600kHz | Board(s) | ISL6559, ISL6605 |
|
|
ISL6562EVAL1EVAL BOARD FOR ISL6562 |
0 |
|
- |
- | Bulk | Obsolete | Special Purpose DC/DC, VRM Supply | 1 Non-Isolated Output | 60 W | 1.5V | 40A | 5V, 12V | Buck | 400kHz | Board(s) | ISL6562 |
|
|
ISL6721EVAL1EVAL BOARD FOR ISL6721 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | - | 10 W | 1.8V, 3.3V | - | 48V | - | - | Board(s) | ISL6721 |
|
|
ISL6844EVAL2EVAL BOARD FOR ISL6844 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 11 W | 3.3V | 3.35A | 36V ~ 57V | Flyback | - | Board(s) | ISL6844 |
|

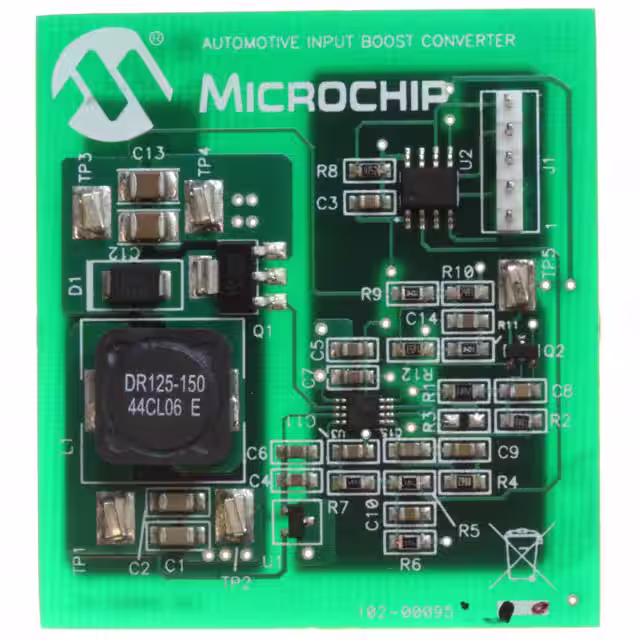

MCP1630DM-DDBS1EVAL BOARD FOR MCP1630 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 36.5V | 400mA | 9V ~ 18V | Boost | 500kHz | Board(s) | MCP1630 |
|

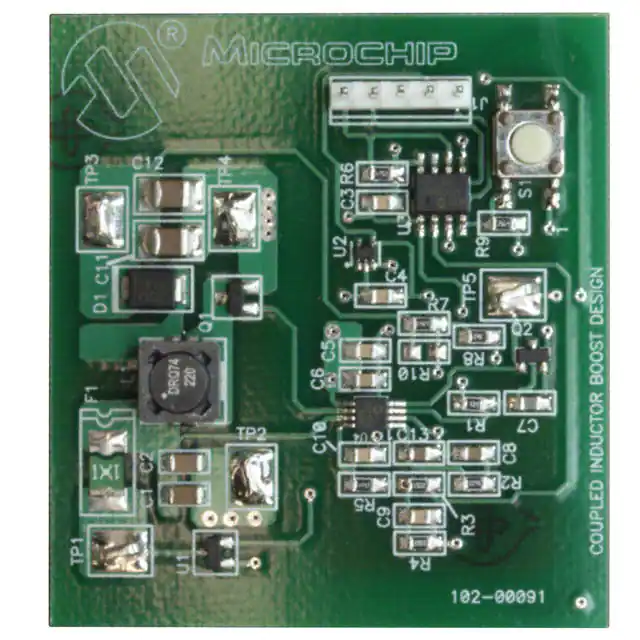

MCP1630DM-DDBS2EVAL BOARD FOR MCP1630 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V ~ 40V | 30mA | 3V ~ 5.5V | Boost | 100kHz | Board(s) | MCP1630 |
|
|
MAX5060EVKITEVAL BOARD FOR MAX5060 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 20A | 10V ~ 14V | Buck | 270kHz | Board(s) | MAX5060 |
|
|
MAX5042EVKITEVAL BOARD FOR MAX5042 |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 5V | 8A | ±36V ~ 75V | Buck | 250kHz | Board(s) | MAX5042 |
|
|
IRAC1166-100WEVAL BOARD FOR IR1166S IRF7853 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | AC/DC, Secondary Side | 1 Isolated Output | 100 W | 16V | 6.25A | 90 ~ 264 VAC | Flyback | - | Board(s) | IR1166S, IRF7853 |
|
|
LM3075EVALEVAL BOARD FOR LM3075 |
0 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 25 W | 5V | 5A | 8V ~ 25V | Buck | 300kHz | Board(s) | LM3075 |
