تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC769AEVAL BOARD FOR LTC3808 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 5A | 2.7V ~ 8V | Buck | 550kHz | Board(s) | LTC3808 |
|

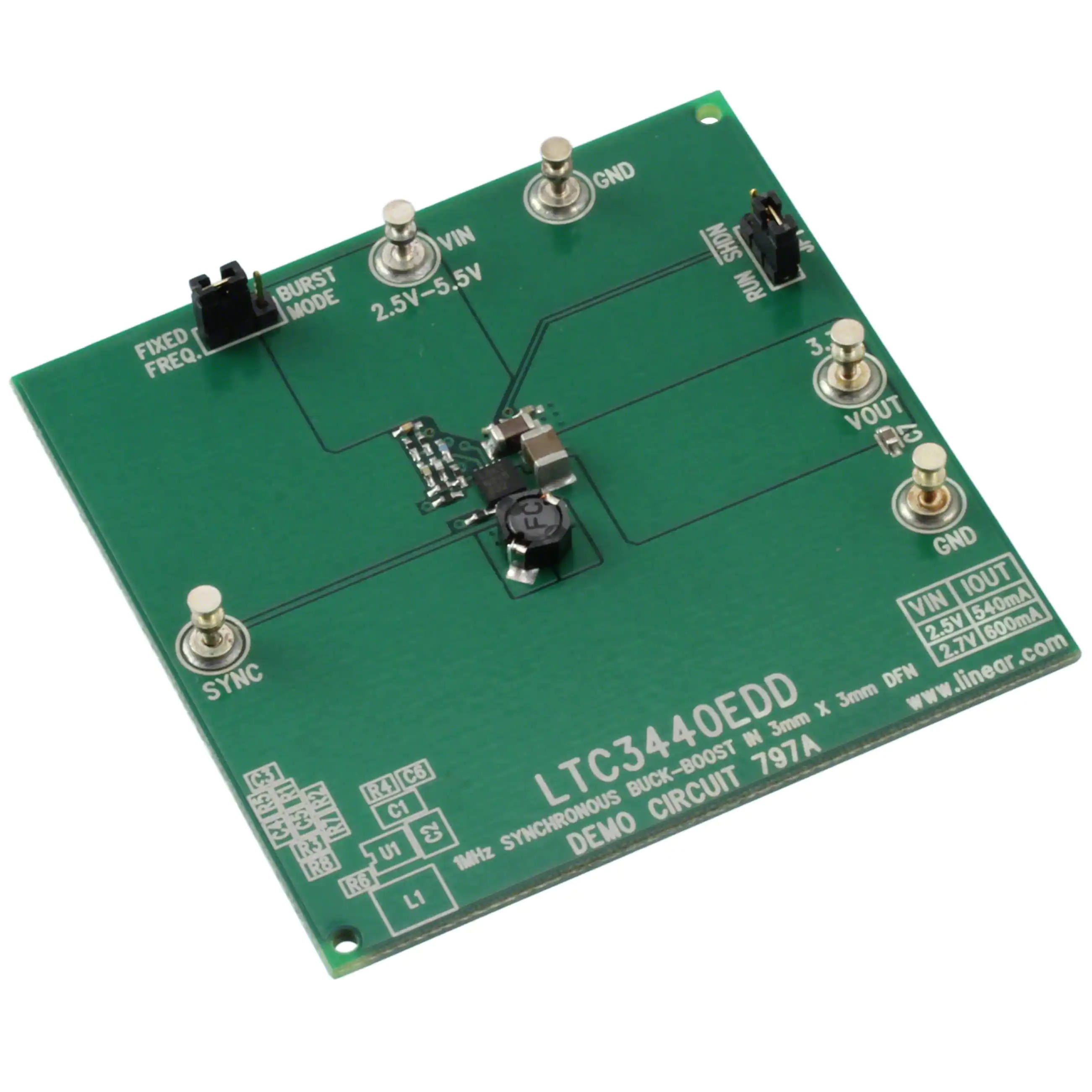

DC797AEVAL BOARD FOR LTC3440 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 2.5V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | LTC3440 |
|

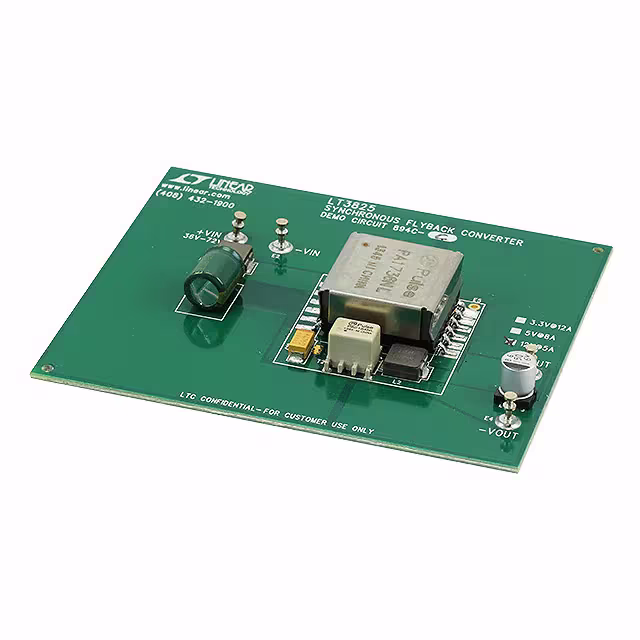

DC894C-CEVAL BOARD FOR LT3825 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 5A | 36V ~ 72V | Flyback | 200kHz | Board(s) | LT3825 |
|

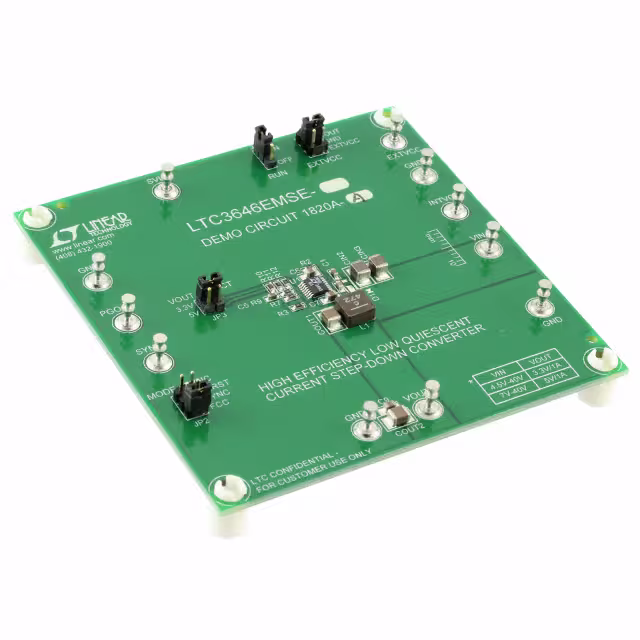

DC1820A-AEVAL BOARD FOR LTC3646 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 4V ~ 40V | Buck | 1.5MHz | Board(s) | LTC3646 |
|

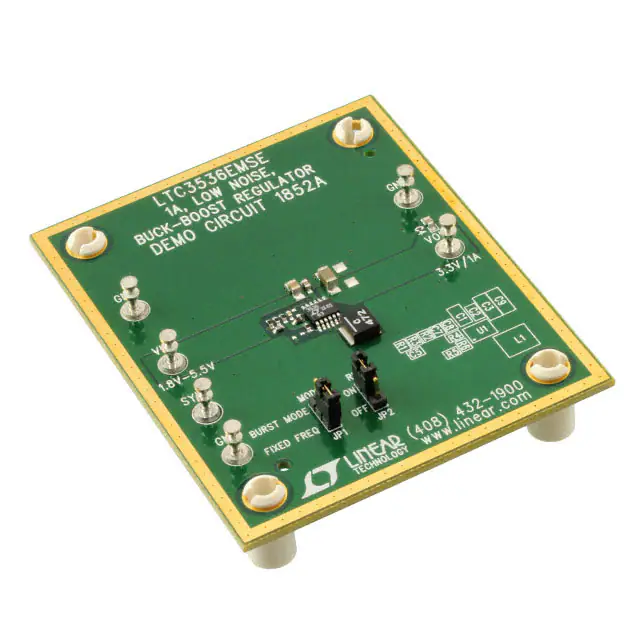

DC1852AEVAL BOARD FOR LTC3536 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1A | 1.8V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | LTC3536 |
|

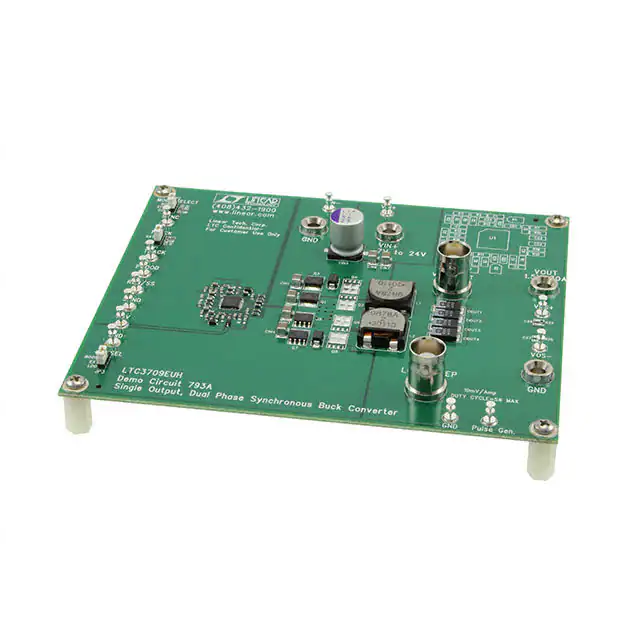

DC793AEVAL BOARD FOR LTC3709 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 30A | 7V ~ 24V | Buck | 310kHz | Board(s) | LTC3709 |
|

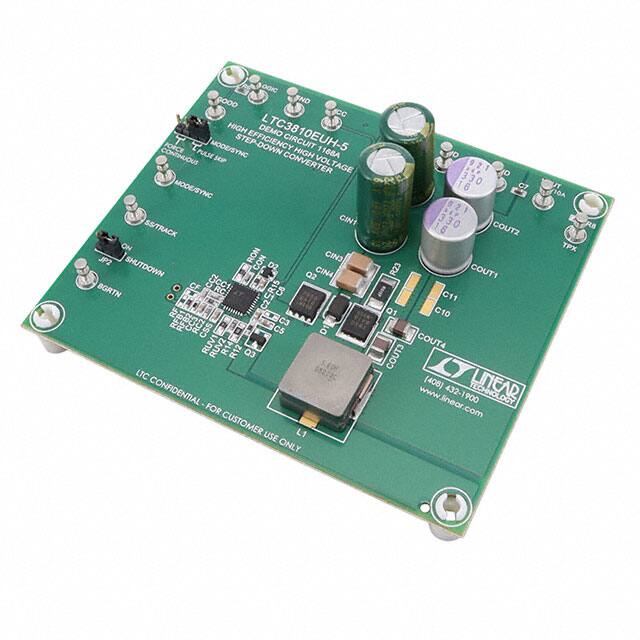

DC1168AEVAL BOARD FOR LTC38105 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 10A | 14V ~ 60V | Buck | 250kHz | Board(s) | LTC3810-5 |
|

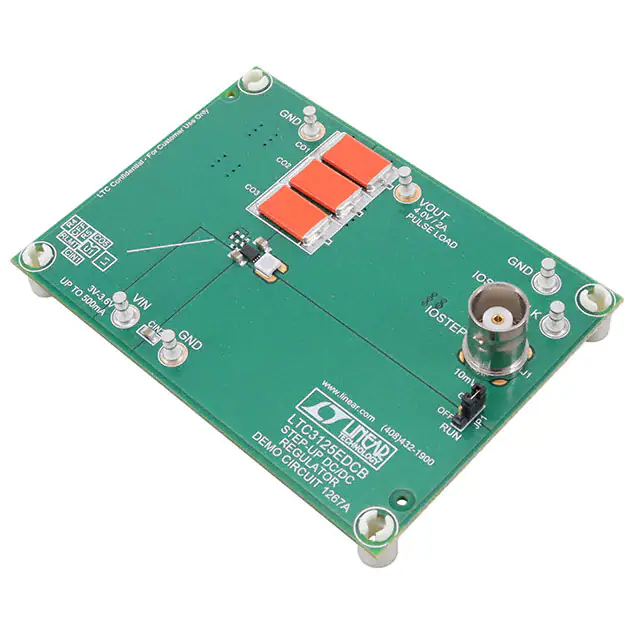

DC1267AEVAL BOARD FOR LTC3125 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 500mA | 3V ~ 3.6V | Boost | 1.6MHz | Board(s) | LTC3125 |
|

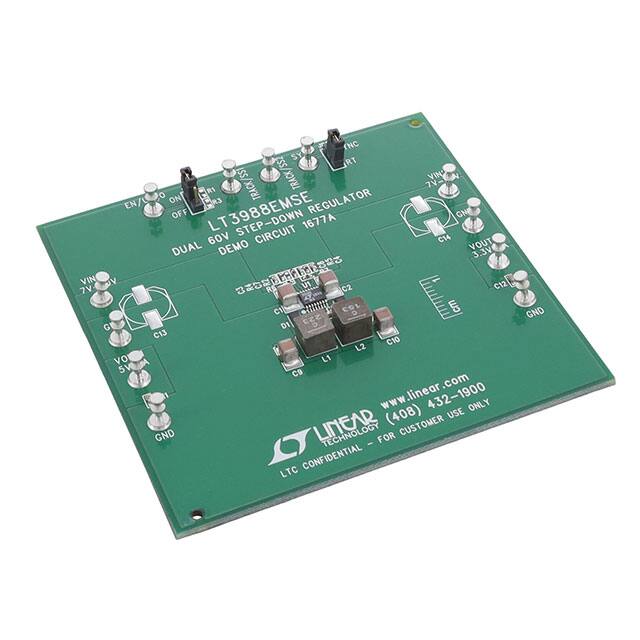

DC1677AEVAL BOARD FOR LT3988 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 1A, 1A | 7V ~ 60V | Buck | 250kHz | Board(s) | LT3988 |
|

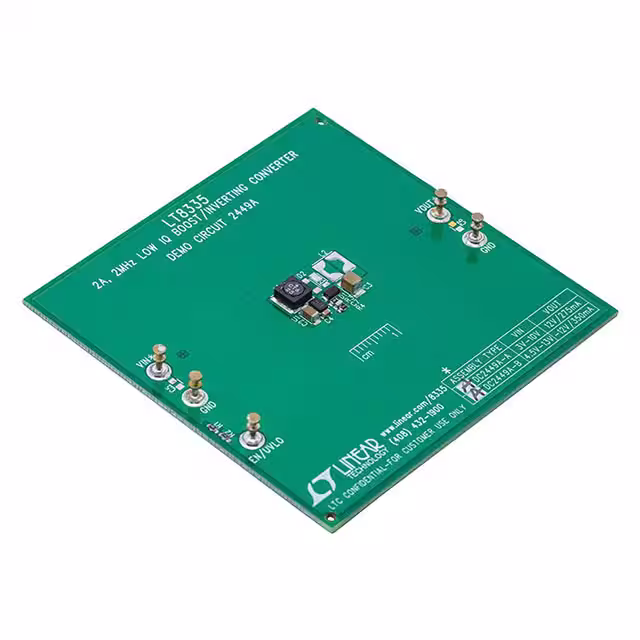

DC2449A-AEVAL BOARD FOR LT8335 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 275mA | 3V ~ 10V | Boost | 2MHz | Board(s) | LT8335 |
|
DC2449A-BEVAL BOARD FOR LT8335 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 350mA | 4.5V ~ 13V | Inverting | 2MHz | Board(s) | LT8335 |
|
DC2874A-AEVAL BOARD FOR LTC3310S |
0 |
|
برگه مشخصات |
Silent Switcher®2 | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 40A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3310S |
|

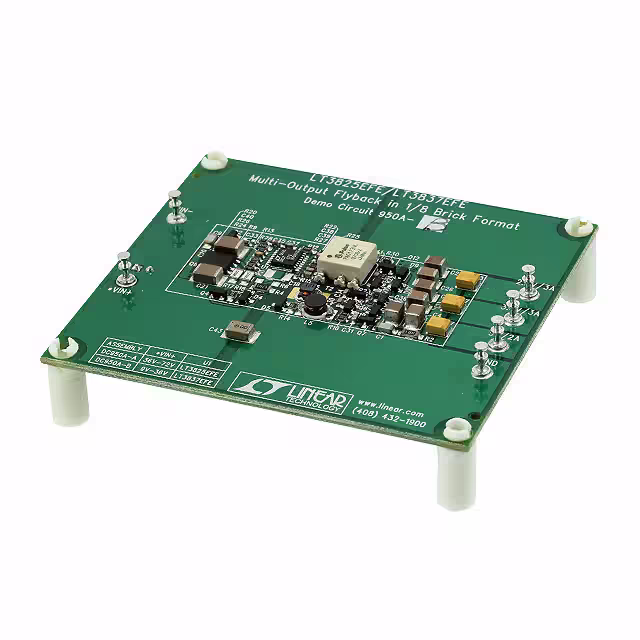

DC950A-BEVAL BOARD FOR LT3837 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 3 Isolated Outputs | - | 2.5V, 3.3V, 5V | 3A, 3A, 2A | 9V ~ 36V | Flyback | - | Board(s) | LT3837 |
|

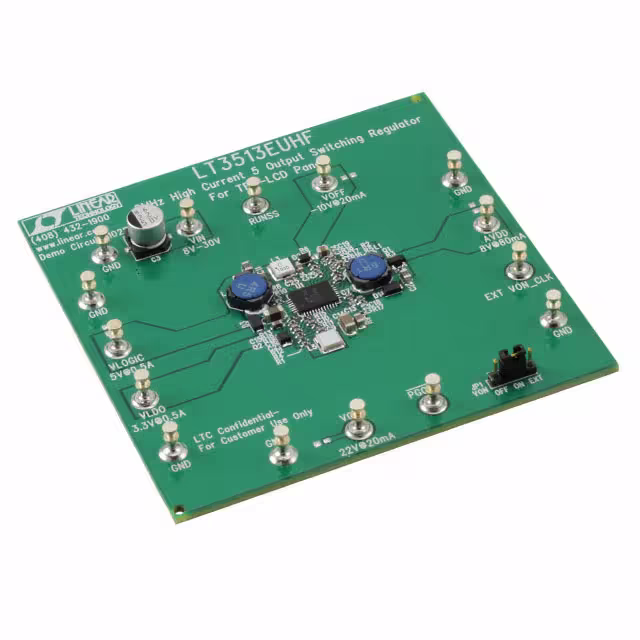

DC1028AEVAL BOARD FOR LT3513 |
0 |
|
برگه مشخصات |
- | Box | Active | Special Purpose DC/DC, LCD Supply | 5 Non-Isolated Outputs | - | 3.3V, 5V, 8V, 22V, -10V | 500mA, 500mA, 80mA, 20mA, 20mA | 8V ~ 30V | Buck | 2MHz | Board(s) | LT3513 |
|
DC3186A-AEVAL BOARD FOR LTC3311 |
7 |
|
برگه مشخصات |
Silent Switcher® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.176V ~ 1.224V | 50A | 3V ~ 5.5V | Buck | - | Board(s) | LTC3311 |
|

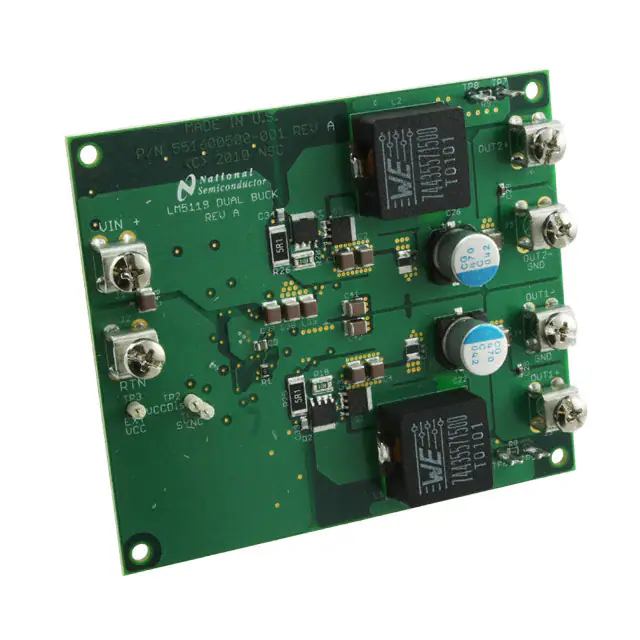

LM5119EVAL/NOPBEVAL BOARD FOR LM5119 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 10V | 4A, 8A | 14V ~ 55V | Buck | 230kHz | Board(s) | LM5119 |
|
LP8728EVMEVAL BOARD FOR LP8728 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.25V, 1.8V, 2.65V, 3.3V | - | 4.5V ~ 5.5V | Buck | 3.3MHz | Board(s) | LP8728 |
|

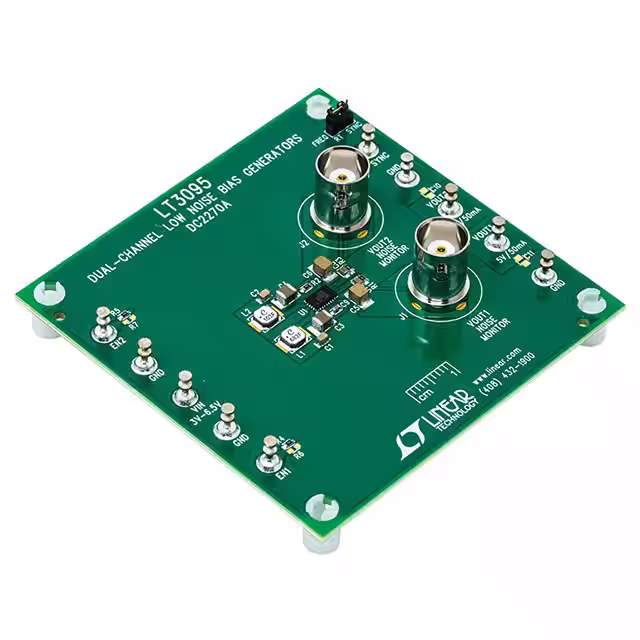

DC2270AEVAL BOARD FOR LT3095 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up with LDO | 2 Non-Isolated Outputs | - | 5V, 15V | 50mA, 50mA | 3V ~ 20V | Boost | 1MHz | Board(s) | LT3095 |
|

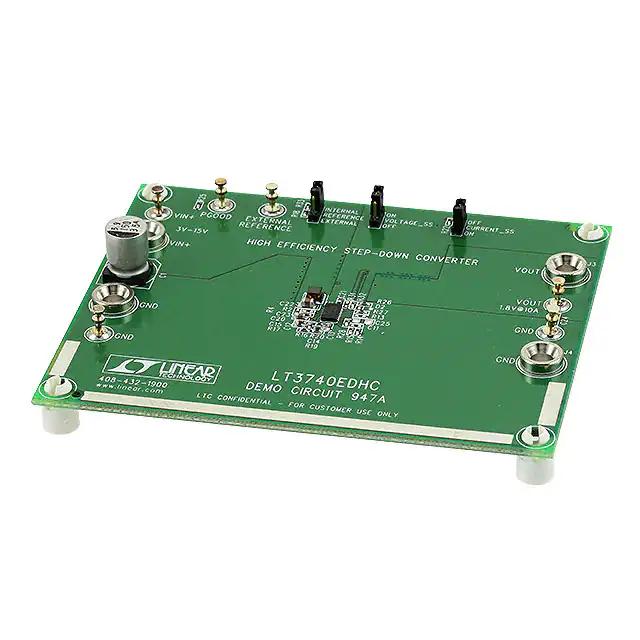

DC947AEVAL BOARD FOR LT3740 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 10A | 3V ~ 15V | Buck | 300kHz | Board(s) | LT3740 |
|

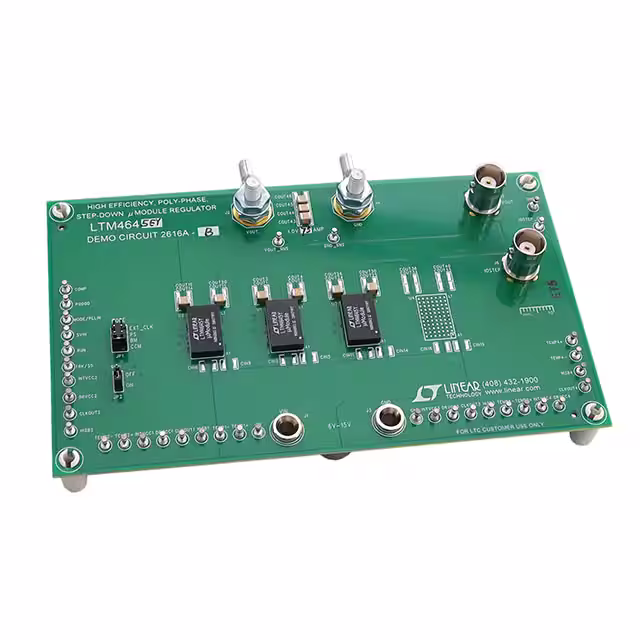

DC2616A-BEVAL BOARD FOR LTM4645 |
2 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 75A | 6V ~ 15V | Buck | 600kHz | Board(s) | LTM4645 |
