تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2728AEVAL BOARD FOR LTC7880 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 24V ~ 48V | 5A | 12V ~ 24V | Boost | 150kHz | Board(s) | LTC7880 |
|

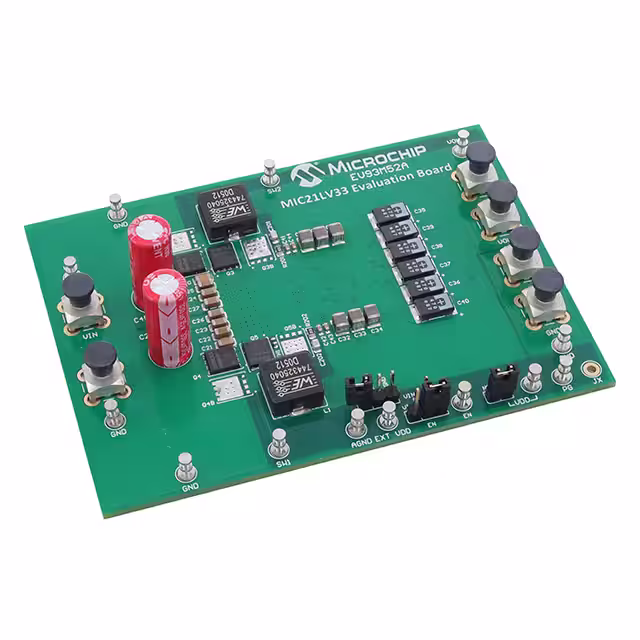

EV93M52AEVAL BOARD FOR MIC21LV33 |
3 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.82V | 40A | 4.5V ~ 36V | Buck | - | Board(s) | MIC21LV33 |
|
BDX12-EVM-08EVAL BRD BDX-100M NEEDS BDX-50S |
2 |
|
برگه مشخصات |
BDX | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 100A | 8V ~ 14V | - | 600kHz | Partially Populated Board(s) | - |
|

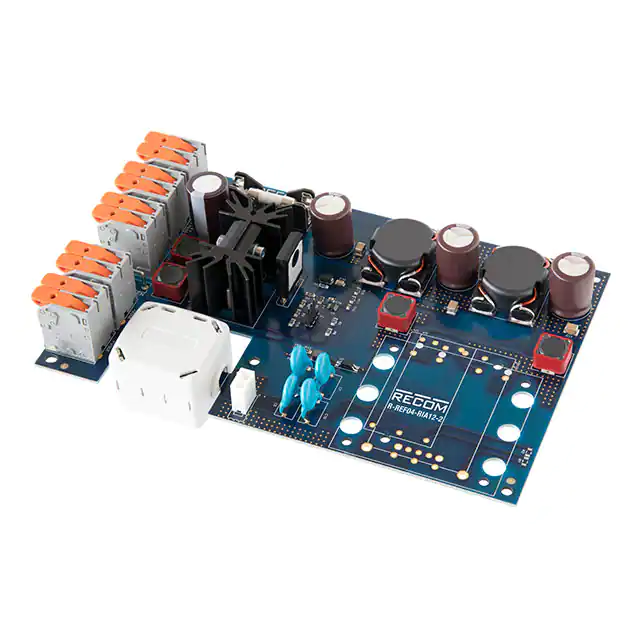

R-REF04-RIA12-1R-REF04-RIA12-1 REFERENCE DESIGN |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | - | - | - | 45A | 40V ~ 160V | - | - | Partially Populated Board(s) | - |
|

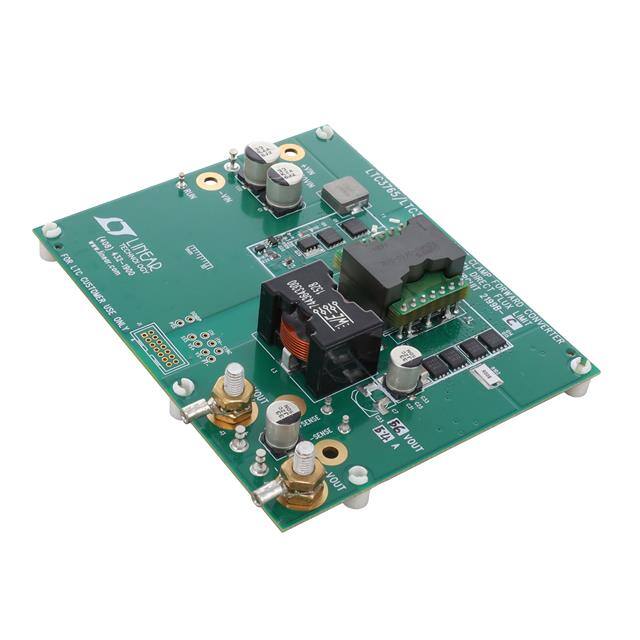

DC2199B-CEVAL BOARD FOR LTC3765 LTC3766 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 56V | 5.4A | 36V ~ 60V | Forward Converter | 200kHz | Board(s) | LTC3765, LTC3766 |
|
|
DC2881A-AEVAL BOARD FOR LTC38841 LTC7050 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | - | - | - | - | - | Buck | - | Board(s) | LTC3884-1, LTC7050 |
|
|
R-REF04-RIA12-2R-REF04-RIA12-2 REFERENCE DESIGN |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | - | - | - | 45A | 12V ~ 75V | - | - | Partially Populated Board(s) | - |
|

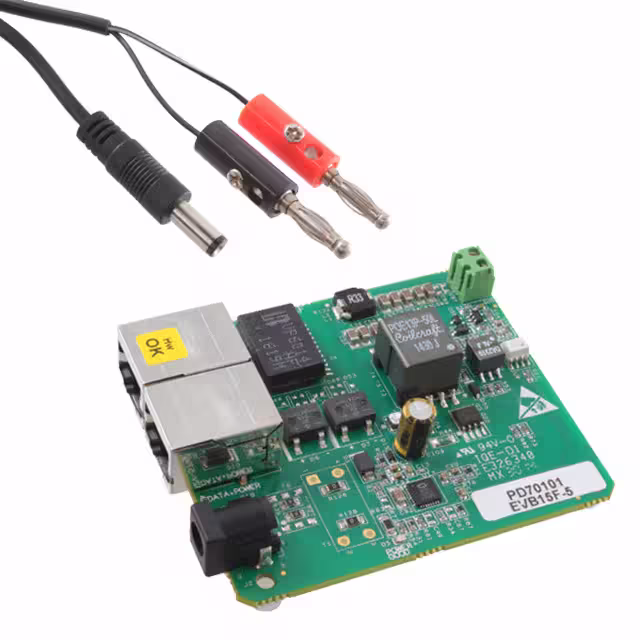

PD70101EVB15F-5EVAL BOARD FOR PD70101 |
4 |
|
برگه مشخصات |
- | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 5V | 2.6A | 44V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70101 |
|
BDX12-EVM-02EVAL BRD BDX-100M(1) BDX-50S(1) |
2 |
|
برگه مشخصات |
BDX | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 150A | 8V ~ 14V | - | 600kHz | Partially Populated Board(s) | - |
|

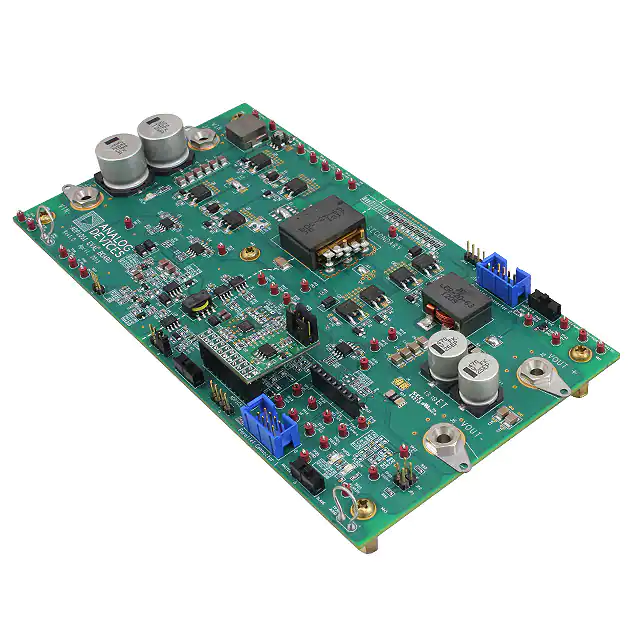

ADP1051-240-EVALZEVAL BOARD FOR ADP1051 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 240 W | 12V | 20A | 36V ~ 75V | Buck | 120kHz | Board(s) | ADP1051 |
|

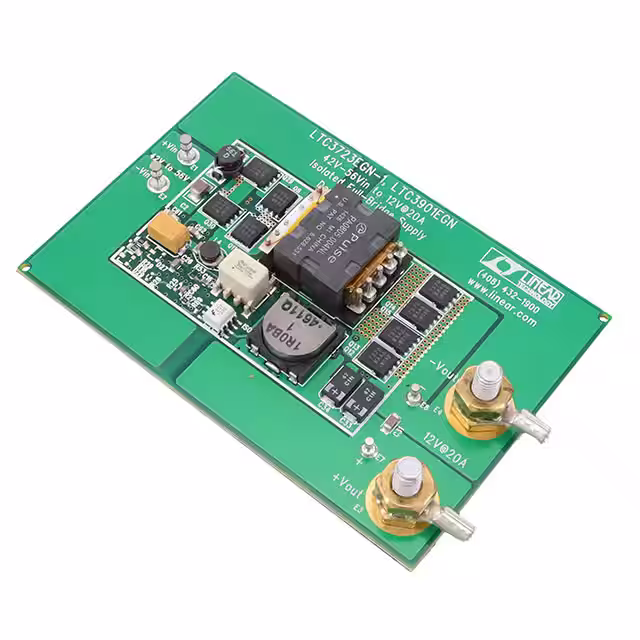

DC719AEVAL BOARD FOR LT1431 LTC37231 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 12V | 20A | 42V ~ 56V | Full-Bridge | 300kHz | Board(s) | LT1431, LTC3723-1, LTC3901, LTC4440 |
|

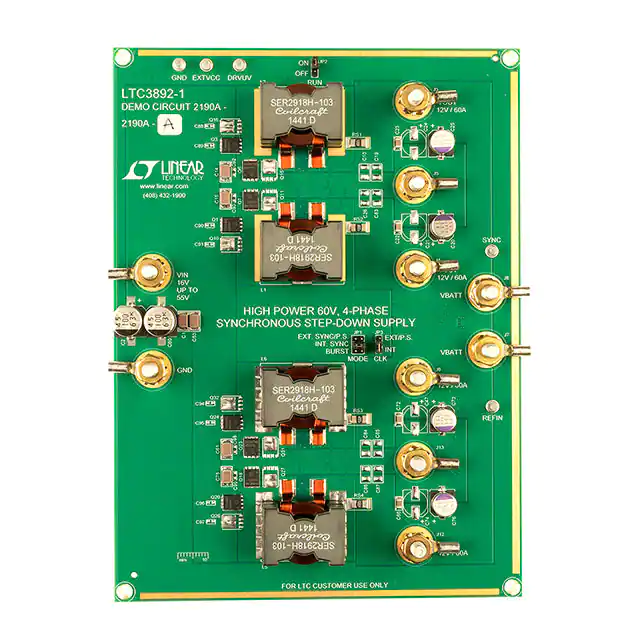

DC2190A-AEVAL BOARD FOR LTC3892EFE1 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 12V | 60A | 16V ~ 55V | Buck | 140kHz | Board(s) | LTC3892EFE-1 |
|

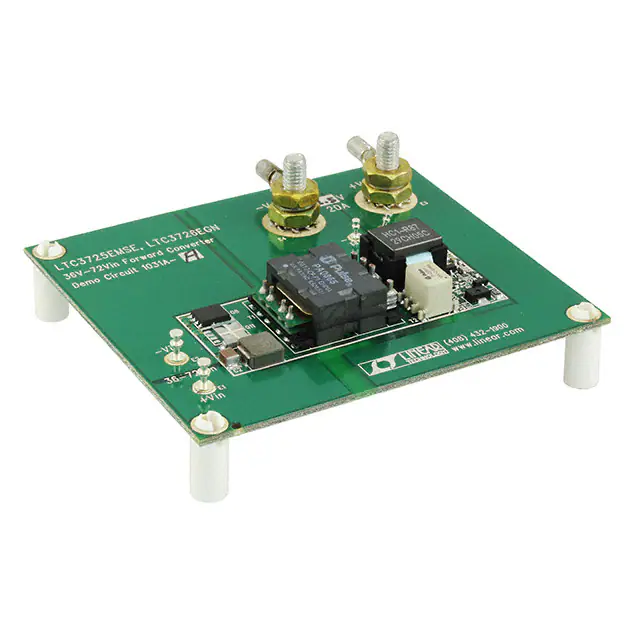

DC1031A-AEVAL BOARD FOR LTC3725 LTC3726 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 2.5V | 20A | 36V ~ 72V | Forward Converter | 200kHz | Board(s) | LTC3725, LTC3726 |
|

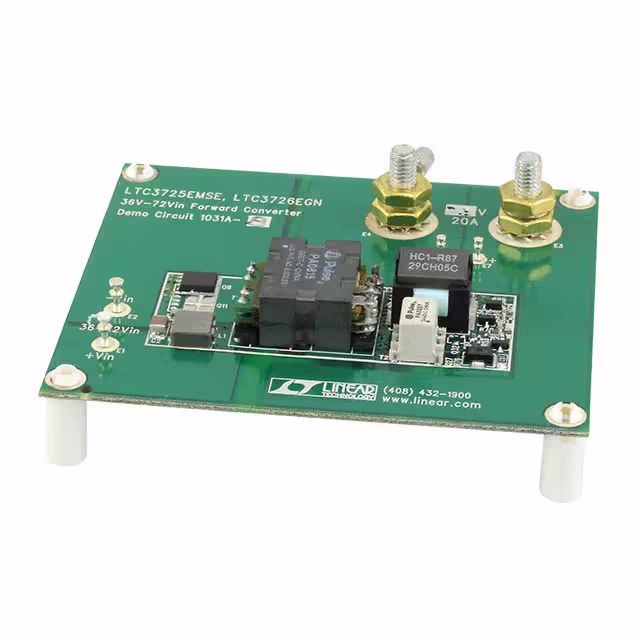

DC1031A-BEVAL BOARD FOR LTC3725 LTC3726 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 20A | 36V ~ 72V | Forward Converter | 200kHz | Board(s) | LTC3725, LTC3726 |
|

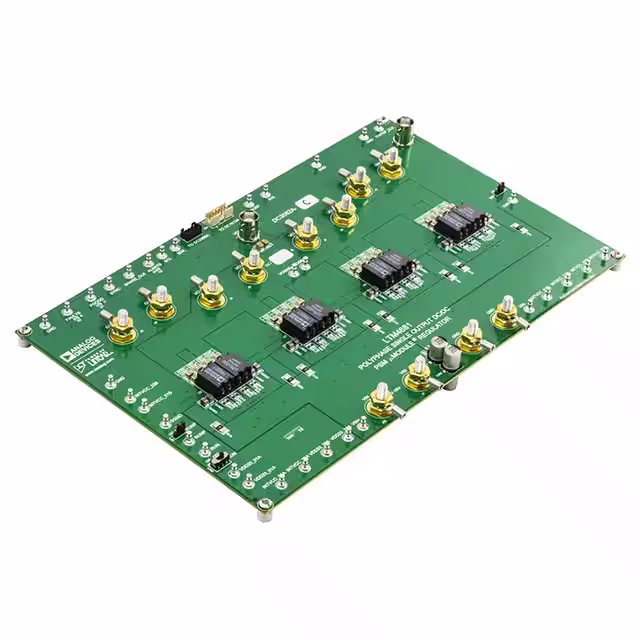

DC3082A-CEVAL BOARD FOR LTM4681 |
3 |
|
برگه مشخصات |
µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 480A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4681 |
|
BDX12-EVM-03EVAL BRD BDX-100M(1) BDX-50S(2) |
2 |
|
برگه مشخصات |
BDX | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 200A | 8V ~ 14V | - | 600kHz | Partially Populated Board(s) | - |
|
BDX12-EVM-04EVAL BRD BDX-100M(1) BDX-50S(3) |
2 |
|
برگه مشخصات |
BDX | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 250A | 8V ~ 14V | - | 600kHz | Partially Populated Board(s) | - |
|
|
TEA2016DB1519EVAL BOARD TEA1995T TEA2016AAT |
7 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary and Secondary Side with PFC | 1 Non-Isolated Output | 240 W | 12V | 20A | - | Flyback | - | Board(s) | TEA1995T, TEA2016AAT |
|
BDX12-EVM-05EVAL BRD BDX-100M(1) BDX-50S(4) |
2 |
|
برگه مشخصات |
BDX | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 300A | 8V ~ 14V | - | 600kHz | Partially Populated Board(s) | - |
|

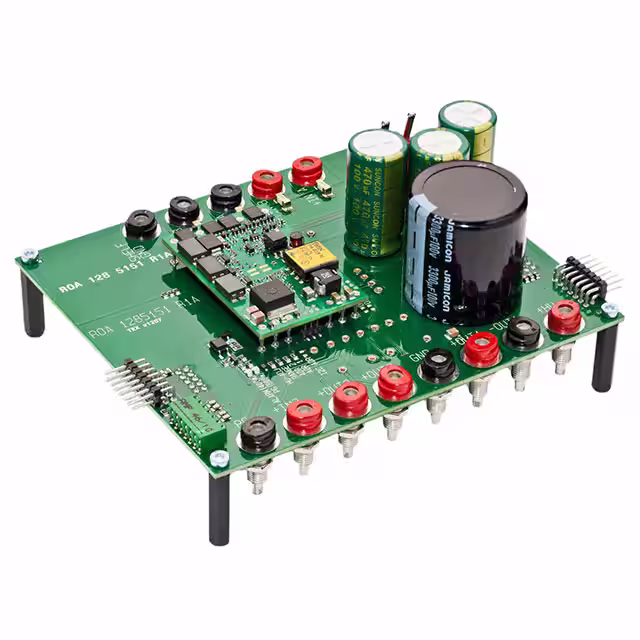

ROA1285151EVAL BOARD PIM4820B PIM4328PD |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | - | - | - | - | - | Buck | - | Partially Populated Board(s) | PIM4820B, PIM4328PD, PIM4328PDA |
