هواداران AC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

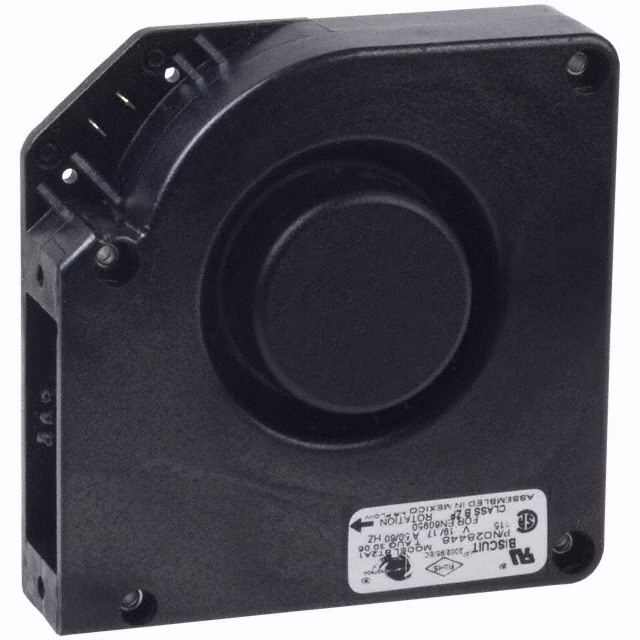

19028448AFAN BLWR RAD 120X40MM 115V BT2A1 |
0 |
|
برگه مشخصات |
Biscuit AC | - | Obsolete | 115VAC | Square - 120mm L x 120mm H | 40.00mm | 22.0 CFM (0.616m³/min) | - | Sleeve | Blower, Radial | - | - | 14.50W | 2700 RPM | 2 Terminals | - | - | - | 1.1 lbs (499.0 g) |
|

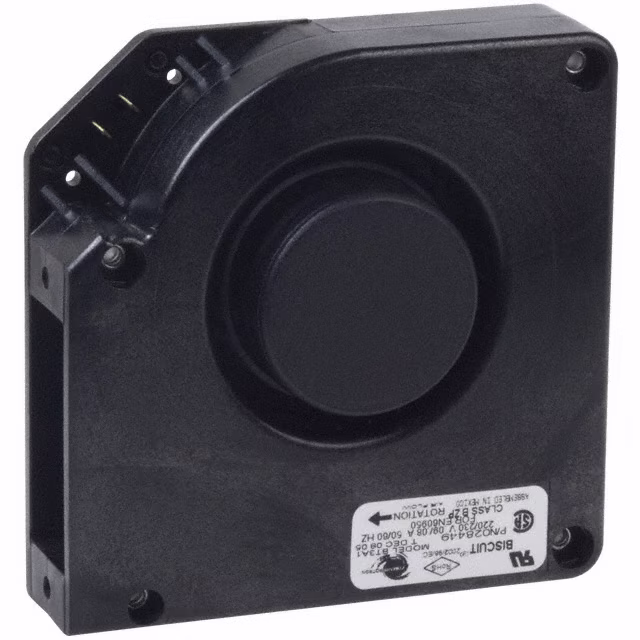

19028449AFAN BLWR RAD 120X40MM 230V BT3A1 |
0 |
|
برگه مشخصات |
Biscuit AC | - | Obsolete | 230VAC | Square - 120mm L x 120mm H | 40.00mm | 22.0 CFM (0.616m³/min) | - | Sleeve | Blower, Radial | - | - | 14.00W | 2700 RPM | 2 Terminals | - | - | - | 1.1 lbs (499.0 g) |
|

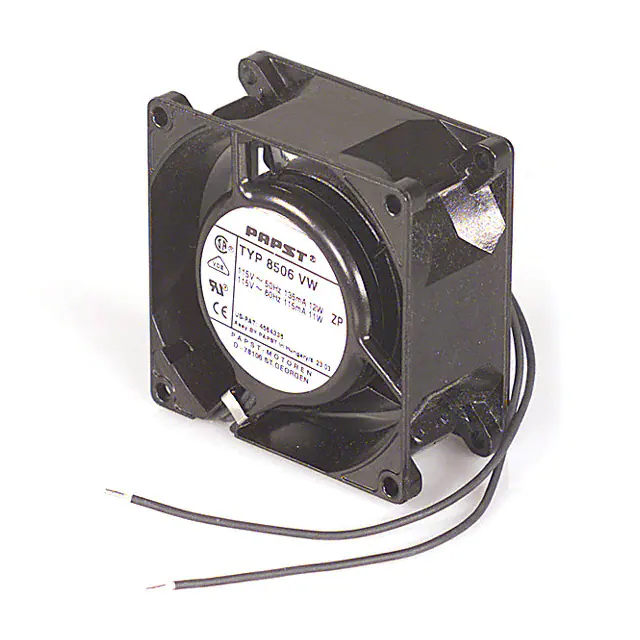

8506VWFAN AXIAL 80X38MM 115VAC WIRE |
0 |
|
برگه مشخصات |
8000V | - | Obsolete | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 36.0 CFM (1.01m³/min) | - | Sintec | Tubeaxial | - | 35.0dB(A) | 11.00W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
8800NFAN AXIAL 80X38MM 115VAC WIRE |
0 |
|
برگه مشخصات |
8000N | Bulk | Obsolete | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 27.7 CFM (0.776m³/min) | - | Sintec | Tubeaxial | - | 28.0dB(A) | 11.00W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
3500FAN AXIAL 92X38MM 115VAC WIRE |
0 |
|
برگه مشخصات |
3000 | Bulk | Obsolete | 115VAC | Square - 92mm L x 92mm H | 38.00mm | 43.0 CFM (1.20m³/min) | - | Sintec | Tubeaxial | - | 35.0dB(A) | 8.00W | 2500 RPM | 2 Wire Leads | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CSA, UL, VDE | 0.926 lb (420.03 g) |
|
|
3506FAN AXIAL 92X38MM 115VAC WIRE |
0 |
|
برگه مشخصات |
3000 | Bulk | Obsolete | 115VAC | Square - 92mm L x 92mm H | 38.00mm | 43.0 CFM (1.20m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 8.00W | 2500 RPM | 2 Wire Leads | - | -40 ~ 203°F (-40 ~ 95°C) | CE, CSA, UL, VDE | 0.926 lb (420.03 g) |
|
4500NFAN AXIAL 119X38MM 115VAC TERM |
0 |
|
برگه مشخصات |
4000N | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 100.0 CFM (2.80m³/min) | - | Sintec | Tubeaxial | - | 48.0dB(A) | 15.00W | 3000 RPM | 2 Terminals | - | 14 ~ 149°F (-10 ~ 65°C) | CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
|
4530NFAN AXIAL 119X38MM 115VAC TERM |
0 |
|
برگه مشخصات |
4000N | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 88.8 CFM (2.49m³/min) | - | Sintec | Tubeaxial | - | 45.0dB(A) | 16.00W | 2700 RPM | 2 Terminals | - | 14 ~ 149°F (-10 ~ 65°C) | CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
4600TZFAN AXIAL 108X37MM 115VAC WIRE |
0 |
|
برگه مشخصات |
4600TZ | Bulk | Obsolete | 115VAC | Round - 108mm Dia | 37.00mm | 82.4 CFM (2.31m³/min) | - | Sintec | Tubeaxial | - | 45.0dB(A) | 18.00W | 2950 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|

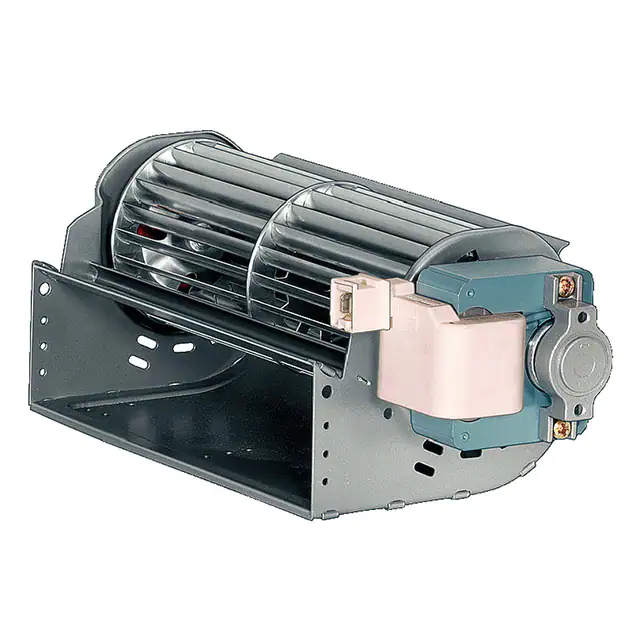

55410.91162FAN BLWR CF 180X96MM 115VAC TERM |
0 |
|
برگه مشخصات |
QLZ06 | Bulk | Obsolete | 115VAC | Rectangular - 260mm L x 83mm H (60mm Dia) | 96.00mm | 63.0 CFM (1.76m³/min) | - | Sleeve | Blower, Cross Flow | - | 49.0dB(A) | 29.00W | - | 2 Terminals | - | - | - | - |
|
55416.17070FAN BLOWER CF 122X108MM 115VAC |
0 |
|
برگه مشخصات |
QLN65 | Bulk | Obsolete | 115VAC | Rectangular - 196mm L x 90mm H (65mm Dia) | 108.0mm | 75.0 CFM (2.10m³/min) | - | Sleeve | Blower, Cross Flow | - | 49.0dB(A) | 39.00W | - | Terminal Block | - | - | - | - |
|
|
55416.30130FAN BLWR CF 240X108MM 115VAC |
0 |
|
برگه مشخصات |
QLN65 | - | Obsolete | 115VAC | Rectangular - 331mm L x 90mm H (65mm Dia) | 108.0mm | 129.0 CFM (3.61m³/min) | 0.333 in H2O (83.0 Pa) | Sleeve | Blower, Cross Flow | - | - | 55.0W | 1500 RPM | Terminal Block | - | - | - | 3.2 lbs (1.5 kg) |
|
|
55416.32021FAN BLWR CF 240X108MM 115VAC |
0 |
|
برگه مشخصات |
QLN65 | - | Obsolete | 115VAC | Rectangular - 331mm L x 90mm H (65mm Dia) | 108.0mm | 129.0 CFM (3.61m³/min) | 0.333 in H2O (83.0 Pa) | Sleeve | Blower, Cross Flow | - | - | 55.0W | 1500 RPM | Terminal Block | - | - | - | 3.2 lbs (1.5 kg) |
|
|
55416.34030FAN BLWR CF 2X240X605MM 115VAC |
0 |
|
برگه مشخصات |
QLN65 | - | Obsolete | 115VAC | Rectangular - 103.4mm L x 90mm H | 605.0mm | 215.0 CFM (6.02m³/min) | - | Sleeve | Blower, Cross Flow | - | 47.0dB(A) | 80.0W | - | Terminal Block | - | - | - | - |
|
55442.45161FAN BLOWER CF 180X79MM 115VAC |
0 |
|
برگه مشخصات |
QLK45 | - | Obsolete | 115VAC | Rectangular - 72mm L x 71mm H | 265.0mm | 75.0 CFM (2.10m³/min) | - | Sleeve | Blower, Cross Flow | - | 50.0dB(A) | 29.00W | - | Terminal Block | - | - | - | - |
|
55442.65051FAN BLOWER CF 2X240X79MM 115VAC |
0 |
|
برگه مشخصات |
QLK45AC | Bulk | Obsolete | 115VAC | Rectangular - 620mm L x 71mm H (45mm Dia) | 79.00mm | 187.0 CFM (5.24m³/min) | 0.353 in H2O (88.0 Pa) | Sleeve | Blower, Cross Flow | - | - | 62.0W | 2050 RPM | Terminal Block | - | - | - | 5.5 lbs (2.5 kg) |
|
|
55442.70061FAN BLOWER CF 300X79MM 48VAC |
0 |
|
برگه مشخصات |
QLK45 | - | Obsolete | 48VAC | Rectangular - 72mm L x 71mm H | 402.0mm | 125.0 CFM (3.50m³/min) | 0.353 in H2O (88.0 Pa) | Sleeve | Blower, Cross Flow | - | 53.0dB(A) | 40.00W | - | Terminal Block | - | - | - | 3.2 lbs (1.5 kg) |
|
8500VFAN AXIAL 80X38MM 115VAC TERM |
0 |
|
برگه مشخصات |
8000V | Box | Obsolete | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 36.0 CFM (1.01m³/min) | - | Sintec | Tubeaxial | - | 34.0dB(A) | 11.00W | - | 2 Terminals | - | - | CSA, UL, VDE | 1.1 lbs (499.0 g) |
_Series.jpg)
|
8550TVFAN AXIAL 76X37MM 230VAC WIRE |
0 |
|
برگه مشخصات |
8000TV | Bulk | Obsolete | 230VAC | Round - 76mm Dia | 37.00mm | 23.5 CFM (0.658m³/min) | - | Sintec | Tubeaxial | - | 27.0dB(A) | 12.00W | 2650 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
8560VWFAN AXIAL 80X38MM 115/230VAC |
0 |
|
برگه مشخصات |
8000V | Bulk | Obsolete | 115/230VAC | Square - 80mm L x 80mm H | 38.00mm | 36.0 CFM (1.01m³/min) | - | Sintec | Tubeaxial | Dual Voltage | 34.0dB(A) | 11.00W | - | 2 Wire Leads | - | - | - | 1.1 lbs (499.0 g) |
