هواداران AC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4715MS-10T-B20-B00FAN AXIAL 119X38MM 100VAC TERM |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 67.0 CFM (1.88m³/min) | 0.098 in H2O (24.5 Pa) | Ball | Tubeaxial | - | 30.0dB | 8.00W | 1950 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
4715MS-22T-B10-B00FAN AXIAL 119X38MM 220VAC TERM |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | 220VAC | Square - 119mm L x 119mm H | 38.00mm | 49.4 CFM (1.38m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | - | 28.0dB | 5.50W | 1450 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
4715MS-24T-B10-A00FAN AXIAL 119X38MM 240VAC TERM |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | 240VAC | Square - 119mm L x 119mm H | 38.00mm | 49.4 CFM (1.38m³/min) | 0.066 in H2O (16.6 Pa) | Ball | Tubeaxial | - | 28.0dB | 6.00W | 1450 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
3110MS-20W-B30-B00FAN AXIAL 80X25.3MM 200VAC WIRE |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | 200VAC | Square - 80mm L x 80mm H | 25.30mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 31.0dB | 6.00W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.529 lb (239.95 g) |
|
|
3110MS-22W-B30-B00FAN AXIAL 80X25.3MM 220VAC WIRE |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | 220VAC | Square - 80mm L x 80mm H | 25.30mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 31.0dB | 6.50W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.529 lb (239.95 g) |
|
|
4715MS-10T-B40-B00FAN AXIAL 119X38MM 100VAC TERM |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 95.0 CFM (2.66m³/min) | 0.251 in H2O (62.7 Pa) | Ball | Tubeaxial | - | 39.0dB | 13.00W | 2750 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
3610PS-20T-B30-B00FAN AXIAL 92.5X25MM 200VAC TERM |
0 |
|
برگه مشخصات |
PS | Bulk | Obsolete | 200VAC | Square - 92.5mm L x 92.5mm H | 25.00mm | 34.5 CFM (0.966m³/min) | 0.243 in H2O (60.7 Pa) | Ball | Tubeaxial | - | 38.0dB | 10.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 0.661 lb (299.82 g) |
|
|
4715MS-20T-B40-B00FAN AXIAL 119X38MM 200VAC TERM |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 95.0 CFM (2.66m³/min) | 0.255 in H2O (63.7 Pa) | Ball | Tubeaxial | - | 39.0dB | 13.00W | 2750 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
3110MS-24W-B30-A00FAN AXIAL 80X25.3MM 240VAC WIRE |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | 240VAC | Square - 80mm L x 80mm H | 25.30mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 31.0dB | 6.50W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.529 lb (239.95 g) |
|
|
4715MS-24T-B40-A00FAN AXIAL 119X38MM 240VAC TERM |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | 240VAC | Square - 119mm L x 119mm H | 38.00mm | 95.0 CFM (2.66m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | - | 39.0dB | 12.00W | 2750 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
3115PS-10T-B30-B00FAN AXIAL 80X38MM 100VAC TERM |
0 |
|
برگه مشخصات |
PS | Bulk | Obsolete | 100VAC | Square - 80mm L x 80mm H | 38.00mm | 32.0 CFM (0.896m³/min) | 0.197 in H2O (49.0 Pa) | Ball | Tubeaxial | - | 38.0dB | 7.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 0.595 lb (269.89 g) |
|
|
3115PS-20T-B10-B00FAN AXIAL 80X38MM 200VAC TERM |
0 |
|
برگه مشخصات |
PS | Bulk | Obsolete | 200VAC | Square - 80mm L x 80mm H | 38.00mm | 19.4 CFM (0.543m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | - | 26.0dB | 4.00W | 1900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 0.595 lb (269.89 g) |
|
|
4715MS-20T-B30-B00FAN AXIAL 119X38MM 200VAC TERM |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 88.2 CFM (2.47m³/min) | 0.185 in H2O (46.1 Pa) | Ball | Tubeaxial | - | 37.0dB | 10.00W | 2600 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|

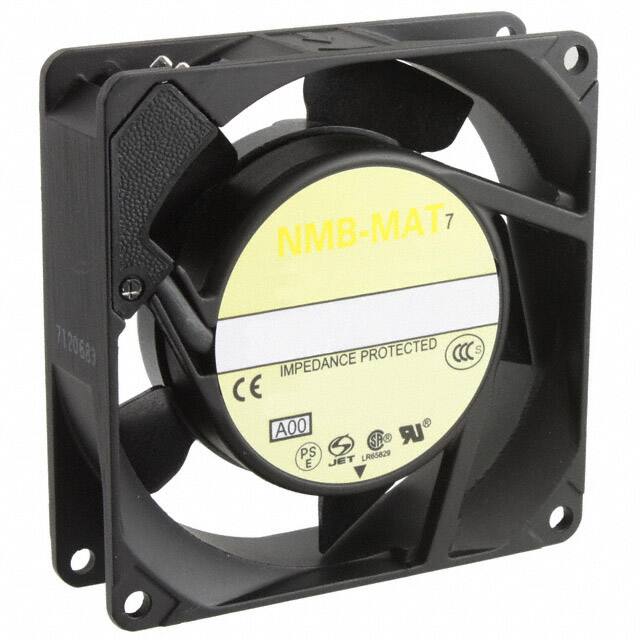

3610PS-24T-B30-A00FAN AXIAL 92.5X25MM 240VAC TERM |
0 |
|
برگه مشخصات |
PS | Bulk | Obsolete | 240VAC | Square - 92.5mm L x 92.5mm H | 25.00mm | 34.5 CFM (0.966m³/min) | 0.243 in H2O (60.7 Pa) | Ball | Tubeaxial | - | 39.0dB | 10.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 0.661 lb (299.82 g) |
|
|
4715MS-24T-B30-A00FAN AXIAL 119X38MM 240VAC TERM |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | 240VAC | Square - 119mm L x 119mm H | 38.00mm | 88.2 CFM (2.47m³/min) | 0.204 in H2O (51.0 Pa) | Ball | Tubeaxial | - | 37.0dB | 11.00W | 2600 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
4710PS-10T-B30-B00FAN AXIAL 119X25.5MM 100VAC TERM |
0 |
|
برگه مشخصات |
PS | Bulk | Obsolete | 100VAC | Square - 119mm L x 119mm H | 25.50mm | 70.6 CFM (1.98m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | - | 38.0dB | 11.00W | 2700 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.8 lb (362.87 g) |
|
|
3115PS-22T-B20-B00FAN AXIAL 80X38MM 220VAC TERM |
0 |
|
برگه مشخصات |
PS | Bulk | Obsolete | 220VAC | Square - 80mm L x 80mm H | 38.00mm | 25.4 CFM (0.711m³/min) | 0.126 in H2O (31.3 Pa) | Ball | Tubeaxial | - | 34.0dB | 5.00W | 2400 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 0.595 lb (269.89 g) |
|
|
4710PS-20T-B20-B00FAN AXIAL 119X25.5MM 200VAC TERM |
0 |
|
برگه مشخصات |
PS | Bulk | Obsolete | 200VAC | Square - 119mm L x 119mm H | 25.50mm | 53.0 CFM (1.48m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | - | 30.0dB | 8.00W | 2000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.8 lb (362.87 g) |
|
|
4715MS-20T-B20-B00FAN AXIAL 119X38MM 200VAC TERM |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 67.0 CFM (1.88m³/min) | 0.082 in H2O (20.5 Pa) | Ball | Tubeaxial | - | 30.0dB | 7.00W | 1950 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
3115PS-22T-B30-B00FAN AXIAL 80X38MM 220VAC TERM |
0 |
|
برگه مشخصات |
PS | Bulk | Obsolete | 220VAC | Square - 80mm L x 80mm H | 38.00mm | 32.0 CFM (0.896m³/min) | 0.197 in H2O (49.0 Pa) | Ball | Tubeaxial | - | 38.0dB | 7.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 0.595 lb (269.89 g) |
