| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
FA1225B11T7-51AC Fan 120x120x25mm 115VAC |
10 |
|
برگه مشخصات |
51 | Tape & Box (TB) | Active | 115VAC | Square - 120mm L x 120mm H | 25.00mm | 72.0 CFM (2.02m³/min) | 0.247 in H2O (61.5 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 13.00W | 3100 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, UL | 0.772 lb (350.17 g) |
|
|
FA8038B11T7-96AC Axial Fans 80x80x38mm 115VAC |
77 |
|
برگه مشخصات |
96 | Tape & Box (TB) | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 29.4 ~ 32.4 CFM (0.823 ~ 0.907m³/min) | 0.161/0.193 in H2O (40.2/48.1 Pa) | Ball | Tubeaxial | - | 31.5dB(A) | 11.00W, 13.00W | 2400/2700 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 0.64 lb (290.3 g) |
|
|
FA8025B22T7-96AC Fan 80x80x25mm 230VAC |
50 |
|
برگه مشخصات |
96 | Tape & Box (TB) | Active | 230VAC | Square - 80mm L x 80mm H | 25.00mm | 22.3 CFM (0.624m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | - | 34.0dB(A) | 12.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 0.551 lb (249.93 g) |
|
|
FA8038B11T7-51AC Fan 80x80x38mm 115VAC |
40 |
|
برگه مشخصات |
51 | Tape & Box (TB) | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 31.0 CFM (0.868m³/min) | 0.197 in H2O (49.0 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 11.00W | 3100 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, UL | 0.529 lb (239.95 g) |
|
|
FA8038B22W7-96AC Fan 80x80x38mm 230VAC |
22 |
|
برگه مشخصات |
96 | Tape & Box (TB) | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 33.0 CFM (0.924m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | - | 36.5dB(A) | 13.00W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 0.64 lb (290.3 g) |
|
|
FA8025B11T7-61AC Axial Fans 80x80x25mm 115VAC |
17 |
|
برگه مشخصات |
61 | Tape & Box (TB) | Active | 115VAC | Square - 80mm L x 80mm H | 25.00mm | 22.3 ~ 27.0 CFM (0.624 ~ 0.756m³/min) | 0.130/0.197 in H2O (32.4/49.0 Pa) | Ball | Tubeaxial | - | 29.0dB(A) | 11.00W, 13.00W | 2400/2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | 0.463 lb (210.01 g) |
|
|
FA8025B11T7-51AC Axial Fans 80x80x25mm 115VAC |
10 |
|
برگه مشخصات |
51 | Tape & Box (TB) | Active | 115VAC | Square - 80mm L x 80mm H | 25.00mm | 18.0 ~ 22.0 CFM (0.504 ~ 0.616m³/min) | 0.102/0.138 in H2O (25.4/34.3 Pa) | Ball | Tubeaxial | - | 25.0dB(A) | 5.00W, 6.00W | 2400/2900 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, UL | 0.498 lb (225.89 g) |
|
|
FA1238B22T7-53AC Fan 127x127x38mm 230VAC |
92 |
|
برگه مشخصات |
53 | Tape & Box (TB) | Active | 230VAC | Rectangular - 127mm L x 127mm H | 38.00mm | 107.0/123.0 CFM (3.030/3.483m³/min) | 0.331/0.386 in H2O (82.38/96.11 Pa) | Ball | Tubeaxial | - | 47.0/50.0dB(A) | 20.00W, 25.00W | 2700/3100 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, UL | 1.239 lb (562 g) |
|
|
FA1238B22W5-61AC Fan 120x120x38mm 230VAC |
14 |
|
برگه مشخصات |
61 | Tape & Box (TB) | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 41.0dB(A) | 16.00W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.2 lbs (550 g) |
|
|
FA1751B22T7-52AC Axial Fans 172x151x51mm 230VA |
20 |
|
برگه مشخصات |
52 | Tape & Box (TB) | Active | 230VAC | Rectangular - 172mm L x 151mm H | 51.00mm | 183.0 ~ 212.0 CFM (5.13 ~ 5.94m³/min) | 0.370/0.562 in H2O (92.2/140.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 54.0/58.0dB(A) | 39.00W, 51.00W | 2800/3300 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, UL | 1.9 lbs (861.8 g) |
|
JE-06018A23H-3B280MMLX 98WX90H 230V AC J-SERIES |
32 |
|
برگه مشخصات |
J-Series | Bulk | Active | 230VAC | Rectangular - 280mm L x 90mm H | 98.00mm | 106.0 CFM (2.97m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Blower, Cross Flow | Auto Restart, Locked Rotor Protection, Polarity Protection | 47.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
FBA1231B22W5C-31AC Axial Blowers 125x126x40mm 23 |
5 |
|
برگه مشخصات |
31 | Tape & Box (TB) | Active | 230VAC | Rectangular/Rounded - 125mm L x 126mm H | 40.00mm | 41.0 ~ 43.0 CFM (1.15 ~ 1.20m³/min) | 0.630/0.900 in H2O (156.9/224.2 Pa) | Ball | Tubeaxial | Thermal Overload Protection (TOP) | 54.0dB(A) | 58.00W, 76.00W | 2750/3050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.378 lb (625 g) |
|
|
FA1755B11W7C-51AC Axial Fans 170x150x55mm 115VA |
2 |
|
برگه مشخصات |
51 | Tape & Box (TB) | Active | 115VAC | Rectangular - 172mm L x 150mm H | 55.00mm | 203.4 ~ 235.0 CFM (5.70 ~ 6.58m³/min) | 0.570/0.743 in H2O (142.2/185.0 Pa) | Ball | Tubeaxial | Thermal Overload Protection (TOP) | 57.0dB(A) | 38.00W, 44.00W | 2900/3400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, UL | 2.3 lbs (1 kg) |
|
|
FA1755B11T7C-31AC Axial Fans 172x150x55mm 115VA |
2 |
|
برگه مشخصات |
31 | Tape & Box (TB) | Active | 115VAC | Rectangular - 172mm L x 150mm H | 55.00mm | 253.3 ~ 297.2 CFM (7.09 ~ 7.79m³/min) | 0.630/0.800 in H2O (156.9/199.3 Pa) | Ball | Tubeaxial | Thermal Overload Protection (TOP) | 55.0dB(A) | 46.00W, 50.00W | 2850/3300 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.9 lbs (861.8 g) |
|
|
FA2589B11T11C-31AC FAN 254X89mm 115V |
20 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | 115VAC | Round - 254mm Dia | 89.00mm | 865.7 CFM (24.51m³/min) | 0.689 in H2O (171.6 Pa) | Ball | Tubeaxial | - | 85.4dB(A) | 110W | 2800 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, TUV, UL | - |
|
5103510BLOWER TYPE MD10, 1X230 |
5 |
|
برگه مشخصات |
- | Box | Active | - | - | - | - | 4.015 in H2O (1000.0 Pa) | - | Blower, Radial | - | - | 80W | 2700 RPM | - | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CE, UL | - |
|
5103432BLOWER TYPE HD140, 1X230V |
5 |
|
برگه مشخصات |
- | Box | Active | - | - | - | 57.0 CFM (1.60m³/min) | 56.205 in H2O (14000.0 Pa) | - | Blower | - | - | - | 3435 RPM | - | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CE | - |
|
5103527BLOWER TYPE MD14, 3X230/400/480V |
5 |
|
برگه مشخصات |
- | Box | Active | 230VAC/400VAC Y/Delta | Rectangular/Rounded - 485mm L x 350mm H | 485.50mm | 576.7 CFM (16.15m³/min) | 5.902 in H2O (1470.0 Pa) | - | Blower | - | 76.0dB | 370W | 2845 RPM | 2 Terminals | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CE | - |
|
5100200BLOWER TYPE HD240, 3X230/400V |
5 |
|
برگه مشخصات |
- | Box | Active | 400VAC | Rectangular/Rounded - 400mm L x 320mm H | 365.00mm | 158.0 CFM (4.42m³/min) | 104.380 in H2O (26000.0 Pa) | - | Blower | - | 70.8dB | 2550W | 3500 RPM | 2 Terminals | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CE | - |
|

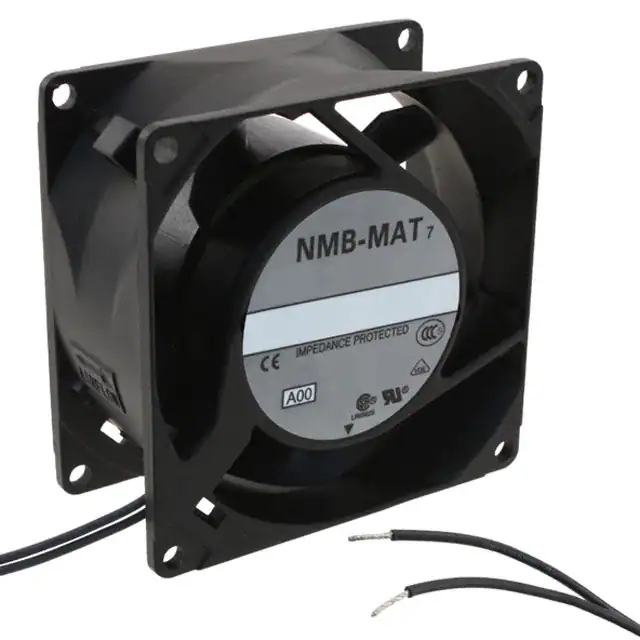

3115FS-12W-B30-A00FAN AXIAL 80X38MM 115VAC WIRE |
0 |
|
برگه مشخصات |
FS | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 32.0 CFM (0.896m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | - | 44.0dB | 8.50W | 3250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 0.74 lb (335.66 g) |
