هواداران AC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R2E225-AG01-21MOTORIZED IMPELLER |
0 |
|
برگه مشخصات |
R2E225 | Bulk | Active | 230VAC | Round - 270mm Dia | 186.0mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 285W | 2800 RPM | 3 Wire Leads with Splice Terminals | IP20 | -13 ~ 122°F (-25 ~ 50°C) | CE, CSA, UL | - |
|
R3G225-RE07-03225 MM EC CENTRIFUGAL FAN |
0 |
|
برگه مشخصات |
Green Tech RadiCal® R3G225RE | Bulk | Active | 230VAC | Round - 225mm Dia | 99.00mm | 765.2 CFM (21.43m³/min) | - | Ball | Motorized Impellers | Electronic Commutation (EC) | 70.0dB(A) | 170W | 2860 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | UL | 3.9 lbs (1.8 kg) |
|
09225PB-A1L-AA-00FAN 92MM X 25MM 115VAC WIRE |
0 |
|
برگه مشخصات |
09225PB | Bulk | Active | 115VAC | Square - 92.5mm L x 92.5mm H | 25.00mm | 34.5 CFM (0.966m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 38.0dB | 9.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938SB-B3N-NP-00FAN 119MM X 38MM 230VAC TERMINAL |
0 |
|
برگه مشخصات |
11938SB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB | 15.50W | 3100 RPM | 3 Terminals | - | 14 ~ 149°F (-10 ~ 65°C) | - | - |
|
OA825AP-11-2WBFAN AXIAL 80X27MM 115VAC WIRE |
0 |
|
برگه مشخصات |
OA825 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 27.00mm | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 24.0dB | 6.00W | 2300 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.573 lb (259.91 g) |
|
|
UF12A23-BTHR-CCFAN AXIAL 120X38MM 230VAC TERM |
0 |
|
برگه مشخصات |
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Conformal Coating | 46.0dB(A) | 15.00W | 3100 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.168 lbs (530 g) |
|
UF12AR10-SWHRFAN AXIAL 120X38MM 115VAC WIRE |
0 |
|
برگه مشخصات |
UF12AR | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.330 in H2O (82.2 Pa) | Sleeve | Tubeaxial | Reverse Air Flow | - | 11.00W | 3100 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, UL | 1.168 lbs (530 g) |
|
OA938AP-22-1WB1855FAN AXIAL 92X38MM 230VAC WIRE |
1 |
|
برگه مشخصات |
OA938 | Box | Active | 230VAC | Square - 92mm L x 92mm H | 38.00mm | 55.0 CFM (1.54m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 40.0dB | 15.00W | 3150 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 1.1 lbs (499.0 g) |
|
|
11938TB-B3N-QA-00FAN 119MM X 38MM 230VAC TERMINAL |
1 |
|
برگه مشخصات |
11938TB | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | - | 50.0dB | 17.00W | 3100 RPM | 2 Terminals | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|

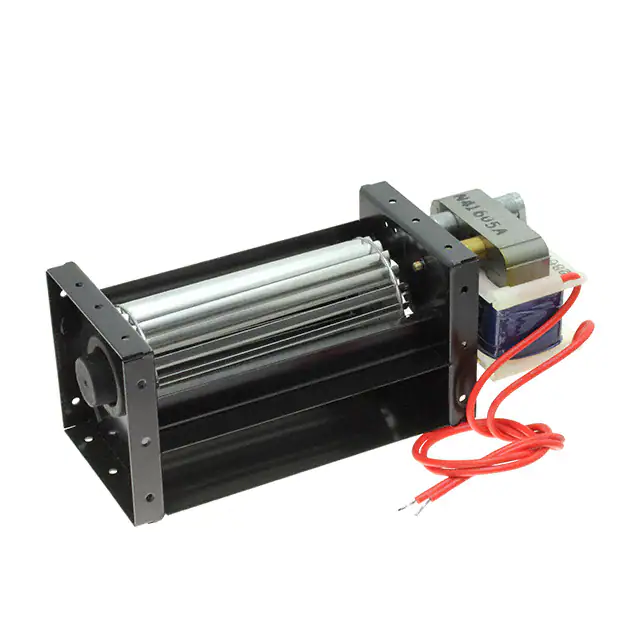

UF4009SSA23H-RCROSS FLOW FAN 60X154 230VAC |
0 |
|
برگه مشخصات |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OA109LFGS111TFAN AXIAL 156X76.8MM 115VAC TERM |
0 |
|
برگه مشخصات |
OA109LFGS | Box | Active | 115VAC | Square - 156mm L x 156mm H | 76.80mm | 106.0 CFM (2.97m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Kit | 46.0dB | 12.00W | 3100 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
UF15AC23-BWHR-L36FAN AXIAL 172X38MM 230VAC WIRE |
0 |
|
برگه مشخصات |
UF15AC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 58.0dB(A) | 26.00W | 3400 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.6 lbs (725.7 g) |
|
OA172SAPL-11-2TBFAN AXIAL 172X38.5MM 115VAC TERM |
0 |
|
برگه مشخصات |
OA172SAPL | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 162.0 CFM (4.54m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 50.0dB | 27.00W | 2750 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 1.6 lbs (725.7 g) |
|
CF4113LBT-000U-AB9FAN AXIAL 120X38MM 100-240V IP55 |
0 |
|
برگه مشخصات |
CF | Bulk | Active | 110/230VAC | Square - 120mm L x 120mm H | 38.00mm | 64.3 CFM (1.80m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 31.4dB(A) | 1.80W | 2000 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | CE, CUR, TUV, UL | 0.699 lb (317.06 g) |
|
|
CF4113MBL-000U-AB9FAN AXIAL 120X38MM 100-240V IP55 |
0 |
|
برگه مشخصات |
CF | Bulk | Active | 110/230VAC | Square - 120mm L x 120mm H | 38.00mm | 90.1 CFM (2.52m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 40.2dB(A) | 3.40W | 3000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | CE, CUR, TUV, UL | 0.699 lb (317.06 g) |
|
|
11938TB-A1N-QA-00FAN 119MM X 38MM 115VAC TERMINAL |
5 |
|
برگه مشخصات |
11938TB | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | - | 50.0dB | 17.00W | 3100 RPM | 2 Terminals | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
OA109LFGH111TFAN AXIAL 156X74MM 115VAC TERM |
0 |
|
برگه مشخصات |
OA109LFGH | Box | Active | 115VAC | Square - 156mm L x 156mm H | 74.00mm | 106.0 CFM (2.97m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Kit | 46.0dB | 12.00W | 3100 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

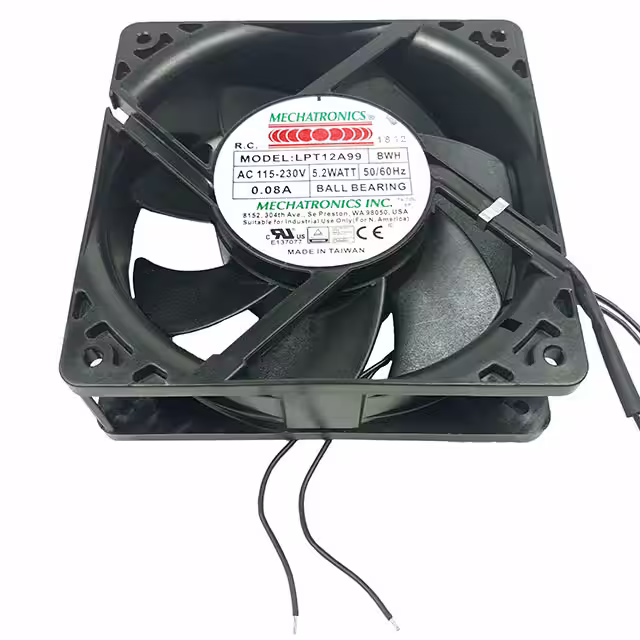

LPT12A99-BWHREC FAN AXIAL 120X120X38MM 100-24 |
2 |
|
برگه مشخصات |
LPT12A99 | Bulk | Active | 115 ~ 230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 43.0dB(A) | 4.90W | 3200 RPM | 2 Wire Leads | - | - | - | 0.644 lb (292.11 g) |
|
AFL25AUHW-P1250X250X78 115 / 230V AC FAN W/I |
0 |
|
برگه مشخصات |
AFL, EST | Box | Active | 115/230VAC | Round - 250mm Dia | 85.70mm | 445.0 CFM (12.46m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Dual Speed, Dual Voltage, Electronic Commutation (EC), Locked Rotor Protection, Thermal Overload Protector (TOP) | 57.0dB(A) | 9.00W, 21.00W | 1600/2200 RPM | 3 Wire Leads | IP56 - Dust Protected, Water Resistant | -40 ~ 131°F (-40 ~ 55°C) | cURus | - |
|
|
UF6017SBA23H-LFAN BLWR CF 230VAC 266X98X90MM |
0 |
|
برگه مشخصات |
UF6017 | Bulk | Active | 230VAC | Rectangular - 266mm L x 90mm H | 98.00mm | 89.0 CFM (2.49m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Blower, Cross Flow | - | 42.0dB(A) | 25.00W | 2000 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, TUV | 2.8 lbs (1.3 kg) |
