فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GFB1212VHW-SP02FAN AXIAL DUAL 120X76.2MM 12VDC |
0 |
|
برگه مشخصات |
GFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 76.20mm | 220.3 CFM (6.17m³/min) | 0.592 in H2O (147.5 Pa) | Ball | Tubeaxial (Dual) | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 20.4 W | 3550 Front, 3200 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|
|
19031397AFAN AXIAL 172.7X50.8MM PQ24S4H |
0 |
|
برگه مشخصات |
Patriot | Box | Active | 24VDC | Round - 171.4mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PTC Thermistor | 51.2dB(A) | 24 W | 3425 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
PFE0381BX-000U-A99FAN AXIAL 140X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
PFE | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 297.9 CFM (8.34m³/min) | 2.050 in H2O (510.6 Pa) | Ball | Tubeaxial | Auto Restart | 68.3dB(A) | 39.6 W | 6800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.1 lbs (499.0 g) |
|
|
PFE0381B1-000U-A99FAN AXIAL 140X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
PFE | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 238.5 CFM (6.68m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart | 62.0dB(A) | 20.64 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.1 lbs (499.0 g) |
|
|
19040959AFAN 48VDC 171.5X150.4X50.8MM |
0 |
|
- |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 330.0 CFM (9.24m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 64.0dB(A) | 41 W | 4830 RPM | 3 Wire Leads | - | - | - | 1.9 lbs (861.8 g) |
|
17001201AFAN AXIAL 12VDC JQD12B3-E3 |
0 |
|
برگه مشخصات |
Major | Box | Active | 12VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 54.3dB(A) | 27.1 W | 3400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
109E4712M402FAN AXIAL 172X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.00mm | 183.0 CFM (5.12m³/min) | 0.369 in H2O (91.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 15.6 W | 2800 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
|
109E4724M402FAN AXIAL 172X25MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.00mm | 183.0 CFM (5.12m³/min) | 0.369 in H2O (91.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 13.9 W | 2800 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|

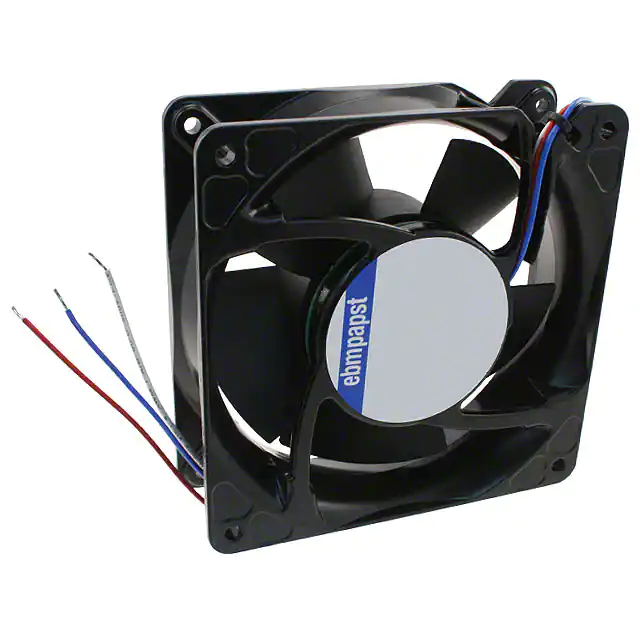

4118N/2HH-00187FAN AXIAL 119X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
4100N | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 160.0 CFM (4.48m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 64.0dB(A) | 14.7 W | - | 3 Wire Leads | - | -4 ~ 122°F (-20 ~ 50°C) | - | 0.86 lb (390.09 g) |
|
CFM-A751BF-253-623-20FAN AXIAL 172X51.5MM 24VDC WIRE |
0 |
|
برگه مشخصات |
CFM-A7BF | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 51.50mm | 382.7 CFM (10.72m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 62.3dB(A) | 83.5 W | 5300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
109E4712L4D01FAN AXIAL 172X25.4MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 162.0 CFM (4.54m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 12 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
|
109E4712M4D01FAN AXIAL 172X25.4MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 183.0 CFM (5.12m³/min) | 0.369 in H2O (91.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | 15.6 W | 2800 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
|
109E4724F4D01FAN AXIAL 172X25.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 204.0 CFM (5.71m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 54.0dB(A) | 19 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
|
109E4724L4D01FAN AXIAL 172X25.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 162.0 CFM (4.54m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 10.6 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
|
109E4724M4D01FAN AXIAL 172X25.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 183.0 CFM (5.12m³/min) | 0.369 in H2O (91.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | 13.9 W | 2800 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
|
109E4724F401FAN AXIAL 172X25.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 204.0 CFM (5.71m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 19 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
|
109E4724L401FAN AXIAL 172X25.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 162.0 CFM (4.54m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 10.6 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
|
109E4724M401FAN AXIAL 172X25.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 183.0 CFM (5.12m³/min) | 0.369 in H2O (91.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 13.9 W | 2800 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
|
17000042AFAN AXL BALL 48VDC PQ48ROX-E2 |
0 |
|
برگه مشخصات |
Patriot | Box | Active | 48VDC | Round - 171.4mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.2dB(A) | 22 W | 3475 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
GFB1224SHG-F00FAN AXIAL DUAL 120X50.8MM 24VDC |
0 |
|
برگه مشخصات |
GFB | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 50.80mm | 203.9 CFM (5.71m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 67.6dB(A) | 35.04 W | 3700 Front, 3400 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
