فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4715KL-05W-B29-E00FAN AXIAL 119X38.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 97.0 CFM (2.72m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.0dB | 5.04 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
4715KL-05W-B29-E50FAN AXIAL 119X38.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 97.0 CFM (2.72m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 41.0dB | 5.04 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-05W-B49-E00FAN AXIAL 119X38.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 118.0 CFM (3.30m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB | 8.4 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-04W-B19-E00FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB | 3.24 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-04W-B19-E50FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB | 3.24 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-05W-B49-E50FAN AXIAL 119X38.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 118.0 CFM (3.30m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.5dB | 8.4 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
4715KL-04W-B20-E00FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 97.0 CFM (2.72m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 41.0dB | 4.8 W | 2650 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|

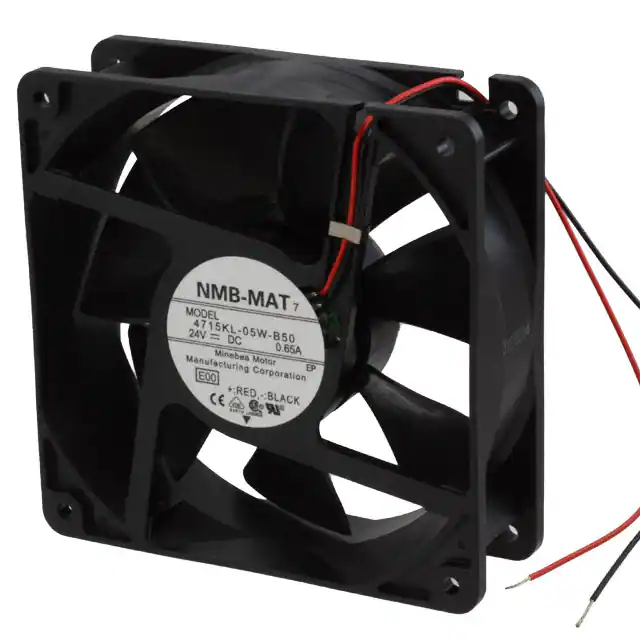

4715KL-05W-B50-E00FAN AXIAL 119X38.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 130.0 CFM (3.64m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | - | 50.0dB | 12 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 104°F (-10 ~ 40°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-04W-B29-E00FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 97.0 CFM (2.72m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.0dB | 4.8 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-05W-B59-E50FAN AXIAL 119X38.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 130.0 CFM (3.64m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 50.0dB | 12 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 104°F (-10 ~ 40°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-04W-B29-E50FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 97.0 CFM (2.72m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 41.0dB | 4.8 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-07W-B10-E00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 37.0dB | 3.84 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-04W-B39-E00FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 108.0 CFM (3.02m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.5dB | 6.6 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-07W-B19-E00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB | 3.84 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-04W-B39-E50FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 108.0 CFM (3.02m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.5dB | 6.6 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-07W-B19-E50FAN AXIAL 119X38.4MM 48VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB | 3.84 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-04W-B49-E00FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 118.0 CFM (3.30m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB | 8.4 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-07W-B20-E00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 97.0 CFM (2.72m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 41.0dB | 5.28 W | 2650 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-04W-B49-E50FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 118.0 CFM (3.30m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.5dB | 8.4 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-07W-B29-E00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 |
|
برگه مشخصات |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 97.0 CFM (2.72m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.0dB | 5.28 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
