فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDD1-17238DBAW49FAN AXIAL 172X38.5MM 24VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17238 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 210.0 CFM (5.88m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | PWM Control | 52.0dB(A) | 13 W | 2800 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238CBLW49FAN AXIAL 172X38.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17238 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 245.0 CFM (6.86m³/min) | 0.732 in H2O (182.3 Pa) | Ball | Tubeaxial | PWM Control | 56.0dB(A) | 19.1 W | 3200 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238DBMW49FAN AXIAL 172X38.5MM 24VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17238 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 275.0 CFM (7.70m³/min) | 0.909 in H2O (226.5 Pa) | Ball | Tubeaxial | PWM Control | 60.0dB(A) | 25.9 W | 3600 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
FDD1-17238CBHW49-LFAN AXIAL 172X38.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17238 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 310.0 CFM (8.68m³/min) | 1.122 in H2O (279.5 Pa) | Ball | Tubeaxial | PWM Control | 64.0dB(A) | 40 W | 4000 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
FDD1-17238CBLW4BFAN AXIAL 172X38.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17238 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 245.0 CFM (6.86m³/min) | 0.732 in H2O (182.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 19.1 W | 3200 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238DBLW4BFAN AXIAL 172X38.5MM 24VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17238 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 245.0 CFM (6.86m³/min) | 0.732 in H2O (182.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 18.7 W | 3200 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238CBHW4BFAN AXIAL 172X38.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17238 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 310.0 CFM (8.68m³/min) | 1.122 in H2O (279.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 40 W | 4000 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238CBMW4B-LFAN AXIAL 172X38.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17238 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 275.0 CFM (7.70m³/min) | 0.909 in H2O (226.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 28.1 W | 3600 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|

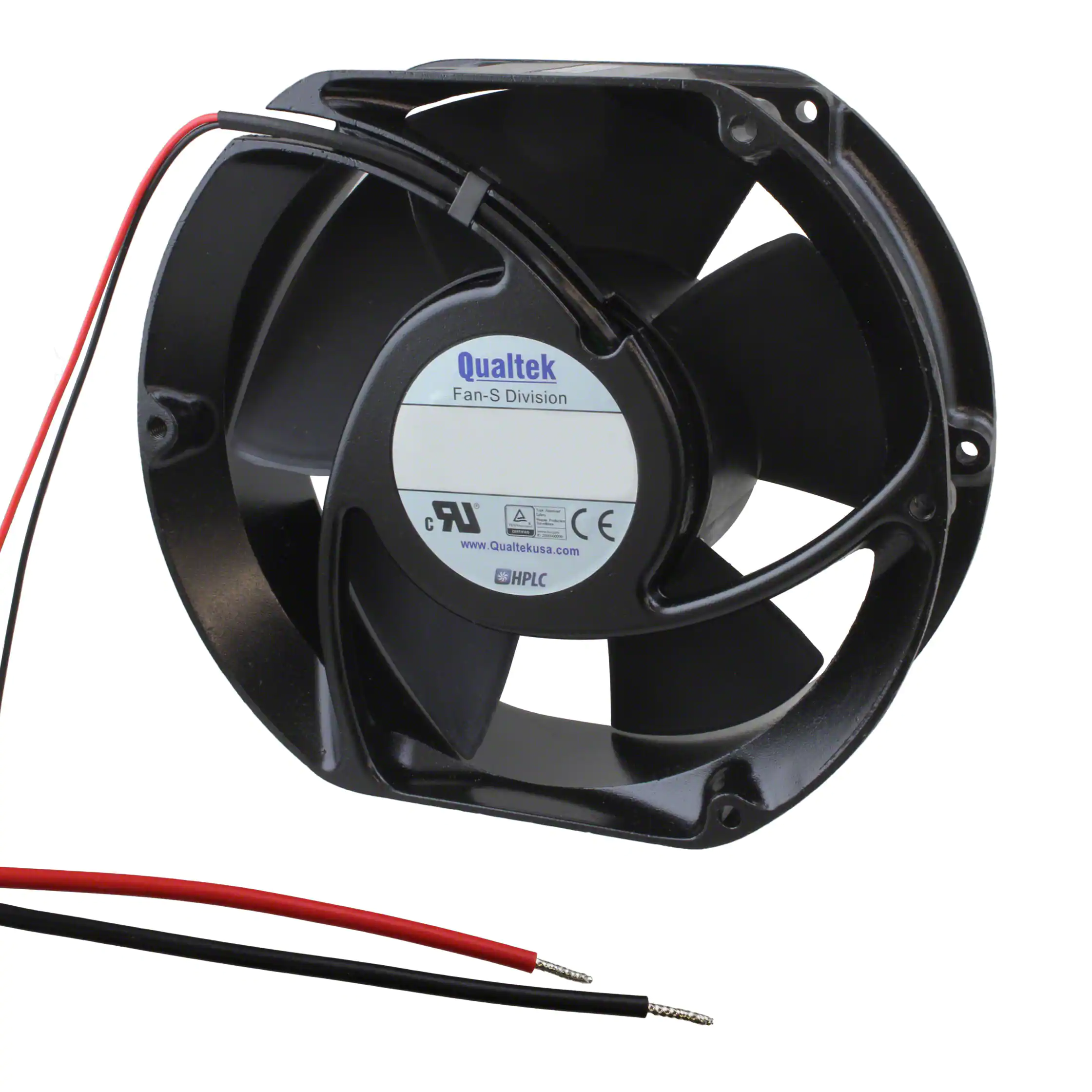

FDD1-17251CBAW32FAN AXIAL 172X51MM 12VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17251 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 220.0 CFM (6.16m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 15.7 W | 2800 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251DBAW32FAN AXIAL 172X51MM 24VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 220.0 CFM (6.16m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 15.6 W | 2800 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251CBMW32FAN AXIAL 172X51MM 12VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17251 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 290.0 CFM (8.12m³/min) | 0.925 in H2O (230.4 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 33 W | 3600 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251DBMW32FAN AXIAL 172X51MM 24VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 290.0 CFM (8.12m³/min) | 0.925 in H2O (230.4 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 29 W | 3600 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251DBKW32FAN AXIAL 172X51MM 24VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 390.0 CFM (10.92m³/min) | 1.587 in H2O (395.3 Pa) | Ball | Tubeaxial | - | 72.0dB(A) | 70.6 W | 4800 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251EBKW32FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17251 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 390.0 CFM (10.92m³/min) | 1.587 in H2O (395.3 Pa) | Ball | Tubeaxial | - | 72.0dB(A) | 71 W | 4800 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251DBHW32-LFAN AXIAL 172X51MM 24VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 325.0 CFM (9.10m³/min) | 1.134 in H2O (282.5 Pa) | Ball | Tubeaxial | - | 64.0dB(A) | 40.6 W | 4000 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
FDD1-17251CBAW33FAN AXIAL 172X51MM 12VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17251 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 220.0 CFM (6.16m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 52.0dB(A) | 15.7 W | 2800 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251EBLW33FAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17251 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 255.0 CFM (7.14m³/min) | 0.736 in H2O (183.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 56.0dB(A) | 21.6 W | 3200 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251EBAW33-LFAN AXIAL 172X51MM 48VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17251 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 255.0 CFM (7.14m³/min) | 0.736 in H2O (183.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 52.0dB(A) | 15.8 W | 2800 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251CBLW33-LFAN AXIAL 172X51MM 12VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17251 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 255.0 CFM (7.14m³/min) | 0.736 in H2O (183.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 56.0dB(A) | 22.6 W | 3200 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
|
FDD1-17251DBMW34FAN AXIAL 172X51MM 24VDC WIRE |
0 |
|
برگه مشخصات |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 290.0 CFM (8.12m³/min) | 0.925 in H2O (230.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 60.0dB(A) | 29 W | 3600 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
