فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF3A3-700BFAN AXIAL 10X3MM VAPO 3VDC WIRE |
964 |
|
برگه مشخصات |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 10mm L x 10mm H | 3.00mm | 0.121 CFM (0.003m³/min) | 0.042 in H2O (10.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 290 mW | 17000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|

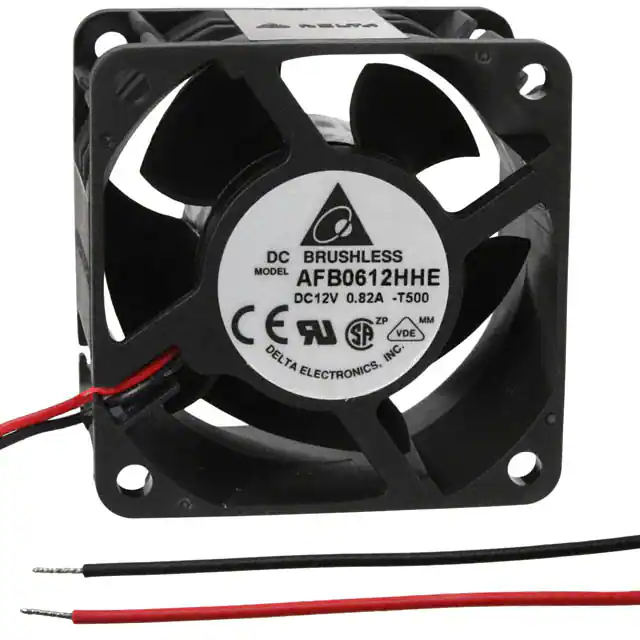

AFB0612HHE-T500FAN AXIAL 60X38MM 12VDC WIRE |
566 |
|
برگه مشخصات |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 46.2 CFM (1.29m³/min) | 0.793 in H2O (197.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 8.16 W | 8000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.258 lb (117.03 g) |
|
3412GLFAN AXIAL 92X25.4MM 12VDC WIRE |
0 |
|
برگه مشخصات |
3400 | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 36.0 CFM (1.01m³/min) | - | Sleeve | Tubeaxial | - | 26.0dB(A) | 1.3 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
NYW06025024BS-5 IPX460X25MM 24V BALL 5200RPM TACH IP |
105 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

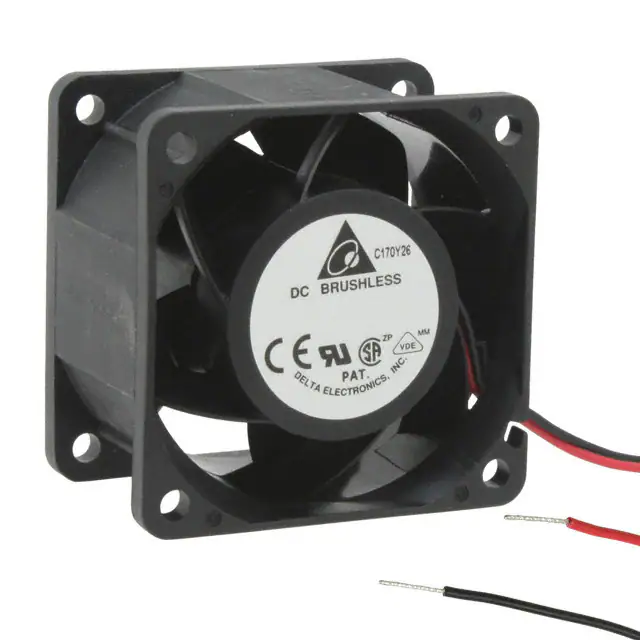

QFR0612UHE-PM00FAN AXIAL 60X38MM 12VDC WIRE |
1,124 |
|
برگه مشخصات |
QFR | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 56.4 CFM (1.58m³/min) | 2.194 in H2O (546.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 61.5dB(A) | 13.2 W | 13000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
|
4715VL-05W-B80-E00FAN AXIAL 120X38MM 24VDC WIRE |
5,806 |
|
برگه مشخصات |
4715VL | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 243.2 CFM (6.81m³/min) | 1.457 in H2O (362.9 Pa) | Ball | Tubeaxial | - | 66.0dB(A) | 35.5 W | 6400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.816 lb (370.13 g) |
|

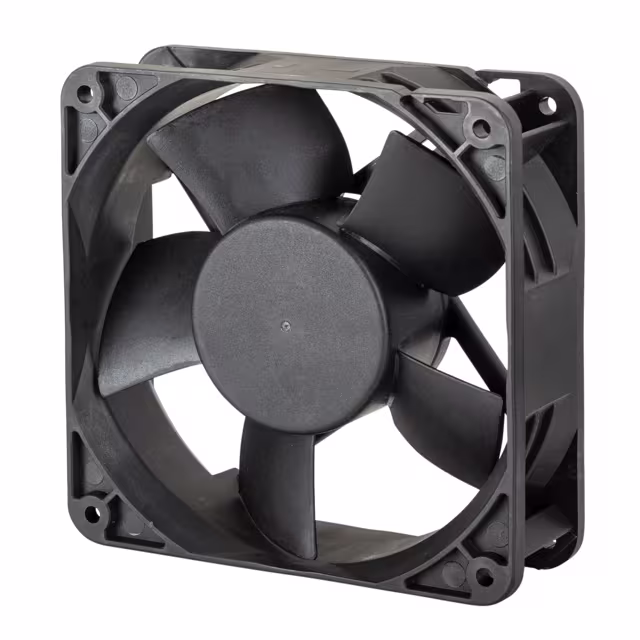

K1238Y48BPLB2A-5FAN AXIAL 120X38MM 48VDC WIRE |
287 |
|
برگه مشخصات |
Intelligent Motion | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 236.8 CFM (6.71m³/min) | 1.240 in H2O (308.9 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 65.0dB(A) | 29.28 W | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
9GV0848P4K03FAN AXIAL 80X25.4MM 48VDC WIRE |
184 |
|
برگه مشخصات |
San Ace 80 | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 74.8 CFM (2.09m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 10.56 W | 5600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.276 lb (125.19 g) |
|

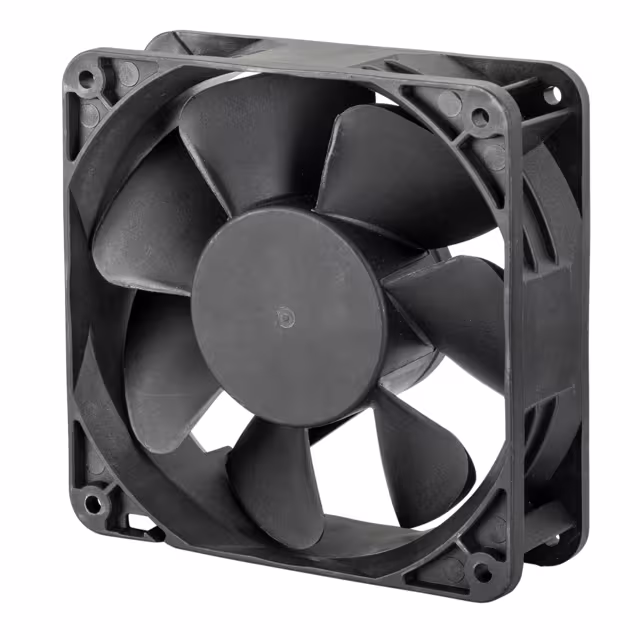

G1238L24BPLB5FAN AXIAL 120X38MM 24VDC WIRE |
439 |
|
برگه مشخصات |
Intelligent Motion | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 102.8 CFM (2.91m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Rotation Detection, RPWM | 39.6dB(A) | 3.12 W | 2600 RPM | 5 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
BFB1012HH-TP48FAN BLOWER 97.2X33MM 12VDC WIRE |
967 |
|
برگه مشخصات |
BFB | Box | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 28.3 CFM (0.792m³/min) | 0.947 in H2O (235.9 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.5dB(A) | 8.28 W | 3200 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
FD3010B05W7-82-3FC1DC Fan 30x30x10mm 5VDC |
204 |
|
برگه مشخصات |
96 | Tape & Box (TB) | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.1dB(A) | 1 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.019 lb (8.62 g) |
|

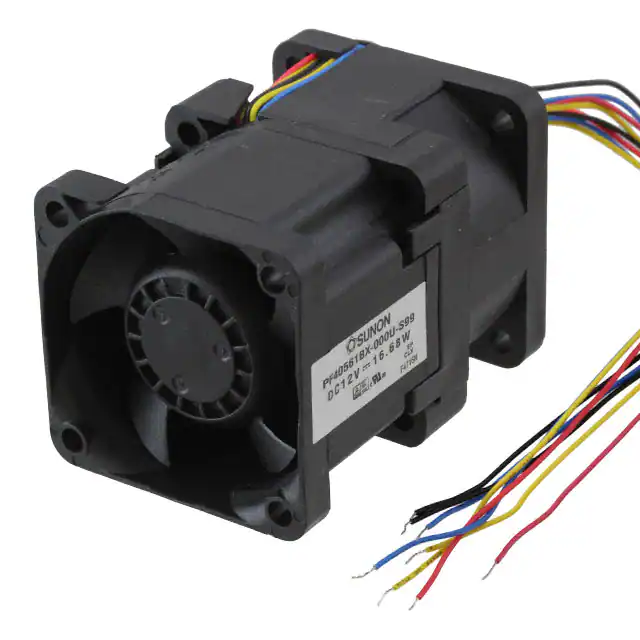

PF40561BX-000U-S99FAN AXIAL 40X56MM 12VDC WIRE |
640 |
|
برگه مشخصات |
PF | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 31.7 CFM (0.888m³/min) | 3.600 in H2O (896.8 Pa) | Ball | Tubeaxial | Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach) | 65.9dB(A) | 16.68 W | 18000/21500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.192 lb (87.08 g) |
|
|
3412N/39HHFAN AXIAL 92X25.4MM 12VDC WIRE |
0 |
|
- |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 60.1 CFM (1.68m³/min) | - | Ball | Tubeaxial | Alarm Sensor | 39.0dB(A) | 2.9 W | 3250 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | - | - |
|
OD1225-48LBIP68FAN AXIAL 120X25MM 48VDC WIRE |
277 |
|
برگه مشخصات |
OD1225 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 25.0dB | 2.9 W | 1900 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
|
GFC0412DS-DF00FAN AXIAL DUAL 40X56MM 12VDC |
566 |
|
برگه مشخصات |
GFC | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 32.2 CFM (0.902m³/min) | 2.631 in H2O (655.4 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.5dB(A) | 15.6 W | 16000 Front, 15400 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.183 lb (83.01 g) |
|
9RA0948G40011FAN AXIAL 92X25MM 48VDC WIRE |
168 |
|
برگه مشخصات |
San Ace 92 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.36 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
CBM-7530B-134FAN BLOWER 75X30MM 12VDC WIRE |
0 |
|
برگه مشخصات |
CBM-75B | Bulk | Obsolete | 12VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 13.6 CFM (0.381m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Blower | Auto Restart | 43.5dB(A) | 3.6 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.191 lb (86.64 g) |
|
|
FD3010B12W5-81-3FSCDC Fan 30X30X10mm 12VDC |
231 |
|
برگه مشخصات |
51 | Tape & Box (TB) | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 2.7 CFM (0.076m³/min) | 0.145 in H2O (36.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.5dB(A) | 0.96 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, TUV, UL | 0.02 lb (9.07 g) |
|
PF40561BX-000U-A99FAN AXIAL 40X56MM 12VDC WIRE |
289 |
|
برگه مشخصات |
PF | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 31.7 CFM (0.888m³/min) | 3.600 in H2O (896.8 Pa) | Ball | Tubeaxial | Auto Restart | 65.9dB(A) | 16.68 W | 18000/21500 RPM | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.192 lb (87.08 g) |
|
AFB1224EHE-CF00FAN AXIAL 120X38MM 24VDC WIRE |
638 |
|
برگه مشخصات |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.844 in H2O (210.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.5dB(A) | 20.4 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
