فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD254AP-24HBIP69KFAN IMP MTRZD 254X89MM 24VDC |
5 |
|
برگه مشخصات |
OD254AP-IP69K | Box | Active | 24VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Motorized Impellers | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
RV45-3/14FAN BLOWER CF 69.5X54.95MM 24VDC |
17 |
|
برگه مشخصات |
RV45 | Bulk | Active | 24VDC | Rectangular/Rounded - 69.5mm L x 63.9mm H | 54.95mm | 14.5 CFM (0.406m³/min) | - | Ball | Blower, Centrifugal | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 43 W | 40000 RPM | 3 Position Rectangular Connector and 4 Lead Wires | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.298 lb (135.17 g) |
|
5314/2TDHHPFAN AXIAL 140X50.8MM 24VDC WIRE |
10 |
|
برگه مشخصات |
5300TD | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 50.80mm | 288.4 CFM (8.08m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 75.0dB(A) | 67 W | 7000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 2 lbs (907.2 g) |
|
OD180APL-48HBIP68FAN AXIAL 180X65MM 48VDC WIRE |
14 |
|
برگه مشخصات |
OD180APL-IP68 | Box | Active | 48VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 50.2 W | 3375 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
9W1TJ24P0H61FAN BLOWER CF 133X91MM 24VDC |
9 |
|
برگه مشخصات |
San Ace 133W | Box | Active | 24VDC | Round - 133mm Dia | 91.00mm | 225.0 CFM (6.30m³/min) | 1.590 in H2O (396.1 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 28.8 W | 4150 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.6 lbs (725.7 g) |
|
9B1TS48P0G001FAN BLOWER CF 270X119.0MM 48VDC |
5 |
|
برگه مشخصات |
San Ace C225 | Box | Active | 48VDC | Square - 270mm L x 270mm H | 119.0mm | 992.0 CFM (27.78m³/min) | 3.460 in H2O (861.8 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 74.5dB(A) | 175.2 W | 3550 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 4.2 lbs (1.9 kg) |
|
9B1TP24P0H001FAN BLOWER CF 270X99MM 24VDC |
4 |
|
برگه مشخصات |
San Ace C221 | Box | Active | 24VDC | Square - 270mm L x 270mm H | 99.00mm | 622.0 CFM (17.42m³/min) | 2.130 in H2O (530.6 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 76.8 W | 3050 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 3.8 lbs (1.7 kg) |
|

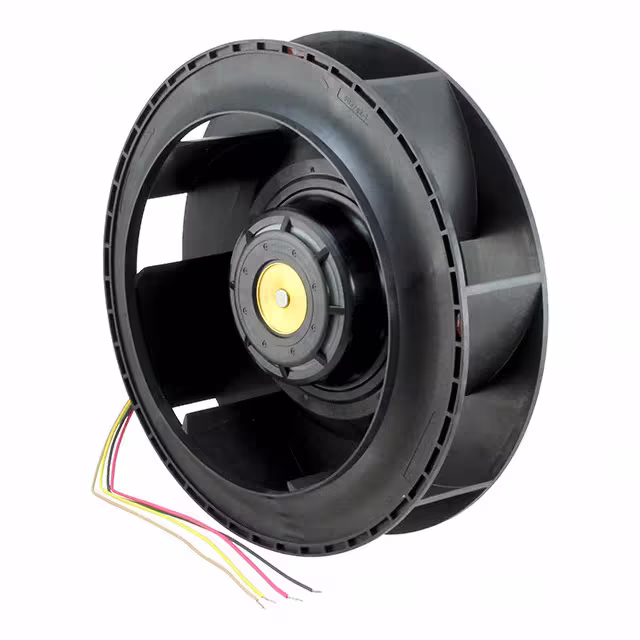

9TS48P0G001FAN IMP MTRZD 225X99MM 48VDC |
14 |
|
برگه مشخصات |
San Ace C225 | Box | Active | 48VDC | Round - 225mm Dia | 99.00mm | 991.8 CFM (27.77m³/min) | 3.457 in H2O (861.1 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 74.5dB(A) | 175.2 W | 3550 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 2.6 lbs (1.2 kg) |
|
|
G1G160-BH29-52FAN BLOWER 226.8X130.0MM 24VDC |
2 |
|
برگه مشخصات |
G1G160 | Bulk | Active | 24VDC | Rectangular/Rounded - 226.8mm L x 262mm H | 130.0mm | - | - | Ball | Blower | PWM Control, Speed Sensor (Tach) | - | 105 W | 1750 RPM | 4 Wire Leads with Splice Terminals | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|
R3G310-AN12-30FAN IMP MTRZD 318MM BALL 48VDC |
23 |
|
- |
R3G310 | Bulk | Active | 48VDC | Round - 318mm Dia | - | 753.9 CFM (21.11m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 71.0dB(A) | 190 W | 2000 RPM | 4 Wire Leads with Ferrules | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CCC, CE, CSA, EAC, UL | - |
|

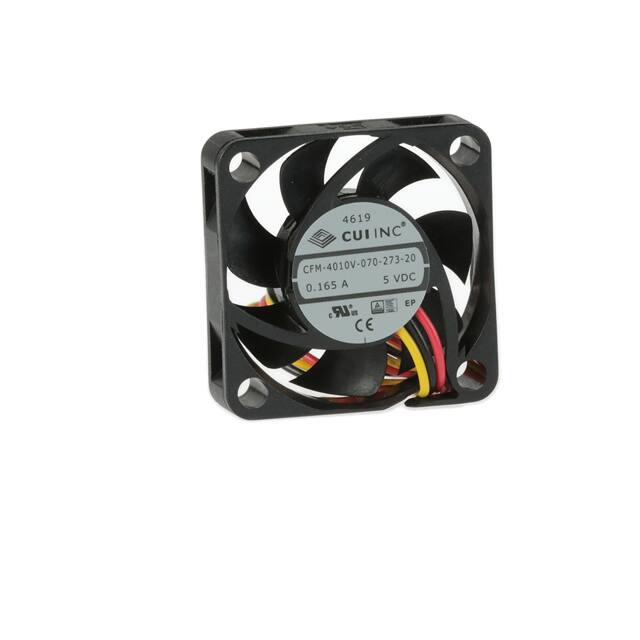

CFM-4010V-070-273-20FAN AXIAL 40X10MM 5VDC WIRE |
96 |
|
برگه مشخصات |
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.3dB(A) | 790 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.034 lb (15.42 g) |
|
FAD1-08025DHHW11-AFAN AXIAL 80X25MM 24VDC WIRE |
94 |
|
برگه مشخصات |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Hydrodynamic | Tubeaxial | - | 35.8dB(A) | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
|
FAD1-08025DHMW11-AFAN AXIAL 80X25MM 24VDC WIRE |
52 |
|
برگه مشخصات |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 30.5 CFM (0.854m³/min) | 0.112 in H2O (27.9 Pa) | Hydrodynamic | Tubeaxial | - | 30.0dB(A) | 1.44 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
CFM-4020CF-255-212-20FAN AXIAL 40X20MM 24VDC WIRE |
87 |
|
برگه مشخصات |
CFM-40CF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.2dB(A) | 1.2 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6015CF-225-204-20FAN AXIAL 60X15.5MM 24VDC WIRE |
93 |
|
برگه مشخصات |
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 11.0 CFM (0.308m³/min) | 0.050 in H2O (12.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.5dB(A) | 960 mW | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6015CF-235-278-20FAN AXIAL 60X15.5MM 24VDC WIRE |
41 |
|
برگه مشخصات |
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 15.4 CFM (0.431m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.8dB(A) | 1.44 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FAD1-08025DHLW11-AFAN AXIAL 80X25MM 24VDC WIRE |
88 |
|
برگه مشخصات |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 24.4 CFM (0.683m³/min) | 0.068 in H2O (17.0 Pa) | Hydrodynamic | Tubeaxial | - | 23.6dB(A) | 1.44 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
|
FAD1-08025DBHW12-AFAN AXIAL 80X25MM 24VDC WIRE |
46 |
|
برگه مشخصات |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | Tubeaxial | - | 35.8dB(A) | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
CFM-6010V-135-250FAN AXIAL 60X10MM 12VDC WIRE |
96 |
|
برگه مشخصات |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 14.3 CFM (0.400m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 25.0dB(A) | 1.05 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.051 lb (23.13 g) |
|
CFM-4020V-060-210-20FAN AXIAL 40X20MM 5VDC WIRE |
94 |
|
برگه مشخصات |
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.0dB(A) | 620 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
