فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F175H3-061-D0540FAN IMP MTRZD 175X69MM 24VDC |
12 |
|
برگه مشخصات |
F175H | Bulk | Active | 24VDC | Round - 175mm Dia | 69.00mm | 541.0 CFM (15.15m³/min) | 3.490 in H2O (870.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 113 W | 4700 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2 lbs (907.2 g) |
|
F175G1-061-D0750FAN IMP MTRZD 175X69MM 48VDC |
9 |
|
برگه مشخصات |
F175 | Bulk | Active | 48VDC | Round - 175mm Dia | 69.00mm | 534.4 CFM (14.96m³/min) | 4.070 in H2O (1013.8 Pa) | Ball | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 77.0dB(A) | 153.6 W | 5100 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 140°F (-30 ~ 60°C) | - | - |
|

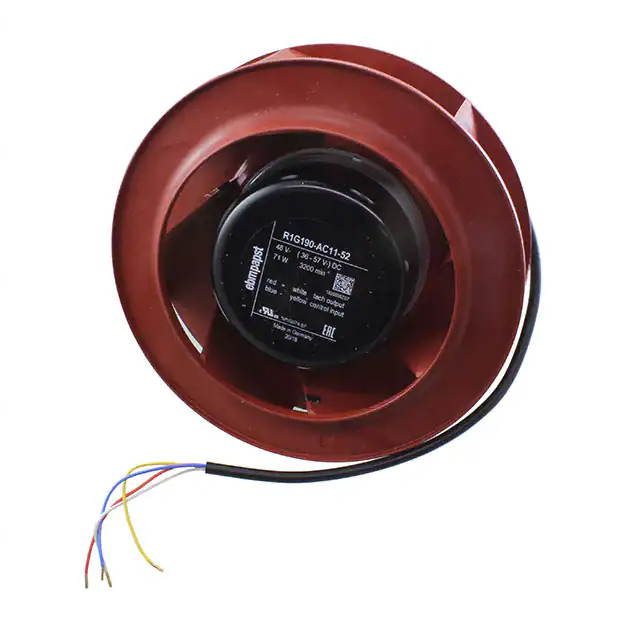

R1G190-AC11-52FAN IMP MTRZD 190X68.5MM 48VDC |
17 |
|
برگه مشخصات |
R1G190 | Bulk | Active | 48VDC | Round - 190mm Dia | 68.50mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 71 W | 3200 RPM | 4 Wire Leads with Splice Terminals | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CCC, CSA, EAC, UL | - |
|
R1G225-AF07-52FAN IMP MTRZD 225X99MM 24VDC |
15 |
|
برگه مشخصات |
R1G225 | Bulk | Active | 24VDC | Round - 225mm Dia | 99.00mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 100 W | 2600 RPM | 4 Wire Leads with Splice Terminals | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|
9GP5748P5G001FAN AXIAL 172X51MM 48VDC WIRE |
22 |
|
برگه مشخصات |
San Ace 172GP | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 568.0 CFM (15.90m³/min) | 6.430 in H2O (1601.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 83.0dB(A) | 240 W | 10500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.9 lbs (861.8 g) |
|
G1G120-AB67-02FAN BLOWER 178X115.0MM 24VDC |
20 |
|
برگه مشخصات |
EC | Box | Active | 24VDC | Rectangular/Rounded - 178mm L x 184mm H | 115.0mm | - | - | Ball | Blower | PWM Control, Speed Sensor (Tach) | - | 40 W | 2200 RPM | 4 Wire Leads | IP22 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | 3.5 lbs (1.6 kg) |
|
D1G133-AB29-52FAN BLOWER CF 170.5X215MM 24VDC |
8 |
|
برگه مشخصات |
D1G133 | Bulk | Active | 24VDC | Rectangular/Rounded - 170.5mm L x 180mm H | 215.0mm | - | - | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 105 W | 1780 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
9W2TGA48P0G001FAN IMP MTRZD 175X69MM 48VDC |
22 |
|
برگه مشخصات |
San Ace 175W | Box | Active | 48VDC | Round - 175mm Dia | 69.00mm | 611.0 CFM (17.11m³/min) | 4.420 in H2O (1100.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 80.0dB(A) | 185 W | 5700 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -22 ~ 140°F (-30 ~ 60°C) | - | 2.2 lbs (997.9 g) |
|
CFM-5015CF-130-224FAN AXIAL 50X15.5MM 12VDC WIRE |
48 |
|
برگه مشخصات |
CFM-50CF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.50mm | 7.8 CFM (0.218m³/min) | 0.050 in H2O (12.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 22.4dB(A) | 720 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FAD1-08032CBLW12FAN AXIAL 80.5X32MM 12VDC WIRE |
45 |
|
برگه مشخصات |
FAD1-08032 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 32.00mm | 39.6 CFM (1.11m³/min) | 0.187 in H2O (46.6 Pa) | Ball | Tubeaxial | - | 35.5dB(A) | 1.32 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.238 lb (107.95 g) |
|
FAD1-08025CHHW11-AFAN AXIAL 80X25MM 12VDC WIRE |
97 |
|
برگه مشخصات |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Hydrodynamic | Tubeaxial | - | 35.8dB(A) | 2.16 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
|
FAD1-08025CHJW11-AFAN AXIAL 80X25MM 12VDC WIRE |
42 |
|
برگه مشخصات |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 43.6 CFM (1.22m³/min) | 0.204 in H2O (51.0 Pa) | Hydrodynamic | Tubeaxial | - | 40.5dB(A) | 3 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
CFM-6020S-150-368FAN AXIAL 60X20MM 12VDC WIRE |
63 |
|
برگه مشخصات |
CFM-60S | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.1 CFM (0.535m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 36.8dB(A) | 2.52 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6020V-142-280-20FAN AXIAL 60X20MM 12VDC WIRE |
55 |
|
برگه مشخصات |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 900 mW | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
FAD1-12038CBLW12FAN AXIAL 120X38.5MM 12VDC WIRE |
45 |
|
برگه مشخصات |
FAD1-12038 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.50mm | 71.6 CFM (2.00m³/min) | 0.128 in H2O (31.8 Pa) | Ball | Tubeaxial | - | 36.2dB(A) | 2.64 W | 1950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.518 lb (234.96 g) |
|
CFM-5015BF-145-312FAN AXIAL 50X15.5MM 12VDC WIRE |
96 |
|
برگه مشخصات |
CFM-50BF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.50mm | 11.7 CFM (0.328m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 31.3dB(A) | 1.08 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FAD1-06025CHMW12-AFAN AXIAL 60X25MM 12VDC WIRE |
87 |
|
برگه مشخصات |
FAD1-06025-A | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.9 CFM (0.501m³/min) | 0.152 in H2O (37.9 Pa) | Hydrodynamic | Tubeaxial | - | 28.1dB(A) | 1.56 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
MR8032H12B-FSRFAN AXIAL 80X32MM 12VDC WIRE |
80 |
|
برگه مشخصات |
MR8032 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 73.0 CFM (2.04m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Auto Restart | 48.6dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.32 lb (145.15 g) |
|
09225SA-24K-EA-D0FAN AXIAL 92X25MM 24VDC WIRE |
58 |
|
برگه مشخصات |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 33.5 CFM (0.938m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Auto Restart | - | 960 mW | 2050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
FAD1-06025DBHW12-AFAN AXIAL 60X25MM 24VDC WIRE |
82 |
|
برگه مشخصات |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.4 CFM (0.655m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | - | 33.1dB(A) | 2.88 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
