فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBM-A232B-120-457FAN BLOWER 119.3X32MM 12VDC WIRE |
68 |
|
برگه مشخصات |
CBM-120B-2 | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 32.00mm | 18.5 CFM (0.518m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Blower | Auto Restart | 45.8dB(A) | 4.56 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9GA0824L20011FAN AXIAL 80X32MM 24VDC WIRE |
86 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 1.2 W | - | 3 Wire Leads | - | - | - | - |
|
|
11925SA-12P-EAD-0FAN AXIAL 119X25MM 12VDC WIRE |
69 |
|
برگه مشخصات |
11925SA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 102.0 CFM (2.86m³/min) | 0.243 in H2O (60.5 Pa) | Ball | Tubeaxial | Auto Restart | 40.5dB | 3.96 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
09225VA-12Q-AT-00FAN AXIAL 92X25MM 12VDC WIRE |
79 |
|
برگه مشخصات |
09225VA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 51.0dB(A) | 8.64 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
G4028M24B1-RSRFAN AXIAL 40X28MM 24VDC WIRE |
10 |
|
برگه مشخصات |
G4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 13.0 CFM (0.364m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 37.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
CFM-8025BG-280-546-20FAN AXIAL 80X25.4MM 24VDC WIRE |
60 |
|
برگه مشخصات |
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 82.7 CFM (2.32m³/min) | 1.090 in H2O (271.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 54.7dB(A) | 13.2 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
ME6038L12B1-FSRFAN AXIAL 60X38MM 12VDC WIRE |
89 |
|
برگه مشخصات |
ME6038 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 35.5 CFM (0.994m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 48.5dB(A) | - | 6000 RPM | 3 Wire Leads | - | - | cUL, UL | 0.23 lb (104.33 g) |
|

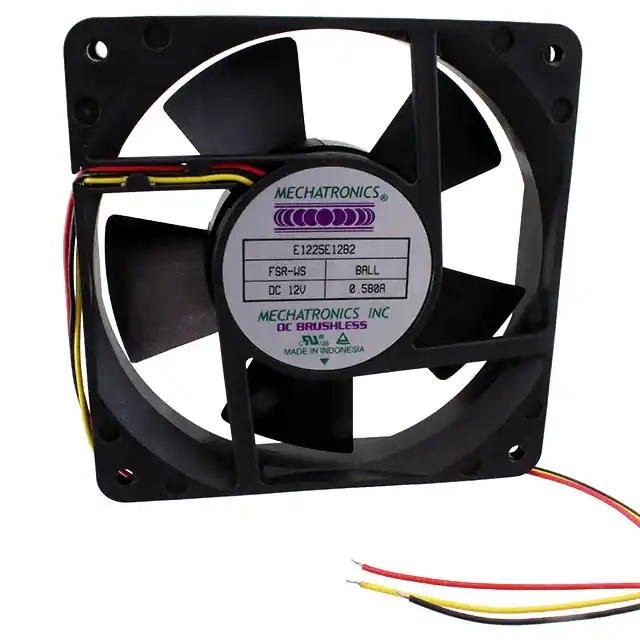

E1225E12B2-FSR-WSFAN AXIAL 120X25MM 12VDC WIRE |
67 |
|
برگه مشخصات |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 44.0dB(A) | - | 3000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|

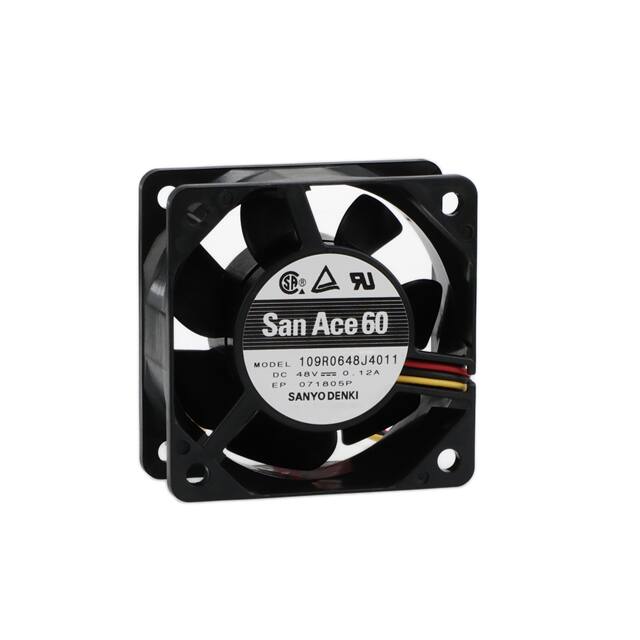

109R0648J4011FAN AXIAL 60X25MM 48VDC WIRE |
66 |
|
برگه مشخصات |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 5.76 W | 7600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
G6015M12B1-RGR-EMFAN AXIAL 60X15.3MM 12VDC WIRE |
61 |
|
برگه مشخصات |
G6015-G | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.30mm | 16.0 CFM (0.448m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 28.0dB(A) | - | 4000 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.059 lb (26.76 g) |
|
09225VA-12Q-AL-00FAN AXIAL 92X25MM 12VDC WIRE |
85 |
|
برگه مشخصات |
09225VA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | 8.64 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UR, VDE | 0.298 lb (135.17 g) |
|
|
9GA0612G701FAN AXIAL 60X15MM 12VDC WIRE |
70 |
|
برگه مشخصات |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 38.0dB(A) | 1.92 W | 5900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
9GA0812A2D0011FAN AXIAL 80X32MM 12VDC WIRE |
63 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 3.72 W | - | 3 Wire Leads | - | - | - | - |
|
E1225E12B-FSR-CCFAN AXIAL 120X25MM 12VDC WIRE |
18 |
|
برگه مشخصات |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 44.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
109R0648H4D01FAN AXIAL 60X25MM 48VDC WIRE |
64 |
|
برگه مشخصات |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.92 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
9GA0924F402FAN AXIAL 92X25MM 24VDC WIRE |
23 |
|
برگه مشخصات |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 1.92 W | - | 2 Wire Leads | - | - | - | - |
|

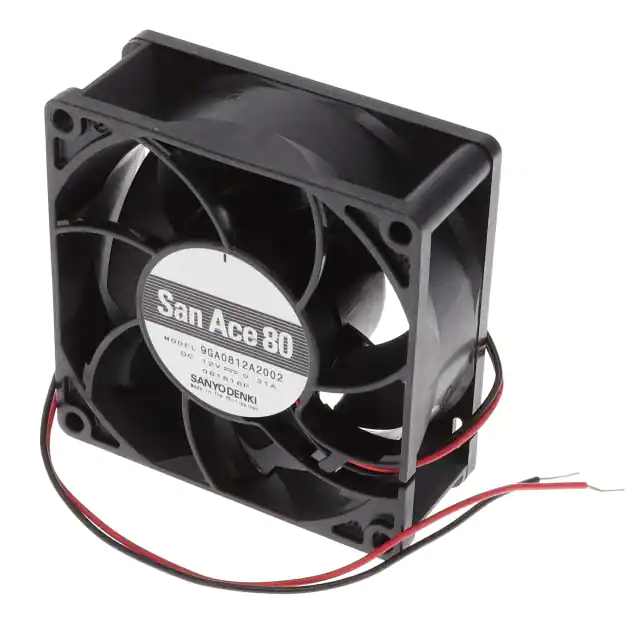

9GA0812A2002FAN AXIAL 80X32MM 12VDC WIRE |
32 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 3.72 W | - | 2 Wire Leads | - | - | - | - |
|
9GA0812L2D001FAN AXIAL 80X32MM 12VDC WIRE |
64 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 960 mW | - | 3 Wire Leads | - | - | - | - |
|

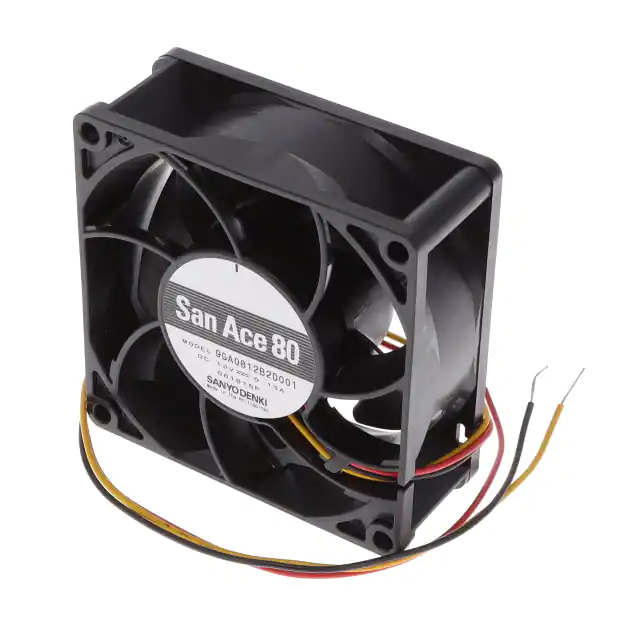

9GA0812B2D001FAN AXIAL 80X32MM 12VDC WIRE |
55 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 1.56 W | - | 3 Wire Leads | - | - | - | - |
|
9RA0612S40011FAN AXIAL 60X25MM 12VDC WIRE |
77 |
|
برگه مشخصات |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.2 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
