فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109E2024S002FAN AXIAL 200X70MM 24VDC WIRE |
7 |
|
برگه مشخصات |
San Ace 200 | Box | Active | 24VDC | Round - 200mm Dia | 70.00mm | 369.0 CFM (10.33m³/min) | 1.153 in H2O (287.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.0dB(A) | 45.6 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UR | 3.9 lbs (1.8 kg) |
|
5312/2TDHPFAN AXIAL 140X50.8MM 12VDC WIRE |
14 |
|
برگه مشخصات |
5300TD | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 41 W | 6000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 2 lbs (907.2 g) |
|
6424HUFAN AXIAL 171.5X50.8MM 24VDC |
6 |
|
برگه مشخصات |
6400U | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 283.0 CFM (7.92m³/min) | - | Ball | Tubeaxial | - | 63.0dB(A) | 26 W | 4000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 131°F (-20 ~ 55°C) | UL | 1.9 lbs (861.8 g) |
|
R1G175-AB75-24FAN IMP MTRZD 175X69MM 12VDC |
8 |
|
برگه مشخصات |
R1G175 | Bulk | Active | 12VDC | Round - 175mm Dia | 69.00mm | - | - | Ball | Motorized Impellers | - | 66.0dB(A) | 27 W | 2800 RPM | 3 Wire Leads with Splice Terminals | IP20 | -13 ~ 140°F (-25 ~ 60°C) | - | - |
|
6318HUFAN AXIAL 172X51MM 48VDC WIRE |
2 |
|
- |
6300H | Bulk | Active | 48VDC | Round - 172mm Dia | 51.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | - | - | - |
|
R150G2-051-D0560150 X 172 X 51MM, 24 VDC, IP68 P |
9 |
|
برگه مشخصات |
R150 | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 12.6 CFM (0.353m³/min) | 3.000 in H2O (747.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 81.6 W | 6000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 122°F (-30 ~ 50°C) | - | - |
|
R1G133-AA61-14FAN IMP MTRZD 133X91MM 12VDC |
8 |
|
برگه مشخصات |
R1G133AA | Bulk | Active | 12VDC | Round - 133mm Dia | 91.00mm | 212.0 CFM (5.94m³/min) | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 28 W | 3650 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
DV6318/2TDH4PFAN AXIAL 171.5X50.8MM 48VDC |
21 |
|
برگه مشخصات |
DV6300 | Bulk | Active | 48VDC | Round - 171.5mm Dia | 50.80mm | 617.0 CFM (17.28m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | 300 W | 6500 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, UL, VDE | 2.1 lbs (952.5 g) |
|
W1G180-AB57-30FAN AXIAL 220X70MM 24VDC WIRE |
24 |
|
برگه مشخصات |
W1G180 | Bulk | Active | 24VDC | Round - 220mm Dia | 70.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 70.0dB(A) | 35 W | 3170 RPM | 2 Wire Leads with Splice Terminals | IP20 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|

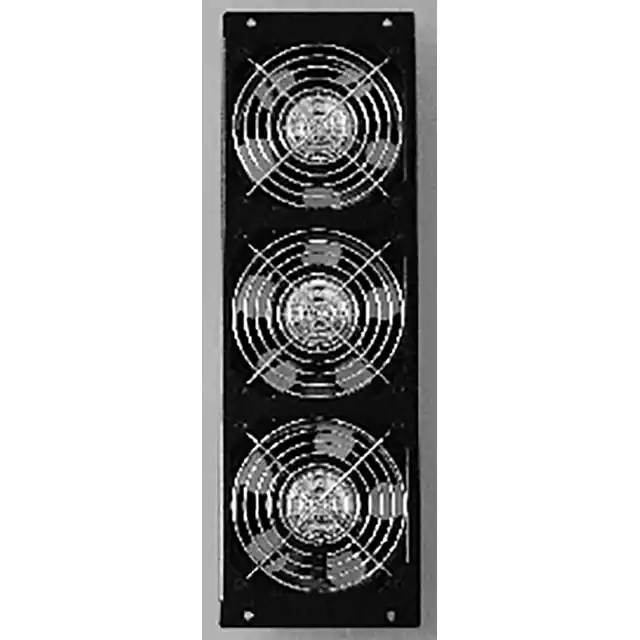

OD280AN-48LBFAN AXIAL 280X89MM 48VDC WIRE |
4 |
|
برگه مشخصات |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 89.00mm | 870.0 CFM (24.36m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 27 W | 1800 RPM | 2 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|

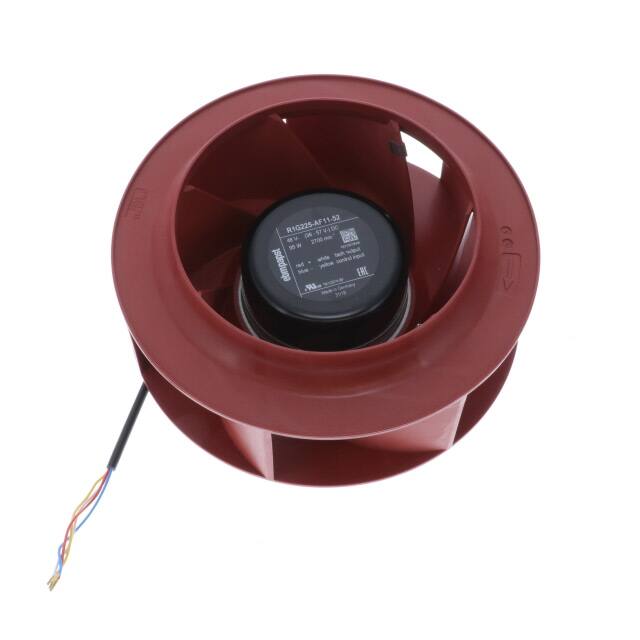

R1G225-AF11-52FAN IMP MTRZD 225X99MM 48VDC |
5 |
|
برگه مشخصات |
R1G225 | Bulk | Active | 48VDC | Round - 225mm Dia | 99.00mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | 95 W | 2700 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | 3.3 lbs (1.5 kg) |
|
|
R1G175-AF29-04FAN IMP MTRZD 175X69MM 48VDC |
6 |
|
برگه مشخصات |
R1G175 | Bulk | Active | 48VDC | Round - 175mm Dia | 69.00mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 75 W | 4000 RPM | 4 Wire Leads with Splice Terminals | IP22 | -13 ~ 104°F (-25 ~ 40°C) | CCC, EAC | - |
|
R1G190-AC37-52FAN IMP MTRZD 190X68.5MM 24VDC |
6 |
|
برگه مشخصات |
R1G190 | Bulk | Active | 24VDC | Round - 190mm Dia | 68.50mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | 80 W | 3250 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | 2.9 lbs (1.3 kg) |
|

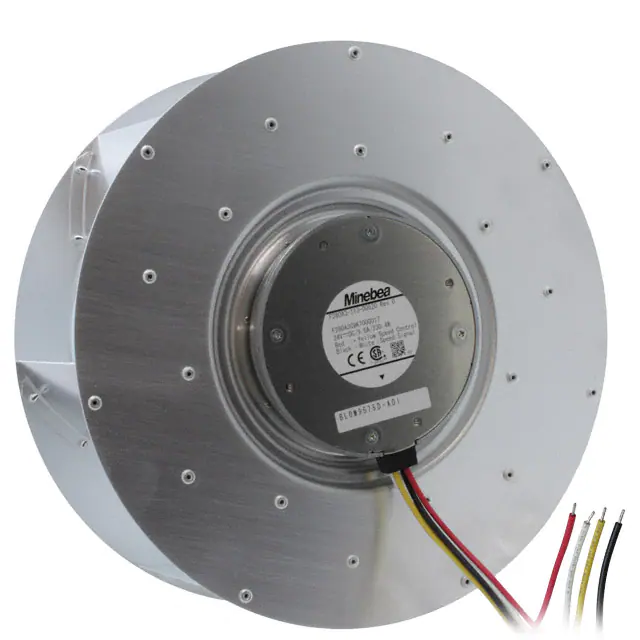

F280A3-113-D0520FAN IMP MTRZD 280X128.7MM 24VDC |
4 |
|
برگه مشخصات |
F280 | Bulk | Active | 24VDC | Round - 280mm Dia | 128.7mm | 1166.0 CFM (32.65m³/min) | 1.913 in H2O (476.5 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 77.0dB(A) | 175.2 W | 2150 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 4.6 lbs (2.1 kg) |
|
G1G108-AB17-02FAN BLOWER 159X115.0MM 24VDC |
8 |
|
برگه مشخصات |
G1G108 | Bulk | Active | 24VDC | Rectangular/Rounded - 159mm L x 185mm H | 115.0mm | - | - | Ball | Blower | PWM Control, Speed Sensor (Tach) | - | 42 W | 3000 RPM | 4 Wire Leads with Splice Terminals | IP22 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|

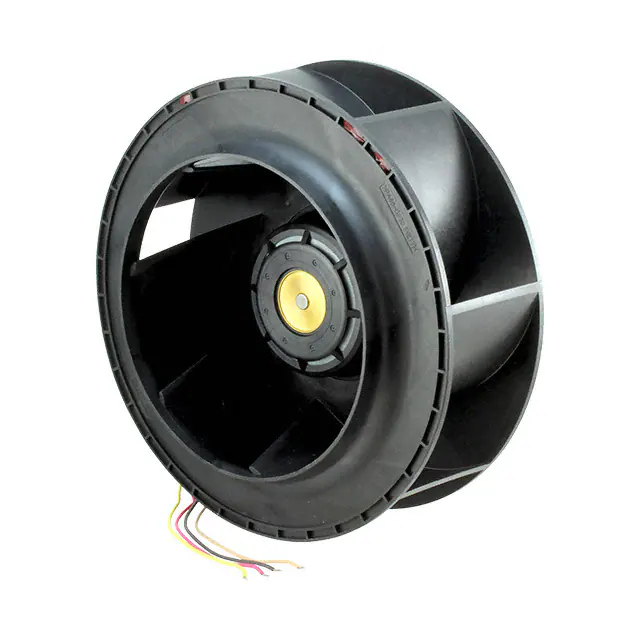

9TP24P0H001FAN IMP MTRZD 221X71MM 24VDC |
9 |
|
برگه مشخصات |
San Ace C221 | Box | Active | 24VDC | Round - 221mm Dia | 71.00mm | 622.0 CFM (17.42m³/min) | 2.130 in H2O (530.6 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 76.8 W | 3050 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 2.4 lbs (1.1 kg) |
|
9TS48P0H001FAN IMP MTRZD 225X99MM 48VDC |
7 |
|
برگه مشخصات |
San Ace C225 | Box | Active | 48VDC | Round - 225mm Dia | 99.00mm | 802.0 CFM (22.46m³/min) | 2.370 in H2O (590.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 70.5dB(A) | 99.8 W | 2900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 2.6 lbs (1.2 kg) |
|
9W2TS48P0S001FAN IMP MTRZD 225X99MM 48VDC |
7 |
|
برگه مشخصات |
San Ace 225W | Box | Active | 48VDC | Round - 225mm Dia | 99.00mm | 830.0 CFM (23.24m³/min) | 2.550 in H2O (635.2 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 117.6 W | 3000 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | cURus, TUV | 3.3 lbs (1.5 kg) |
|
9B1TP48P0H001FAN BLOWER CF 270X99MM 48VDC |
2 |
|
برگه مشخصات |
San Ace C221 | Box | Active | 48VDC | Square - 270mm L x 270mm H | 99.00mm | 622.0 CFM (17.42m³/min) | 2.130 in H2O (530.6 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 76.8 W | 3050 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 3.8 lbs (1.7 kg) |
|
|
9B1TP48P0G001FAN BLOWER CF 270X99MM 48VDC |
3 |
|
برگه مشخصات |
San Ace C221 | Box | Active | 48VDC | Square - 270mm L x 270mm H | 99.00mm | 742.0 CFM (20.78m³/min) | 3.052 in H2O (760.0 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 132 W | 3650 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 3.8 lbs (1.7 kg) |
