فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

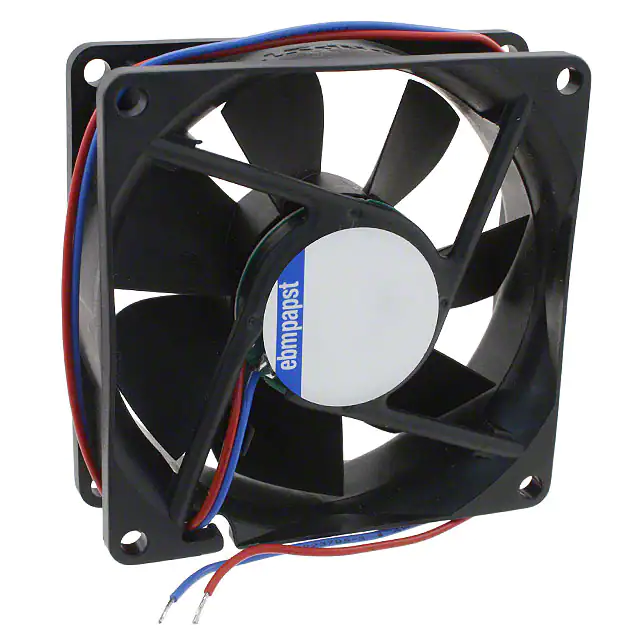

8414NGHFAN AXIAL 80X25.4MM 24VDC WIRE |
538 |
|
برگه مشخصات |
8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 46.5 CFM (1.30m³/min) | - | Sintec | Tubeaxial | - | 37.0dB(A) | 2.6 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.21 lb (95.25 g) |
|
|
8414NGLFAN AXIAL 80X25.4MM 24VDC WIRE |
190 |
|
برگه مشخصات |
8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 19.4 CFM (0.543m³/min) | - | Sintec | Tubeaxial | - | 12.0dB(A) | 700 mW | 1500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
.jpg)
|
9GV0612P1G03FAN AXIAL 60X38MM 12VDC WIRE |
738 |
|
برگه مشخصات |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 84.0 CFM (2.35m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 33.6 W | 16000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GV0612P1G031FAN AXIAL 60X38MM 12VDC WIRE |
292 |
|
برگه مشخصات |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 84.0 CFM (2.35m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 33.6 W | 16000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
OD1238-24HBXJ01AFAN AXIAL 120X38MM 24VDC WIRE |
1,533 |
|
برگه مشخصات |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 250.0 CFM (7.00m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 69.0dB | 42 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.827 lb (375.12 g) |
|

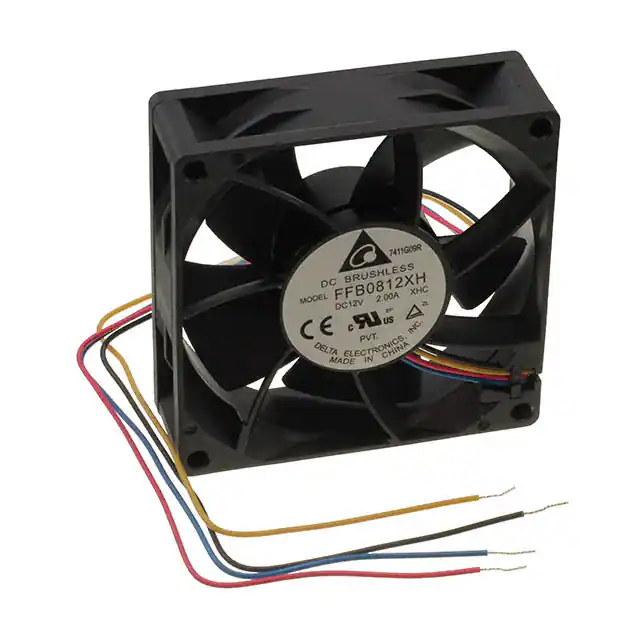

FFB0812XHXHCFAN AXIAL 80X25.4MM 12VDC WIRE |
2,704 |
|
برگه مشخصات |
FFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 92.7 CFM (2.60m³/min) | 1.102 in H2O (255.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 12 W | 9000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 0.254 lb (115.21 g) |
|

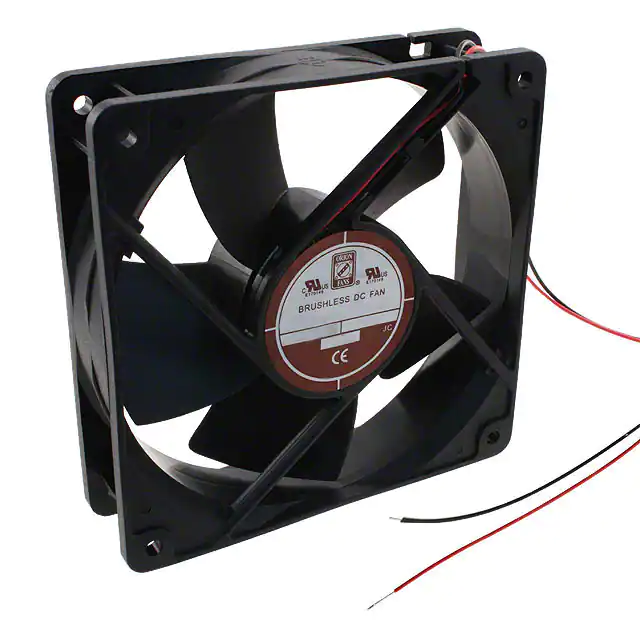

OD1232-48HBFAN AXIAL 120X32MM 48VDC WIRE |
970 |
|
برگه مشخصات |
OD1232 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 32.00mm | 120.0 CFM (3.36m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | - | 51.0dB | - | 3750 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

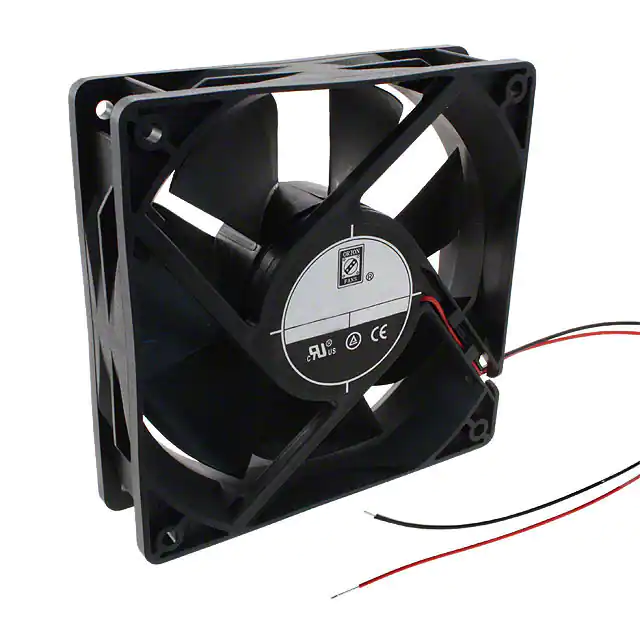

OD1232-24HBFAN AXIAL 120X32MM 24VDC WIRE |
719 |
|
برگه مشخصات |
OD1232 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 120.0 CFM (3.36m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | - | 51.0dB | - | 3750 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

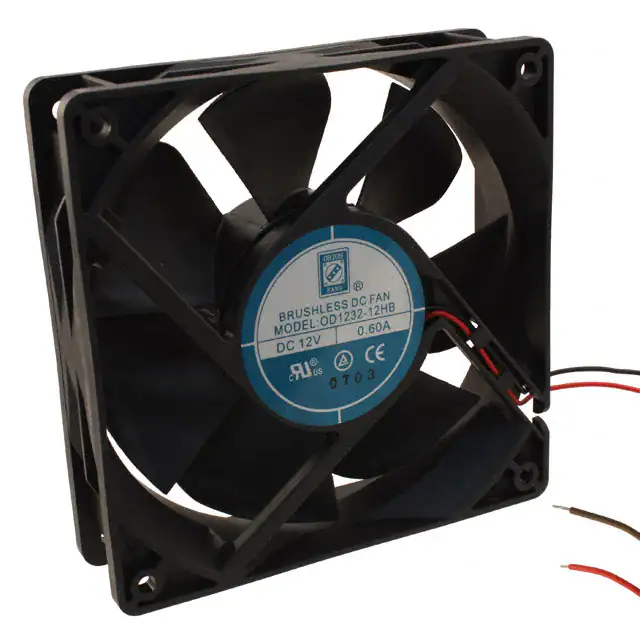

OD1232-12HBFAN AXIAL 120X32MM 12VDC WIRE |
475 |
|
برگه مشخصات |
OD1232 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 32.00mm | 120.0 CFM (3.36m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | - | 51.0dB | - | 3750 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

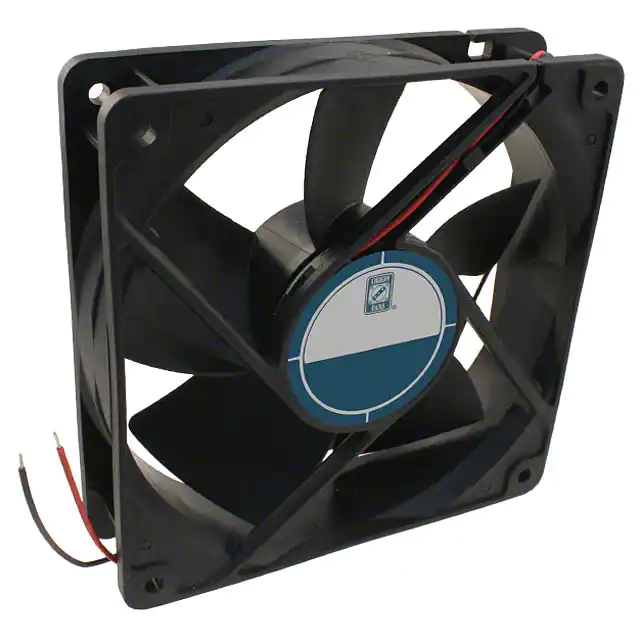

OD1232-12MBFAN AXIAL 120X32MM 12VDC WIRE |
136 |
|
برگه مشخصات |
OD1232 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 32.00mm | 107.0 CFM (3.00m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | - | 48.0dB | - | 3300 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

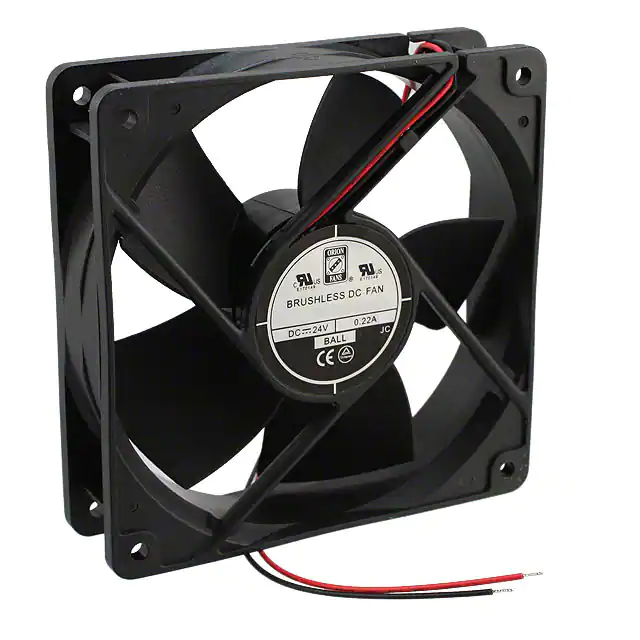

OD1232-24MBFAN AXIAL 120X32MM 24VDC WIRE |
0 |
|
برگه مشخصات |
OD1232 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 107.0 CFM (3.00m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | - | 48.0dB | - | 3300 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

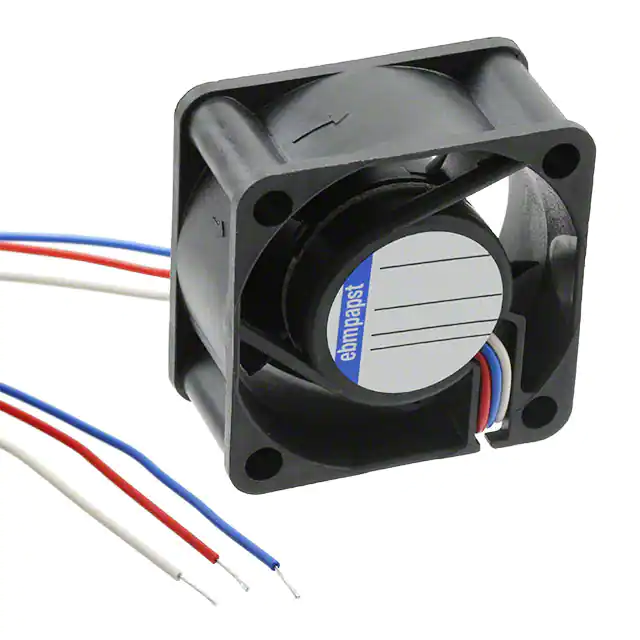

414/2HFAN AXIAL 40X20MM 24VDC WIRE |
217 |
|
برگه مشخصات |
400 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.9 CFM (0.221m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 29.0dB(A) | 1.7 W | 8100 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, UL, VDE | 0.06 lb (27.22 g) |
|
9GA0824P6G001FAN AXIAL 80X20MM 24VDC WIRE |
2,845 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 60.8 CFM (1.70m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 3.6 W | 5850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (79.83 g) |
|
BFB0712HHD77FAN BLOWER 75.7X25MM 12VDC WIRE |
2,085 |
|
برگه مشخصات |
BFB | Box | Active | 12VDC | Rectangular/Rounded - 75.7mm L x 80.6mm H | 25.00mm | 14.7 CFM (0.412m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control | 50.0dB(A) | 8.15 W | 5500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 185°F (-40 ~ 85°C) | - | 0.188 lb (85.28 g) |
|

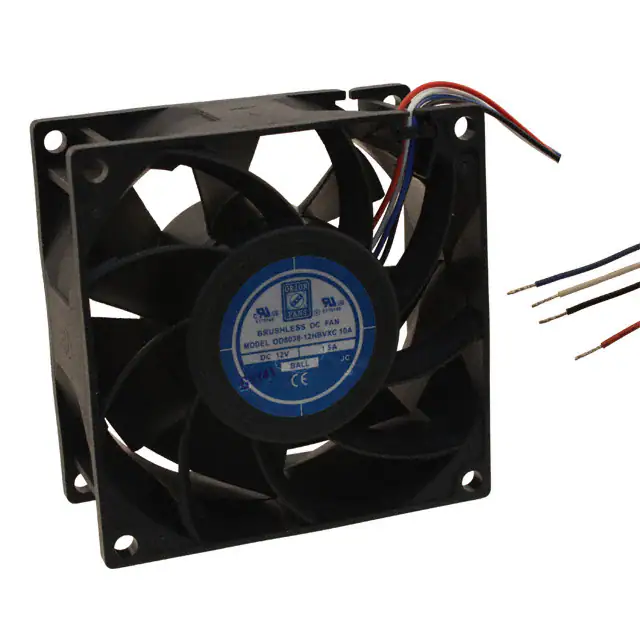

OD8038-12HBVXC10AFAN AXIAL 80X38MM 12VDC WIRE |
2,123 |
|
برگه مشخصات |
OD8038 VA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.810 in H2O (201.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.0dB | 14 W | 6300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus | - |
|

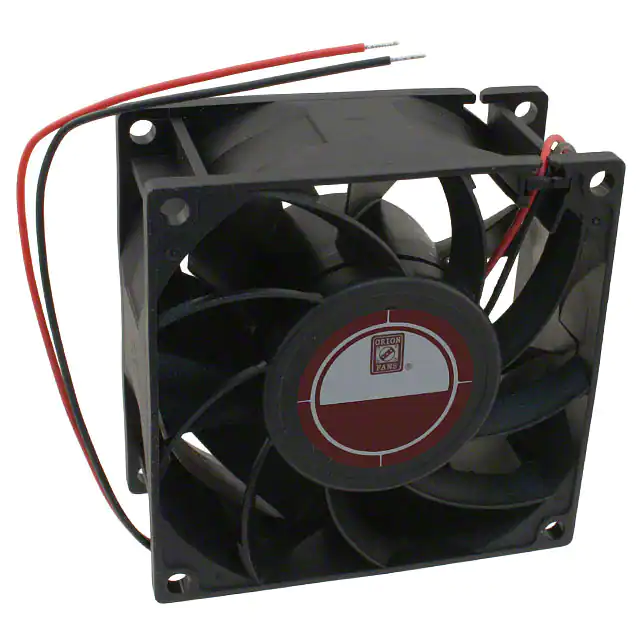

OD8038-48HBVXCFAN AXIAL 80X38MM 48VDC WIRE |
354 |
|
برگه مشخصات |
OD8038 VA | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.810 in H2O (201.8 Pa) | Ball | Tubeaxial | Auto Restart | 57.0dB | 14 W | 6300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
BFB1024HFAN BLOWER 97.2X33MM 24VDC WIRE |
1,517 |
|
برگه مشخصات |
BFB | Bulk | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 25.4 CFM (0.711m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Blower | Locked Rotor Protection | 52.0dB(A) | 9.6 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
BFB1024HHFAN BLOWER 97.2X33MM 24VDC WIRE |
491 |
|
برگه مشخصات |
BFB | Bulk | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 28.3 CFM (0.792m³/min) | 1.299 in H2O (323.6 Pa) | Ball | Blower | Locked Rotor Protection | 55.0dB(A) | 13.2 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|

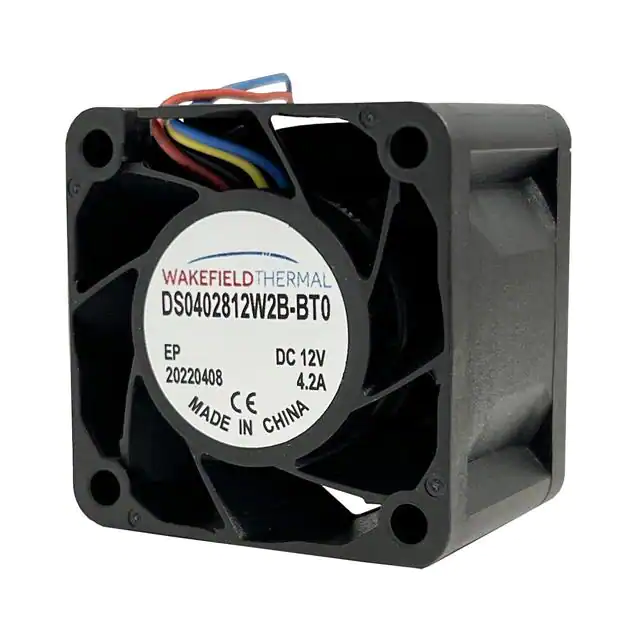

DS0402812W2B-BT0FAN AXIAL 40X28MM 12VDC WIRE |
264 |
|
برگه مشخصات |
DS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 41.2 CFM (1.15m³/min) | 8.112 in H2O (2020.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 72.5dB(A) | 50.4 W | 35000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
.GN.jpg)
|
PMD1209PMB1-A.(2).GNFAN AXIAL 92X38MM 12VDC WIRE |
824 |
|
برگه مشخصات |
PMD | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 120.2 CFM (3.37m³/min) | 0.710 in H2O (176.9 Pa) | Ball | Tubeaxial | - | 57.6dB(A) | 12.5 W | 4900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.419 lb (190.06 g) |
