فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4482FMFAN AXIAL 119X25.4MM 12VDC TERM |
0 |
|
برگه مشخصات |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 82.0 CFM (2.30m³/min) | - | Ball | Tubeaxial | - | 38.0dB(A) | 3.2 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.38 lb (172.37 g) |
|
EYW12038024BM-12FAN AXIAL 120X38MM 24VDC WIRE |
20 |
|
برگه مشخصات |
EYW12038 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 194.0 CFM (5.43m³/min) | 1.150 in H2O (286.5 Pa) | Ball | Tubeaxial | - | 60.4dB(A) | 28.8 W | 5000 RPM | 2 Wire Leads | - | - | - | - |
|
|
EYW12038012BM-12FAN AXIAL 120X38MM 12VDC WIRE |
20 |
|
برگه مشخصات |
EYW12038 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 193.9 CFM (5.43m³/min) | 1.150 in H2O (286.5 Pa) | Ball | Tubeaxial | - | 60.4dB(A) | 26.4 W | 5000 RPM | 2 Wire Leads | - | - | - | - |
|
|
EYW12038024BS-12FAN AXIAL 120X38MM 24VDC WIRE |
20 |
|
برگه مشخصات |
EYW12038 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 275.6 CFM (7.72m³/min) | 2.400 in H2O (597.8 Pa) | Ball | Tubeaxial | - | 69.2dB(A) | 69.6 W | 7000 RPM | 2 Wire Leads | - | - | - | - |
|
|
EYW12038012BS-12FAN AXIAL 120X38MM 12VDC WIRE |
20 |
|
برگه مشخصات |
EYW12038 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
AFB1212VHE-CF00FAN AXIAL 120X38MM 12VDC WIRE |
35 |
|
برگه مشخصات |
AFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 148.3 CFM (4.15m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 8.16 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.706 lb (320.24 g) |
|
|
FD1238B24W3-63-3RDC FAN 120X120X38mm 24V |
18 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 191.3 CFM (5.36m³/min) | 0.862 in H2O (214.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.1dB(A) | 26.4 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
CFR2B5X-SFAN BLOWER CF 73.5X23.5MM 5VDC |
10 |
|
برگه مشخصات |
CFR2B | Tape & Box (TB) | Active | 5VDC | Rectangular - 73.5mm L x 23mm H | 23.50mm | 10.9 CFM (0.305m³/min) | - | Ball | Blower, Cross Flow | - | 35.0dB | 1.3 A | 9500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
CFR2B12X-S-PFAN BLOWER CF 73.5X23.5MM 12VDC/ |
10 |
|
برگه مشخصات |
CFR2B | Tape & Box (TB) | Active | 12VDC | Rectangular - 73.5mm L x 23mm H | 23.50mm | 10.9 CFM (0.305m³/min) | - | Ball | Blower, Cross Flow | - | 35.0dB | 1.3 A | 9500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
CFR2B12X-SFAN BLOWER CF 73.5X23.5MM 12VDC |
10 |
|
برگه مشخصات |
CFR2B | Tape & Box (TB) | Active | 12VDC | Rectangular - 73.5mm L x 23mm H | 23.50mm | 10.9 CFM (0.305m³/min) | - | Ball | Blower, Cross Flow | - | 35.0dB | 1.3 A | 9500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
CFR2B5XFAN BLOWER CF 73.5X23.5MM 5VDC |
10 |
|
برگه مشخصات |
CFR2B | Tape & Box (TB) | Active | 5VDC | Rectangular - 73.5mm L x 23mm H | 23.50mm | 10.9 CFM (0.305m³/min) | - | Ball | Blower, Cross Flow | - | 35.0dB | 1.3 A | 9500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
CFR2B12XFAN BLOWER CF 73.5X23.5MM 12VDC |
9 |
|
برگه مشخصات |
CFR2B | Tape & Box (TB) | Active | 12VDC | Rectangular - 73.5mm L x 23mm H | 23.50mm | 10.9 CFM (0.305m³/min) | - | Ball | Blower, Cross Flow | - | 35.0dB | 1.3 A | 9500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
CFR2B5X-S-PFAN BLOWER CF 73.5X23.5MM 5VDC/T |
7 |
|
برگه مشخصات |
CFR2B | Tape & Box (TB) | Active | 5VDC | Rectangular - 73.5mm L x 23mm H | 23.50mm | 10.9 CFM (0.305m³/min) | - | Ball | Blower, Cross Flow | - | 35.0dB | 1.3 A | 9500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
K5331H24BALB2A-37FAN BLOWER 53X31MM 24VDC WIRE |
8 |
|
برگه مشخصات |
TITAN | Bulk | Active | 24VDC | Rectangular/Round - 53mm L x 53mm H | 31.00mm | 10.9 CFM (0.31m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 41.9dB(A) | 4.32 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
12038VA-24R-EA-00FAN AXIAL 120X38MM 24VDC WIRE |
19 |
|
برگه مشخصات |
12038VA | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 243.6 CFM (6.82m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | Auto Restart | 64.0dB | 35.5 W | 6400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
9RA0848H1001FAN AXIAL 80X38MM 48VDC WIRE |
28 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 77.3 CFM (2.19m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.64 W | 6100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

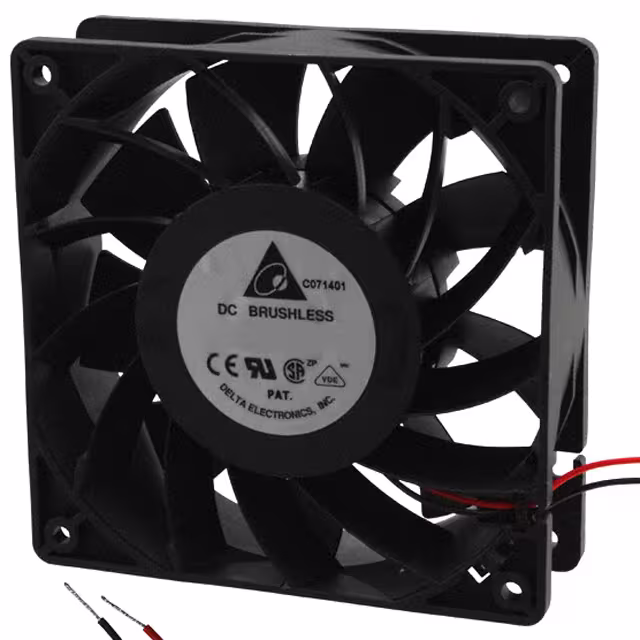

FFB1248SHEFAN AXIAL 120X38MM 48VDC WIRE |
16 |
|
برگه مشخصات |
FFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.5dB(A) | 18.24 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
|
9RA0848P1G0011FAN AXIAL 80X38MM 48VDC WIRE |
36 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 10.56 W | 6750 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
4418F/12FAN AXIAL 119X25.4MM 48VDC WIRE |
0 |
|
برگه مشخصات |
4400F | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 25.40mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 43.0dB(A) | 5.5 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.386 lb (175.09 g) |
|
|
CFR3B12HFAN BLOWER CF 94.5X23.5MM 12VDC |
7 |
|
برگه مشخصات |
CFR3B | Tape & Box (TB) | Active | 12VDC | Rectangular - 94.5mm L x 23mm H | 23.50mm | 8.0 CFM (0.224m³/min) | - | Ball | Blower, Cross Flow | - | 23.0dB | 1.1 A | 5500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
