فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GAX0412P3S025FAN AXL 40X28MM 12VDC RECT CONN |
0 |
|
برگه مشخصات |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | - | 25000 RPM | 4 Position Rectangular Connector | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.117 lb (53.07 g) |
|

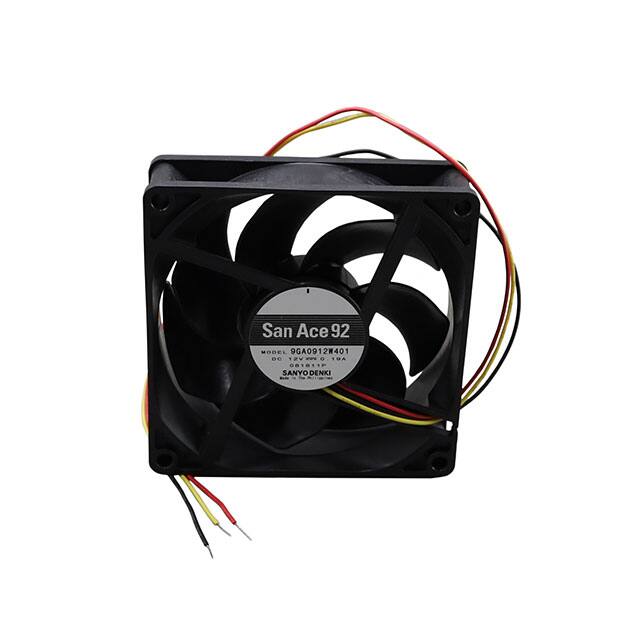

9GA0912W401FAN AXIAL 92X25MM 12VDC WIRE |
3 |
|
برگه مشخصات |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.28 W | - | 3 Wire Leads | - | - | - | - |
|
FFB0812VHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
2 |
|
برگه مشخصات |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 57.2 CFM (1.60m³/min) | 0.424 in H2O (105.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.5dB(A) | 4.56 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
B1232H12B6-BSRFAN BLOWER 120X32MM 12VDC WIRE |
0 |
|
برگه مشخصات |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Blower | PWM Control, Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.706 lb (320.24 g) |
|
|
B1232M12B6-BSRFAN BLOWER 120X32MM 12VDC WIRE |
0 |
|
برگه مشخصات |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 24.0 CFM (0.672m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Blower | PWM Control, Thermal Overload Protector (TOP) | 46.0dB(A) | - | 2400 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.706 lb (320.24 g) |
|
G1238E12B-FSR-EM-RLFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
G1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
MR1238H24B-FSRFAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 235.0 CFM (6.58m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Auto Restart | 64.6dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
612NGMLEFAN AXIAL 60X25.4MM 12VDC WIRE |
0 |
|
برگه مشخصات |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 14.7 CFM (0.412m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 16.0dB(A) | 700 mW | 3000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | CE, CSA, UL, VDE | 0.146 lb (66.22 g) |
|
F1238S12BT-FSRFAN AXIAL 119X38MM 12VDC TERM |
5 |
|
برگه مشخصات |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 83.0 CFM (2.32m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 34.0dB(A) | - | 1800 RPM | 2 Terminals | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
11938KA-12J-EL-00FAN AXIAL 119X38.4MM 12VDC WIRE |
1 |
|
برگه مشخصات |
11938KA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.40mm | - | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
B1232H24B1-BSR-SRFAN BLOWER 120X32MM 24VDC WIRE |
0 |
|
برگه مشخصات |
B1232 | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Blower | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.706 lb (320.24 g) |
|
9GA0912M401FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 1.32 W | - | 3 Wire Leads | - | - | - | - |
|
AFB1212HE-F00FAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 3.84 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
|
F1238E12BT-FSR-CCFAN AXIAL 119X38MM 12VDC TERM |
1 |
|
برگه مشخصات |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 126.0 CFM (3.53m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Protection | 43.0dB(A) | - | 2800 RPM | 2 Terminals | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
|
F1238H12B3-FSRFAN AXIAL 119X38MM 12VDC WIRE |
1 |
|
برگه مشخصات |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 115.0 CFM (3.22m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Thermistor | 41.0dB(A) | - | 2500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
|
9G0924S2011FAN AXIAL 92X32MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 4.56 W | 3500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
614NGMLFAN AXIAL 60X25.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
600NG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 14.7 CFM (0.412m³/min) | - | Sintec | Tubeaxial | - | 19.0dB(A) | 1.2 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
|
9GA0924W4021FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.16 W | - | 2 Wire Leads | - | - | - | - |
|

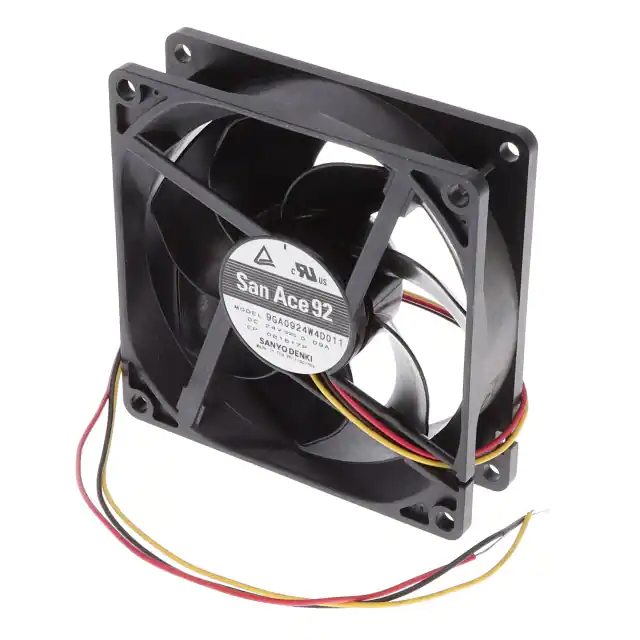

9GA0924W4D011FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 2.16 W | - | 3 Wire Leads | - | - | - | - |
|
|
9GA0812A2001FAN AXIAL 80X32MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 3.72 W | - | 3 Wire Leads | - | - | - | - |
