فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EUB0405MDFAN AXIAL 40X20MM 5VDC WIRE |
0 |
|
برگه مشخصات |
EUB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.2 CFM (0.202m³/min) | 0.218 in H2O (54.3 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 750 mW | 6300 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|

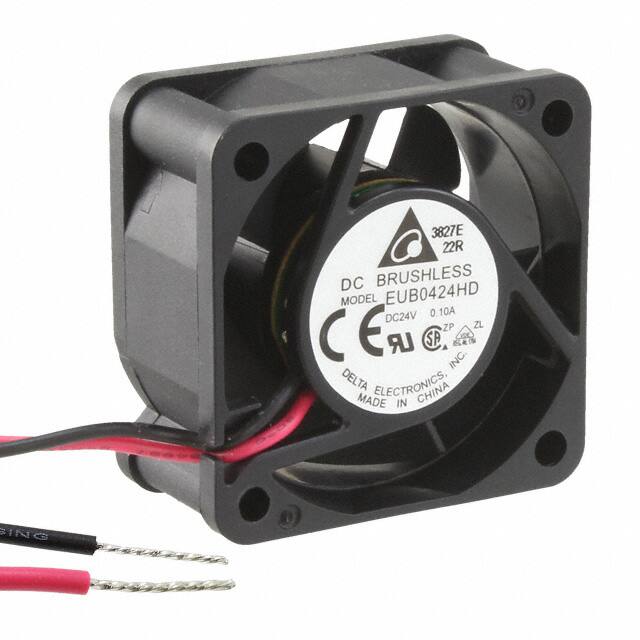

EUB0424HDFAN AXIAL 40X20MM 24VDC WIRE |
0 |
|
برگه مشخصات |
EUB | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.5 CFM (0.238m³/min) | 0.303 in H2O (75.5 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 28.5dB(A) | 1.44 W | 7600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
EUB0412LDFAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
برگه مشخصات |
EUB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 5.5 CFM (0.154m³/min) | 0.136 in H2O (33.9 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 22.0dB(A) | 600 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
CFM-4010V-058-206-11FAN AXIAL 40X10MM 5VDC WIRE |
0 |
|
برگه مشخصات |
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.6dB(A) | 550 mW | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.034 lb (15.42 g) |
|
|
CFM-4010V-070-273-11FAN AXIAL 40X10MM 5VDC WIRE |
0 |
|
برگه مشخصات |
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.3dB(A) | 790 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.034 lb (15.42 g) |
|
|
CFM-4010V-170-273-11FAN AXIAL 40X10MM 12VDC WIRE |
0 |
|
برگه مشخصات |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.3dB(A) | 710 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.034 lb (15.42 g) |
|
CFM-8025V-120-204-11FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 20.4dB(A) | 580 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|
CFM-9225V-117-177-11FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
CFM-92V | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 28.5 CFM (0.798m³/min) | 0.050 in H2O (12.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 17.7dB(A) | 650 mW | 1700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
|
CFM-4010V-150-157-11FAN AXIAL 40X10MM 12VDC WIRE |
0 |
|
برگه مشخصات |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.7dB(A) | 460 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.034 lb (15.42 g) |
|
CFM-4010C-180-296FAN AXIAL 40X10.5MM 12VDC WIRE |
0 |
|
برگه مشخصات |
CFM-40C | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 6.8 CFM (0.190m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 29.6dB(A) | 1.08 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
KDE1205PHV1 MS.A.GN.C1500FAN AXIAL 50X15MM 12VDC |
0 |
|
برگه مشخصات |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KDE1205PHV2 MS.A.GN.C1500FAN AXIAL 50X15MM 12VDC WIRE |
0 |
|
برگه مشخصات |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 29.0dB(A) | 700 mW | 4700 RPM | 2 Wire Leads | - | - | - | - |
|
|
KDE1205PHV3.MS.A.GN.C1500FAN AXIAL 50X15MM 12VDC WIRE |
0 |
|
برگه مشخصات |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 10.2 CFM (0.286m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 22.0dB(A) | 500 mW | 3700 RPM | 2 Wire Leads | - | - | - | - |
|
EB60251S1-000U-999FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
EB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | - | 33.5dB(A) | 1.62 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.126 lb (57.15 g) |
|
ME80152V1-000U-A99FAN AXIAL 80X15MM 24VDC WIRE |
0 |
|
برگه مشخصات |
MagLev® ME | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 34.7dB(A) | 2.21 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.15 lb (68.04 g) |
|
|
ASB0412VHA-AFAN AXIAL 40X10MM 12VDC WIRE |
0 |
|
برگه مشخصات |
ASB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 9.5 CFM (0.266m³/min) | 0.253 in H2O (63.0 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection | 32.5dB(A) | 960 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.03 lb (13.61 g) |
|
|
05015SS-12N-WT-00FAN AXIAL 50X15.35MM 12VDC WIRE |
0 |
|
- |
05015SS | Box | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.35mm | 10.9 CFM (0.305m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.5dB(A) | 1.2 W | 5050 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
05015SS-12M-WL-00FAN AXIAL 50X15.35MM 12VDC WIRE |
0 |
|
- |
05015SS | Box | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.35mm | 9.9 CFM (0.277m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.0dB(A) | 1.08 W | 4550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
05015SS-12N-WL-00FAN AXIAL 50X15.35MM 12VDC WIRE |
0 |
|
- |
05015SS | Box | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.35mm | 10.9 CFM (0.305m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.5dB(A) | 1.2 W | 5050 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
05015SS-12M-WA-00FAN AXIAL 50X15.35MM 12VDC WIRE |
0 |
|
- |
05015SS | Box | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.35mm | 9.9 CFM (0.277m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | Tubeaxial | Auto Restart | 25.0dB(A) | 1.08 W | 4550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
