فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
06025SS-12N-AL-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
06025SS | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.660m³/min) | 0.253 in H2O (63.0 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB | 2.16 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
06025SS-24L-ET-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
06025SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 17.1 CFM (0.479m³/min) | 0.141 in H2O (35.1 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 23.5dB | 1.2 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SS-24R-ET-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
06025SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 30.0 CFM (0.840m³/min) | 0.405 in H2O (100.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.5dB | 3.6 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
06025SS-24M-EL-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
06025SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.185 in H2O (46.1 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.5dB | 1.44 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SS-24L-EL-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
06025SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 17.1 CFM (0.479m³/min) | 0.141 in H2O (35.1 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 23.5dB | 1.2 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08025SS-12N-AA-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
08025SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.151 in H2O (37.5 Pa) | Sleeve | Tubeaxial | Auto Restart | 30.0dB | 1.92 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
08025SS-24M-AA-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.116 in H2O (29.0 Pa) | Sleeve | Tubeaxial | Auto Restart | 26.0dB | 1.68 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08025SS-24N-AA-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.151 in H2O (37.5 Pa) | Sleeve | Tubeaxial | Auto Restart | 30.0dB | 2.16 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
08025SS-24M-EA-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.116 in H2O (29.0 Pa) | Sleeve | Tubeaxial | Auto Restart | 26.0dB | 1.68 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08025SS-12N-EA-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
08025SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.151 in H2O (37.5 Pa) | Sleeve | Tubeaxial | Auto Restart | 30.0dB | 1.92 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
08025SS-24Q-EA-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 55.3 CFM (1.55m³/min) | 0.273 in H2O (68.0 Pa) | Sleeve | Tubeaxial | Auto Restart | 39.5dB | 5.04 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
08025SS-24L-AA-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 30.7 CFM (0.860m³/min) | 0.086 in H2O (21.5 Pa) | Sleeve | Tubeaxial | Auto Restart | 22.0dB | 1.2 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08025SS-24L-EA-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 30.7 CFM (0.860m³/min) | 0.086 in H2O (21.5 Pa) | Sleeve | Tubeaxial | Auto Restart | 22.0dB | 1.2 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08025SS-24Q-AA-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 55.3 CFM (1.55m³/min) | 0.273 in H2O (68.0 Pa) | Sleeve | Tubeaxial | Auto Restart | 39.5dB | 5.04 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
08025SS-24N-EA-D0DC AXIAL FAN |
0 |
|
برگه مشخصات |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.151 in H2O (37.5 Pa) | Sleeve | Tubeaxial | Auto Restart | 30.0dB | 2.16 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|

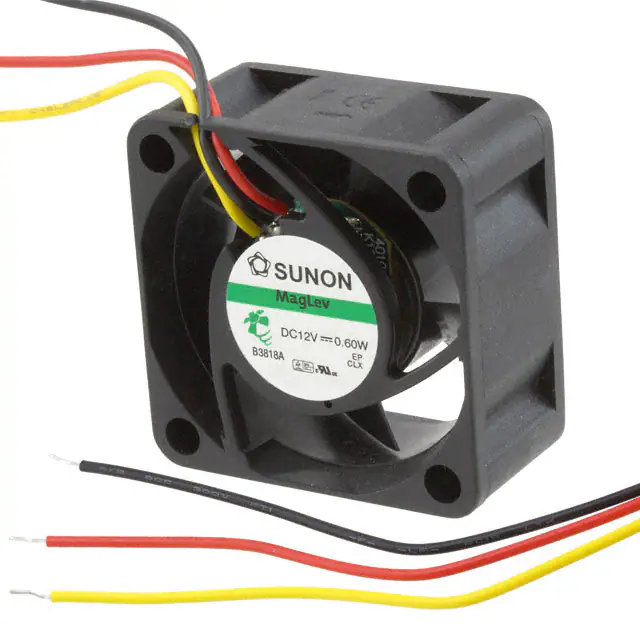

MB40201V3-000U-G99FAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
برگه مشخصات |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 18.0dB(A) | 480 mW | 5200 RPM | 3 Wire Leads | - | - | CE, CUR, TUV, UL | 0.068 lb (30.84 g) |
|
MB40200V1-000U-F99FAN AXIAL 40X20MM VAPO 5VDC WIRE |
0 |
|
- |
MagLev® MB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.5dB(A) | 950 mW | 7200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.066 lb (29.94 g) |
|
|
MB40200V1-000U-G99FAN AXIAL 40X20MM VAPO 5VDC WIRE |
0 |
|
- |
MagLev® MB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.5dB(A) | 950 mW | 7200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.066 lb (29.94 g) |
|
|
MB40201V1-000U-F99FAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
- |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.5dB(A) | 840 mW | 7200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.068 lb (30.84 g) |
|
|
MF60152VX-1000U-G99FAN AXIAL 60X15MM VAPO 24VDC |
0 |
|
برگه مشخصات |
MF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 30.4 CFM (0.851m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 36.2dB(A) | 2.04 W | 5400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UKCA, UL | - |
