فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

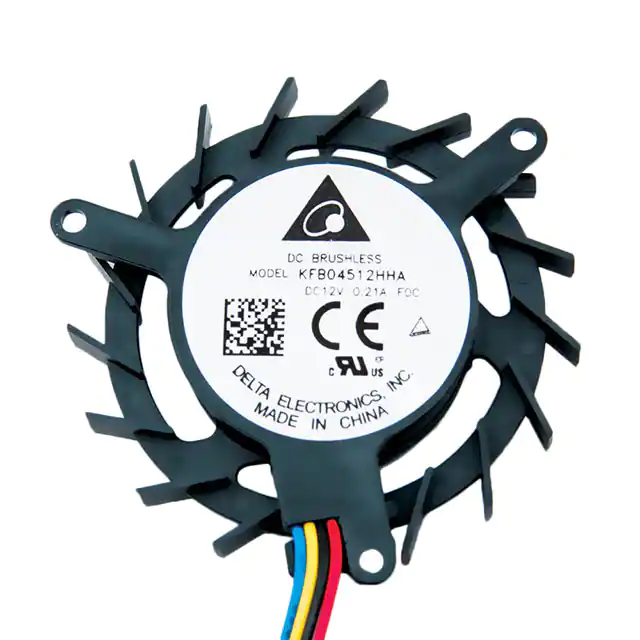

KFB04512HHAF0CFAN IMP MTR 49X10.8MM 12VDC |
0 |
|
برگه مشخصات |
KFB - Frameless | Box | Obsolete | 12VDC | Round - 49mm Dia | 10.80mm | 4.3 CFM (0.120m³/min) | 0.171 in H2O (42.6 Pa) | Ball | Motorized Impellers, Frameless | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.5dB(A) | 2.16 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.034 lb (15.42 g) |
|
KDE2406PHV1 MS.A.GNFAN AXIAL 60X15MM 24VDC WIRE |
0 |
|
برگه مشخصات |
MagLev® KDE | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 36.0dB(A) | 1.9 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.093 lb (42.18 g) |
|
|
KDE1206PTV1.13.MS.A.GNFAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Vapo-Bearing™ | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
KDE1206PTV2.13.MS.A.GNFAN AXIAL 60X25MM 12VDC |
0 |
|
برگه مشخصات |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KDE1206PTV3.13.MS.A.GNFAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Vapo-Bearing™ | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
KDE1206PTVX.13.MS.A.GNFAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Vapo-Bearing™ | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
KDE1207PHV1.MS.A.GNFAN AXIAL 70X15MM 12VDC WIRE |
0 |
|
برگه مشخصات |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 27.0 CFM (0.756m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 31.5dB(A) | 1.9 W | 3300 RPM | 2 Wire Leads | - | - | - | - |
|
|
KDE1207PHV2.MS.A.GNFAN AXIAL 70X15MM 12VDC WIRE |
0 |
|
برگه مشخصات |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 23.0 CFM (0.644m³/min) | 0.090 in H2O (22.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 26.5dB(A) | 1.1 W | 2800 RPM | 2 Wire Leads | - | - | - | - |
|
|
KDE1207PHV3.MS.A.GNFAN AXIAL 70X15MM 12VDC WIRE |
0 |
|
برگه مشخصات |
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 19.0 CFM (0.532m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.5dB(A) | 600 mW | 2300 RPM | 2 Wire Leads | - | - | - | - |
|
|
KDE2406PHV2.MS.A.GNFAN AXIAL 60X15MM 24VDC |
0 |
|
برگه مشخصات |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1608KL-01W-B19-L50FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 |
|
برگه مشخصات |
1608KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 20.0dB | 350 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-01W-B39-L00FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 |
|
برگه مشخصات |
1608KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.5dB | 850 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-01W-B39-L50FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 |
|
برگه مشخصات |
1608KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.5dB | 850 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-01W-B49-L50FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 |
|
برگه مشخصات |
1608KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.4 CFM (0.235m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB | 1.34 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-05W-B19-L00FAN AXIAL 40X20MM 24VDC WIRE |
0 |
|
برگه مشخصات |
1608KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 20.0dB | 960 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-05W-B29-L50FAN AXIAL 40X20MM 24VDC WIRE |
0 |
|
برگه مشخصات |
1608KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.121 in H2O (30.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.5dB | 1.2 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
CFM-3010B-0130-373-20FAN AXIAL 30X10.5MM 5VDC WIRE |
0 |
|
برگه مشخصات |
CFM-30B | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 4.1 CFM (0.115m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.3dB(A) | 2.55 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
2410ML-04W-B19-B00FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
2410ML | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.7 CFM (0.384m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 23.0dB | 900 mW | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-04W-B19-E00FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
2410ML | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.7 CFM (0.384m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 23.0dB | 900 mW | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-04W-B19-E50FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
2410ML | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.7 CFM (0.384m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 23.0dB | 900 mW | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
