فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB0512VHDFAN BLOWER 52.1X20MM 12VDC WIRE |
228 |
|
برگه مشخصات |
BFB | Bulk | Active | 12VDC | Square/Rounded - 52.1mm L x 53.3mm H | 20.00mm | 6.8 CFM (0.190m³/min) | 0.732 in H2O (182.3 Pa) | Ball | Blower | Locked Rotor Protection | 32.0dB(A) | 2.76 W | 5300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
|
08025SE-12Q-FT-DWFAN AXIAL 80X25MM 12VDC WIRE |
115 |
|
برگه مشخصات |
08025SE | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 54.7 CFM (1.53m³/min) | 0.273 in H2O (68.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.5dB(A) | 3.12 W | 4100 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
|

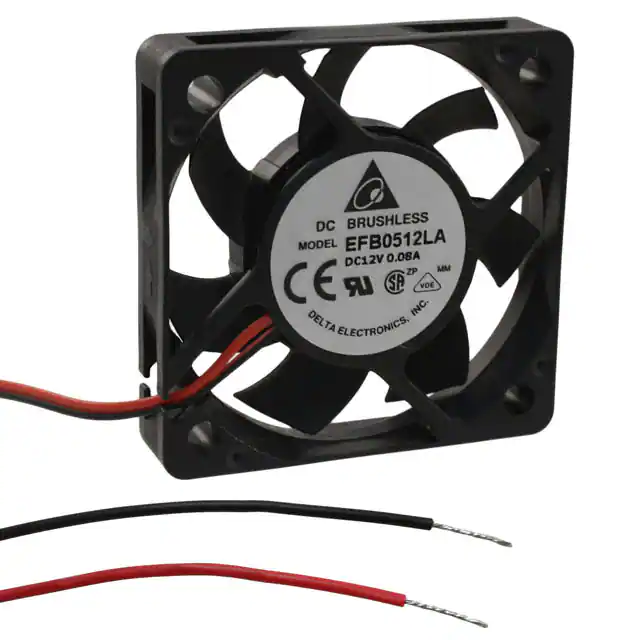

EFB0512LAFAN AXIAL 50X10MM 12VDC WIRE |
3,912 |
|
برگه مشخصات |
EFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 18.0dB(A) | 600 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
MEC0252V2-000U-A99FAN AXIAL 120X25MM 24VDC WIRE |
2,567 |
|
برگه مشخصات |
MagLev® MEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 40.5dB(A) | 3.5 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.359 lb (162.84 g) |
|
|
04028DA-12Q-AAF-0FAN AXIAL 40X28MM 12VDC WIRE |
213 |
|
برگه مشخصات |
04028DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 16.6 CFM (0.465m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Auto Restart | 49.5dB | 3.48 W | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.117 lb (53.07 g) |
|
|
DC0601005U2B-BT0FAN 60X10MM 5VDC PWM/TACH |
709 |
|
برگه مشخصات |
- | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 10.50mm | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 1 W | 4900 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

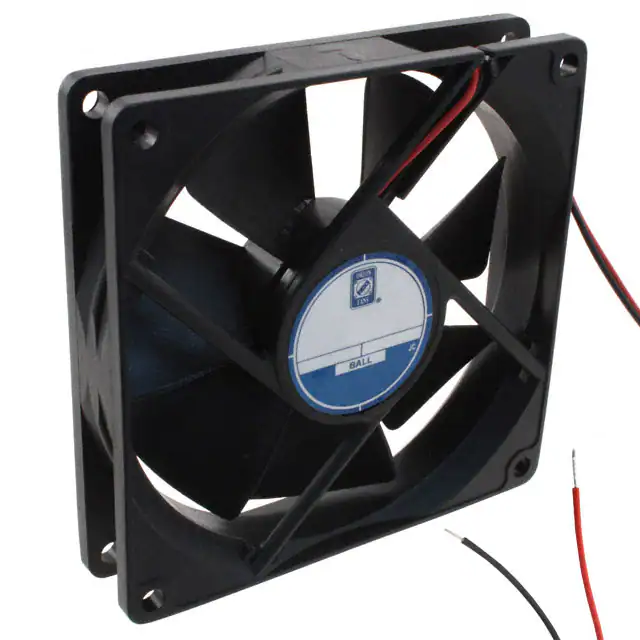

OD9220-12HBFAN AXIAL 92X20MM 12VDC WIRE |
131 |
|
برگه مشخصات |
OD9220 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 20.00mm | 32.0 CFM (0.896m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 33.0dB | - | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
9BD12FC6-1FAN BLOWER 76X20MM 12VDC WIRE |
373 |
|
برگه مشخصات |
San Ace B76 | Box | Active | 12VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.16 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.128 lb (58.06 g) |
|
AFB04512HB-F00FAN AXIAL 45X15MM 12VDC WIRE |
310 |
|
برگه مشخصات |
AFB | Bulk | Active | 12VDC | Square - 45mm L x 45mm H | 15.00mm | 14.0 CFM (0.392m³/min) | 0.223 in H2O (55.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.5dB(A) | 1.68 W | 6300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.038 lb (17.24 g) |
|
109P0412M701FAN AXIAL 40X15MM 12VDC WIRE |
263 |
|
برگه مشخصات |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 5.3 CFM (0.148m³/min) | 0.213 in H2O (53.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.14 W | 6500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|
9A0624G402FAN AXIAL 60X25MM 24VDC WIRE |
6,033 |
|
برگه مشخصات |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.12 W | 5600 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
OD1225-12HSSFAN AXIAL 120X25MM 12VDC WIRE |
395 |
|
برگه مشخصات |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 85.0 CFM (2.38m³/min) | 0.240 in H2O (59.8 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 42.0dB(A) | 5.4 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
109R0648H401FAN AXIAL 60X25MM 48VDC WIRE |
453 |
|
برگه مشخصات |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.92 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|

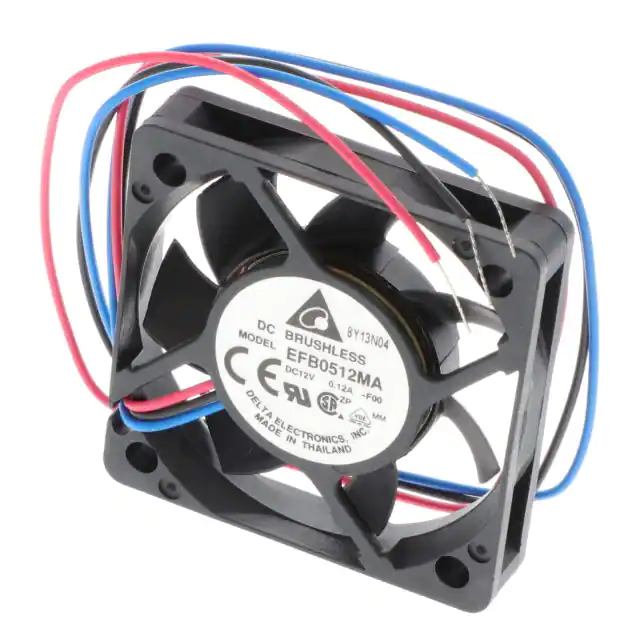

EFB0512MA-F00FAN AXIAL 50X10MM 12VDC WIRE |
992 |
|
برگه مشخصات |
EFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 9.2 CFM (0.258m³/min) | 0.113 in H2O (28.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 960 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
CFM-6025BF-290-479-20FAN AXIAL 60X25.4MM 24VDC WIRE |
653 |
|
برگه مشخصات |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 43.1 CFM (1.21m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.9dB(A) | 10.08 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0502024H2B-BT0FAN 50X20MM 24VDC PWM/TACH |
276 |
|
برگه مشخصات |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 7.2 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
CBM-7525B-145-494-22DC BLOWER, 75.2 X 74.2 X 25 MM, |
148 |
|
برگه مشخصات |
CBM-75B-2 | Box | Active | 12VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 13.4 CFM (0.375m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 49.4dB(A) | 6.96 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD2510-12LBFAN AXIAL 25X10MM 12VDC WIRE |
1,274 |
|
برگه مشخصات |
OD2510 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart | 16.0dB | 840 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.022 lb (9.98 g) |
|

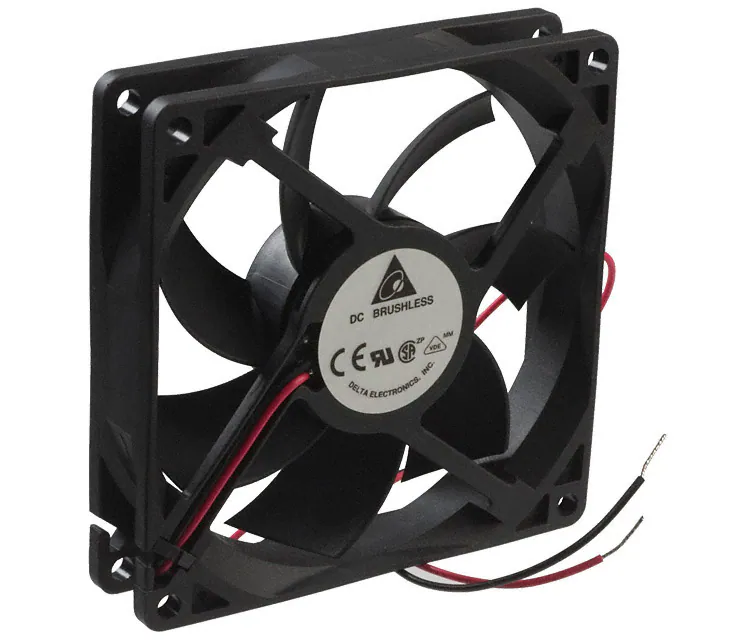

AFB0924HDFAN AXIAL 92X20MM 24VDC WIRE |
1,749 |
|
برگه مشخصات |
AFB | Tray | Active | 24VDC | Square - 92mm L x 92mm H | 20.00mm | 54.6 CFM (1.53m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.4 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.203 lb (92.08 g) |
|
AFB0924VHFAN AXIAL 92X25.4MM 24VDC WIRE |
1,298 |
|
برگه مشخصات |
AFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 67.8 CFM (1.90m³/min) | 0.302 in H2O (75.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 5.28 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.218 lb (98.88 g) |
