فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P0405F6D01FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.25 W | 6500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
|
109P0412E6D01FAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.2 CFM (0.258m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB(A) | 1.8 W | 9200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
|
109P0412G6D01FAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 12.4 CFM (0.347m³/min) | 0.618 in H2O (153.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 3.36 W | 12500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
|
109P0424B601FAN AXIAL 40X20MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.0dB(A) | 1.44 W | 5200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
|
PSAD18010BH MF00PSAD18010BH MF00 |
0 |
|
- |
PS | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 10.00mm | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 1.92 W | 3300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UL | - |
|

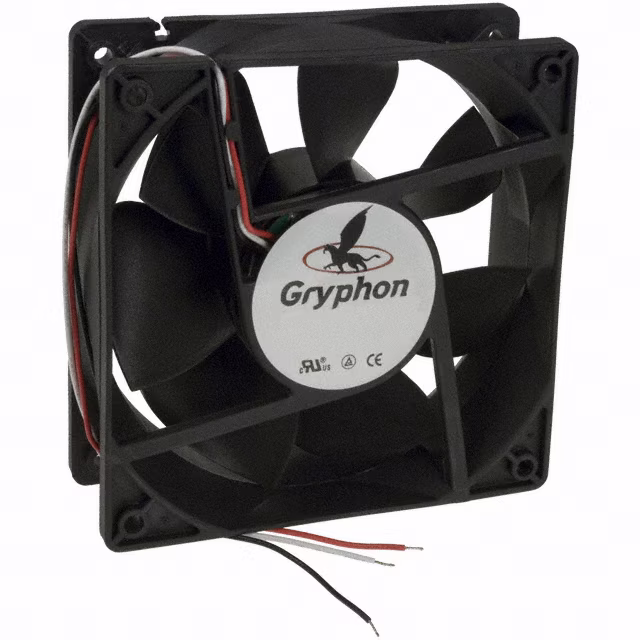

GDA1238-48BBFAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
Gryphon | - | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 128.0 CFM (3.58m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 40.8dB(A) | 16.8 W | 3000 RPM | 3 Wire Leads | - | - | - | 0.586 lb (265.81 g) |
|
|
109R0805M4021FAN AXIAL 80X25MM BALL 5VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 850 mW | 2350 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812L402FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 720 mW | 1850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812L4021FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 720 mW | 1850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
PMD1206PKV1-A.GNFAN AXIAL 60X20MM 12VDC WIRE |
0 |
|
برگه مشخصات |
MagLev® PMD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 27.5 CFM (0.770m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 38.0dB(A) | 2.7 W | 5000 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD1206PKV2-A.GNFAN AXIAL 60X20MM 12VDC WIRE |
0 |
|
برگه مشخصات |
MagLev® PMD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | - | - | Vapo-Bearing™ | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
DC0601512M2B-3T1FAN 60X15MM 12VDC TACH COMPUTER |
0 |
|
برگه مشخصات |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.7 CFM (0.608m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.2 W | 4000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0601512J2B-3T1FAN 60X15MM 12VDC TACH COMPUTER |
0 |
|
برگه مشخصات |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.0 CFM (0.420m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 720 mW | 3000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0601512L2B-3T1FAN 60X15MM 12VDC TACH COMPUTER |
0 |
|
برگه مشخصات |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 960 mW | 3500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0601512H2B-3T1FAN 60X15MM 12VDC TACH COMPUTER |
0 |
|
برگه مشخصات |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 1.44 W | 4500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530BF-250-493-22DC BLOWER, 49.2 X 49.8 X 20 MM, |
0 |
|
برگه مشخصات |
CBM-75BF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 14.7 CFM (0.412m³/min) | 0.850 in H2O (211.7 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 49.3dB(A) | 10.8 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530BF-150-493-22DC BLOWER, 75.7 X 75.7 X 30 MM, |
0 |
|
برگه مشخصات |
CBM-75BF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 17.8 CFM (0.498m³/min) | 1.030 in H2O (256.6 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.5dB(A) | 8.16 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9PH0412P3K033FAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 20.8 CFM (0.582m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 6.6 W | 15500 RPM | 4 Wire Leads | - | - | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
|
AFB0812SHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 72.8 CFM (2.04m³/min) | 0.547 in H2O (136.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.16 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.344 lb (156.04 g) |
|
DC1202512L2B-2T0FAN AXIAL 120X25MM 12VDC WIRE |
0 |
|
برگه مشخصات |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.6 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.508 lb (230.42 g) |
