فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
9GA0912M402192X25MM 12V,HIGH PERF.,LOW POWER |
0 |
|
برگه مشخصات |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
08038RA-24S-EA-00FAN AXIAL 80X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
08038RA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
08038RA-12P-EA-00FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
- |
08038RA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 75.9 CFM (2.13m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Auto Restart | 51.0dB | 8.8 W | 5500 RPM | 2 Wire Leads | - | - | - | - |
|
|
08038RA-12Q-EA-00FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
- |
08038RA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB | 13.8 W | 6500 RPM | 2 Wire Leads | - | - | - | - |
|
|
08038RA-12N-EA-00FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
- |
08038RA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 61.8 CFM (1.73m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Auto Restart | 46.0dB | 4.9 W | 4500 RPM | 2 Wire Leads | - | - | - | - |
|

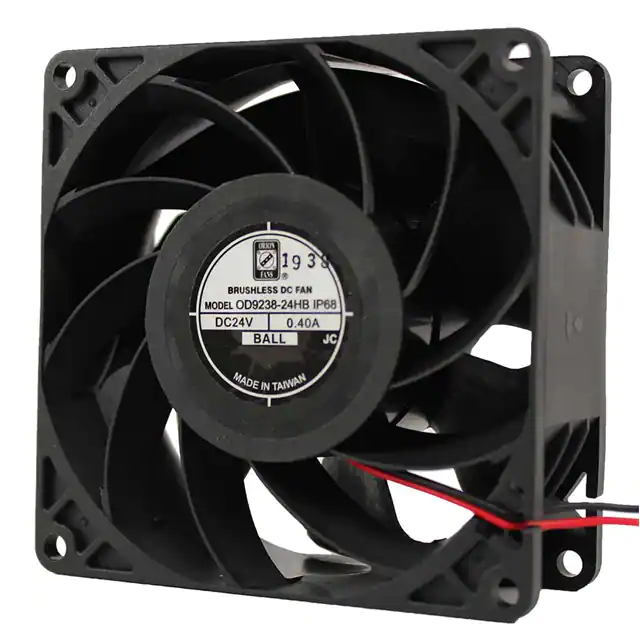

OD9238-24HHBIP68FAN AXIAL 92X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
OD9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Auto Restart | 58.0dB | 10.8 W | 5000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.441 lb (200.00 g) |
|
|
OD9238-24MBIP68FAN AXIAL 92X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
OD9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 87.4 CFM (2.45m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart | 53.0dB | 7.2 W | 4000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.441 lb (200.00 g) |
|
|
OD9238-48HHBIP68FAN AXIAL 92X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
OD9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Auto Restart | 58.0dB | 14.4 W | 5000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.441 lb (200.00 g) |
|
|
OD9238-48LBIP68FAN AXIAL 92X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
OD9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 76.5 CFM (2.14m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart | 50.0dB | 7.2 W | 3500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.441 lb (200.00 g) |
|
|
OD9238-48MBIP68FAN AXIAL 92X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
OD9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 87.4 CFM (2.45m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart | 53.0dB | 9.6 W | 4000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.441 lb (200.00 g) |
|
|
PF60381B1-1000U-Q9H12VDC FAN 60X38MM ALARM/PWM |
0 |
|
برگه مشخصات |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 60.8 CFM (1.70m³/min) | 2.300 in H2O (572.9 Pa) | Ball | Tubeaxial | PWM Control | 61.2dB(A) | 14.4 W | 13200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60381BX-1000U-Q9H12VDC FAN 60X38MM ALARM/PWM |
0 |
|
برگه مشخصات |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 75.2 CFM (2.11m³/min) | 3.570 in H2O (889.2 Pa) | Ball | Tubeaxial | PWM Control | 67.0dB(A) | 30 W | 16500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60381BX-000U-A99FAN AXIAL 60X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 75.2 CFM (2.11m³/min) | 3.280 in H2O (817.0 Pa) | Ball | Tubeaxial | Auto Restart | 67.6dB(A) | 30 W | 16500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.28 lb (127.01 g) |
|
|
PF60381B1-000U-A99FAN AXIAL 60X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 60.6 CFM (1.70m³/min) | 2.130 in H2O (530.6 Pa) | Ball | Tubeaxial | Auto Restart | 61.2dB(A) | 14.4 W | 13200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.28 lb (127.01 g) |
|
|
9GA0812H162FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 79.4 CFM (2.22m³/min) | 1.530 in H2O (381.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 7.2 W | 8250 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
|
|
9GL1212E102FAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 7.32 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9GL1224E102FAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 8.16 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
GFB0412SHS-DF00FAN AXIAL DUAL 40X56MM 12VDC |
0 |
|
برگه مشخصات |
GFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 30.2 CFM (0.846m³/min) | 2.344 in H2O (583.9 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 63.0dB(A) | 13.2 W | 15000 Front, 14300 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.183 lb (83.01 g) |
|
BFB1212VH-R00FAN BLOWER 120X32MM 12VDC WIRE |
0 |
|
برگه مشخصات |
BFB | Bulk | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 39.6 CFM (1.11m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Blower | Locked Rotor Sensor | 56.5dB(A) | 15 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.508 lb (230.42 g) |
|
OD9238-48HHBVXEFAN AXIAL 92X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
OD9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 167.5 CFM (4.69m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Tubeaxial | Auto Restart | 72.3dB(A) | 44.3 W | 7950 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
