فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0924H102FAN AXIAL 92X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 26.4 W | 9700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
FFB1224HH-T500FAN AXIAL 120X25.4MM 24VDC WIRE |
0 |
|
برگه مشخصات |
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 114.7 CFM (3.21m³/min) | 0.288 in H2O (71.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.7dB(A) | 6.72 W | 3100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
|
9G1248E1011FAN AXIAL 119X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 8.16 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1248E1D011FAN AXIAL 119X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 8.16 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1248H1011FAN AXIAL 119X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1248E1D01FAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 8.16 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1248G1D01FAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1248G1D011FAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1248H1D01FAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1248H1D011FAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
VF38561BX-1000U-S9T12VDC FAN 38X56MM TACH/PWM |
0 |
|
برگه مشخصات |
VF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 56.00mm | 30.7 CFM (0.870m³/min) | 4.600 in H2O (1145.8 Pa) | Ball | Tubeaxial | PWM Control | 61.6dB(A) | 14.4 W | 29300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PMD2412PTB3-A.(2).GNFAN AXIAL 120X25MM 24VDC WIRE |
0 |
|
برگه مشخصات |
PMD | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 6.7 W | 3600 RPM | 2 Wire Leads | - | - | - | - |
|
PFB0912UHE-T500FAN AXIAL 92X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
PFB | Box | Not For New Designs | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 153.5 CFM (4.30m³/min) | 1.449 in H2O (360.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 23.5 W | 7000 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
|
9L0412P3J01FAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 40L | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.4 CFM (0.515m³/min) | 0.827 in H2O (206.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 3.72 W | 11700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|

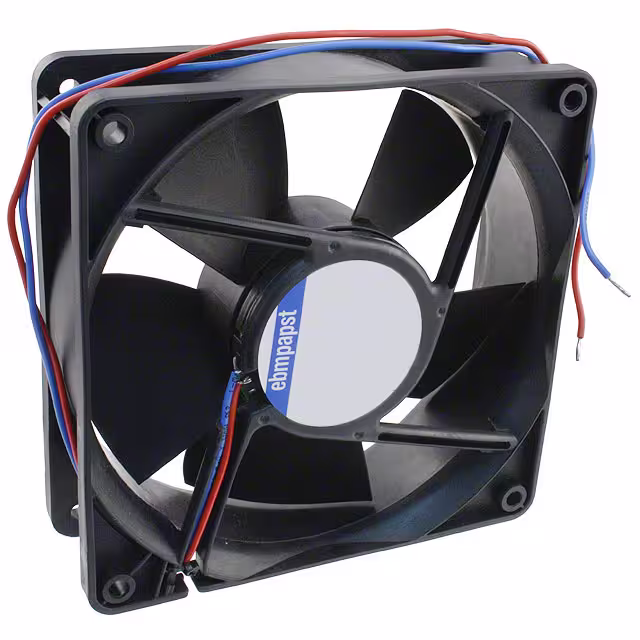

4212NGLFAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
4200N | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 59.0 CFM (1.65m³/min) | - | Sintec | Tubeaxial | - | 28.0dB(A) | 1.4 W | 1700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.507 lb (229.97 g) |
|
|
4212NGMLFAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
4200N | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 75.0 CFM (2.10m³/min) | - | Sintec | Tubeaxial | - | 35.0dB(A) | 2.3 W | 2150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.507 lb (229.97 g) |
|
|
4212NGNFAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
4200N | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 97.0 CFM (2.72m³/min) | - | Sintec | Tubeaxial | - | 42.0dB(A) | 4.3 W | 2750 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
|
|
4214NGLFAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
4200N | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 59.0 CFM (1.65m³/min) | - | Sintec | Tubeaxial | - | 28.0dB(A) | 1.4 W | 1700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
|
|
4214NGMFAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
4200N | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 85.0 CFM (2.38m³/min) | - | Sintec | Tubeaxial | - | 38.0dB(A) | 3.1 W | 2450 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
|
|
4214NGNFAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
4200N | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 97.0 CFM (2.72m³/min) | - | Sintec | Tubeaxial | - | 42.0dB(A) | 4.3 W | 2750 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
