فن های بدون برس DC (BLDC)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | ولتاژ - نامی | اندازه / ابعاد | عرض | جریان هوا | فشار استاتیک | نوع بلبرینگ | نوع فن | ویژگی ها | سر و صدا | توان (وات) | دور در دقیقه | فسخ | حفاظت از ورود | دمای عملیاتی | آژانس تایید | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WG1212G1D01-EFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 11.76 W | 3600 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1212H1D01-EFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 4.56 W | 2600 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1224E1D01-EFAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 8.16 W | 3100 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1224G1D01-EFAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1224H1D01-EFAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1212F101-EFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 3.36 W | 2280 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1212M101-EFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.52 W | 1950 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1224H101-EFAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1212M1D01-EFAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120W | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 2.52 W | - | 3 Wire Leads | - | - | - | - |
|
|
9WG1224M1D01-EFAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 120W | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 2.64 W | - | 3 Wire Leads | - | - | - | - |
|
|
9WG1212F1D01-E120X38MM 12V,SPLASH PROOF,RBLS D |
0 |
|
برگه مشخصات |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | - | CSA, TUV, UR | - |
|
OD1238-12MBXJ01AFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 207.0 CFM (5.80m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 63.0dB | 27.6 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.827 lb (375.12 g) |
|
|
OD1238-12HHB10AZZDC FAN - 12V 120 X 120 X 38MM - |
0 |
|
- |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 146.0 CFM (4.09m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Reversible Flow, Speed Sensor (Tach) | 50.0dB(A) | 8.2 W | 3590 RPM | 4 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | CE, cURus, TUV, UKCA, UR | - |
|
|
8312RFAN AXIAL 80X32MM 12VDC WIRE |
0 |
|
- |
8300 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 31.8 CFM (0.890m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.6 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
9WFA0424G6D001FAN AXIAL 40X20MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.9 CFM (0.305m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 2.6 W | 17000 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.101 lb (45.81 g) |
|
|
9HV0812P1G0011FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 40.8 W | 14900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|
|
9HV0812P1G601180X38MM 12V, HIGH PERFORMANCE GU |
0 |
|
برگه مشخصات |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 40.8 W | 14900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
4312NLFAN AXIAL 119X32MM 12VDC WIRE |
0 |
|
برگه مشخصات |
4300N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 58.8 CFM (1.64m³/min) | - | Ball | Tubeaxial | - | 25.0dB(A) | 0.9 W | 1450 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
|
19028890AFAN 48VDC MIFFIN MD48B9 |
0 |
|
برگه مشخصات |
Muffin XL | - | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 39.10mm | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 50.0dB(A) | 5.8 W | 3100 RPM | 2 Terminals | - | - | - | 1.4 lbs (635.0 g) |
|

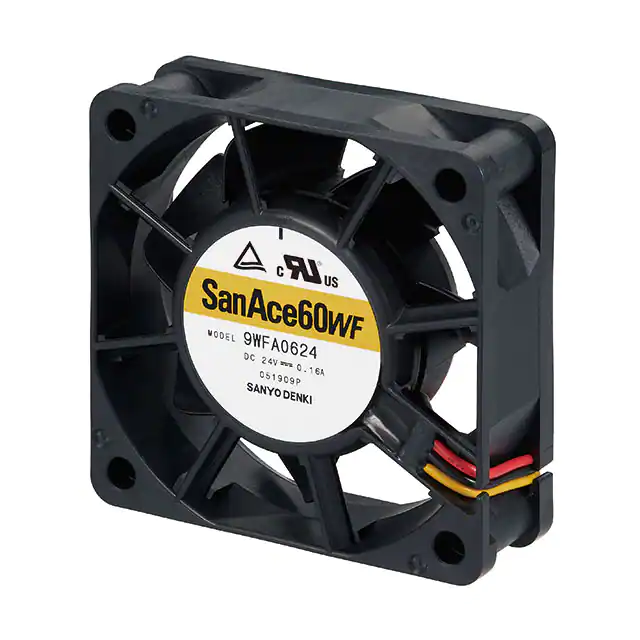

9WFA0624P6G001FAN AXIAL 60X20MM 24VDC WIRE |
0 |
|
برگه مشخصات |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 27.9 CFM (0.781m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 3.8 W | 7700 RPM | 4 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.188 lb (85.28 g) |
