هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0055165A2MPP 026 PERM GREY 165 SIZE |
0 |
|
برگه مشخصات |
- | Bulk | Active | Toroid | - | MPP | 6.500" (165.10mm) | 78 nH | ±8% | Ungapped | - | 26 | - | 412.0 | 987.0 | - | 407000.0 | Uncoated | 1.250" (31.75mm) | - | - |
|
|
B62152A0027X013FERRITE CORE 2 HOLE 1.1UH M13 |
0 |
|
برگه مشخصات |
B62152 | Box | Obsolete | Multi-Hole (2) | - | M13 | - | 1.1 µH | ±30% | Ungapped | - | 2300 | 2.2 | 3.7 | 1.7 | - | 6.3 | Uncoated | 0.079" (2.00mm) | 0.142" (3.60mm) | 0.083" (2.10mm) |
|
|
B64290A0638X036FERRITE CORE TOROID |
0 |
|
برگه مشخصات |
T22.1/13.7/6.3 | Box | Active | Toroid | - | - | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | - | - | - |
|
|
B64290A0674X035FERRITE CORE TOROID T35 |
0 |
|
برگه مشخصات |
T36/23/15 | Box | Active | Toroid | R 36 x 23 x 15 | T35 | 1.417" (36.00mm) | - | - | Ungapped | - | - | 0.94 | 89.65 | 95.89 | - | 8597.0 | Uncoated | 0.591" (15.00mm) | - | - |
|
B64290P0683X010FERRITE CORE TOROID 160NH K10 |
0 |
|
برگه مشخصات |
TC3.1/1.3/1.3 | Box | Active | Toroid | - | K10 | 0.121" (3.07mm) | 160 nH | ±25% | Ungapped | - | 700 | 5.65 | 5.99 | 1.06 | - | 6.4 | Parylene | 0.051" (1.29mm) | - | - |
|

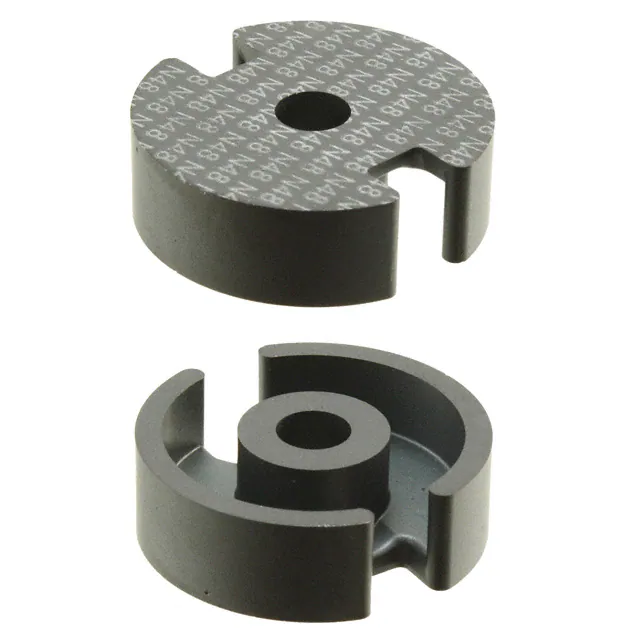

B65661D0000Y066FERRITE CORE T66 |
0 |
|
برگه مشخصات |
P22/13 | Box | Obsolete | - | P 22 x 13 | T66 | 0.866" (22.00mm) | - | - | - | - | 13000 | 0.5 | 31.6 | 63.0 | - | 1990.0 | Uncoated | 0.268" (6.80mm) | - | - |
|

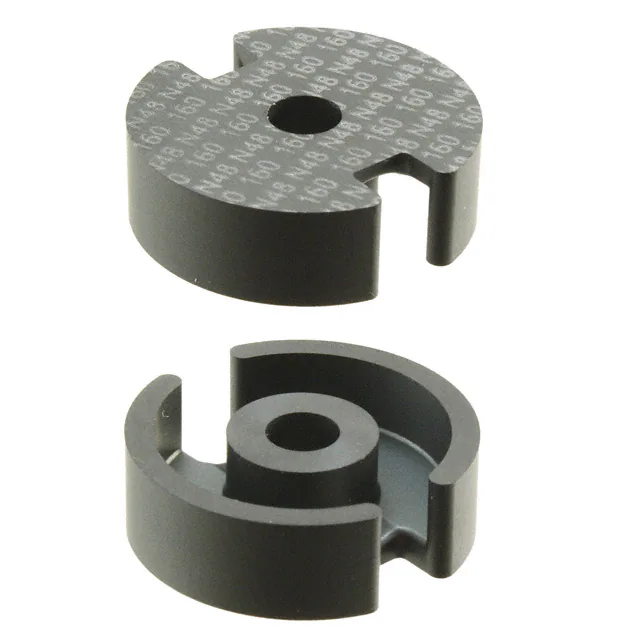

B65661T0160G048FERRITE CORE P 2PCS |
0 |
|
- |
P22/13 | Box | Obsolete | P (Pot Core) | P 22 x 13 | - | 0.866" (22.00mm) | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.268" (6.80mm) | - | - |
|
B65805J0000Y066FERRITE CORE RM 9.6UH T66 2PCS |
0 |
|
برگه مشخصات |
RM5 | Box | Obsolete | RM | RM 5 | T66 | - | 9.6 µH | -30%, +40% | Ungapped | 7090.0 | 13000 | 0.93 | 22.1 | 23.8 | 18.0 | 526.0 | Uncoated | 0.207" (5.25mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|
B65807J0000Y066FERRITE CORE RM 12.3UH T66 2PCS |
0 |
|
برگه مشخصات |
RM6 | Box | Obsolete | RM | RM 6 | T66 | - | 12.3 µH | -30%, +40% | Ungapped | 7650.0 | 13000 | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
B65839A0000Y066FERRITE CORE EP 5.8UH T66 2PCS |
0 |
|
برگه مشخصات |
EP7 | Box | Obsolete | EP | EP 7 | T66 | - | 5.8 µH | -30%, +40% | Ungapped | 7040.0 | 13000 | 1.52 | 15.7 | 10.3 | 8.5 | 162.0 | Uncoated | 0.148" (3.75mm) | 0.370" (9.40mm) | 0.256" (6.50mm) |
|
B65843A0000Y066FERRITE CORE EP 8.5UH T66 2PCS |
0 |
|
برگه مشخصات |
EP13 | Box | Obsolete | EP | EP 13 | T66 | - | 8.5 µH | -30%, +40% | Ungapped | 8400.0 | 13000 | 1.24 | 24.2 | 19.5 | 14.9 | 472.0 | Uncoated | 0.256" (6.50mm) | 0.504" (12.80mm) | 0.354" (9.00mm) |
|
B65845J0000Y066FERRITE CORE EP 13UH T66 2PCS |
0 |
|
برگه مشخصات |
EP17 | Box | Obsolete | EP | EP 17 | T66 | - | 13 µH | -30%, +40% | Ungapped | 8700.0 | 13000 | 0.84 | 28.5 | 33.9 | 25.5 | 966.0 | Uncoated | 0.335" (8.50mm) | 0.724" (18.40mm) | 0.443" (11.25mm) |
|
|
B66281P0000X149FERRITE CORE ELP N49 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | ELP | - | N49 | - | - | ±25% | Ungapped | 820.0 | - | - | 16.7 | 14.5 | 13.9 | 242.0 | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
|
B66281P0000X187FERRITE CORE ELP N87 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | ELP | - | N87 | - | - | ±25% | Ungapped | 1140.0 | - | - | 16.7 | 14.5 | 13.9 | 242.0 | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
|
B66281P0000X192FERRITE CORE ELP N92 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | ELP | - | N92 | - | - | ±25% | Ungapped | 820.0 | - | - | 16.7 | 14.5 | 13.9 | 242.0 | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
|
B66281P0000X197FERRITE CORE ELP N97 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | ELP | - | N97 | - | - | ±25% | Ungapped | 1190.0 | - | - | 16.7 | 14.5 | 13.9 | 242.0 | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
|
B66283P0000X149FERRITE CORE I 2.1UH N49 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | I | I 18 x 2 x 10 | N49 | - | 2.1 µH | ±25% | Ungapped | 860.0 | 1500 | 0.51 | 20.3 | 39.5 | 38.9 | 802.0 | Uncoated | 0.079" (2.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
B66283P0000X187FERRITE CORE I N87 1PC |
0 |
|
برگه مشخصات |
B66283 | Box | Obsolete | I | I 18 x 2 x 10 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.157" (4.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
|
B66283P0000X192FERRITE CORE I 2.3UH N92 |
0 |
|
برگه مشخصات |
- | Box | Obsolete | I | I 18 x 2 x 10 | N92 | - | 2.3 µH | ±25% | Ungapped | 930.0 | 1500 | 0.51 | 20.3 | 39.5 | 38.9 | 802.0 | Uncoated | 0.079" (2.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
B66285P0000X149FERRITE CORE I N49 1PC |
0 |
|
برگه مشخصات |
B66285 | Box | Obsolete | I | I 22 x 2.5 x 16 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098" (2.50mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
