هسته های فریت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع هسته | بسته دستگاه تامین کننده | مواد | قطر | ضریب القایی (Al) | تحمل | شکاف | نفوذپذیری موثر (µe) | نفوذپذیری اولیه (µi) | ضریب هسته (ΣI/A) mm-1 | طول موثر (le) میلی متر | منطقه موثر (Ae) mm² | حداقل مقطع هسته (Amin) mm² | حجم مغناطیسی موثر (Ve) mm³ | پایان | ارتفاع | طول | عرض |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T60405R6161X01981FERRITE CORE |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T60405A6166X00780FERRITE CORE |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T60405R6128X22681FERRITE CORE |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T60403K5024X04383FERRITE CORE |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T60405R6123X28581FERRITE CORE |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H5C3T6X1.5X3PFERRITE CORE TOROID 3UH H5C3 |
0 |
|
- |
T | Bulk | Obsolete | Toroid | - | H5C3 | 0.236" (6.00mm) | 3 µH | ±30% | Ungapped | - | 15000 | 6.04 | 13.1 | 2.16 | - | 28.3 | Coated | 0.059" (1.50mm) | - | - |
|
|
PC40RM8Z-12FERRITE CORE RM 1.95UH PCS40 |
0 |
|
- |
RM | Bulk | Obsolete | RM | RM 8 | PC40 | - | 1.95 µH | - | Ungapped | 916.0 | 2300 | 0.59 | 38.0 | 64.0 | 53.0 | 2430.0 | Uncoated | 0.323" (8.20mm) | 0.896" (22.75mm) | 0.201" (5.10mm) |
|
|
PC40P26/16Z-52HFERRITE CORE P 3.81UH PCS40 |
0 |
|
- |
P | Bulk | Obsolete | P | P 26 x 16 | PC40 | 1.004" (25.50mm) | 3.81 µH | - | Ungapped | 1213.0 | 2300 | 0.4 | 37.6 | 94.0 | 71.3 | 3534.0 | Uncoated | 0.321" (8.15mm) | - | - |
|

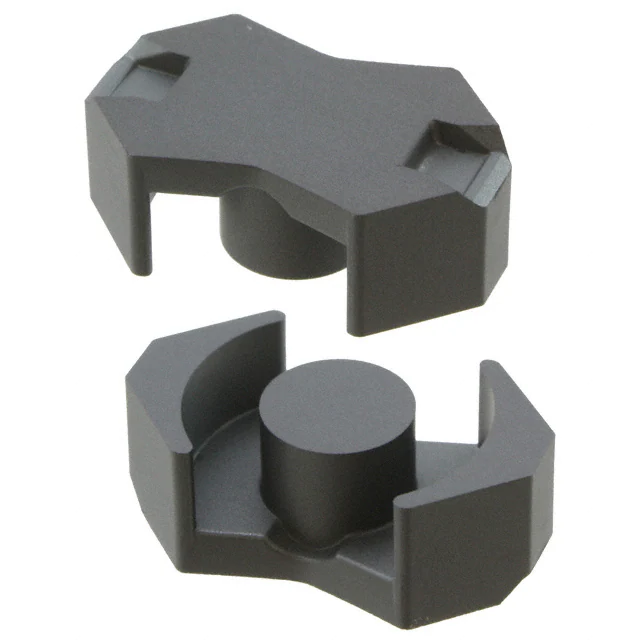

PC40RM6Z-12-NNFERRITE CORE RM 1.6UH PCS40 |
0 |
|
- |
RM | Bulk | Obsolete | RM | RM 6 | PC40 | - | 1.6 µH | - | Ungapped | 1520.0 | 2300 | 0.78 | 28.6 | 36.6 | 30.2 | 1050.0 | Uncoated | 0.244" (6.20mm) | 0.693" (17.60mm) | 0.315" (8.00mm) |
|
|
PC40P22/13Z-52H-NNFERRITE CORE P 2.99UH PCS40 |
0 |
|
- |
P | Bulk | Obsolete | P | P 22 x 13 | PC40 | 0.850" (21.60mm) | 2.99 µH | - | Ungapped | 1182.0 | 2300 | 0.497 | 31.5 | 63.4 | 47.7 | 1997.0 | Uncoated | 0.268" (6.80mm) | - | - |
|
|
H5C3RM6Z-12FERRITE CORE RM 9.1UH H5C3 |
0 |
|
برگه مشخصات |
RM | Bulk | Obsolete | RM | RM 6 | H5C3 | - | 9.1 µH | - | Ungapped | 5648.0 | 15000 | 0.781 | 28.6 | 36.6 | 30.2 | 1050.0 | Uncoated | 0.244" (6.20mm) | 0.693" (17.60mm) | 0.315" (8.00mm) |
|
|
H5A EP10-ZFERRITE CORE EP 1.08UH |
0 |
|
- |
EP | Bulk | Obsolete | EP | EP 10 | - | - | 1.08 µH | - | Ungapped | 1461.0 | - | 1.7 | 19.2 | 11.3 | 7.79 | 217.0 | - | 0.205" (5.20mm) | 0.453" (11.50mm) | 0.309" (7.85mm) |
|
|
H5AP7/4Z-52SFERRITE CORE P 1.2UH H5A |
0 |
|
برگه مشخصات |
P | Bulk | Obsolete | P | P 7 x 4 | H5A | 0.289" (7.35mm) | 1.2 µH | ±25% | Ungapped | 1366.0 | 3300 | 1.43 | 10.0 | 7.0 | 5.57 | 70.0 | Uncoated | 0.083" (2.10mm) | - | - |
|
|
H5AT28X13X16EFERRITE CORE |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H5ARM6Z-12FERRITE CORE RM 3.3UH H5A |
0 |
|
برگه مشخصات |
RM | Bulk | Obsolete | RM | RM 6 | H5A | - | 3.3 µH | ±25% | Ungapped | 2258.0 | 3300 | 0.781 | 28.6 | 36.6 | 30.2 | 1050.0 | Uncoated | 0.244" (6.20mm) | 0.693" (17.60mm) | 0.315" (8.00mm) |
|
|
H5C3T4X1X2PFERRITE CORE TOROID 2UH H5C3 |
0 |
|
- |
T | Bulk | Obsolete | Toroid | - | H5C3 | 0.157" (4.00mm) | 2 µH | ±30% | Ungapped | - | 15000 | 9.06 | 8.71 | 0.961 | - | 8.37 | Coated | 0.039" (1.00mm) | - | - |
|
|
PC40P9/5A160-52HFERRITE CORE P 160NH PCS40 |
0 |
|
- |
P | Bulk | Obsolete | P | P 9 x 5 | PC40 | 0.366" (9.30mm) | 160 nH | ±5% | Gapped | 160.0 | 2300 | 1.24 | 12.4 | 10.0 | 7.29 | 124.0 | Uncoated | 0.106" (2.70mm) | - | - |
|
|
H5AT14X3.5X7EFERRITE CORE TOROID 1.65UH H5A |
0 |
|
- |
T | Bulk | Obsolete | Toroid | - | H5A | 0.551" (14.00mm) | 1.65 µH | ±25% | Ungapped | - | 3300 | 2.59 | 30.5 | 11.8 | - | 360.0 | Epoxy | 0.138" (3.50mm) | - | - |
|
|
HS52T18X10X10EFERRITE CORE |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H5C2P22/13Z-52HFERRITE CORE P 19.5UH H5C2 |
0 |
|
برگه مشخصات |
P | Bulk | Obsolete | P | P 22 x 13 | H5C2 | 0.850" (21.60mm) | 19.5 µH | ±30% | Ungapped | 7700.0 | 10000 | 0.497 | 31.5 | 63.4 | 47.7 | 1997.0 | Uncoated | 0.268" (6.80mm) | - | - |
