FET، ماسفت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | نوع FET | تکنولوژی | تخلیه به ولتاژ منبع (Vdss) | جریان - تخلیه مداوم (Id) @ 25 درجه سانتی گراد | ولتاژ درایو (حداکثر Rds روشن، حداقل Rds روشن) | Rds روشن (حداکثر) @ ID، Vgs | Vgs(th) (Max) @ ID | شارژ دروازه (Qg) (حداکثر) @ Vgs | Vgs (حداکثر) | ظرفیت ورودی (Ciss) (حداکثر) @ Vds | ویژگی FET | اتلاف نیرو (حداکثر) | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTA16N50PMOSFET N-CH 500V 16A TO263 |
9,014 |
|
برگه مشخصات |
Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 400mOhm @ 8A, 10V | 5.5V @ 250µA | 43 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
TSM60NB380CF600V, 11A, SINGLE N-CHANNEL POWE |
5,077 |
|
- |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 380mOhm @ 2.7A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±30V | 810 pF @ 100 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220S |
|
BUK9217-75B,118MOSFET N-CH 75V 64A DPAK |
4,347 |
|
برگه مشخصات |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 64A (Tc) | 5V, 10V | 15mOhm @ 25A, 10V | 2V @ 1mA | 35 nC @ 5 V | ±15V | 4029 pF @ 25 V | - | 167W (Tc) | -55°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
|
SIPC06N60C3MOSFET COOL MOS 600V SAWED WAFER |
4,502 |
|
برگه مشخصات |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SI4418DY-T1-E3MOSFET N-CH 200V 2.3A 8SO |
7,470 |
|
برگه مشخصات |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 2.3A (Ta) | 6V, 10V | 130mOhm @ 3A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | - | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
FDMS2510SDCMOSFET N-CH 25V 28A/49A DLCOOL56 |
5,846 |
|
برگه مشخصات |
Dual Cool™, PowerTrench®, SyncFET™ | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 28A (Ta), 49A (Tc) | 4.5V, 10V | 2.9mOhm @ 23A, 10V | 3V @ 1mA | 45 nC @ 10 V | ±20V | 2780 pF @ 13 V | - | 3.3W (Ta), 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
TPH1110ENH,L1QMOSFET N-CH 200V 7.2A 8SOP |
4,819 |
|
برگه مشخصات |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 7.2A (Ta) | 10V | 114mOhm @ 3.6A, 10V | 4V @ 200µA | 7 nC @ 10 V | ±20V | 600 pF @ 100 V | - | 1.6W (Ta), 42W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
.JPG)
|
TSM130NB06LCRMOSFET N-CH 60V 10A/51A 8PDFN |
4,559 |
|
برگه مشخصات |
- | 8-PowerLDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 10A (Ta), 51A (Tc) | 4.5V, 10V | 13mOhm @ 10A, 10V | 2.5V @ 250µA | 37 nC @ 10 V | ±20V | 2175 pF @ 30 V | - | 3.1W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PDFN (5.2x5.75) |
;;3.jpg)
|
IRFU3710ZMOSFET N-CH 100V 42A IPAK |
6,338 |
|
برگه مشخصات |
HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 42A (Tc) | 10V | 18mOhm @ 33A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 2930 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK (TO-251AA) |
|

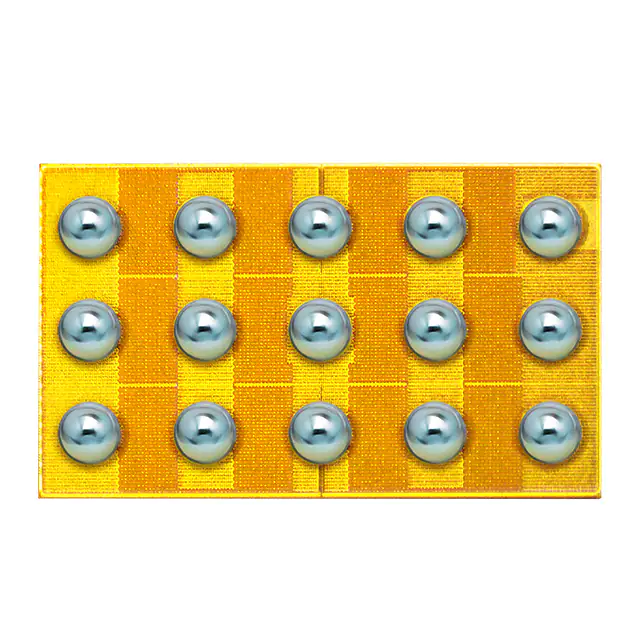

EPC2049ENGRTGANFET N-CH 40V 16A DIE |
8,014 |
|
- |
eGaN® | Die | Tape & Reel (TR) | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 40 V | 16A (Ta) | 5V | 5mOhm @ 15A, 5V | 2.5V @ 6mA | 7.6 nC @ 5 V | +6V, -4V | 805 pF @ 20 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
IRF1010NSTRRMOSFET N-CH 55V 85A D2PAK |
3,056 |
|
برگه مشخصات |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 85A (Tc) | 10V | 11mOhm @ 43A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 3210 pF @ 25 V | - | 180W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
STW13NK60ZMOSFET N-CH 600V 13A TO247-3 |
5,238 |
|
برگه مشخصات |
SuperMESH™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 550mOhm @ 4.5A, 10V | 4.5V @ 100µA | 92 nC @ 10 V | ±30V | 2030 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
RSY160P05TLMOSFET P-CH 45V 16A TCPT3 |
11 |
|
برگه مشخصات |
- | 3-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 45 V | 16A (Ta) | 4V, 10V | 50mOhm @ 16A, 10V | 2.5V @ 1mA | 25.5 nC @ 5 V | ±20V | 2150 pF @ 10 V | - | 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | TCPT3 |
|
IRFSL23N20DMOSFET N-CH 200V 24A TO262 |
7,022 |
|
برگه مشخصات |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 24A (Tc) | 10V | 100mOhm @ 14A, 10V | 5.5V @ 250µA | 86 nC @ 10 V | ±30V | 1960 pF @ 25 V | - | 3.8W (Ta), 170W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
STB70NF03LT4MOSFET N-CH 30V 70A D2PAK |
9,396 |
|
برگه مشخصات |
STripFET™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 70A (Tc) | 5V, 10V | 9.5mOhm @ 35A, 10V | 1V @ 250µA | 30 nC @ 5 V | ±18V | 1440 pF @ 25 V | - | 100W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRFR1N60ATRLPBFMOSFET N-CH 600V 1.4A DPAK |
7,914 |
|
برگه مشخصات |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.4A (Tc) | 10V | 7Ohm @ 840mA, 10V | 4V @ 250µA | 14 nC @ 10 V | ±30V | 229 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
NP80N04PUG-E1B-AYMOSFET N-CH 40V 80A TO263 |
9,385 |
|
برگه مشخصات |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 10V | 4.5mOhm @ 40A, 10V | 4V @ 250µA | 135 nC @ 10 V | ±20V | 7350 pF @ 25 V | - | 1.8W (Ta), 115W (Tc) | 175°C (TJ) | - | - | Surface Mount | TO-263 |
|
SISS42DN-T1-GE3MOSFET N-CH 100V 11.8/40.5A PPAK |
5,182 |
|
برگه مشخصات |
TrenchFET® Gen IV | PowerPAK® 1212-8S | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 11.8A (Ta), 40.5A (Tc) | 7.5V, 10V | 14.4mOhm @ 15A, 10V | 3.4V @ 250µA | 38 nC @ 10 V | ±20V | 1850 pF @ 50 V | - | 4.8W (Ta), 57W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8S |
.jpg)
|
IRFR224TRPBF-BE3N-CHANNEL 250V |
3,758 |
|
برگه مشخصات |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 3.8A (Tc) | 10V | 1.1Ohm @ 2.3A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 260 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
IXTA05N100MOSFET N-CH 1000V 750MA TO263 |
9,241 |
|
برگه مشخصات |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 750mA (Tc) | 10V | 17Ohm @ 375mA, 10V | 4.5V @ 250µA | 7.8 nC @ 10 V | ±30V | 260 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
