خازن های فیلم
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | ظرفیت | تحمل | رتبه بندی ولتاژ - AC | رتبه بندی ولتاژ - DC | مواد دی الکتریک | ESR (مقاومت سری معادل) | دمای عملیاتی | نوع نصب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | فسخ | فاصله سرب | برنامه های کاربردی | رتبه بندی ها | ویژگی ها |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B81123C1102M003CAP FILM 1000PF 500VAC RAD |
4,930 |
|
برگه مشخصات |
Radial | 1000 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
BFC237343105CAP FILM 1UF 10% 250VDC RADIAL |
3,884 |
|
برگه مشخصات |
Radial | 1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
B32671P5224K000CAP FILM 0.22UF 10% 520VDC RAD |
3,855 |
|
برگه مشخصات |
Radial | 0.22 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
B32922C3683M000CAP FILM 0.068UF 20% 630VDC RAD |
3,692 |
|
برگه مشخصات |
Radial | 0.068 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
FKP1J021004D00KSSDCAP FILM 10000PF 10% 630VDC RAD |
3,577 |
|
برگه مشخصات |
Radial | 10000 pF | ±10% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R474I247050A2KCAP FILM 0.047UF 10% 1KVDC RAD |
3,512 |
|
برگه مشخصات |
Radial | 0.047 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
R46KF3100DQP1MCAP FILM 0.1UF 20% 560VDC RAD |
3,046 |
|
برگه مشخصات |
Radial | 0.1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
B32642B6333JCAP FILM 0.033UF 5% 630VDC RAD |
3,005 |
|
برگه مشخصات |
Radial | 0.033 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
B32021A3332M189CAP FILM 3300PF 20% 1.5KVDC RAD |
2,985 |
|
برگه مشخصات |
Radial | 3300 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
 Series Style D.jpg)
|
ECW-F2154JAQCAP FILM 0.15UF 5% 250VDC RADIAL |
2,233 |
|
برگه مشخصات |
Radial | 0.15 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.220" W (13.00mm x 5.60mm) | 0.638" (16.20mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
R71PI333050H6KFILM, RADIAL, PULSE, SINGLE META |
2,020 |
|
برگه مشخصات |
Radial | 0.33 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 84 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
R75RI21004030JCAP FILM 10000PF 5% 1.25KVDC RAD |
3,211 |
|
برگه مشخصات |
Radial | 10000 pF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
MMK5394J100J04L4BULKCAP FILM 0.39UF 5% 100VDC RADIAL |
1,811 |
|
برگه مشخصات |
Radial | 0.39 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
MKP1U016804C00KSSDCAP FILM 6800PF 10% 2KVDC RAD |
1,592 |
|
برگه مشخصات |
Radial | 6800 pF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|

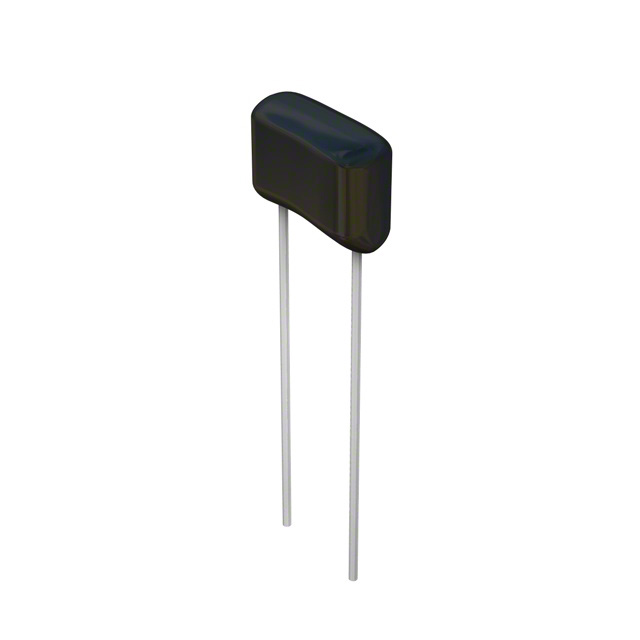

DME2S22K-FCAP FILM 0.022UF 10% 250VDC RAD |
2,436 |
|
برگه مشخصات |
Radial | 0.022 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
MMK5273J50J01L4BULKCAP FILM 0.027UF 5% 50VDC RADIAL |
1,472 |
|
برگه مشخصات |
Radial | 0.027 µF | ±5% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
 Series Style B.jpg)
|
ECW-F2104JABCAP FILM 0.1UF 5% 250VDC RADIAL |
1,428 |
|
برگه مشخصات |
Radial | 0.1 µF | ±5% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.614" (15.60mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
B32642B0183JCAP FILM 0.018UF 5% 1KVDC RADIAL |
1,362 |
|
برگه مشخصات |
Radial | 0.018 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
B32652A6683J000CAP FILM 0.068UF 5% 630VDC RAD |
1,300 |
|
برگه مشخصات |
Radial | 0.068 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
 Series.jpg)
|
ECW-FE2W105KACAP FILM 1UF 10% 450VDC RADIAL |
1,034 |
|
برگه مشخصات |
Radial | 1 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
