خازن های فیلم
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | ظرفیت | تحمل | رتبه بندی ولتاژ - AC | رتبه بندی ولتاژ - DC | مواد دی الکتریک | ESR (مقاومت سری معادل) | دمای عملیاتی | نوع نصب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | فسخ | فاصله سرب | برنامه های کاربردی | رتبه بندی ها | ویژگی ها |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZP-Q38305LTACAP FILM 3UF 5% 380VAC RADIAL |
272 |
|
برگه مشخصات |
Radial | 3 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 24.4 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.713" (43.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
F339MX251031MIP2T0CAP FILM 1UF 20% 630VDC RADIAL |
194 |
|
برگه مشخصات |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.394" W (31.50mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC236845334CAP FILM 0.33UF 10% 250VDC RAD |
193 |
|
برگه مشخصات |
Radial | 0.33 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.268" W (17.50mm x 6.80mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
C4AQUBU4180A1XJCAP FILM 1.8UF 5% 1.3KVDC RADIAL |
6,156 |
|
برگه مشخصات |
Radial | 1.8 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 19.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
ECQ-UAAF335T1CAP FILM 3.3UF 10% 275VAC RAD |
217 |
|
برگه مشخصات |
Radial | 3.3 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.161" (29.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
 Series Straight 23x11.jpg)
|
ECW-F2275JACAP FILM 2.7UF 5% 250VDC RADIAL |
890 |
|
برگه مشخصات |
Radial | 2.7 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.449" W (23.80mm x 11.40mm) | 0.736" (18.70mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
ECW-U2184KCVCAP FILM 0.18UF 10% 250VDC 2825 |
1,143 |
|
برگه مشخصات |
2825 (7163 Metric) | 0.18 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.169" (4.30mm) | Solder Pads | - | General Purpose | - | - |
|
DME2W1P2K-FCAP FILM 1.2UF 10% 250VDC RADIAL |
401 |
|
برگه مشخصات |
Radial | 1.2 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.626" (15.90mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
R60EN44704030KCAP FILM 4.7UF 10% 100VDC RADIAL |
118 |
|
برگه مشخصات |
Radial | 4.7 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
715P682516LD3CAP FILM 6800PF 5% 1.6KVDC RAD |
3,352 |
|
برگه مشخصات |
Radial | 6800 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520" Dia x 1.252" L (13.20mm x 31.80mm) | 0.811" (20.60mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
F161PP683K100VCAP FILM 0.068UF 10% 100VDC 2220 |
1,340 |
|
برگه مشخصات |
2220 (5750 Metric) | 0.068 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.126" (3.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
MPX335K305HCAP FILM 3.3UF 10% 305VAC RADIAL |
363 |
|
برگه مشخصات |
Radial | 3.3 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.319" (33.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
B32676E8105K000CAP FILM 1UF 10% 875VDC RADIAL |
933 |
|
برگه مشخصات |
Radial | 1 µF | ±10% | - | 875V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.472" W (42.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
BFC237520223CAP FILM 0.022UF 5% 1KVDC RADIAL |
693 |
|
برگه مشخصات |
Radial | 0.022 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.768" (19.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
ECW-F6115JLCAP FILM 1.1UF 5% 630VDC RADIAL |
580 |
|
برگه مشخصات |
Radial | 1.1 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.642" W (28.00mm x 16.30mm) | 0.965" (24.50mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|

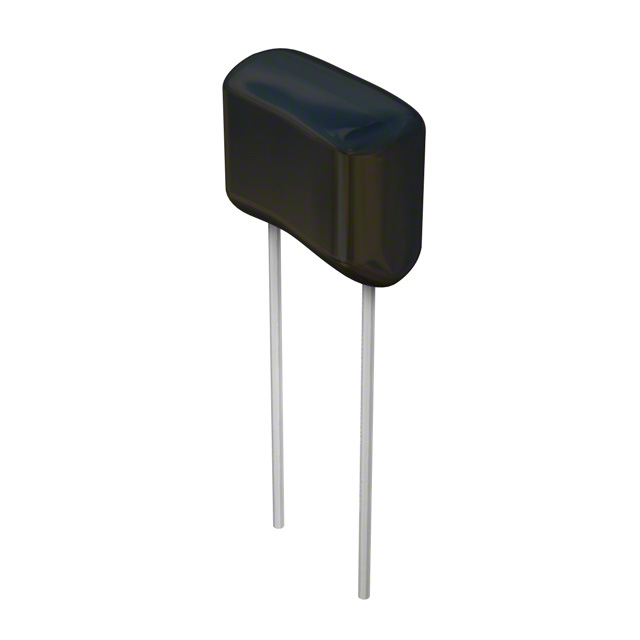

DMT4S1K-FCAP FILM 10000PF 10% 400VDC RAD |
479 |
|
برگه مشخصات |
Radial | 10000 pF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.567" L x 0.331" W (14.40mm x 8.40mm) | 0.551" (14.00mm) | PC Pins | 0.402" (10.20mm) | General Purpose | - | - |
|
R60EN44705030KCAP FILM 4.7UF 10% 100VDC RADIAL |
169 |
|
برگه مشخصات |
Radial | 4.7 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
|
C4AQQLU4330P19JCAP FILM 3.3UF 5% 1.1KVDC RADIAL |
305 |
|
برگه مشخصات |
Radial | 3.3 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 11.9 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 1.220" W (32.00mm x 31.00mm) | 0.756" (19.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
.jpg)
|
LDEIG3820KA0N00CAP FILM 0.82UF 10% 250VDC 5040 |
917 |
|
برگه مشخصات |
5040 (127102 Metric) | 0.82 µF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.512" L x 0.409" W (13.00mm x 10.40mm) | 0.224" (5.70mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
ALH155K251A022CAP FILM 1.5UF 10% 250VAC RADIAL |
148 |
|
برگه مشخصات |
Radial | 1.5 µF | ±10% | 250V | - | Polypropylene (PP) | 10 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.819" (20.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
