ماژول های IGBT
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | نوع IGBT | پیکربندی | ولتاژ - خرابی امیتر کلکتور (حداکثر) | فعلی - گردآورنده (IC) (حداکثر) | قدرت - حداکثر | Vce(on) (Max) @ Vge، Ic | فعلی - برش جمع کننده (حداکثر) | ظرفیت ورودی (Cies) @ Vce | ورودی | ترمیستور NTC | دمای عملیاتی | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NXH600N100L4F5PG15709 F5 INVENTER WITH BASEPLATE |
3,035 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CM400DU-12FIGBT MOD 600V 400A 960W |
5,110 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued | Trench | Half Bridge | 600 V | 400 A | 960 W | 2.2V @ 15V, 400A | 1 mA | 110 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
F4100R17ME4B11BPSA2MEDIUM POWER ECONO AG-ECONOD-311 |
6,442 |
|
- |
EconoDUAL™ 3 | Module | Tray | Discontinued | Trench Field Stop | Full Bridge Inverter | 1700 V | 155 A | - | 2.3V @ 15V, 100A | 3 mA | 9 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD-6 |
|
|
MIXG450PF1700TSFIGBT MODULE - PHASELEG SIMBUS F- |
6,884 |
|
- |
- | SimBus F | Box | Active | PT | Single | - | - | - | - | - | - | Standard | No | - | Chassis Mount | SimBus F |
|

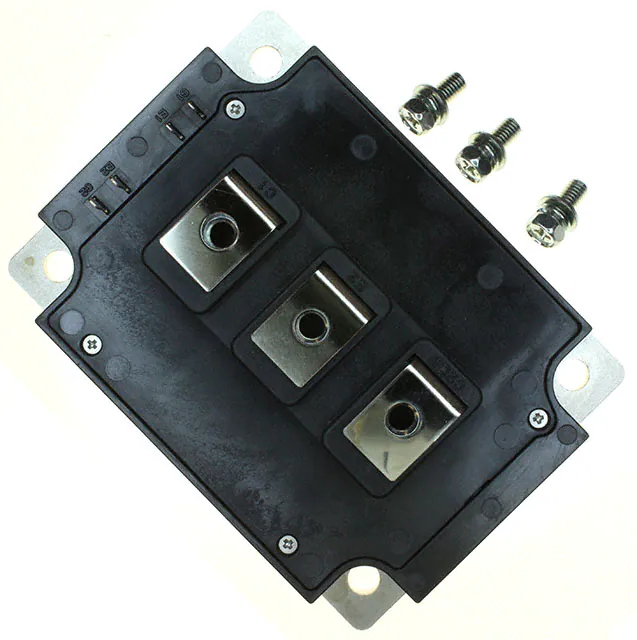

CM300DY-24NFIGBT MOD 1200V 300A 1130W |
5,093 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued | - | Half Bridge | 1200 V | 300 A | 1130 W | 2.5V @ 15V, 300A | 1 mA | 70 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

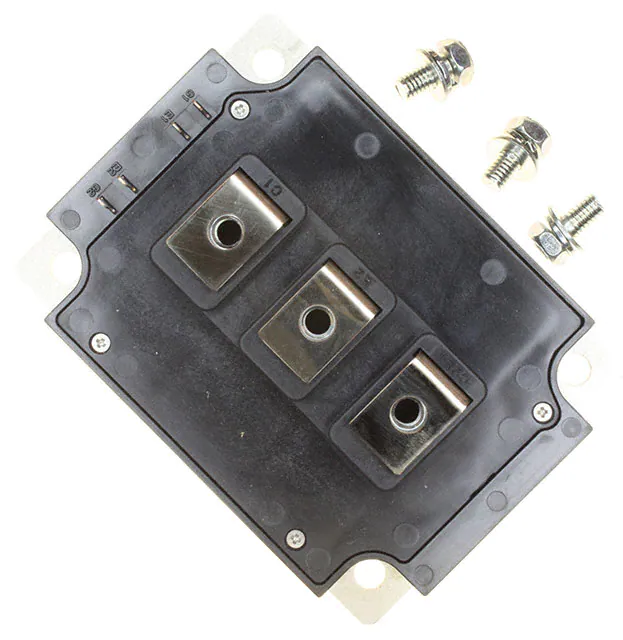

CM400DY-24AIGBT MOD 1200V 400A 2710W |
2,812 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued | - | Half Bridge | 1200 V | 400 A | 2710 W | 3V @ 15V, 400A | 1 mA | 70 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
IFF600B12ME4B11BPSA1MEDIUM POWER ECONO AG-ECONOD-411 |
4,782 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | 600 A | - | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD-5 |
|
|
MWI100-12A8IGBT MODULE 1200V 160A 640W E3 |
5,476 |
|
- |
- | E3 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 160 A | 640 W | 2.6V @ 15V, 100A | 6.3 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MIXG240W1200PTEHIGBT MODULE - SIXPACK E3-PACK-PF |
3,032 |
|
- |
- | Module | Box | Active | - | Three Phase Inverter | 1200 V | 312 A | 938 W | 2V @ 15V, 200A | 150 µA | 10.6 nF @ 100 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E3 |
|
|
MIXG240W1200TEHIGBT MODULE - SIXPACK E3-PACK-PF |
4,735 |
|
- |
- | Module | Box | Active | - | Three Phase Inverter | 1200 V | 370 A | 1250 W | 2V @ 15V, 200A | 200 µA | 10.6 nF @ 100 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E3 |
|
MG12150W-XN2MMIGBT MOD 1200V 200A 625W |
4,578 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 625 W | 1.7V @ 15V, 150A (Typ) | 1 mA | 10.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
IFF600B12ME4S8PB11BOSA1IGBT MOD 1200V 600A 20MW ECONO |
6,685 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.1V @ 15V, 600A | 3 mA | - | Standard | Yes | -40°C ~ 150°C | Chassis Mount | AG-ECONOD-5 |
|
|
APTGT200DH60GIGBT MODULE 600V 290A 625W SP6 |
9,691 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 600 V | 290 A | 625 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT200DA120D3GIGBT MODULE 1200V 300A 1050W D3 |
2,401 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Single | 1200 V | 300 A | 1050 W | 2.1V @ 15V, 200A | 6 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
MIXG240W1200PT-PCIGBT MODULE MIXG240W1200PTEH-PC |
4,932 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

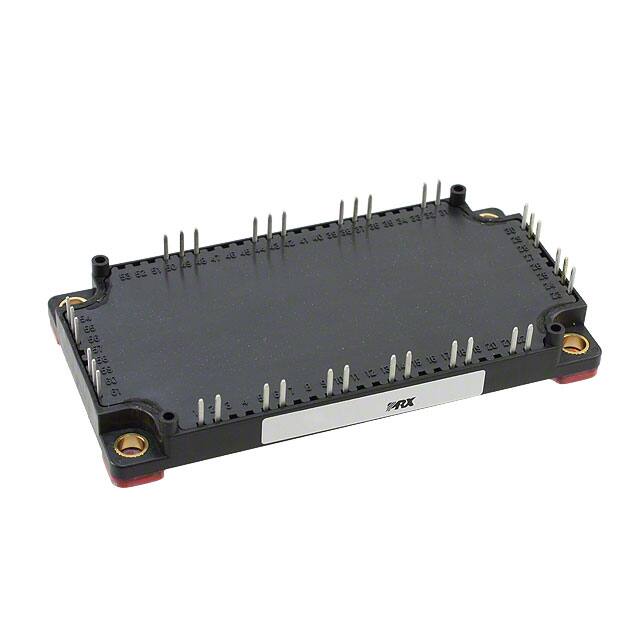

CM150TX-24SIGBT MOD 1200V 150A 1150W |
7,458 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued | - | Three Phase Inverter | 1200 V | 150 A | 1150 W | 2.15V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MG300Q2YS60AIGBT MOD 1200V 300A 2800W |
4,493 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 300 A | 2800 W | 2.8V @ 15V, 300A | 1 mA | 21 nF @ 10 V | Standard | No | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|

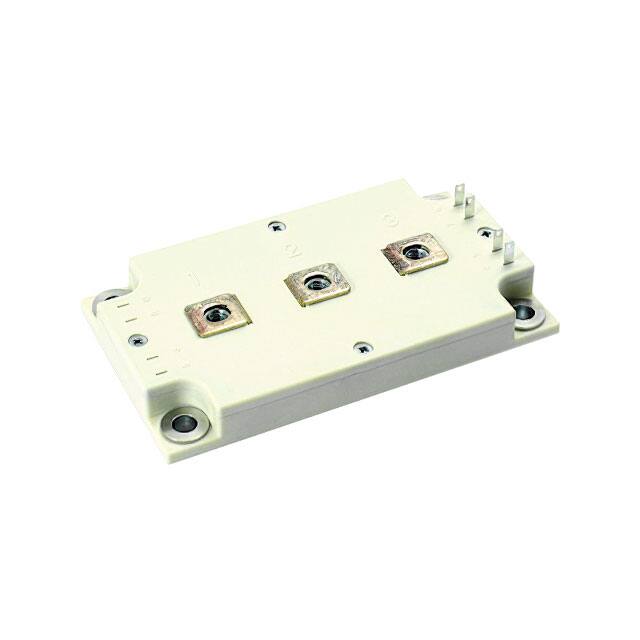

VS-GT400TD60SIGBT MOD 600V 758A INT-A-PAK |
6,091 |
|
- |
FRED Pt® | Module | Tube | Active | Trench Field Stop | Half Bridge | 600 V | 711 A | 1364 W | 1.4V @ 15V, 400A | 300 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
FP200R12N3T7B80BPSA1LOW POWER ECONO |
6,977 |
|
- |
TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | - | 1.55V @ 15V, 200A | 5 µA | 40.3 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3B |
|
|
CM75TU-24HIGBT MOD 1200V 75A 600W |
6,614 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 75 A | 600 W | 3.7V @ 15V, 75A | 1 mA | 11 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
