صنعتی، منابع تغذیه ریلی DIN
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع ورودی | تعداد خروجی ها | ولتاژ AC - ورودی | ولتاژ DC - ورودی (حداقل) | ولتاژ DC - ورودی (حداکثر) | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی (حداکثر) | توان (وات) | ولتاژ - جداسازی | برنامه های کاربردی | کارایی | دمای عملیاتی | ویژگی ها | اندازه / ابعاد | آژانس تایید | شماره استاندارد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2868541AC/DC DIN RAIL SUPPLY 5V 32W |
1 |
|
برگه مشخصات |
Step | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 250V | 5V | - | - | - | - | - | 7A | 32W | 4 kV | ITE (Commercial) | 80% | -25°C ~ 70°C (With Derating) | IP20, Load Sharing, Universal Input | 2.40" L x 2.83" W x 3.54" H (61.0mm x 72.0mm x 90.0mm) | - | - |
|
DRL-48V480W1ENAC/DC DIN RAIL 48V 480W - LYTE2 |
0 |
|
برگه مشخصات |
DRL (480W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial), Laboratory | 93.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 2.20" W x 4.60" H (123.7mm x 55.9mm x 116.8mm) | CB, CCC, CE, cURus, EAC, KC, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
DRL-24V480W1ENAC/DC DIN RAIL 24V 480W - LYTE2 |
0 |
|
برگه مشخصات |
DRL (480W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial), Laboratory | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 2.20" W x 4.60" H (123.7mm x 55.9mm x 116.8mm) | CB, CCC, CE, cURus, EAC, KC, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
PSC-12024AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
برگه مشخصات |
PSC-120 (120W) | Box | Active | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 91% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) | CB, CE, cULus, cURus | 60950-1; UL 508 |
|

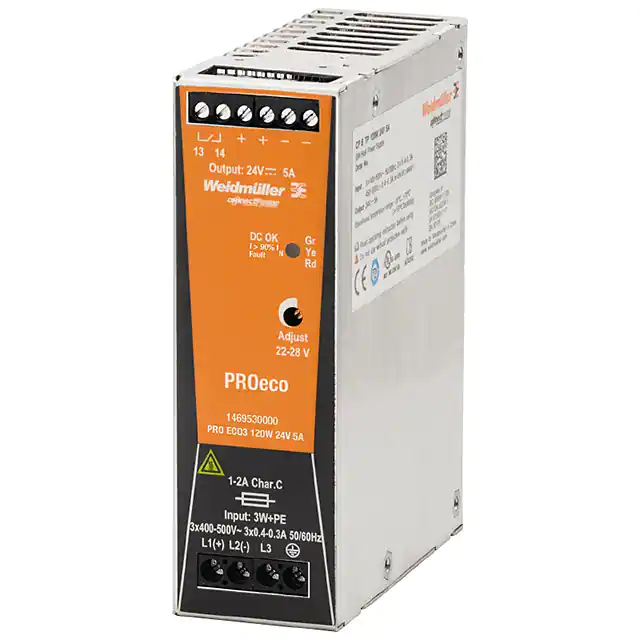

1469530000AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
برگه مشخصات |
PRO ECO3 (120W) | Bulk | Active | AC or DC | 1 | 320 ~ 575 VAC | 450V | 800V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C | Adjustable Output, IP20 | 3.94" L x 1.57" W x 4.92" H (100.0mm x 40.0mm x 125.0mm) | CE, cULus, EAC, TUV | - |
|
|
DRF-24V240W3GBAAC/DC DIN RAIL 24V 240W 3PHASE |
0 |
|
برگه مشخصات |
Force-GT (240W) | Box | Active | AC | 1 | - | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial), Laboratory | 89.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC | 4.88" L x 1.97" W x 4.93" H (124.0mm x 50.0mm x 125.2mm) | CB, CE, cULus, cURus, EAC, KC, SIQ, UKCA | 60950-1; 61010-1; 62368-1 |
|

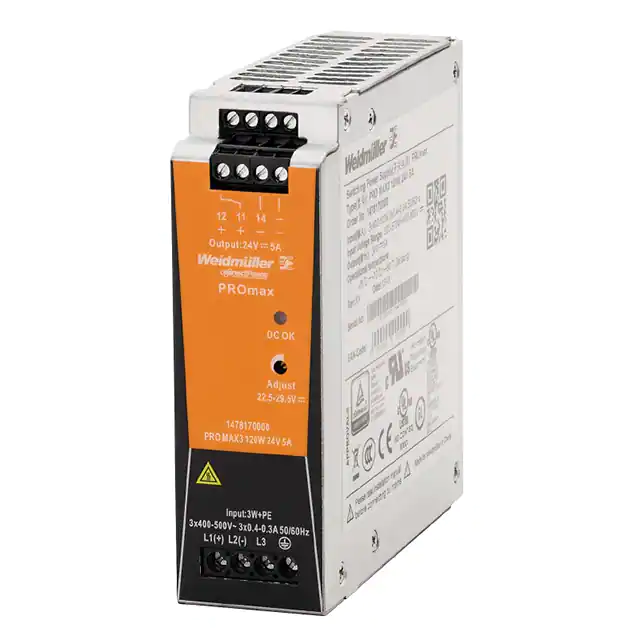

1478170000AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
برگه مشخصات |
PRO MAX3 (120W) | Bulk | Active | AC or DC | 1 | 320 ~ 575 VAC | 450V | 800V | 24V | - | - | - | - | - | 5A | 120W | 4 kV | Industrial, ITE (Commercial) | 90% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 1.57" W x 5.12" H (125.0mm x 40.0mm x 130.0mm) | CE, cULus, cuRus, EAC, TUV | - |
|

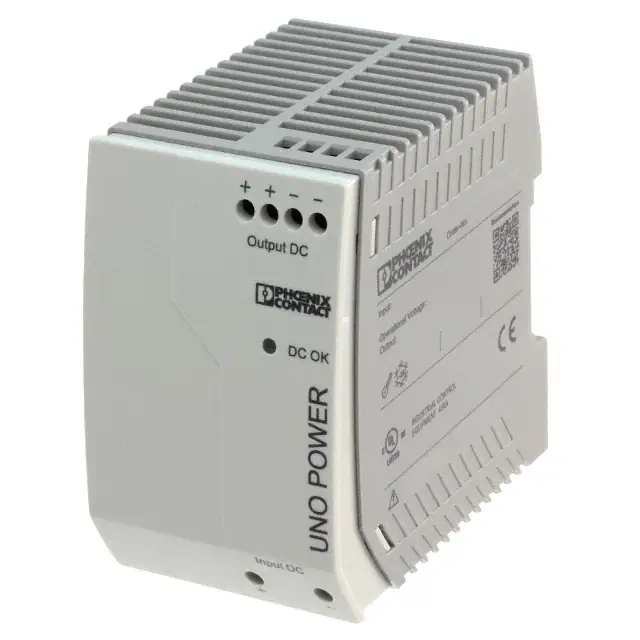

2906300DC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
برگه مشخصات |
UNO (60W) | Bulk | Active | DC | 1 | - | 300V | 1000V | 24V | - | - | - | - | - | 2.5A | 60W | - | ITE (Commercial) | 90% | -25°C ~ 70°C | - | 3.31" L x 2.17" W x 3.54" H (84.0mm x 55.0mm x 90.0mm) | cURus | - |
|
6EP13225BA10AC/DC DIN RAIL SUPPLY 12V 78W |
1 |
|
برگه مشخصات |
6EP1 | Bulk | Active | AC or DC | 1 | 100 ~ 230 VAC, 85 ~ 264 VAC | 110V | 300V | 12V | - | - | - | - | - | 6.5A | 78W | - | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.94" L x 2.07" W x 3.15" H (100.0mm x 52.5mm x 80.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
1478240000PRO MAX 240W 48V 5A |
0 |
|
برگه مشخصات |
- | Bulk | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 370V | 30 ~ 56V | - | - | - | - | - | 5A | 280W | 4 kV | ITE (Commercial) | 92.5% | -25°C ~ 70°C | Adjustable Output, PFC | 4.92" L x 2.36" W x 5.12" H (125.0mm x 60.0mm x 130.0mm) | CE, cULus, cuRus, EAC, TUV | 60950-1 |
|

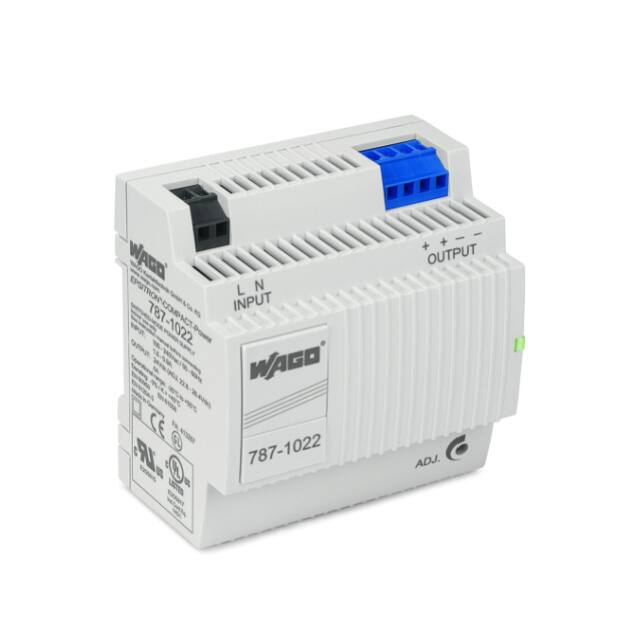

787-1022AC/DC DIN RAIL SUPPLY 24V 96W |
0 |
|
برگه مشخصات |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 24V | - | - | - | - | - | 4A | 96W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 88% | -25°C ~ 60°C | Adjustable Output, IP20, PFC, Universal Input | 2.17" L x 3.54" W x 3.50" H (55.0mm x 90.0mm x 89.0mm) | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
1469540000AC/DC DIN RAIL SUPPLY 24V 240W |
1 |
|
برگه مشخصات |
PRO ECO3 (240W) | Bulk | Active | AC or DC | 1 | 320 ~ 575 VAC | 450V | 800V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 88% | -25°C ~ 70°C | Adjustable Output, IP20 | 3.94" L x 2.36" W x 4.92" H (100.0mm x 60.0mm x 125.0mm) | CE, cULus, EAC, TUV | - |
|
DPX60-24S05DC/DC DIN RAIL SUPPLY 5V 60W |
0 |
|
برگه مشخصات |
DPX (60W) | Bulk | Active | DC | 1 | - | 18V | 36V | 5V | - | - | - | - | - | 12A | 60W | - | ITE (Commercial) | 85% | -40°C ~ 85°C | - | 4.92" L x 0.96" W x 2.27" H (125.0mm x 24.5mm x 57.6mm) | CE | - |
|
|
DRF-24V480W3GBAAC/DC DIN RAIL 24V 480W 3PHASE |
1 |
|
برگه مشخصات |
Force-GT (480W) | Box | Active | AC | 1 | - | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial), Laboratory | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC | 4.88" L x 2.56" W x 5.01" H (124.0mm x 65.0mm x 127.3mm) | CB, CE, cULus, cURus, EAC, KC, SIQ, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
2838480000AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
برگه مشخصات |
PRO BAS (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 370V | 24V | - | - | - | - | - | 20A | 480W | 3.5 kV | Laboratory | 95% | -25°C ~ 70°C | PFC, Universal Input | 4.92" L x 4.92" W x 5.12" H (125.0mm x 125.0mm x 130.0mm) | - | 61010-1 |
|

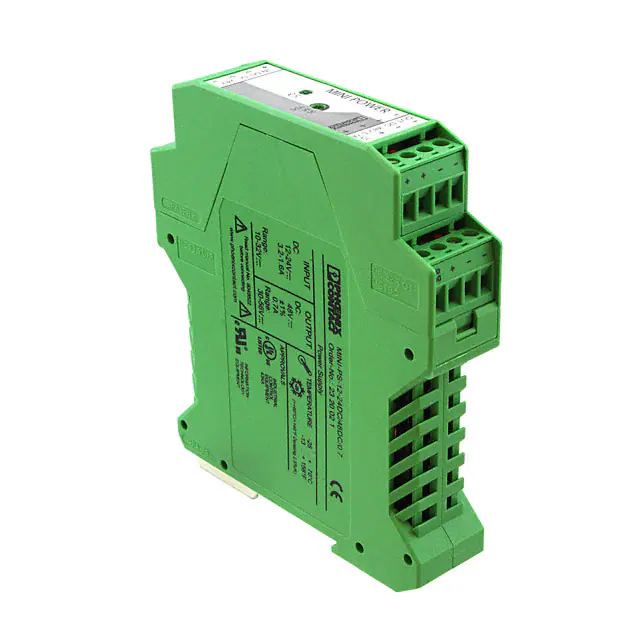

2320021DC/DC DIN RAIL SUPPLY 48V 34W |
0 |
|
برگه مشخصات |
MINI | Bulk | Active | DC | 1 | - | 12V | 24V | 48V | - | - | - | - | - | 700mA | 34W | - | ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | - | 4.21" L x 0.89" W x 3.90" H (107.0mm x 22.5mm x 99.0mm) | cULus, VDE | - |
|
|
SCP30S33-UDNAC/DC DIN RAIL SUPPLY 3.3V 20W |
1 |
|
- |
SCP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 375V | 3.3V | - | - | - | - | - | 6A | 20W | - | ITE (Commercial) | 62% | -25°C ~ 65°C | IP20, Universal Input | 2.55" L x 1.29" W x 4.71" H (65.0mm x 33.0mm x 120.0mm) | CE, cURus | 60950-1 |
|
2903145AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
برگه مشخصات |
TRIO | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 91.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 6.30" L x 1.65" W x 5.12" H (160.0mm x 42.0mm x 130.0mm) | cUL, UL | - |
|
787-1632AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
برگه مشخصات |
- | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 372V | 24V | - | - | - | - | - | 10A | 240W | 4.242 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 6.77" L x 2.17" W x 5.00" H (172.0mm x 55.0mm x 127.0mm) | cURus, UL | 60950-1; UL 508 |
|
SPD241002AC/DC DIN RAIL SUPPLY 24V 101W |
0 |
|
برگه مشخصات |
SPD (100W) | Box | Active | AC or DC | 1 | 340 ~ 575 VAC (2 Phase) | 480V | 820V | 24V | - | - | - | - | - | 4.2A | 101W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC | 4.49" L x 2.13" W x 3.54" H (114.0mm x 54.0mm x 90.0mm) | CE, cULus, TUV | - |
