صنعتی، منابع تغذیه ریلی DIN
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع ورودی | تعداد خروجی ها | ولتاژ AC - ورودی | ولتاژ DC - ورودی (حداقل) | ولتاژ DC - ورودی (حداکثر) | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی (حداکثر) | توان (وات) | ولتاژ - جداسازی | برنامه های کاربردی | کارایی | دمای عملیاتی | ویژگی ها | اندازه / ابعاد | آژانس تایید | شماره استاندارد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABLS1A24021AC/DC DIN RAIL SUPPLY 24V 50W |
1 |
|
برگه مشخصات |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 2.1A | 50W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | PFC | 3.52" L x 1.18" W x 2.95" H (89.4mm x 30.0mm x 74.9mm) | CB, CE, cUL, EAC, KC | 62368-1; UL 508 |
|
ABLS1A12062AC/DC DIN RAIL SUPPLY 12V 75W |
0 |
|
برگه مشخصات |
- | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 140V | 340V | 12V | - | - | - | - | - | 6.25A | 75W | 3 kV | ITE (Commercial), Laboratory | 87% | -20°C ~ 70°C (With Derating) | IP20, Universal Input | 4.02" L x 1.06" W x 4.87" H (102.0mm x 27.0mm x 123.6mm) | CB, CE, CSA, CuL, EAC, EN, IEC, KC, NEC Class 2, UL | 60950-1; 61010-1; 62368-1 |
|
|
RACPRO1-4SP/24V/5A4-CHANNEL 5A E-FUSE |
0 |
|
- |
RACPRO1-4SP | Box | Active | DC | 1 | - | 22V | 28V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial), Laboratory | 98.6% | -40°C ~ 70°C | Universal Input | 2.44" L x 2.83" W x 4.37" H (61.9mm x 72.0mm x 111.0mm) | CB, CE | 61010-1; 62368-1 |
|
|
1107892TRIO-PS-2G/1500DC/24DC/1.5 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC | 1 | - | 450V | 1.65kV | 24V | - | - | - | - | - | 1.5A | 36W | 2.6 kV | ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output | 4.53" L x 1.89" W x 5.12" H (115.0mm x 48.0mm x 130.0mm) | cULus, cURus, EAC, UL | - |
|
|
DP1603RELAY ADAPTER, 2 CHANNEL, 2 DIGI |
1 |
|
برگه مشخصات |
- | Box | Active | DC | 1 | - | - | 24V | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 60°C | - | 1.18" L x 0.94" W x 2.48" H (30.0mm x 24.0mm x 63.0mm) | CE, UKCA | - |
|
|
REDIIN480-48480W AC/DC-CONVERTER 'DIN-RAIL' |
0 |
|
برگه مشخصات |
REDIIN480 (480W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial), Laboratory | 93.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.60" L x 2.20" W x 4.87" H (116.8mm x 55.9mm x 123.7mm) | CE, cULus, cURus, UKCA | 61010-1; 62368-1 |
|
|
89452121PWR SUPPLY OUTPUT 12VDC 10A |
1 |
|
برگه مشخصات |
- | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 8A | 96W | - | Industrial, ITE (Commercial) | 89% | -25°C ~ 50°C (With Derating) | Universal Input | 4.04" L x 1.69" W x 4.32" H (102.7mm x 43.0mm x 109.8mm) | CE, UKCA, UL | 62368-1; UL 508 |
|
ABLM1A05036AC/DC DIN RAIL SUPPLY 5V 18W |
1 |
|
برگه مشخصات |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 5V | - | - | - | - | - | 3.6A | 18W | 3 kV | ITE (Commercial), Laboratory | 80% | -25°C ~ 70°C (With Derating) | IP20, Universal Input | 2.19" L x 1.42" W x 3.58" H (55.6mm x 36.1mm x 90.9mm) | CB, CE, CSA, CuL, EAC, EN, IEC, KC, NEC Class 2, UL | 60950-1; 61010-1; 62368-1 |
|
|
RACPRO1-4SP/24V/10A4-CHANNEL 10A E-FUSE |
0 |
|
- |
RACPRO1-4SP | Box | Active | DC | 1 | - | 22V | 28V | 24V | - | - | - | - | - | 10A | 240W | - | ITE (Commercial), Laboratory | 98.6% | -40°C ~ 70°C (With Derating) | Universal Input | 2.44" L x 2.83" W x 4.37" H (61.9mm x 72.0mm x 111.0mm) | CB, CE | 61010-1; 62368-1 |
|
ABLM1A12021AC/DC DIN RAIL SUPPLY 12V 25W |
1 |
|
برگه مشخصات |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 12V | - | - | - | - | - | 2.1A | 25W | 3 kV | ITE (Commercial), Laboratory | 85% | -25°C ~ 70°C (With Derating) | IP20, Universal Input | 2.19" L x 1.42" W x 3.58" H (55.6mm x 36.1mm x 90.9mm) | CB, CE, CSA, CuL, EAC, EN, IEC, KC, NEC Class 2, UL | 60950-1; 61010-1; 62368-1 |
|
|
DRF-24V240W3GTADIN-RAIL PS 240W/24V COATED, 3PH |
0 |
|
برگه مشخصات |
Force-GT (240W) | Box | Active | AC | 1 | 320 ~ 575 VAC (3 Phase), 340 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial), Laboratory | 89.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC | 4.93" L x 1.97" W x 4.88" H (125.2mm x 50.0mm x 124.0mm) | CB, CE, cULus, cURus, EAC, SIQ, UKCA | 61010-1;60950-1;62368-1 |
|

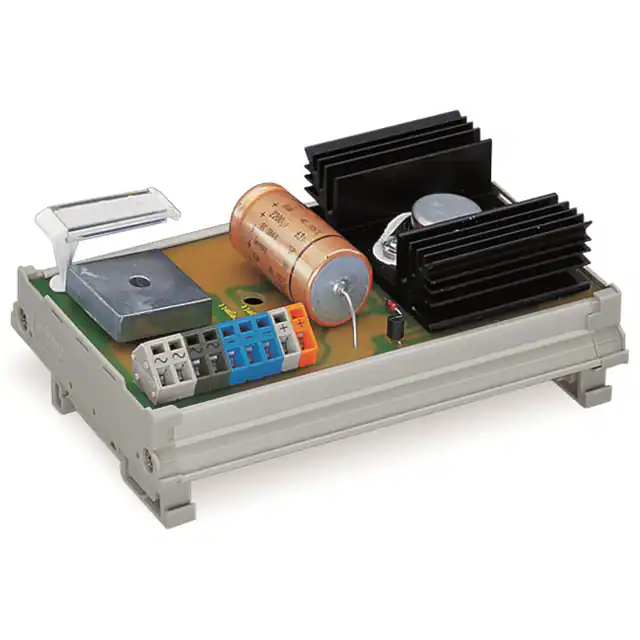

288-800AC/DC CONVERTER 24V |
1 |
|
برگه مشخصات |
- | Box | Active | - | 1 | - | - | - | 24V | - | - | - | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 40°C | - | 3.35" L x 5.51" W x 1.73" H (85.0mm x 140.0mm x 44.0mm) | CE | - |
|

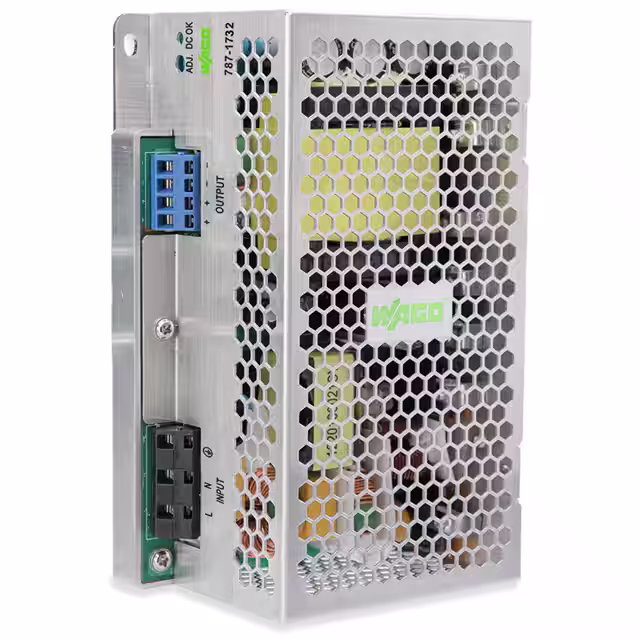

787-1732AC/DC DIN RAIL SUPPLY 24V 240W |
1 |
|
برگه مشخصات |
- | Box | Active | AC or DC | 1 | 110 ~ 240 VAC | 125V | 375V | 24V | - | - | - | - | - | 10A | 240W | 4.242 kV | Household Appliances, Industrial, ITE (Commercial) | 91% | -20°C ~ 60°C | Adjustable Output, IP20, PFC, Universal Input | 3.90" L x 2.76" W x 6.50" H (99.0mm x 70.0mm x 165.0mm) | CE, cURus, EAC, UL | 60335-1; 60950-1; 62368-1; UL 508 |
|
ABLM1A12042AC/DC DIN RAIL SUPPLY 12V 50W |
1 |
|
برگه مشخصات |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 12V | - | - | - | - | - | 4.17A | 50W | 3 kV | ITE (Commercial), Laboratory | 88% | -25°C ~ 70°C (With Derating) | IP20, Universal Input | 2.19" L x 2.09" W x 3.58" H (55.6mm x 53.1mm x 90.9mm) | CB, CE, CSA, CuL, EAC, EN, IEC, KC, NEC Class 2, UL | 60950-1; 61010-1; 62368-1 |
|
|
RACPRO1-T240/24240W AC/DC-CONVERTER 'DIN-RAIL' |
0 |
|
- |
POWERLINE RACPRO1-T240 (240W) | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase) | 450V | 815V | 24V | - | - | - | - | - | 10A | 240W | 3.5 kV | ITE (Commercial), Laboratory | 94.1% | -40°C ~ 70°C (With Derating) | IP20, Universal Input | 5.53" L x 1.69" W x 5.31" H (140.4mm x 43.0mm x 135.0mm) | CB, CE, CSA, EN, IEC, UL | 61010-1; 62368-1 |
|
|
2486090000PRO RM 10 |
1 |
|
برگه مشخصات |
- | Box | Active | DC | 1 | - | 10V | 32V | 9.87 ~ 32V | - | - | - | - | - | 24A | 768W | 500 V | ITE (Commercial) | 98% | -40°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 1.18" W x 5.12" H (125.0mm x 30.0mm x 130.0mm) | cULus, TUV | - |
|
ABLS1A24038AC/DC DIN RAIL SUPPLY 24V 91W |
1 |
|
برگه مشخصات |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 91W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | IP20, Universal Input | 3.94" L x 1.77" W x 2.95" H (100.0mm x 45.0mm x 75.0mm) | CB, CE, CSA, CuL, EAC, EN, IEC, KC, NEC Class 2, UL | 60950-1; 62368-1 |
|
|
6EP33336SC000AY0LOGO POWER/1AC/DC24V/4A/EX |
1 |
|
برگه مشخصات |
6EP3 | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 300V | 24V | - | - | - | - | - | 4A | 96W | - | ITE (Commercial) | 89% | -25°C ~ 70°C | Adjustable Output | 2.09" L x 2.83" W x 3.54" H (53.0mm x 72.0mm x 90.0mm) | CE | 60950-1 |
|
DPX40-48T0515DC/DC DIN RAIL SUP 5V +/-15V 40W |
1 |
|
برگه مشخصات |
DPX (40W) | Bulk | Active | DC | 3 | - | 36V | 75V | 5V | 15V | -15V | - | - | - | 6A, 300mA, 300mA | 40W | - | ITE (Commercial) | 85% | -40°C ~ 85°C | - | 4.92" L x 0.96" W x 2.27" H (125.0mm x 24.5mm x 57.6mm) | CE | - |
|
|
DP2302COUNTER WITH MONITORING AND DISP |
1 |
|
برگه مشخصات |
- | Box | Active | DC | 1 | - | 18V | 30V | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 60°C | - | 1.18" L x 0.94" W x 2.48" H (30.0mm x 24.0mm x 63.0mm) | CE, cULus, UKCA | - |
