صنعتی، منابع تغذیه ریلی DIN
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع ورودی | تعداد خروجی ها | ولتاژ AC - ورودی | ولتاژ DC - ورودی (حداقل) | ولتاژ DC - ورودی (حداکثر) | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی (حداکثر) | توان (وات) | ولتاژ - جداسازی | برنامه های کاربردی | کارایی | دمای عملیاتی | ویژگی ها | اندازه / ابعاد | آژانس تایید | شماره استاندارد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

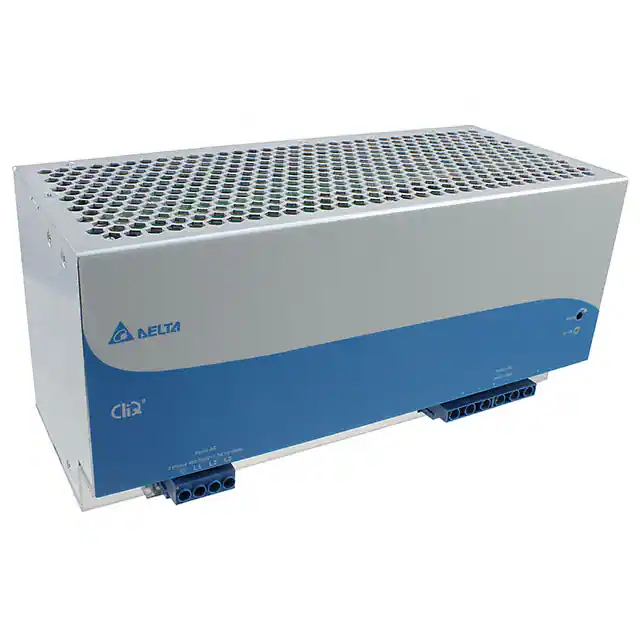

DRP024V960W3BNAC/DC DIN RAIL SUPPLY 24V 960W |
53 |
|
برگه مشخصات |
CliQ II (960W) | Bulk | Active | AC | 1 | 320 ~ 600 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 65°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 10.04" L x 4.62" W x 4.76" H (255.0mm x 117.30mm x 121.0mm) | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61204-3; 62368-1 |
|
CP10.361AC/DC DIN RAIL SUPPLY 36V 240W |
40 |
|
برگه مشخصات |
DIMENSION CP (240W) | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 36V | - | - | - | - | - | 6.7A | 240W | 3 kV | Hazardous Locations, ITE (Commercial) | 95.1% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.61" L x 1.54" W x 4.88" H (117.0mm x 39.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CP10.241-M1AC/DC DIN RAIL SUPPLY 24V 240W |
32 |
|
برگه مشخصات |
DIMENSION CP (240W) | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 150V | 24V | - | - | - | - | - | 10A | 240W | 500 V | Industrial, ITE (Commercial), Medical | 95.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC | 4.61" L x 1.54" W x 4.88" H (117.0mm x 39.0mm x 124.0mm) | EAC, IEC, UL | 60601 |
|

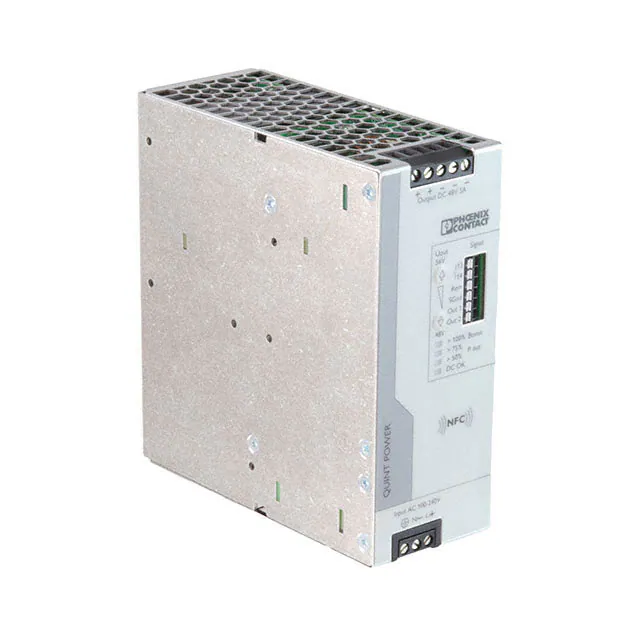

2904610AC/DC DIN RAIL SUPPLY 48V 240W |
78 |
|
برگه مشخصات |
Quint | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 48V | - | - | - | - | - | 5A | 240W | - | Industrial, ITE (Commercial), Laboratory | 93.5% | -25°C ~ 70°C (With Derating) | IP20 | 4.92" L x 1.97" W x 5.12" H (125.0mm x 50.0mm x 130.0mm) | CB, CSA, CSAus, cUL, cULus, cURus, EAC, TUV, UL | - |
|

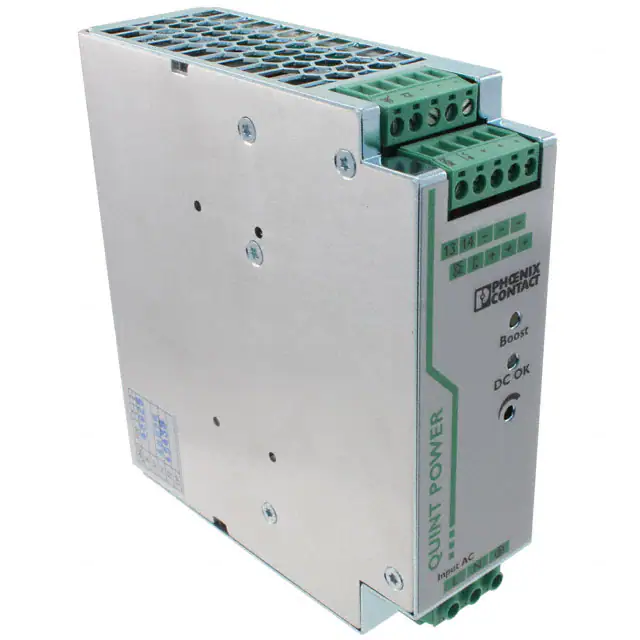

2866750AC/DC DIN RAIL SUPPLY 24V 120W |
641 |
|
برگه مشخصات |
Quint | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 1.57" W x 5.12" H (125.0mm x 40.0mm x 130.0mm) | CB, cULus, cURus | - |
|
SDN5-24-100CAC/DC DIN RAIL SUPPLY 24V 120W |
31 |
|
برگه مشخصات |
SDN-C | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 5A | 120W | - | Hazardous Locations, Industrial, ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.36" L x 1.97" W x 4.85" H (110.7mm x 50.0mm x 123.2mm) | CE, cULus, cURus, EAC | - |
|

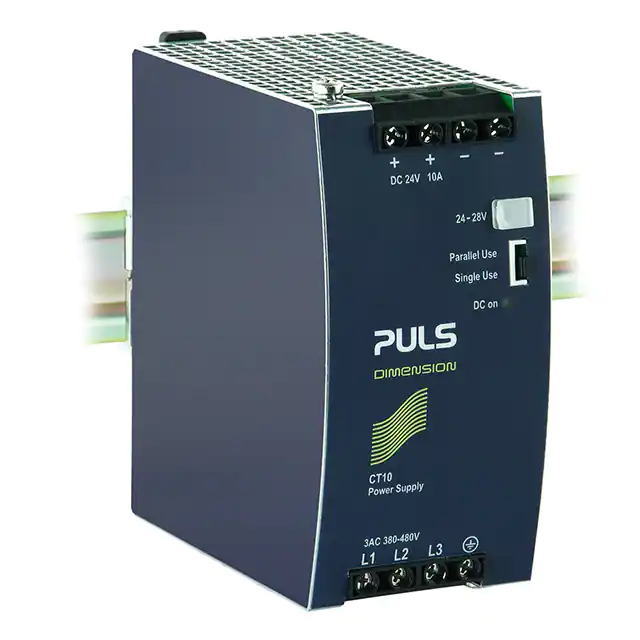

CT10.241AC/DC DIN RAIL SUPPLY 24V 240W |
61 |
|
برگه مشخصات |
DIMENSION C (240W) | Box | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10.8A | 240W | 500 V | ITE (Commercial) | 92.9% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.61" L x 2.44" W x 4.88" H (117.0mm x 62.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|

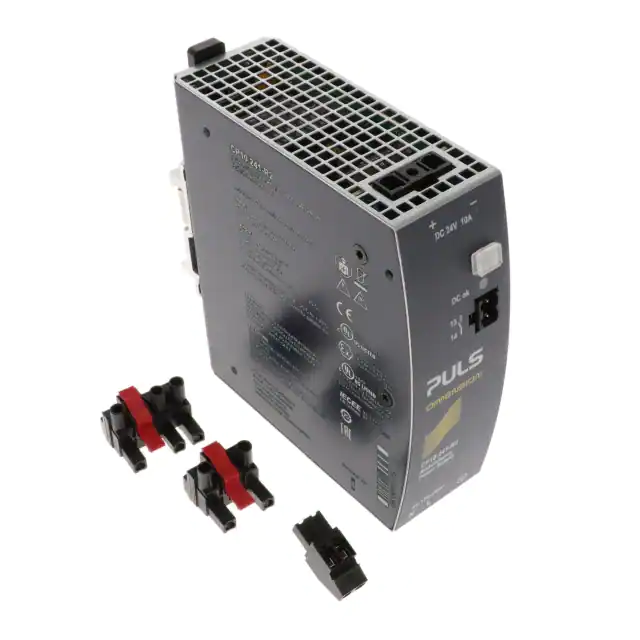

CP10.241-R2AC/DC DIN RAIL SUPPLY 24V 240W |
42 |
|
برگه مشخصات |
DIMENSION CP (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | Hazardous Locations, Industrial, ITE (Commercial), Laboratory | 94.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.61" L x 1.54" W x 4.88" H (117.0mm x 39.0mm x 124.0mm) | CE, cULus, EAC | 60950-1; 61010-1; 62368-1; ATEX; 508 |
|

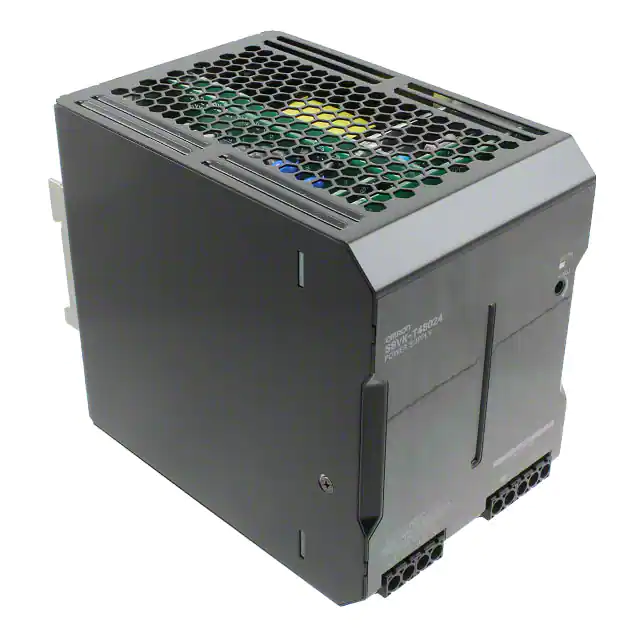

S8VK-T48024AC/DC DIN RAIL SUPPLY 24V 480W |
170 |
|
برگه مشخصات |
S8VK-T (480W) | Box | Active | AC | 1 | 320 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | 5.91" L x 3.74" W x 4.92" H (150.0mm x 95.0mm x 125.0mm) | CE, TUV, UL | - |
|
CD5.121DC/DC DIN RAIL SUPPLY 12V 96W |
29 |
|
برگه مشخصات |
DIMENSION CD (92 ~ 120W) | Bulk | Active | DC | 1 | - | 18V | 32.4V | 12V | - | - | - | - | - | 8A | 96W | - | ITE (Commercial) | 88.2% | -25°C ~ 70°C (With Derating) | - | 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1 |
|

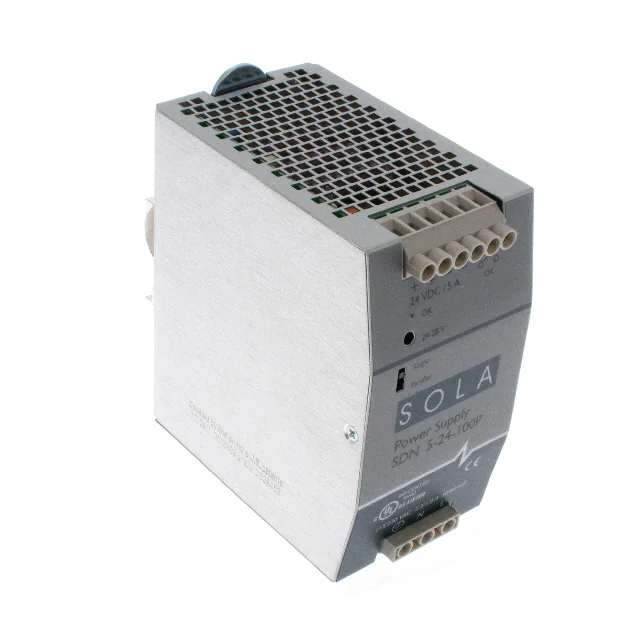

SDN5-24-100PAC/DC DIN RAIL SUPPLY 24V 120W |
37 |
|
برگه مشخصات |
SDN-P | Bulk | Active | AC or DC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | 210V | 375V | 24V | - | - | - | - | - | 5A | 120W | - | Hazardous Locations, Industrial, ITE (Commercial) | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.55" L x 2.56" W x 4.88" H (115.6mm x 65.0mm x 124.0mm) | CE, cULus, cURus | - |
|
CD5.241-L1DC/DC DIN RAIL SUPPLY 24V 92W |
56 |
|
برگه مشخصات |
DIMENSION CD (92 ~ 120W) | Bulk | Active | DC | 1 | - | 14.4V | 32.4V | 24V | - | - | - | - | - | 3.8A | 92W | - | ITE (Commercial) | 90.5% | -25°C ~ 70°C (With Derating) | - | 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, NEC, UL | Class I Div 2; Class 2; 508; 60950-1 |
|

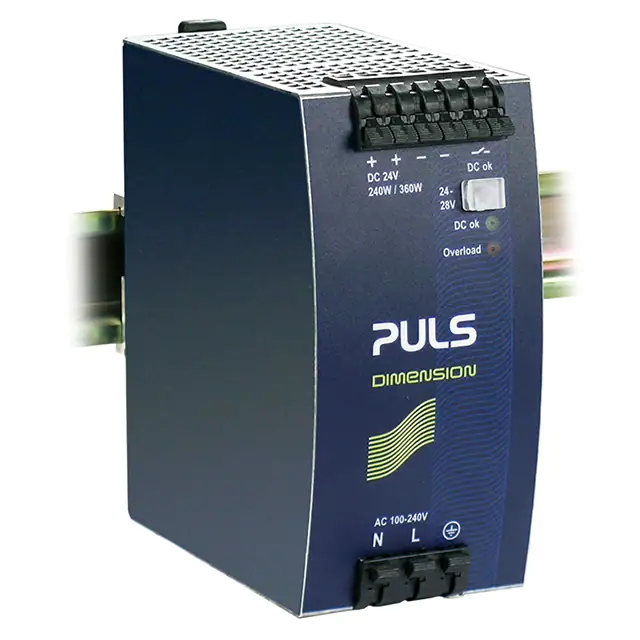

QS10.241AC/DC DIN RAIL SUPPLY 24V 240W |
87 |
|
برگه مشخصات |
DIMENSION Q (240W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | ITE (Commercial) | 93.5% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|
2904602AC/DC DIN RAIL SUPPLY 24V 480W |
275 |
|
برگه مشخصات |
Quint | Box | Active | AC | 1 | 100 ~ 250 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, IP20 | 4.92" L x 2.75" W x 5.12" H (125.0mm x 70.0mm x 130.0mm) | CSA, cUL, cURus | - |
|
2904622AC/DC DIN RAIL SUPPLY 24V 480W |
95 |
|
برگه مشخصات |
Quint | Box | Active | AC | 1 | 400 ~ 500 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 93.9% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, IP20 | 4.92" L x 2.75" W x 5.12" H (125.0mm x 70.0mm x 130.0mm) | CSA, cUL, cURus | - |
|
VHK200W-Q24-S24-DINDC/DC DIN RAIL SUPPLY 24V 200W |
40 |
|
برگه مشخصات |
VHK200W-DIN (200W) | Box | Active | DC | 1 | - | 10V | 36V | 24V | - | - | - | - | - | 8.3A | 200W | - | - | 84% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|

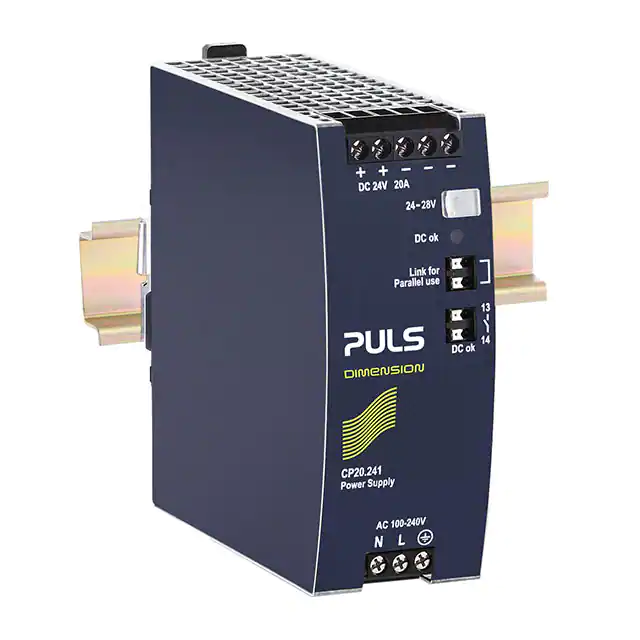

CP20.241AC/DC DIN RAIL SUPPLY 24V 480W |
149 |
|
برگه مشخصات |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, ITE (Commercial) | 95.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.00" L x 1.89" W x 4.88" H (127.0mm x 48.0mm x 124.0mm) | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201 |
|
CD10.241DC/DC DIN RAIL SUPPLY 24V 240W |
64 |
|
برگه مشخصات |
DIMENSION CD (240W) | Box | Active | DC | 1 | - | 18V | 35V | 24V | - | - | - | - | - | 10A | 240W | 500 V | Hazardous Locations, Industrial, ITE (Commercial), Laboratory | 94.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.61" L x 1.65" W x 4.88" H (117.0mm x 42.0mm x 124.0mm) | EAC, IEC, UL | 60950-1; 61010-2-201 |
|
CT10.241-C1AC/DC DIN RAIL SUPPLY 24V 240W |
68 |
|
برگه مشخصات |
DIMENSION C (240W) | Box | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | ITE (Commercial) | 92.9% | -25°C ~ 70°C (With Derating) | Adjustable Output, Conformal Coating, Load Sharing | 4.61" L x 2.44" W x 4.88" H (117.0mm x 62.0mm x 124.0mm) | ABS, DNV GL, EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|

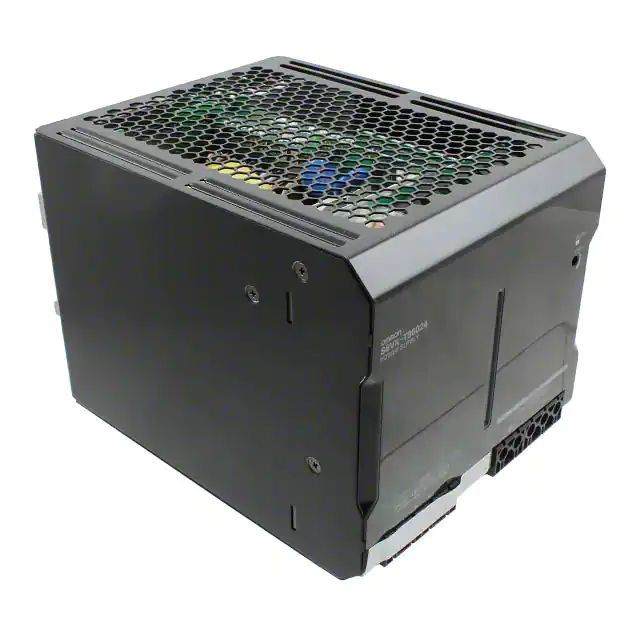

S8VK-T96024AC/DC DIN RAIL SUPPLY 24V 960W |
286 |
|
برگه مشخصات |
S8VK-T (960W) | Box | Active | AC | 1 | 320 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 3 kV | ITE (Commercial) | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | 7.09" L x 3.74" W x 4.92" H (180.0mm x 95.0mm x 125.0mm) | CE, TUV, UL | - |
